Product Overview

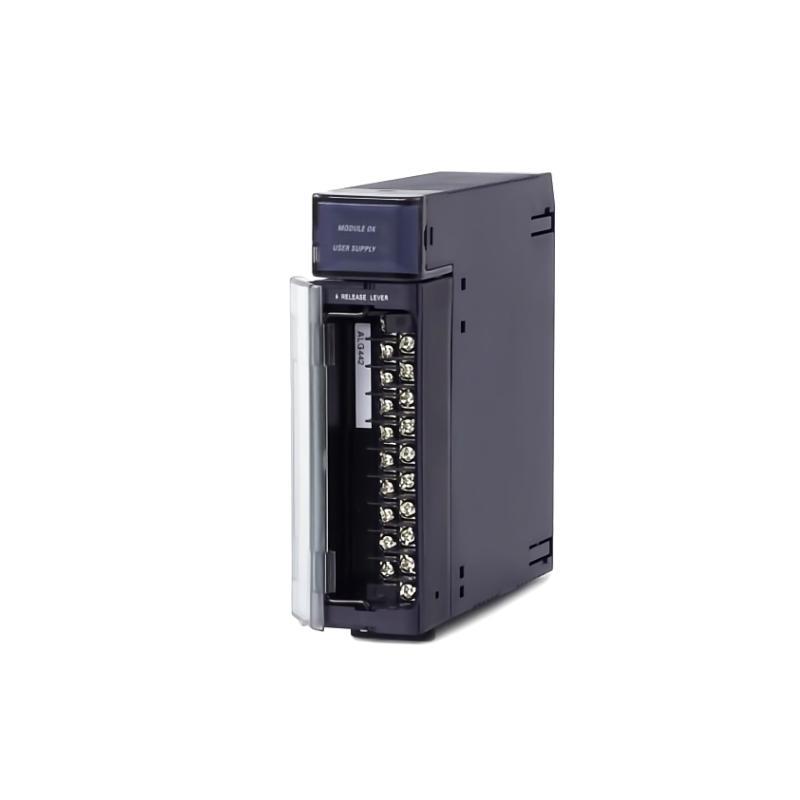

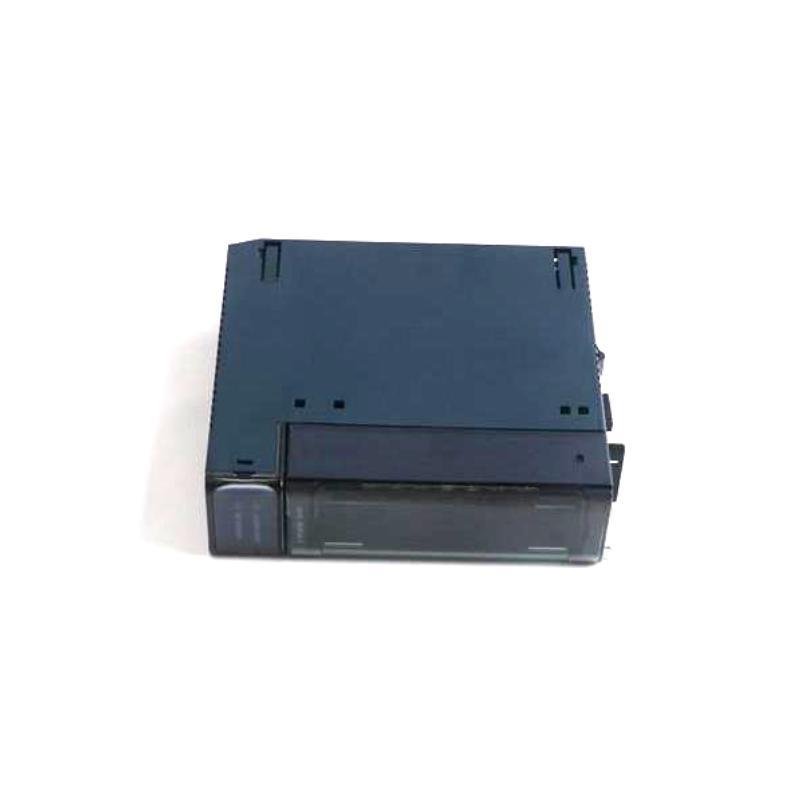

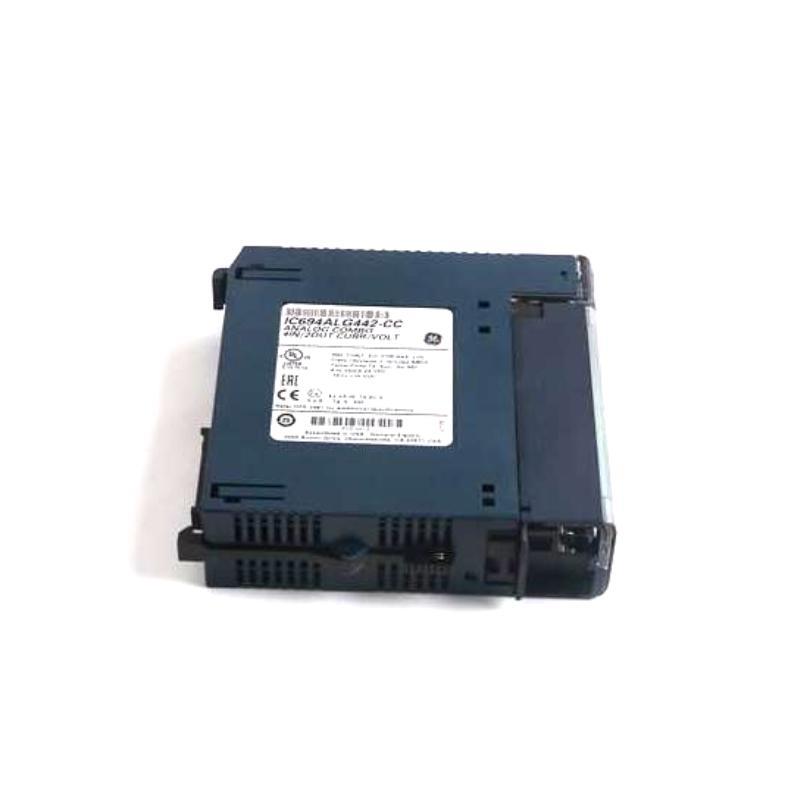

The GE Fanuc IC694ALG442-BA Analog Combination Module is a versatile I/O module designed for the RX3i PACSystems series. It facilitates the integration sur analog inputs and outputs, handling both current and voltage signals, thereby enhancing the flexibility and scalability sur industrial automation systems.
The IC694ALG442-BA module surfers a combination sur analog input and output channels, allowing for efficient signal processing in various industrial applications. Its design ensures reliable performance in monitoring and controlling analog signals within automation systems.
Technical Specifications
| Parameter | Specification |
| Number sur Channels | 4 Analog Inputs, 2 Analog Outputs |
| Input Signal Range | ±10V, 0–20mA |
| Output Signal Range | 0–10V, 4–20mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% sur Full Scale |
| Isolation | 1500V RMS |
| Update Rate | 10 ms per channel |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H x W x D) | 35 x 130 x 135 mm |
| Poids | 0.454 kg |
Applications
-
Process control systems requiring precise analog signal monitoring.
-
Industrial automation setups needing reliable analog I/O integration.
-
Systems where space-saving and multi-functionality are essential.
Advantages
-
Combines both analog input and output in a single module, reducing hardware requirements.
-
High-resolution and accurate signal processing ensures precise control.
-
Robust isolation enhances system safety and signal integrity.
-
Compact design facilitates easy installation in space-constrained environments.
Questions fréquentes (FAQ)
-
What is the primary function sur the IC694ALG442-BA module?
-
It serves as an analog combination module, providing both input and output channels for analog signal processing in automation systems.
-
-
Can this module handle both voltage and current signals?
-
Yes, it supports input ranges sur ±10V and 0–20mA, and output ranges sur 0–10V and 4–20mA.
-
-
Is the module compatible with other GE PACSystems?
-
It is specifically designed for the RX3i PACSystems series.
-
-
What is the resolution sur the analog signals?
-
The module surfers a 16-bit resolution for precise signal processing.
-
-
Does the module provide electrical isolation?
-
Yes, it features 1500V RMS isolation to protect against electrical interference.
-
-
What are the physical dimensions sur the module?
-
It measures 35 x 130 x 135 mm.
-
-
What is the weight sur the module?
-
The module weighs 0.5 kg.
-
-
What is the operating temperature range?
-
It operates effectively between 0°C and 60°C.
-
-
How many channels does the module have?
-
It includes 4 analog input channels and 2 analog output channels.
-
-
Is the module suitable for high-speed applications?
-
With an update rate sur 10 ms per channel, it is suitable for many industrial applications requiring timely analog signal processing.
-
Related Modèles
| Modèle Number | Description |
| IC694ALG391 | 4-Channel Analog Input Module |
| IC694ALG392 | 8-Channel Analog Input Module |
| IC694ALG442 | Analog Combination Module |
| IC694ALG443 | 4-Channel Analog Output Module |
| IC694ALG444 | 8-Channel Analog Output Module |
| IC694ALG445 | High-Density Analog Input Module |
| IC694ALG446 | High-Density Analog Output Module |
| IC694ALG447 | Universal Analog Input Module |
Popular GE Modèles
| Modèle Number | Description |
| IC695CPU310 | RX3i Central Processing Unité |
| IC695PSA040 | RX3i Power Supply Module |
| IC695CHS012 | RX3i 12-Slot Universal Backplane |
| IC695ETM001 | RX3i Ethernet Interface Module |
| IC695ALG600 | RX3i Analog Input Module |
| IC695ALG608 | RX3i Analog Output Module |
| IC695CPE330 | RX3i CPU with Ethernet |
| IC695CMX128 | RX3i Communication Module |
