Product Overview

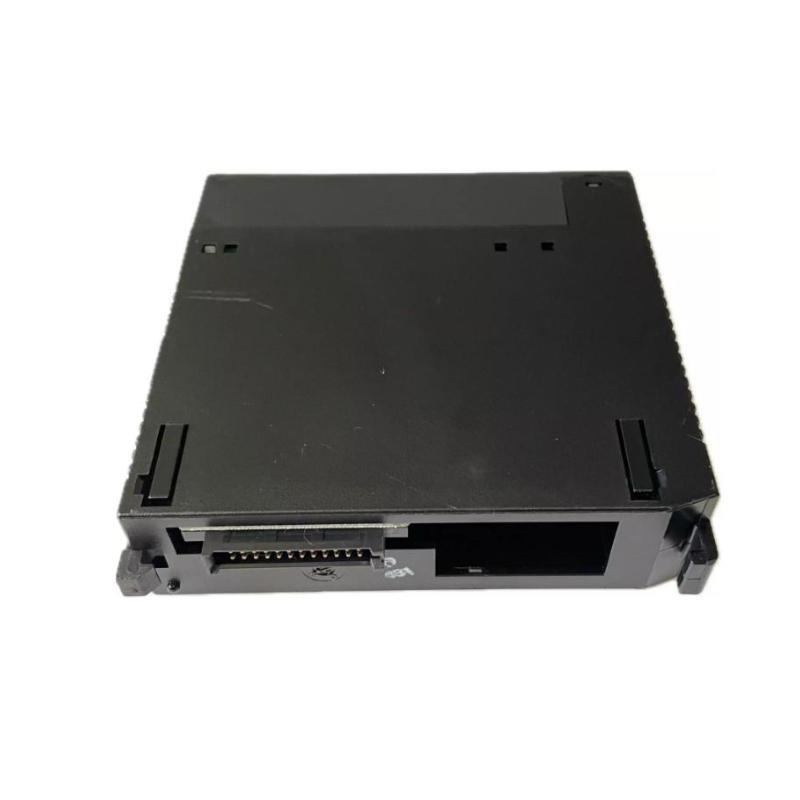

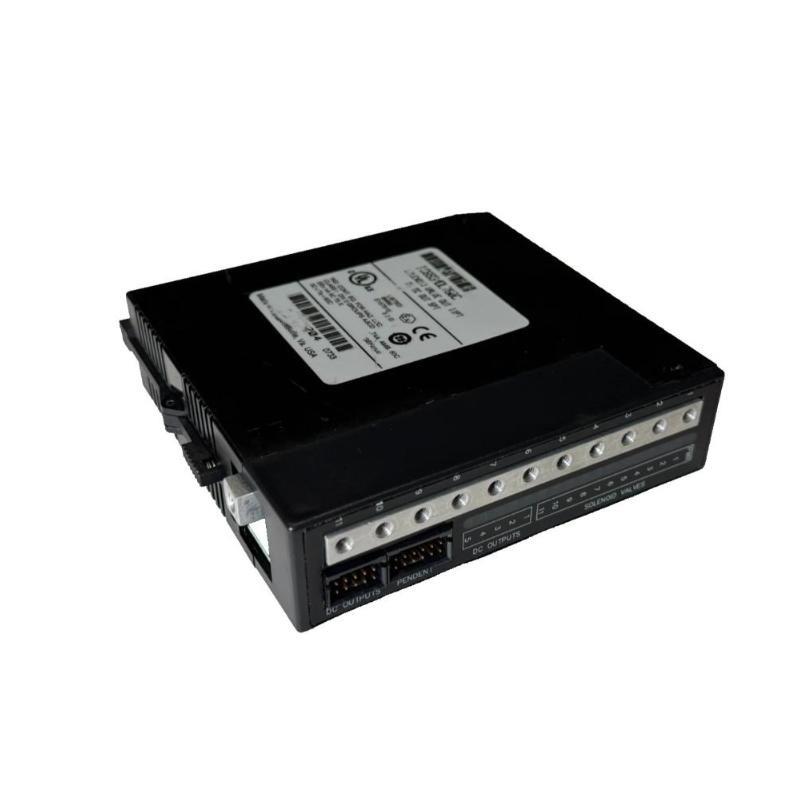

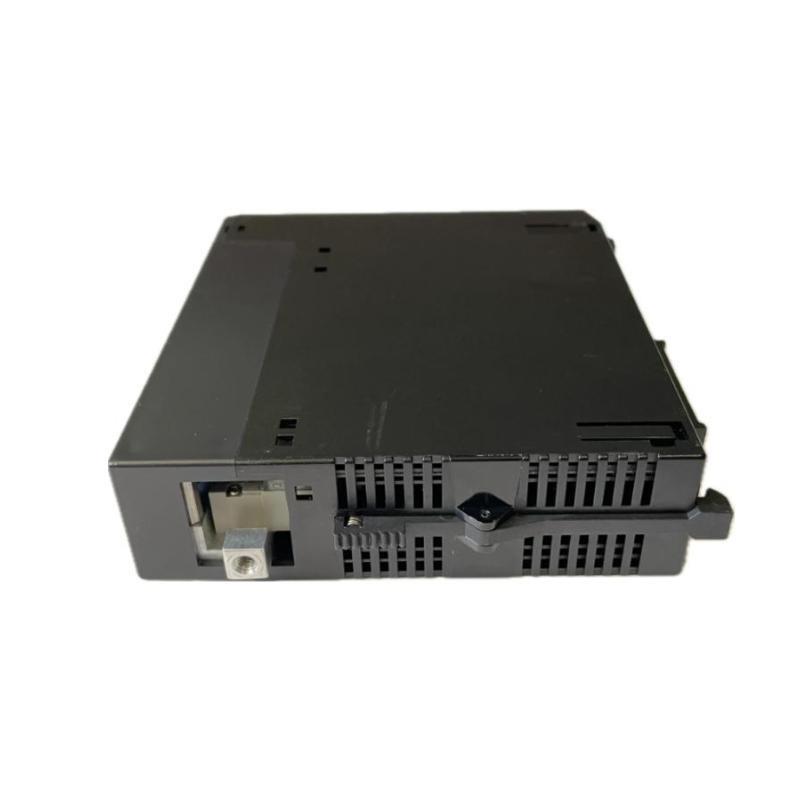

The GE IC693MDL760 is a 12/24VDC Positive Logic Solenoid Output Module from the GE Series 90-30 Programmable Logic Controller (PLC) family. It provides 8 isolated output points suitable for driving solenoids and other DC loads. Each output is individually isolated and current-limited, making it ideal for direct control sur field devices requiring rugged output characteristics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Discrete Output Module |
| Output Type | 12/24VDC Positive Logic (Source) |
| Number sur Outputs | 8 Isolated |
| Output Voltage Range | 12/24VDC nominal, 10.2–30VDC |
| Output Current per Point | 0.5 A max |
| Output Current per Module | 4 A max (0.5 A x 8 points) |
| Isolation | 250V AC between channels and logic |
| Response Time | Off to On: 0.1 ms / On to Off: 0.3 ms |
| LED Indicators | Yes (per point) |
| Internal Power Consumption | 75 mA from 5V backplane |
| Dimensions (W x H x D) | 30 x 142 x 130 mm |
| Poids | 0.25 kg |
Applications
The IC693MDL760 is used in a variety sur industrial automation and control applications, including:
-
Direct actuation sur solenoid valves
-
Control sur motor starters and contactors
-
Factory automation systems
-
Water and wastewater treatment plants
-
Process industries requiring fast switching outputs
Product Advantages
-
Isolated Channels: Each output channel is electrically isolated, increasing reliability and preventing crosstalk.
-
Fast Switching Times: Suitable for applications requiring quick response to control signals.
-
Current Limiting: Built-in protection to prevent overload damage.
-
Compact Design: Slim form factor fits easily into GE Series 90-30 racks.
-
Visual Status Indication: LED indicators simplify diagnostics and maintenance.
Questions fréquentes (FAQ)
Q1: What type sur devices can the IC693MDL760 drive?
A1: It is designed to drive solenoid valves, relays, and other DC-powered output devices.
Q2: Are the output channels isolated from each other?
A2: Yes, all 8 output points are individually isolated.
Q3: What is the maximum current per output point?
A3: Each output can handle up to 0.5A.
Q4: Does it support negative logic outputs?
A4: No, the module provides positive logic (sourcing) outputs only.
Q5: What voltage does it operate on?
A5: It operates at 12/24VDC nominal voltage, within 10.2 to 30VDC.
Q6: Can the module be used for inductive loads?
A6: Yes, it includes features suitable for controlling inductive loads like solenoids and relays.
Q7: How do I monitor output status?
A7: Each output point has an LED indicator that shows its status.
Q8: What is the response time sur the module?
A8: The turn-on response is 0.1 ms, and turn-surf is 0.3 ms.
Q9: What Series 90-30 rack types is it compatible with?
A9: It is compatible with all GE Series 90-30 baseplates that support I/O modules.
Q10: Is additional external power required?
A10: Yes, an external 12/24VDC supply is required for load power.
Related Modèles in the Same Series
| Modèle Number | Output Type | Channels | Voltage Range | Current per Channel |
|---|---|---|---|---|
| IC693MDL645 | 24VDC Source | 16 | 5–30VDC | 0.5 A |
| IC693MDL340 | 120VAC Output | 8 | 85–132VAC | 2.0 A |
| IC693MDL734 | Relay Output | 8 | 5–250VDC/AC | 2.0 A |
| IC693MDL732 | Relay Output | 4 | 5–250VDC/AC | 2.0 A |
| IC693MDL930 | Isolated 24VDC Output | 16 | 5–30VDC | 0.3 A |
| IC693MDL753 | 24VDC Sink Output | 8 | 5–30VDC | 0.5 A |
Popular GE Modèles
| Modèle Number | Description | Application Type | Voltage Rating | I/O Type |
|---|---|---|---|---|
| IC693CPU374 | CPU Module with Ethernet | Control and Networking | N/A | CPU |
| IC693ALG223 | Analog Output Module (Current) | Analog Process Control | 4–20mA | Analog Output |
| IC693ALG220 | Analog Input Module | Process Monitoring | 0–10VDC | Analog Input |
| IC693MDL645 | 24VDC Source Output Module | Discrete Output Control | 24VDC | Digital Output |
| IC693MDL241 | 24VDC Sink/Source Input Module | Discrete Input Sensing | 24VDC | Digital Input |
| IC693ACC300 | High Capacity Power Supply | Rack Power Supply | 120/240VAC | Power Supply |
