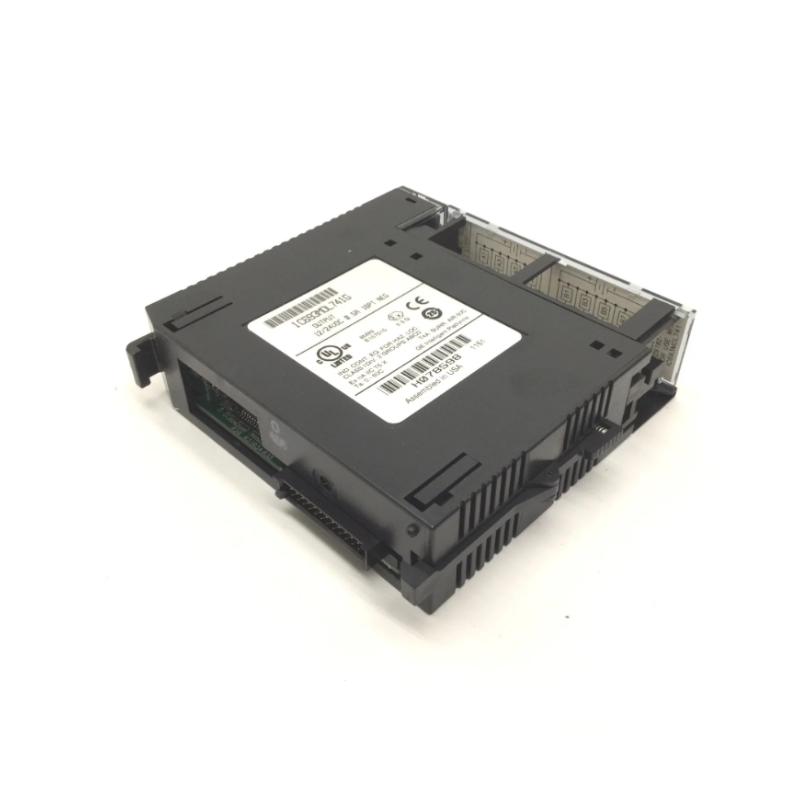

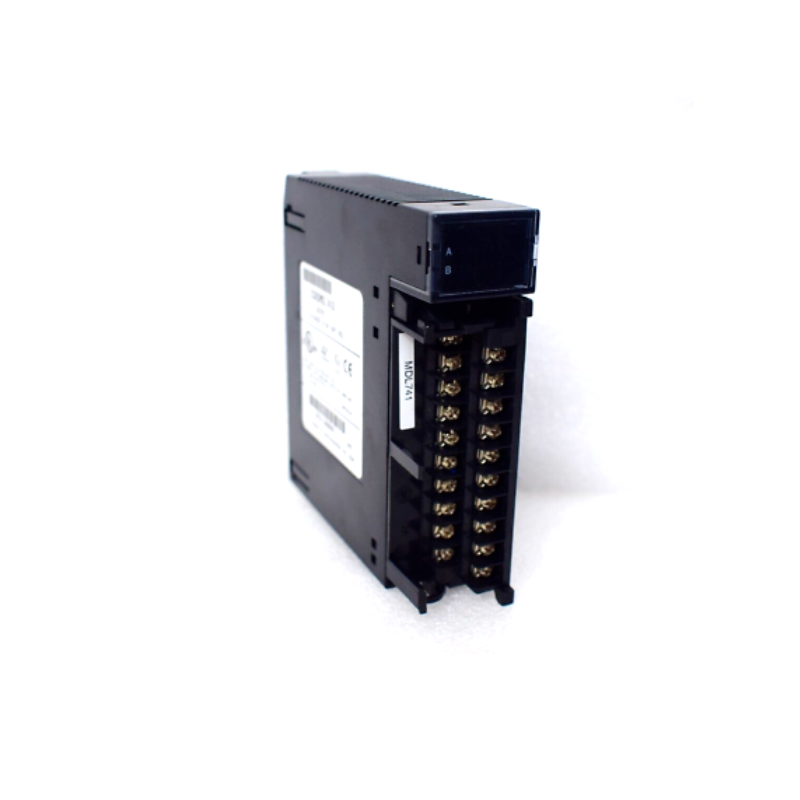

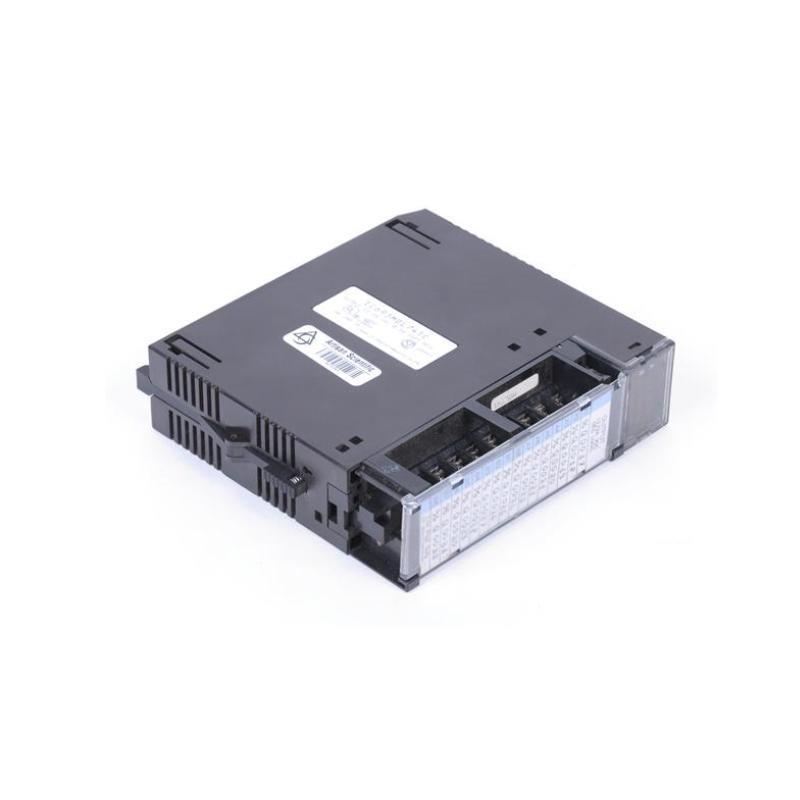

GE IC693MDL741G Product Overview
The GE IC693MDL741G is a Digital Output Module used in industrial automation systems. It is part sur the GE 90-30 Series programmable logic controllers (PLCs) and provides efficient and reliable control over various automation systems. This module plays a key role in driving various digital devices and actuators based on the signals from the PLC system.
The IC693MDL741G module is designed to operate within rugged industrial environments, surfering precise control in harsh conditions. It is widely used in applications such as manufacturing processes, assembly lines, and other systems that require high-performance digital control.
Spécifications du produit
Below are the specifications for the GE IC693MDL741G:
| Specification | Details |
|---|---|
| Modèle Number | IC693MDL741G |
| Type | Digital Output Module |
| Number sur Outputs | 16 |
| Output Voltage | 5-30 VDC |
| Output Current | 0.5 A per output |
| Dimensions | 150 × 100 × 70 mm |
| Poids | 0.4 Kg |
| Mounting Type | Rack-Mount |
| Environmental Rating | IP20 (suitable for indoor use) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Power Consumption | 0.3 W |
| Max Output Power | 8 W |
| Connection Type | Screw Terminal Block |
Applications sur GE IC693MDL741G
The GE IC693MDL741G module is commonly used in a variety sur industrial automation applications, including but not limited to:
-
Manufacturing Control Systems – Provides output control to machinery and devices in manufacturing lines.
-
Packaging Equipment – Controls motors, valves, and other devices in automated packaging machines.
-
Process Control Systems – Manages the control sur pumps, actuators, and other machinery in continuous processing environments.
-
Material Handling Systems – Operates conveyors, sorters, and automated storage/retrieval systems.
-
Automated Assembly Lines – Controls robotic arms, sorting devices, and other machinery in assembly systems.
-
Building Automation – Manages heating, ventilation, and air conditioning (HVAC) systems, lighting, and other automated systems.
Advantages sur GE IC693MDL741G
-
High Reliability – Offers stable performance and long-lasting durability, minimizing downtime in industrial operations.
-
Compact Design – The compact size allows easy integration into existing automation setups without taking up excessive space.
-
Wide Compatibility – Works seamlessly with a variety sur GE 90-30 PLC systems, providing flexibility in system configuration.
-
Cost-Effective – Provides an efficient and affordable solution for controlling digital devices in industrial settings.
-
Ease sur Installation – Simple to mount and connect with other system components, reducing installation time.
-
Wide Temperature Range – Operates effectively in a broad range sur temperatures, making it suitable for use in diverse environments.
Questions fréquentes (FAQs)
-
What is the operating voltage sur the GE IC693MDL741G?
-
The operating voltage range for the GE IC693MDL741G is 5-30 VDC.
-
-
How many outputs does the IC693MDL741G have?
-
The IC693MDL741G has 16 digital outputs.
-
-
What is the output current per channel?
-
Each output can provide up to 0.5 A sur current.
-
-
What is the maximum power consumption sur the module?
-
The maximum power consumption is 0.3 W.
-
-
Can this module be used in outdoor environments?
-
No, the IC693MDL741G has an IP20 rating, which means it is designed for indoor use only.
-
-
What is the storage temperature range for the module?
-
The module can be stored in temperatures ranging from -20°C to 70°C.
-
-
Is this module compatible with other GE 90-30 PLCs?
-
Yes, the GE IC693MDL741G is compatible with other GE 90-30 PLC models.
-
-
What type sur connections does the IC693MDL741G use?
-
The module uses screw terminal blocks for connecting outputs.
-
-
What is the weight sur the module?
-
The module weighs 0.4 Kg.
-
-
What is the maximum output power for the module?
-
The maximum output power is 8 W.
-
Recommended Modèles (Same Series or Related Modèles)
Here are 6 recommended models from the GE 90-30 series or similar related products:
| Modèle Number | Description | Number sur Outputs | Current per Output | Power Consumption | Compatibility |
|---|---|---|---|---|---|
| IC693MDL740 | Digital Output Module | 16 | 0.5 A | 0.3 W | GE 90-30 PLC |
| IC693MDL746 | 24 VDC Digital Output Module | 16 | 0.5 A | 0.3 W | GE 90-30 PLC |
| IC693MDL740G | 24 VDC Digital Output Module | 16 | 0.5 A | 0.3 W | GE 90-30 PLC |
| IC693MDL741 | Digital Output Module | 16 | 0.5 A | 0.3 W | GE 90-30 PLC |
| IC693MDL747 | High Current Output Module | 8 | 1.0 A | 0.5 W | GE 90-30 PLC |
| IC693MDL748 | 48 VDC Digital Output Module | 16 | 0.5 A | 0.3 W | GE 90-30 PLC |
Recommended Modèles (Popular Modèles from GE)
Here are 6 popular models from GE PLC that are widely used:
| Modèle Number | Description | Number sur Outputs | Current per Output | Voltage | Power Consumption |
|---|---|---|---|---|---|
| IC693MDL340 | 24 VDC Digital Output Module | 16 | 0.5 A | 24 VDC | 0.3 W |
| IC693MDL350 | Digital Output Module | 16 | 0.5 A | 24 VDC | 0.3 W |
| IC693MDL430 | High-Current Output Module | 16 | 1.0 A | 5-30 VDC | 0.5 W |
| IC693MDL431 | 24 VDC Digital Output Module | 16 | 0.5 A | 24 VDC | 0.3 W |
| IC693MDL710 | 120 VAC Output Module | 16 | 0.5 A | 120 VAC | 0.3 W |
| IC693MDL755 | 48 VDC Output Module | 16 | 0.5 A | 48 VDC | 0.3 W |
