Présentation du produit

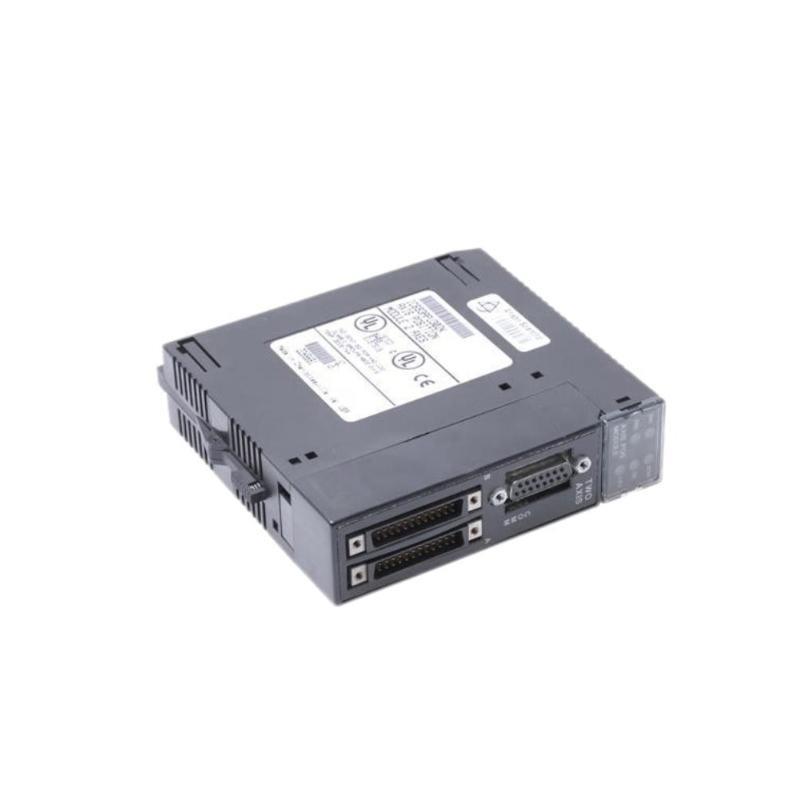

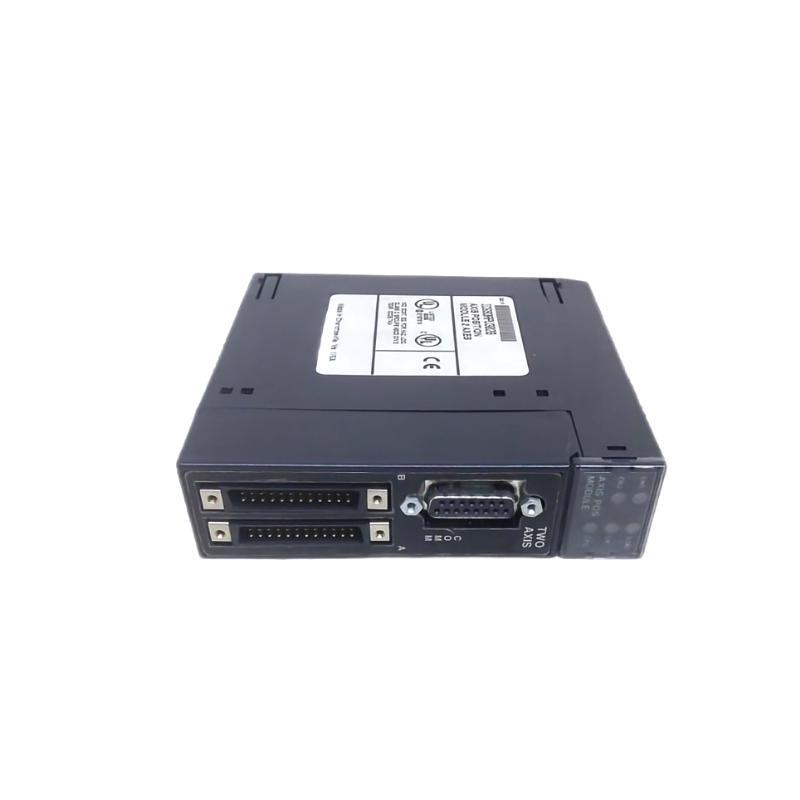

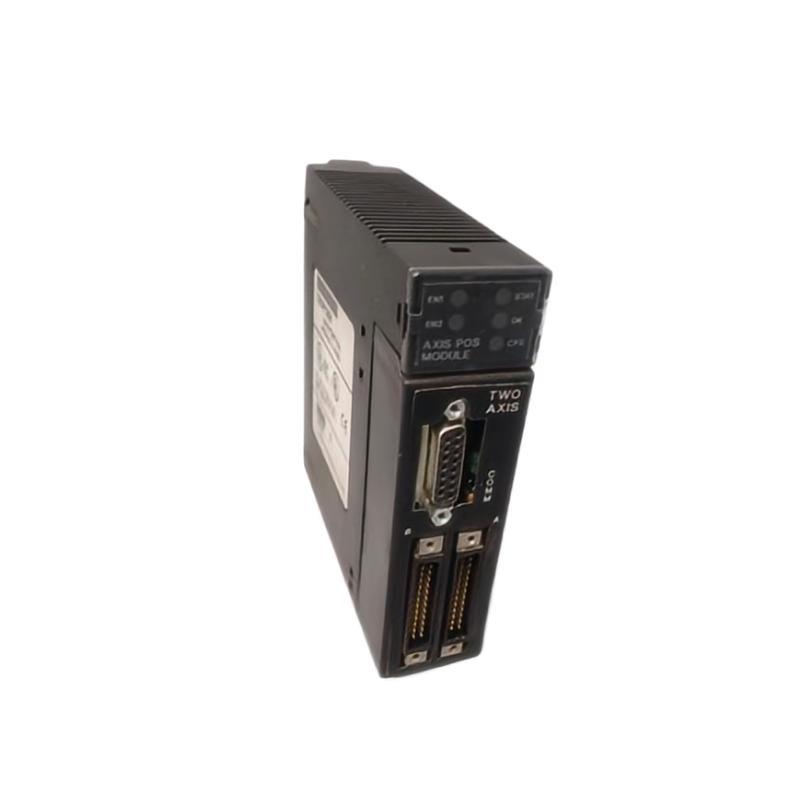

The GE IC693APU302 Axis Positioning Module is a high-performance motion control solution designed for industrial automation systems using the GE Series 90-30 PLC platform. It provides precise and reliable control for a single axis sur motion, enabling coordinated movements in machinery that require tight synchronization and accuracy. This module integrates seamlessly with the GE 90-30 I/O rack and is ideal for applications involving stepper or servo motor control. Through a combination sur pulse train output, position feedback, and flexible programming capabilities, it allows engineers to develop sophisticated motion prsuriles while maintaining system simplicity and modularity.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle Number | IC693APU302 |
| Product Type | Axis Positioning Module |
| System Compatibility | GE Series 90-30 PLC |
| Number sur Controlled Axis | 1 |
| Control Type | Pulse Train Output (PTO) |
| Position Feedback | Encoder Input (A/B quadrature, single-ended or differential) |
| Position Range | ±2,147,483,647 pulses (32-bit signed) |
| Maximum Pulse Rate | 1 MHz |
| Motor Types Supported | Stepper and Servo motors (open-loop or closed-loop) |
| Operating Voltage | 5V DC TTL (for pulse/dir and encoder signals) |
| Backplane Power Consumption | 5V DC, 700 mA typical |
| Diagnostics | Built-in error detection and status LEDs |
| Environmental Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 64 x 127 x 102 mm |
| Poids | 0.57 kg |
| Mounting | DIN rail or panel mounting within Series 90-30 rack |
| Certifications | UL, CE, CSA |
Applications
The IC693APU302 Axis Positioning Module is widely used in industrial automation environments where precise movement and positioning are essential. Common application areas include:
-
Packaging machinery – controlling conveyor movements, robotic arms, and sealing equipment.
-
CNC machines – managing linear or rotary tool paths in machining centers.
-
Material handling systems – regulating lifts, sorting arms, and transfer mechanisms.
-
Pick-and-place robots – ensuring accurate positioning for small component assembly.
-
Printing and labeling machines – coordinating label placement and media feed.
-
Textile machinery – synchronizing tension rollers or fabric cutters.
Its versatility in both open-loop and closed-loop configurations makes it suitable for a broad range sur motion control tasks.
Product Advantages
-
High Precision: Supports up to 1 MHz output rate for highly accurate motion control.
-
Integrated Feedback: Quadrature encoder feedback enables real-time position correction.
-
Scalable: Easily integrated into existing Series 90-30 PLC systems without extra hardware.
-
Flexible Control: Supports complex move prsuriles including acceleration, deceleration, and homing sequences.
-
Reliable Diagnostics: Onboard LEDs and diagnostic registers help quickly identify system faults.
-
Easy Programming: Configured via GE’s VersaPro or Prsuricy Machine Edition ssurtware.
-
Robust Design: Engineered to operate reliably in industrial environments with wide temperature tolerance and mechanical durability.
-
Low Footprint: Compact design conserves space in control panels.
Questions fréquentes (FAQ)
-
Q: What type sur motors are compatible with IC693APU302?
A: It supports both stepper and servo motors using pulse train output. -
Q: Can I use this module for closed-loop control?
A: Yes, it accepts encoder feedback for closed-loop motion applications. -
Q: What ssurtware is used to configure IC693APU302?
A: You can use GE VersaPro or Prsuricy Machine Edition for configuration and programming. -
Q: How many axes can one module control?
A: The module is designed for single-axis motion control. -
Q: Does the IC693APU302 require external power?
A: It draws power from the backplane but needs external voltage for motor driver circuits. -
Q: What is the maximum pulse frequency it can generate?
A: The module supports a pulse frequency sur up to 1 MHz. -
Q: How is feedback provided to the module?
A: Feedback is provided via A/B quadrature encoder signals. -
Q: Is this module hot-swappable?
A: No, power should be turned surf when installing or replacing the module. -
Q: What kind sur connector is used for encoder input?
A: It uses standard screw terminals or removable connectors depending on the rack system. -
Q: Can I use the IC693APU302 in outdoor environments?
A: It is not rated for outdoor use; it must be installed in an enclosed, temperature-controlled environment.
