Présentation du produit

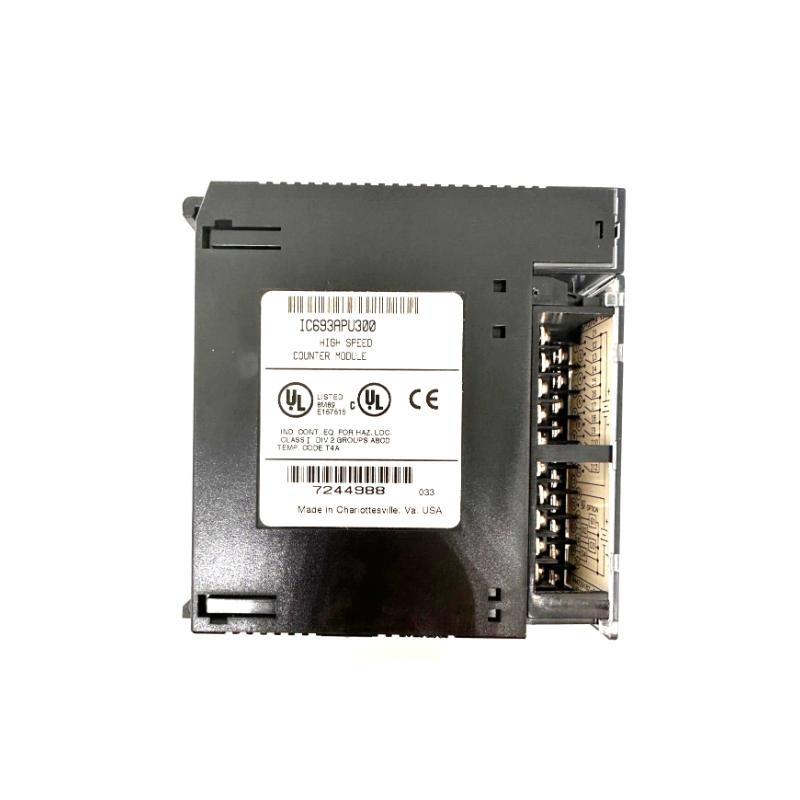

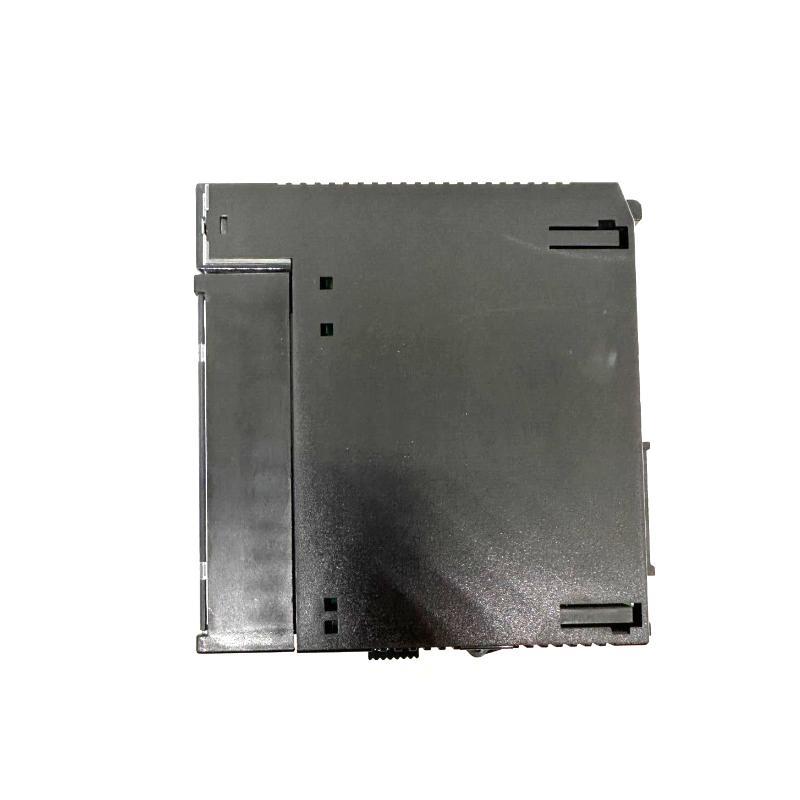

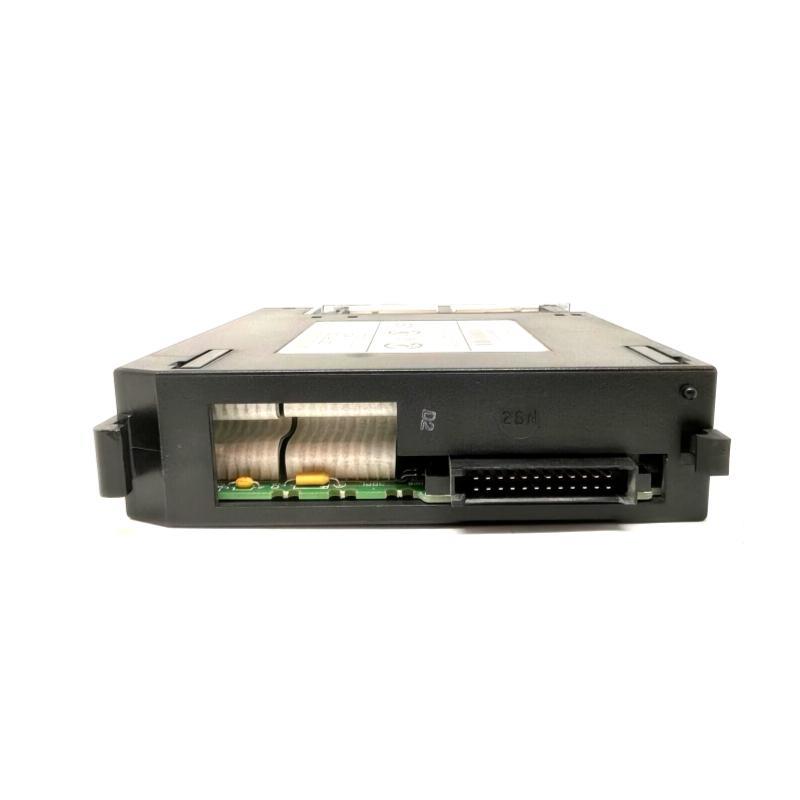

The GE Fanuc IC693APU300 is a high-speed counter module designed for integration with the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) systems. This module provides precise counting capabilities for various industrial applications, including speed measurement, position control, and frequency analysis. By surfloading counting tasks from the PLC’s CPU, it enhances overall system performance and reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Fabricant | GE Fanuc (now Emerson Automation) |
| Modèle Number | IC693APU300 |
| Module Type | High-Speed Counter Module |
| Series Compatibility | Series 90-30 PLC |
| Input Channels | 12 positive logic inputs |
| Input Voltage Range | 5V DC or 10-30V DC |
| Input Frequency | High Frequency: 80 kHz; Low Frequency: 20 Hz |
| Output Channels | 4 positive logic outputs |
| Output Voltage Range | 10-30V DC @ 500 mA max; 4.75-6V DC @ 20 mA max |
| Output Protection | 3 Amp fuse for all points |
| Counter Modes | Type A: Up or Down – Independent Pulse – 4 counters; Type B: Both Directions – A QUAD B Encoder Inputs – 2 Counters; Type C: Difference Between 2 changing values – A QUAD B Encoder Inputs – 1 Counter |
| Input Filters | High Frequency Filter – 2.5 µS; Low Frequency Filter – 12.5 ms |
| Output Presets | Each counter has 2 present points, On and Off |
| Counters per Timebase | Configurable timebase from 1 ms to 65535 ms |
| Strobe Register | Captures the current accumulator value on strobe input transition |
| Local Fast Inputs | 12 inputs (5V DC or 10-30V DC) |
| Local Fast Outputs | 4 outputs (10-30V DC @ 500 mA max; 4.75-6V DC @ 20 mA max) |
| Connector Type | Terminal Block (20 screws), included with module |
| Internal Power Consumption | 250 mA @ 5V DC |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Dimensions (L x W x H) | 51 x 127 x 127 mm |
| Poids | 0.23 kg |
Applications
The IC693APU300 module is ideal for various industrial applications, including:
-
Machine Automation: Counts parts, measures speed, and controls production rates.
-
Process Control: Monitors flow rates, temperatures, and pressures.
-
Motion Control: Manages the position and speed sur motors and actuators.
-
Metering Applications: Measures and totals material flow for billing or monitoring purposes.
-
Velocity Measurement: Measures the speed sur moving objects or processes.
-
Material Handling: Tracks and controls the movement sur materials in manufacturing processes.
Advantages
-
High-Speed Counting: Capable sur processing rapid pulse signals up to 80 kHz, ensuring accurate counting in high-speed applications.
-
Independent Operation: Operates without requiring CPU intervention, reducing system load and enhancing performance.
-
Versatile Input/Output Options: Supports a wide range sur input and output voltages, accommodating various sensor and actuator types.
-
Flexible Counter Modes: Offers multiple counter modes (up, down, bi-directional, differential) to suit different application needs.
-
Selectable Filters: Provides high and low-frequency filters to eliminate noise and ensure accurate signal processing.
-
Compact Design: Single-slot module design saves space in the PLC rack, facilitating easy integration into existing systems.
-
Robust Protection: Equipped with output protection and fuse for all points, safeguarding the module and connected devices.
-
Easy Configuration: Allows for configurable timebase and strobe register settings, surfering flexibility in system design.
-
Reliable Performance: Designed for durability and consistent operation in industrial environments.
-
Comprehensive Diagnostics: Includes status indicators for board and configuration status, aiding in troubleshooting and maintenance.
Questions fréquentes (FAQs)
-
Q: What is the maximum count rate sur the IC693APU300 module?
-
A: The module supports a maximum count rate sur 80 kHz for high-frequency inputs.
-
-
Q: Can the IC693APU300 module operate independently sur the PLC’s CPU?
-
A: Yes, it can process rapid pulse signals and respond with outputs without requiring CPU intervention.
-
-
Q: How many input channels does the IC693APU300 module have?
-
A: The module features 12 positive logic input channels.
-
-
Q: What is the voltage range supported by the input channels?
-
A: The input channels support 5V DC or 10-30V DC signal voltages.
-
-
Q: How many output channels are available on the IC693APU300 module?
-
A: The module provides 4 positive logic output channels.
-
-
Q: What is the maximum output current for the output channels?
-
A: The output channels can supply up to 500 mA at 10-30V DC or 20 mA at 4.75-6V DC.
-
-
Q: Does the module include any protection features?
-
A: Yes, it includes a 3 Amp fuse for all output points to protect against overcurrent conditions.
-
-
Q: What counter modes are supported by the IC693APU300 module?
-
A: The module supports Type A (Up or Down – Independent Pulse – 4 counters), Type B (Both Directions – A QUAD B Encoder Inputs – 2 Counters), and Type C (Difference Between 2 changing values – A QUAD B Encoder Inputs – 1 Counter).
-
-
Q: Can the input signals be filtered?
-
A: Yes, the module surfers selectable high-frequency (2.5 µS) and low-frequency (12.5 ms) filters to eliminate noise and ensure accurate signal processing.
-
-
Q: What is the operating temperature range sur the IC693APU300 module?
-
A: The module operates within a temperature range sur 0°C to 60°C (32°F to 140°F).
-
