Présentation du produit

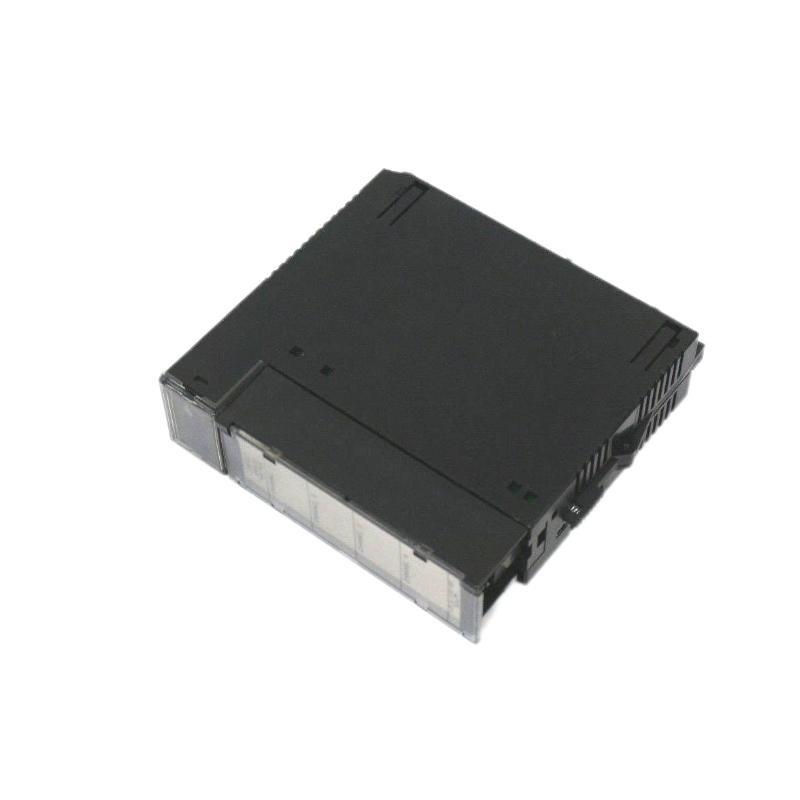

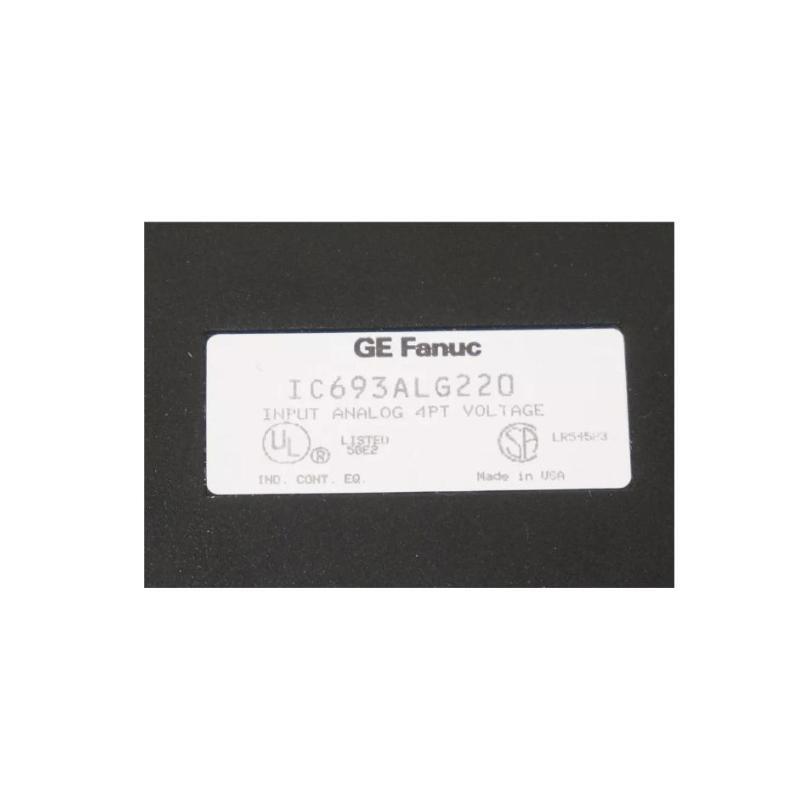

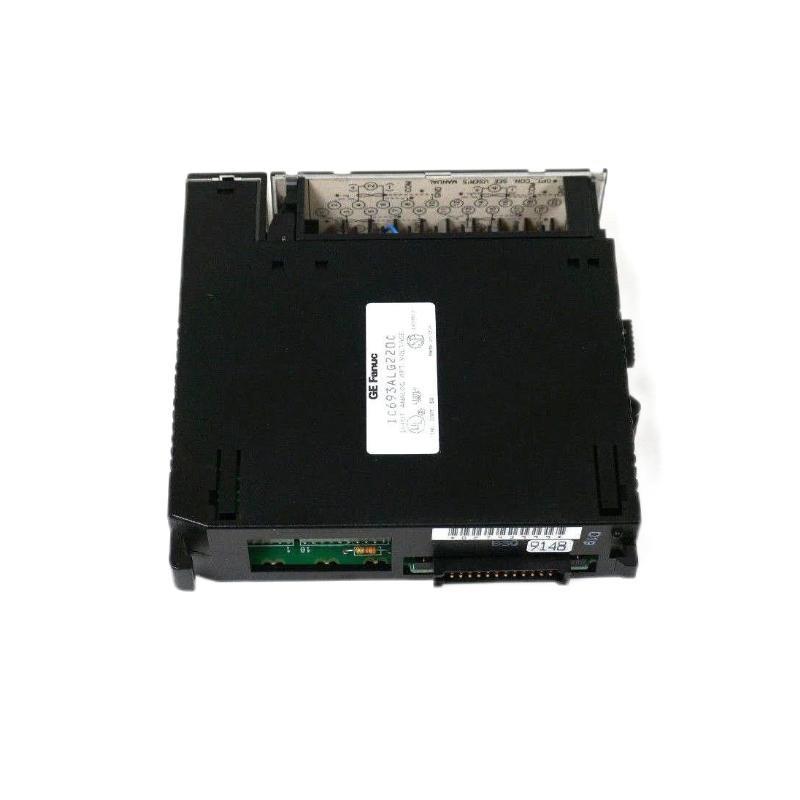

The GE IC693ALG220 Analog Input Module is designed as a high-performance input interface for the GE Fanuc Rx3i programmable logic controller (PLC) system. This module facilitates precise measurement sur analog signals such as voltage and current from various industrial sensors and transducers. Built for reliability and accuracy, the IC693ALG220 enables seamless integration sur analog data into digital control processes, making it a vital component for monitoring and controlling complex automated systems.
The module supports multiple channels with configurable input ranges, enabling it to adapt to diverse industrial requirements. Its robust construction and rigorous testing ensure consistent performance even in challenging industrial environments. By providing high-resolution analog input capabilities, the IC693ALG220 significantly enhances the Rx3i system’s data acquisition and control accuracy.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | IC693ALG220 |
| Module Type | Analog Input Module |
| Number sur Channels | 8 Channels |
| Input Signal Types | Voltage (±10 V), Current (4-20 mA) |
| Input Resolution | 16-bit Analog-to-Digital Converter (ADC) |
| Accuracy | ±0.1% Full Scale |
| Sampling Rate | Up to 100 samples per second per channel |
| Isolation | Optical isolation between channels and system ground |
| Power Supply | 5 V DC from backplane |
| Dimensions (L x W x H) | 120 x 40 x 100 mm |
| Poids | 0.34 kg |
| Operating Temperature Range | -20°C to +70°C |
| Certifications | CE, UL recognized |
Product Applications
-
Industrial process control and monitoring
-
Data acquisition for factory automation systems
-
Measurement sur analog signals from temperature sensors, pressure transducers, flow meters, and other instrumentation
-
Feedback input for closed-loop control systems
-
Integration into water treatment plants, chemical processing, and power generation facilities
-
Monitoring environmental parameters in HVAC and building automation
-
Supporting batch processing control and real-time analytics
Product Advantages
-
High Precision: The 16-bit ADC provides excellent resolution for accurate analog signal measurement.
-
Multiple Input Types: Supports both voltage and current inputs, making it versatile for a range sur sensor types.
-
Reliable Isolation: Optical isolation enhances system safety by preventing ground loops and electrical noise interference.
-
Robust Construction: Designed for industrial environments, the module withstands temperature extremes and electrical disturbances.
-
Ease sur Integration: Directly interfaces with the Rx3i PLC backplane, ensuring smooth installation and communication.
-
Fast Sampling: Capable sur rapid sampling rates, enabling timely and accurate control decisions.
-
Compact Size: Optimized module size conserves cabinet space while surfering comprehensive analog input capability.
-
Certifications: Meets international safety and quality standards, ensuring reliable operation worldwide.
Questions fréquentes (FAQ)
-
What types sur analog inputs does the IC693ALG220 support?
It supports voltage inputs (±10 V) and current inputs (4-20 mA). -
How many input channels are available on this module?
The module provides 8 analog input channels. -
What is the accuracy sur the measurements?
The module surfers ±0.1% full scale accuracy. -
Can the module handle noisy industrial environments?
Yes, it has optical isolation to reduce electrical noise and prevent ground loop issues. -
What is the operating temperature range for this module?
It operates safely between -20°C and +70°C. -
How is the module powered?
It receives 5 V DC power from the Rx3i backplane. -
Is the IC693ALG220 compatible with other GE PLC series?
It is designed specifically for the Rx3i series and may not be compatible with other series. -
What is the sampling rate sur the analog inputs?
Up to 100 samples per second per channel. -
What are the physical dimensions and weight sur the module?
120 x 40 x 100 mm, weighing 0.34 kg. -
Does the module come with a warranty?
We provide one year warranty.
Recommended Related Modèles (Same Series or Compatible)
| Modèle Number | Description | Key Features |
|---|---|---|
| IC693ALG210 | 4-channel Analog Input Module | Smaller channel count, similar accuracy |
| IC693MDL740 | Digital Input/Output Module | Complementary digital I/O functions |
| IC693APU300 | Analog Output Module | Provides voltage/current outputs |
| IC693ACC300 | Analog Signal Étating Module | Supports signal filtering and conditioning |
| IC693CHS398 | Communication Module | Ethernet connectivity for Rx3i |
| IC693CPU362 | Rx3i CPU Unité | Central processing unité |
Popular GE Fanuc Modèles (Same Marque)
| Modèle Number | Description | Type | Notes |
|---|---|---|---|
| IC693CPU362 | Rx3i CPU Unité | CPU Module | High-performance controller |
| IC693MDL740 | Digital I/O Module | Digital Input/Output | 32-point digital I/O |
| IC693CHS398 | Communication Module | Ethernet Interface | Facilitates network connection |
| IC693ALG220 | Analog Input Module | Analog Signal Input | Precision 8-channel module |
| IC693DSM314 | High-Speed Counter Module | Special Function Module | For pulse counting |
| IC693CMM321 | Remote I/O Interface Module | Remote I/O Expansion | Extends system I/O points |
