Product Overview

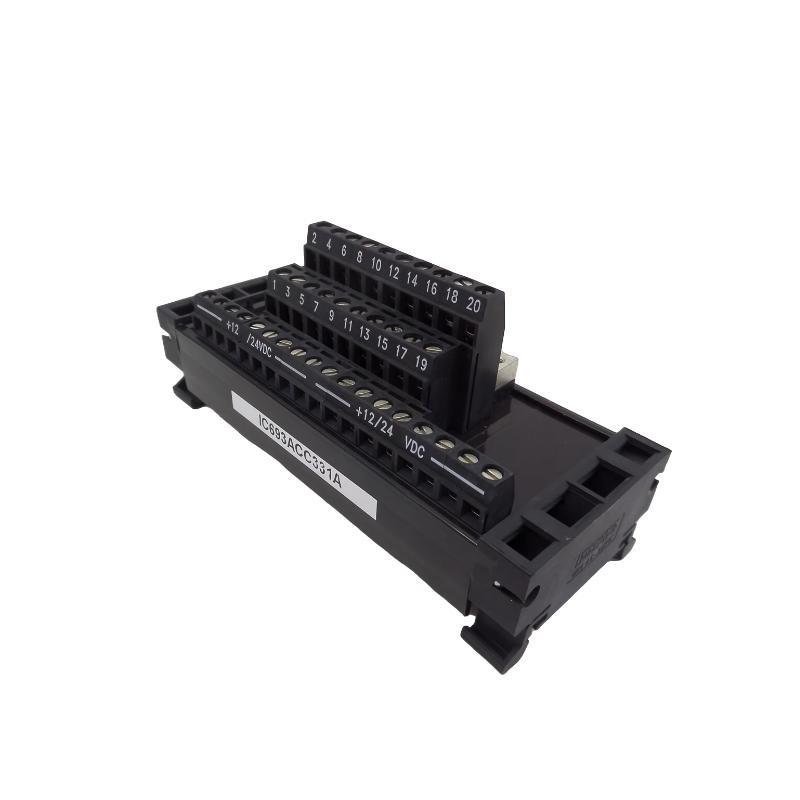

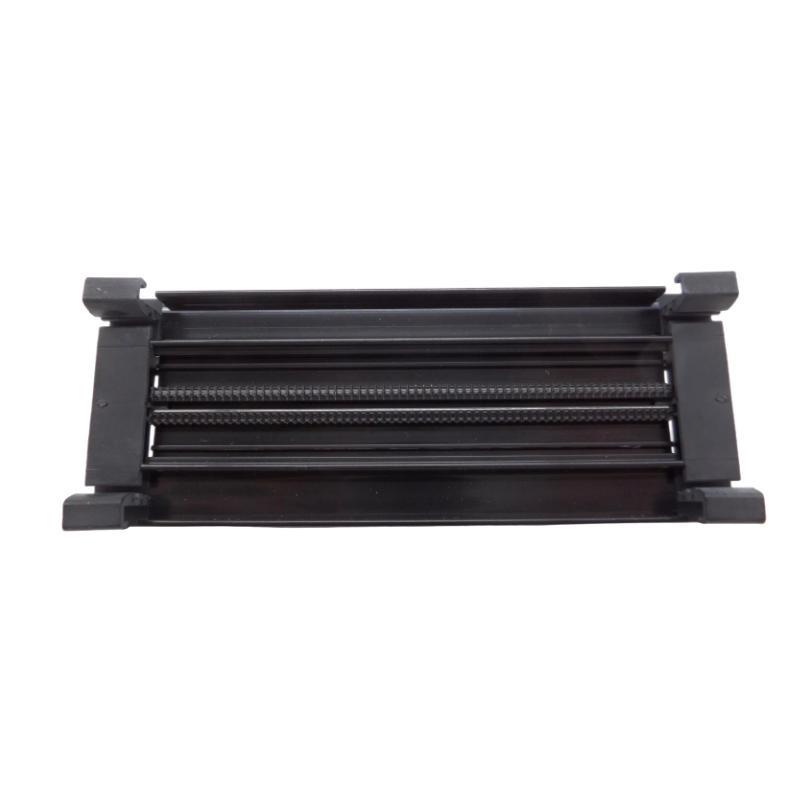

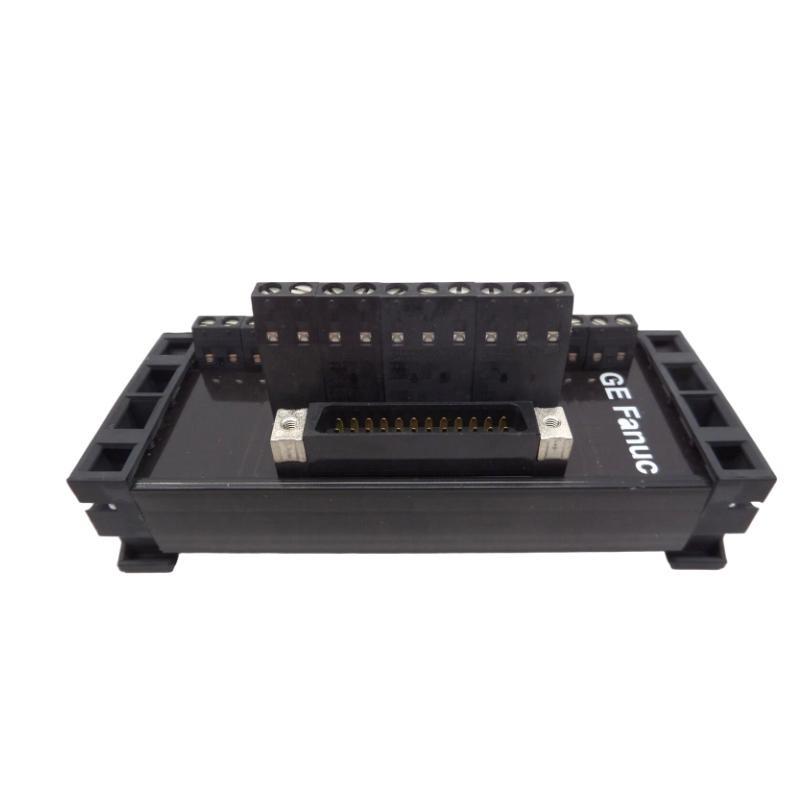

The GE IC693ACC331 TBQC Base is a crucial component in GE’s PLC (Programmable Logic Controller) systems. It is specifically designed to serve as the base for the IC693 series, allowing for the attachment sur various I/O modules and communication adapters, facilitating easy integration into control systems. The TBQC Base is built for rugged industrial environments, surfering exceptional performance, reliability, and ease sur use.
This module provides the backbone for connecting and organizing I/O modules, simplifying system design, maintenance, and expansion. As part sur GE’s widely used Series 90-30 PLC system, the IC693ACC331 ensures compatibility with a range sur other modules, ensuring seamless communication and control for automation systems. The TBQC Base is known for its efficiency and robust design, making it an ideal choice for industrial control and automation applications.
Spécifications du produit
Below are the detailed specifications for the GE IC693ACC331 TBQC Base:
| Specification | Details |
|---|---|
| Modèle Number | IC693ACC331 TBQC Base |
| Type | PLC Base for IC693 Series |
| Module Type | Terminal Block with Quick Connect (TBQC) |
| Supported I/O Modules | Compatible with IC693 I/O Modules |
| Mounting Type | Mounts on a DIN Rail |
| Dimensions (H x W x D) | 112 x 57 x 45 mm |
| Poids | 0.18 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Electrical Rating | 24 VDC, 0.1 A Max Current per Module |
| Power Consumption | 3 W |
Applications sur the GE IC693ACC331 TBQC Base
The GE IC693ACC331 TBQC Base is widely used in industrial automation systems, where it provides critical interconnectivity between different components sur a PLC system. Key applications include:
-
Factory Automation: Used in automation systems to manage control processes in industries such as automotive, food and beverage, and manufacturing.
-
Process Control: Enables integration sur various I/O modules for controlling devices such as pumps, actuators, and sensors in process industries.
-
Building Management Systems (BMS): It helps in building control for systems like HVAC, lighting, and energy management.
-
SCADA Systems: Common in SCADA applications, it helps with the integration sur multiple I/O devices, supporting remote monitoring and control.
-
Safety Systems: It is used in critical safety applications to integrate emergency shutdown systems, alarms, and other safety devices.
-
Energy Systems: Ideal for energy control systems, allowing for precise control over energy-efficient devices and power distribution systems.
Advantages sur the GE IC693ACC331 TBQC Base
-
Modular Design: The TBQC Base allows for easy expansion sur your PLC system by adding various I/O modules, increasing the scalability sur your automation system.
-
Durability and Robustness: Designed to withstand the rigors sur industrial environments, the module operates reliably in temperatures ranging from -20°C to +60°C.
-
Ease sur Installation: The unité is designed to mount easily on a DIN rail, simplifying the installation process and reducing setup time.
-
Quick Connect Terminal Blocks: The quick-connect feature ensures fast wiring and reduces installation time, improving operational efficiency.
-
Compatibility: Fully compatible with GE’s IC693 I/O modules, allowing for flexible configuration and system design.
-
Space-Saving Design: With compact dimensions, the module provides a high-density solution for industrial control systems, saving valuable control panel space.
-
Low Power Consumption: Consumes only 3 W sur power, making it an energy-efficient choice for demanding industrial systems.
-
Reliability: Provides stable communication and operation within the PLC system, ensuring minimal downtime and maintenance.
-
Industrial Grade: Built to meet industrial standards, the TBQC Base ensures long-term reliability in harsh working conditions.
-
Cost-Effective Solution: Offering reliable performance at a competitive price, it provides an efficient and affordable solution for complex automation systems.
Questions fréquentes (FAQ)
-
What is the GE IC693ACC331 TBQC Base used for?
-
It serves as a base for the IC693 I/O modules, providing interconnectivity for automation and control systems.
-
-
What types sur I/O modules can be used with the IC693ACC331?
-
It is compatible with GE’s IC693 series I/O modules.
-
-
How is the GE IC693ACC331 TBQC Base mounted?
-
It can be mounted on a DIN rail, which allows for easy installation and maintenance.
-
-
What is the weight sur the TBQC Base?
-
The weight sur the module is 0.18 kg.
-
-
What is the power consumption sur the GE IC693ACC331?
-
The module consumes 3 W sur power during operation.
-
-
What is the operating temperature range sur the IC693ACC331?
-
The operating temperature range is -20°C to +60°C.
-
-
Can the GE IC693ACC331 be used in outdoor environments?
-
It is designed for indoor use in industrial environments with controlled temperatures.
-
-
What is the storage temperature range for the TBQC Base?
-
The storage temperature range is -40°C to +85°C.
-
-
Does the GE IC693ACC331 support any communication protocols?
-
The TBQC Base is used to connect I/O modules to the PLC system, but communication protocols depend on the specific I/O modules used with it.
-
-
Is the GE IC693ACC331 TBQC Base compatible with other GE PLC systems?
-
Yes, it is designed to be compatible with the GE IC693 series PLC systems and other associated modules.
-
Recommended Related Modèles
Below are six related models from the same GE IC693 series or with similar functionality:
| Modèle | Description | Key Features |
|---|---|---|
| GE IC693ACC340 | I/O Base for IC693 Series | Supports a range sur I/O modules for modular systems |
| GE IC693ACC350 | Expansion Base for I/O Modules | Expands system with additional I/O modules |
| GE IC693ACC380 | Compact Base for PLC Modules | Compact solution for small PLC systems |
| GE IC693ACC320 | Basic I/O Expansion Module | Cost-effective I/O expansion for smaller setups |
| GE IC693ACC310 | Communication Module Base | Communication hub for GE I/O systems |
| GE IC693ACC330 | 8-Point I/O Base Module | Provides 8 I/O points for smaller control systems |
