Présentation du produit

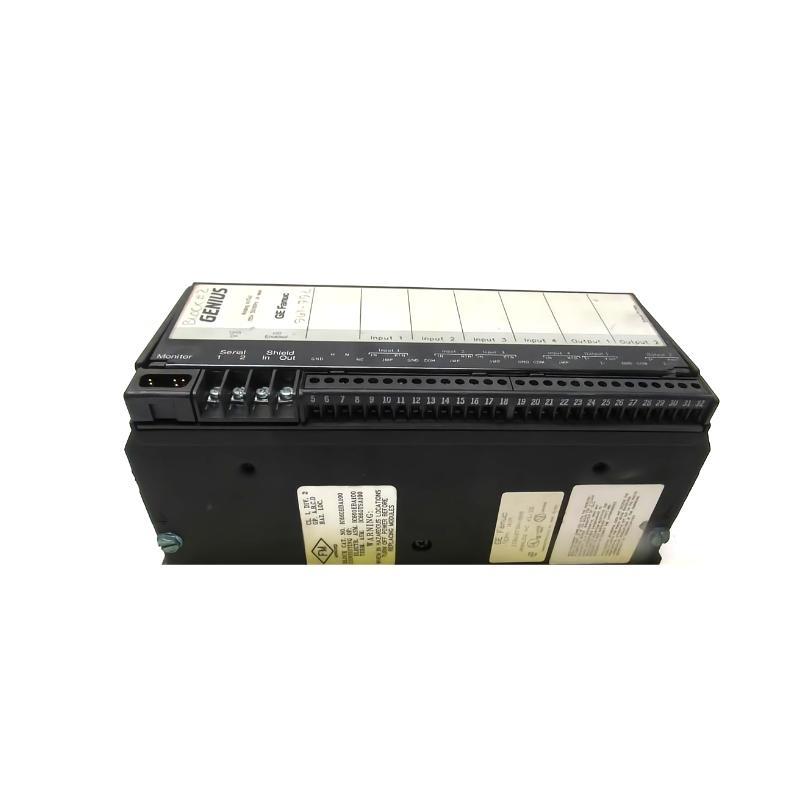

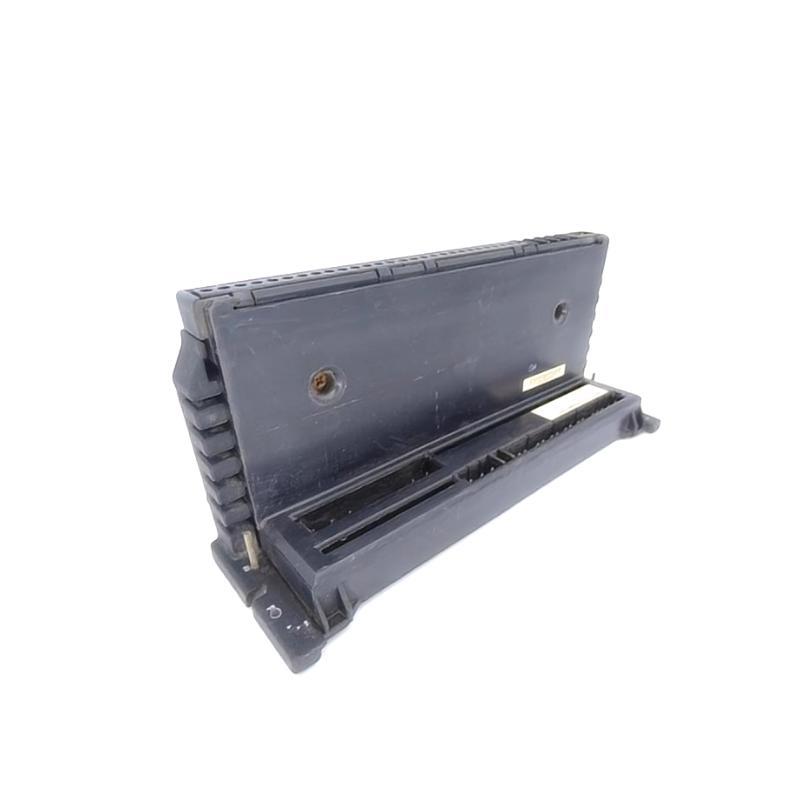

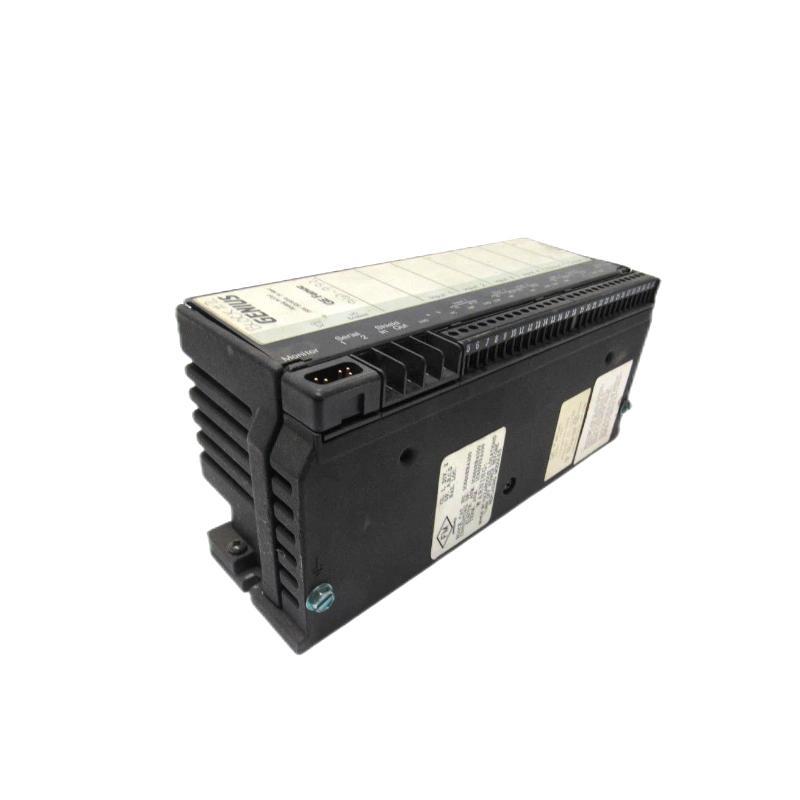

The GE Fanuc IC660TSA100 is a terminal assembly designed for the Genius I/O system. It serves as an interface for connecting field wiring to the I/O blocks, specifically compatible with the IC660BBA100 I/O block and IC660EBA100 electronics assembly. This module supports 4 analog inputs and 2 analog outputs, providing versatile configuration options for industrial control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Fabricant | GE Fanuc |
| Series | Genius I/O |
| Référence | IC660TSA100 |
| Product Type | Analog I/O Terminal Assembly |
| Compatible I/O Block | IC660BBA100 |
| Compatible Electronics | IC660EBA100 |
| Number sur Analog Inputs | 4 |
| Number sur Analog Outputs | 2 |
| Power Supply (AC) | 115V AC |
| Power Supply (DC) | 24 to 48V DC |
| Resolution | 12 Bits |
| Heat Dissipation | 6 Watts |
| Power Supply Dropout Time | 1 Cycle |
| Block-to-Block Isolation | 1500 Volts |
| Environmental Protection | IP20 |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 100°C (-40°F to 212°F) |
| Vibration Resistance | 5 to 10 Hertz with 0.2 inches displacement |
| Dimensions (W x H x D) | 110 x 150 x 50 mm |
| Poids | 0.49 kg |
Product Applications
-
Industrial Automation: Facilitates analog signal interfacing in automated manufacturing processes.
-
Process Control Systems: Integrates with control systems requiring analog input/output for monitoring and control.
-
Energy Management: Suitable for applications in energy distribution and management systems.
-
Building Automation: Used in HVAC and other building systems requiring analog signal processing.
-
Water Treatment Plants: Monitors and controls analog signals in water and wastewater treatment facilities.
-
Pharmaceutical Manufacturing: Ensures precise analog signal handling in pharmaceutical production environments.
Product Advantages
-
Versatile I/O Configuration: Supports both analog inputs and outputs, allowing flexible system design.
-
Robust Design: Engineered to withstand industrial environmental conditions, including vibration and temperature variations.
-
High Resolution: 12-bit resolution ensures accurate analog signal processing.
-
Power Supply Flexibility: Operates with both AC and DC power supplies, enhancing compatibility.
-
Ease sur Integration: Designed for seamless integration with GE Fanuc Genius I/O systems.
-
Compact Size: Small footprint allows for efficient use sur panel space.
Questions fréquentes (FAQs)
-
What is the function sur the IC660TSA100 terminal assembly?
-
It serves as an interface for connecting field wiring to the I/O blocks, supporting analog inputs and outputs.
-
-
How many analog inputs and outputs does the IC660TSA100 support?
-
It supports 4 analog inputs and 2 analog outputs.
-
-
What power supply voltages are compatible with the IC660TSA100?
-
It operates with 115V AC or 24 to 48V DC power supplies.
-
-
What is the resolution sur the analog signals?
-
The module provides a 12-bit resolution for analog signal processing.
-
-
Is the IC660TSA100 compatible with other I/O blocks?
-
It is specifically designed to be compatible with the IC660BBA100 I/O block and IC660EBA100 electronics assembly.
-
-
What are the operating temperature ranges for the IC660TSA100?
-
It operates within a temperature range sur 0°C to 60°C (32°F to 140°F).
-
-
What is the weight and size sur the IC660TSA100?
-
The module weighs 0.49 kg and measures 110 x 150 x 50 mm.
-
-
Does the IC660TSA100 have any environmental protection ratings?
-
Yes, it has an IP20 environmental protection rating.
-
-
What is the heat dissipation rating sur the IC660TSA100?
-
The module has a heat dissipation rating sur 6 Watts.
-
-
Can the IC660TSA100 withstand vibration?
-
Yes, it is designed to withstand vibrations ranging from 5 to 10 Hertz with 0.2 inches displacement.
-
