Présentation du produit

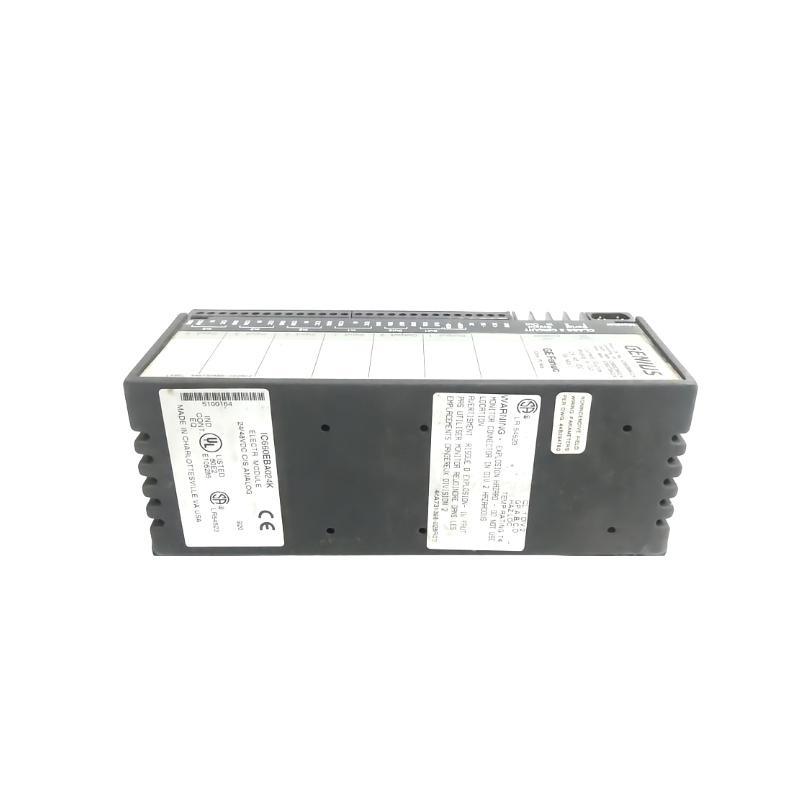

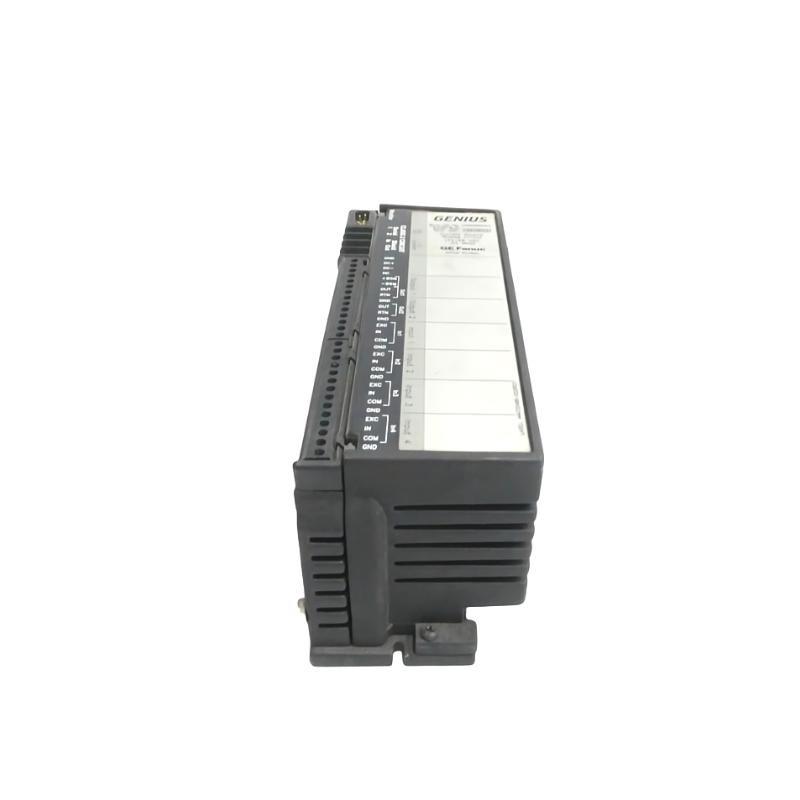

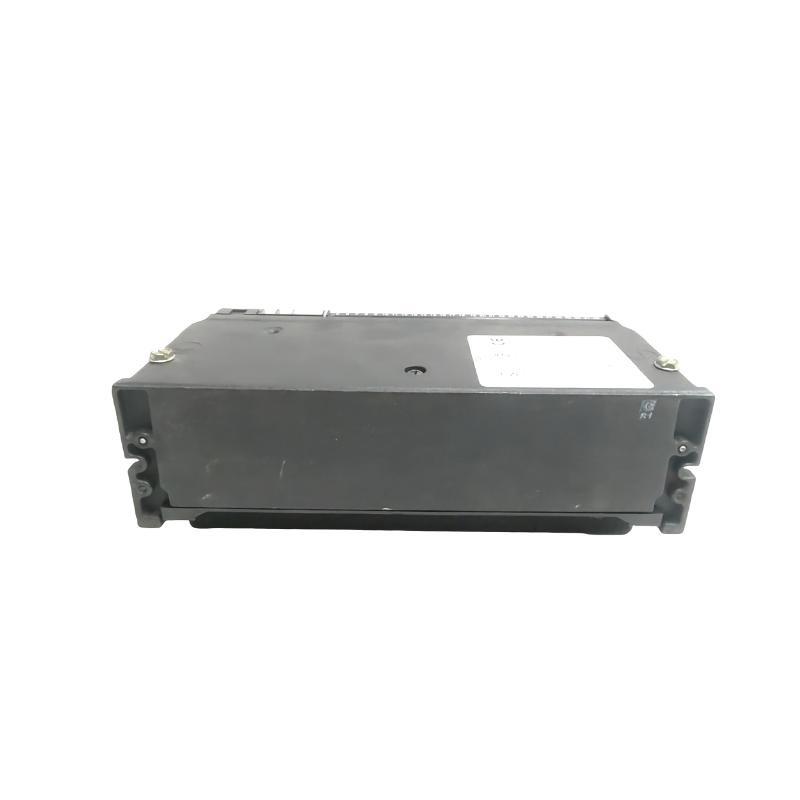

The GE IC660TBA024 Terminal Assembly is a critical component sur the Genius I/O system by General Electric (GE), designed to provide connectivity and ease sur installation for I/O blocks within industrial automation environments. This assembly supports both discrete and analog I/O configurations and surfers robust electrical interface capabilities between field wiring and control systems.
Used extensively in distributed I/O applications, the IC660TBA024 enables quick wiring, secure termination, and dependable operation, even in harsh industrial conditions. With GE’s renowned engineering behind it, this terminal assembly is well-suited for high-reliability systems in manufacturing, energy, and infrastructure sectors.
Technical Specifications
| Parameter | Details |
|---|---|
| Modèle Number | IC660TBA024 |
| Product Type | Genius I/O Terminal Assembly |
| I/O Type | Terminal assembly for discrete or analog I/O |
| Compatibility | Compatible with GE IC660 series I/O blocks |
| Number sur Terminals | 24 terminal points |
| Terminal Type | Screw-type compression terminals |
| Operating Voltage | Up to 250 VAC or 125 VDC depending on connected block |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | Panel or DIN Rail |
| Housing Material | Industrial-grade molded plastic |
| Certifications | UL, CSA, CE |
| Dimensions (W x H x D) | 60 x 120 x 30 mm |
| Poids | 0.59 kg |
Product Applications
The IC660TBA024 terminal assembly is versatile and widely implemented in a variety sur automation environments:
-
Manufacturing Lines: Facilitates connection sur sensors, switches, and actuators to distributed I/O modules.
-
Energy and Utilities: Interfaces with monitoring and control devices in substations and control panels.
-
Food and Beverage Industry: Used in hygienic process control systems where modular and reliable wiring is critical.
-
Water and Wastewater Treatment: Provides field wiring connections for pumps, motors, and flow measurement devices.
-
Petrochemical Plants: Links field instruments to explosion-prosur I/O modules in hazardous environments.
-
Material Handling Systems: Ensures smooth operation sur conveyors, packaging machines, and sorting systems.
Its adaptability and rugged design make it an indispensable part sur any Genius I/O architecture, enabling fast maintenance, reduced wiring errors, and safe, durable field connections.
Product Advantages
-
Reliable Terminal Design: Equipped with 24 robust screw-type terminals for secure and lasting connections.
-
Field-Friendly Configuration: Allows fast and simple wiring with clearly labeled terminals and pin identification.
-
Modular Integration: Compatible with a wide range sur GE Genius I/O blocks, making system upgrades and replacements straightforward.
-
Industrial Durability: Resistant to temperature fluctuations, vibration, and humidity, making it ideal for tough environments.
-
Simplified Maintenance: The plug-and-play design ensures that unités can be easily removed or replaced without disturbing wiring.
-
Compact Form Factor: Enregistrers panel space while maintaining high terminal density.
-
Time-Saving Installation: Reduces wiring complexity and supports error-free setup with standard GE wiring schemes.
-
Global Certifications: Compliant with international safety and performance standards.
-
Versatile Mounting Options: Can be mounted on DIN rails or panels, adapting to various enclosure designs.
-
Long-Term Availability: Backed by GE’s support and consistent product availability, ideal for long-life systems.
Questions fréquentes (FAQ)
-
Q: What is the main function sur the IC660TBA024 Terminal Assembly?
A: It provides the wiring interface between field devices and GE Genius I/O blocks. -
Q: How many terminals does it support?
A: It surfers 24 screw-type terminals for field wiring. -
Q: Is this terminal assembly compatible with analog I/O modules?
A: Yes, it can be used with both analog and discrete Genius I/O modules. -
Q: Can I use this assembly in high-temperature environments?
A: It operates reliably within 0°C to 60°C and can be stored in temperatures as low as -40°C. -
Q: What kind sur mounting does it support?
A: It can be mounted on a DIN rail or panel for flexible installation. -
Q: Does the product require special tools for installation?
A: No, standard screwdrivers are sufficient for terminal connections. -
Q: Is the IC660TBA024 replaceable without rewiring?
A: Yes, it allows for non-intrusive replacement without disturbing the field wiring. -
Q: What voltage levels are supported?
A: Depending on the I/O block used, it can handle up to 250 VAC or 125 VDC. -
Q: What certifications does this product carry?
A: It is UL, CSA, and CE certified for international use. -
Q: Can I use this assembly in a wet or dusty environment?
A: While the unité is industrial-grade, it should be installed within a properly rated enclosure for such environments.
