Présentation du produit

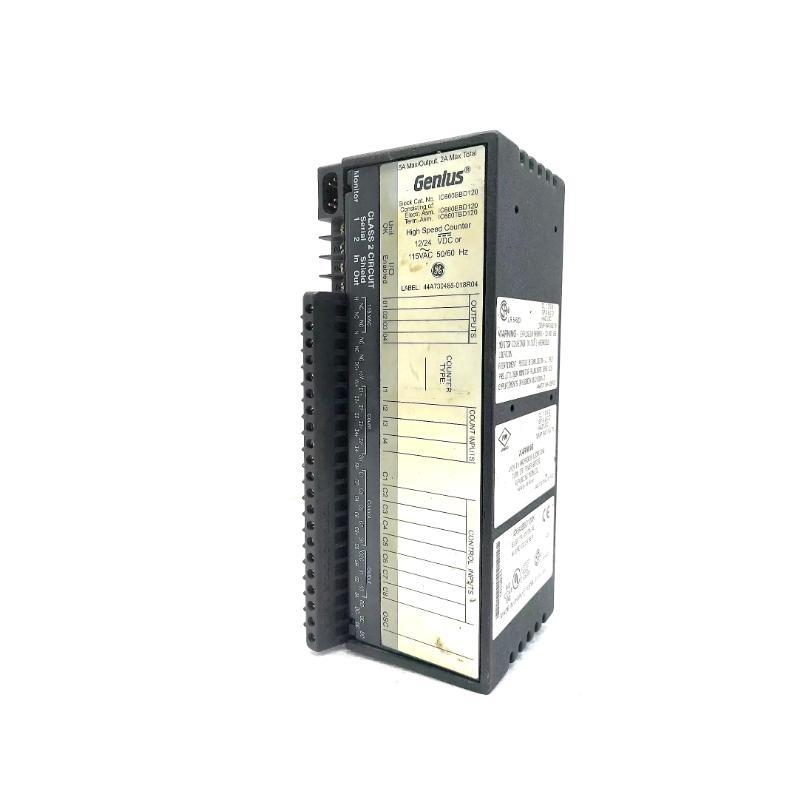

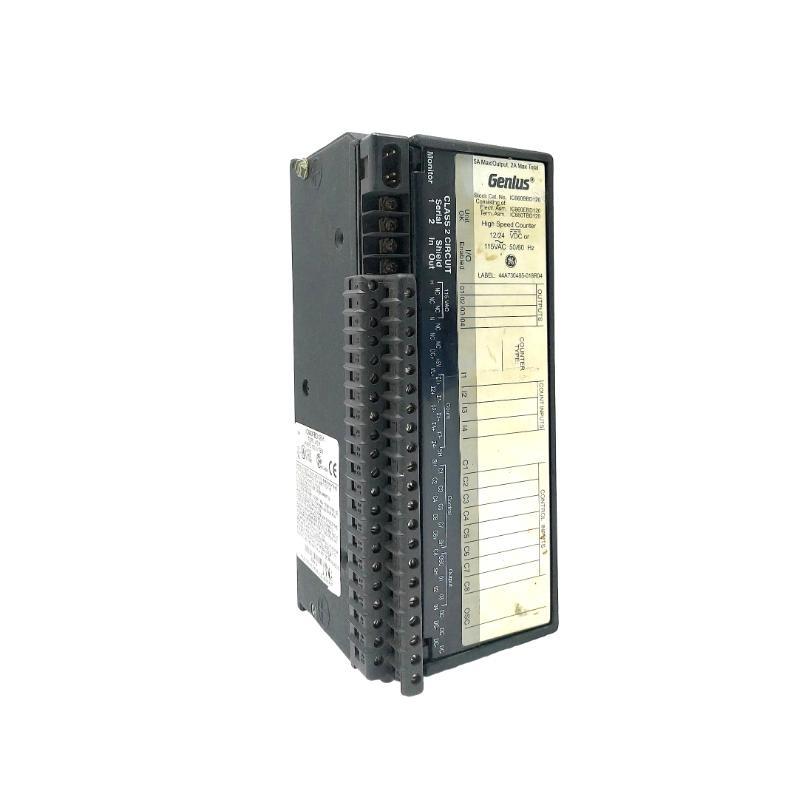

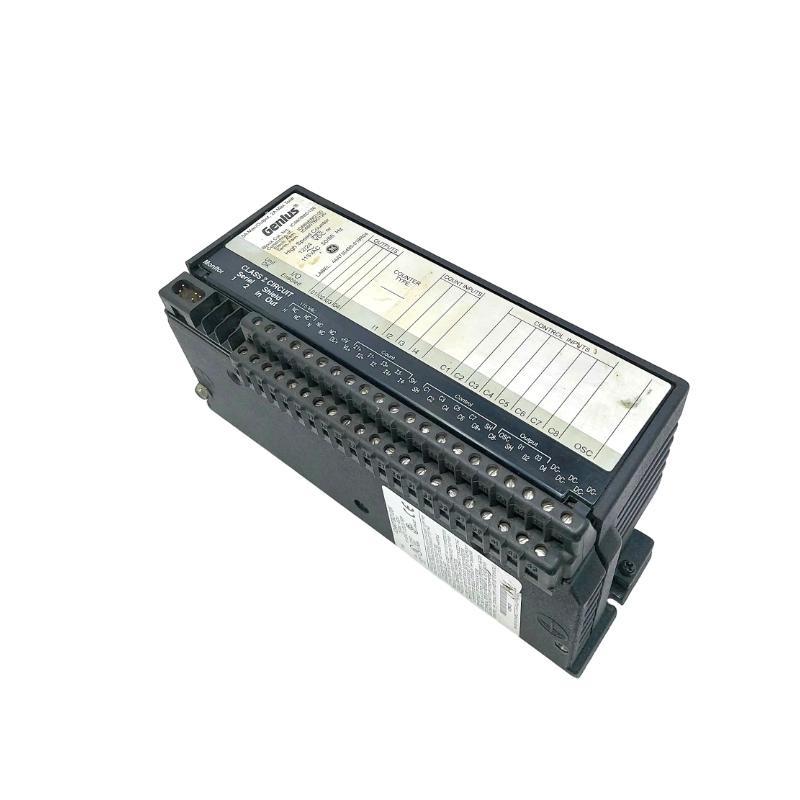

The GE IC660EBD120 I/O Block Electronic Assembly is a rugged and intelligent electronic interface unité designed as part sur the GE Fanuc Genius I/O series. This device serves as the internal control and communication unité within a Genius I/O block, managing signal processing and communications between the field devices and host PLC or controller.
Designed to work in distributed control systems, the IC660EBD120 supports a wide range sur discrete and analog modules. It is optimized for industrial environments requiring high-speed communication, efficient I/O control, and long-term durability. Whether integrated into a manufacturing plant or utility system, this unité provides the core intelligence for decentralized automation.
Spécifications du produit
| Specification | Detail |
|---|---|
| Modèle Number | IC660EBD120 |
| Fabricant | GE Fanuc (General Electric) |
| Product Type | I/O Block Electronic Assembly |
| System Compatibility | GE Genius I/O Series |
| Communication Protocol | Genius Bus |
| Number sur Channels | Supports up to 16 Discrete Inputs or Outputs |
| Input Voltage Range | 10.8 – 30 VDC (typical 24 VDC system) |
| Power Consumption | Approx. 3 W (module only) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions (H × W × D) | 130 x 35 x 115 mm |
| Poids | 0.526 kg |
| Mounting Type | Panel or DIN rail |
| Diagnostics | Built-in fault detection and status indicators |
| Protection | Overvoltage, thermal, and reverse polarity |
| Certifications | UL, CE, CSA compliant |
Product Applications
The IC660EBD120 is well-suited for integration into a variety sur industrial control and monitoring environments where reliable field I/O communication is critical. Common applications include:
-
Industrial Automation Systems: Interfaces sensors and actuators in factory automation processes.
-
Oil & Gas Facilities: Used in hazardous locations with intrinsically safe wiring.
-
Power Generation Plants: Supports distributed I/O in turbine and generator control.
-
Food and Beverage Processing: Ensures hygienic, safe automation and monitoring.
-
Material Handling Systems: Manages conveyor and robotic movement.
-
Building Management Systems (BMS): Controls HVAC, security, and energy systems.
Product Advantages
-
Integrated Intelligence: Embeds local decision-making capabilities and diagnostic functions.
-
Reliable Communication: Compatible with Genius Bus for high-speed, deterministic networking.
-
Modular Design: Easily replaceable without disturbing field wiring or mounting.
-
Flexible Input/Output Handling: Works with a wide range sur discrete and analog devices.
-
Environmentally Robust: Performs reliably across wide temperature and humidity ranges.
-
Reduced Downtime: Built-in LED diagnostics and fault memory for quick troubleshooting.
-
Secure Mounting: Supports both DIN rail and panel installations for flexible deployment.
-
Long Product Lifecycle: GE’s industrial-grade engineering ensures long-term reliability.
-
Easy Integration: Seamlessly integrates with GE PLCs and other control systems.
-
Field-Proven Design: Trusted in thousands sur industrial installations worldwide.
Questions fréquentes (FAQ)
-
What is the main function sur the IC660EBD120?
It controls and processes input/output signals for a Genius I/O block and manages communication with the control system. -
Can this module be used with non-GE PLCs?
It is primarily designed for GE Genius I/O networks, but may be integrated with non-GE systems that support Genius protocols. -
Is this module hot-swappable?
No, it is not recommended to remove or install while the system is powered on. -
What voltage range does the IC660EBD120 support?
It supports 10.8 to 30 VDC input voltage, commonly used in 24V systems. -
Does the module include diagnostics?
Yes, it features onboard diagnostic LEDs and memory to help identify issues quickly. -
Can it be mounted vertically or horizontally?
Yes, it supports flexible mounting orientations including DIN rail and panel mounting. -
What’s the maximum number sur I/O points this unité can control?
It supports up to 16 discrete I/O points depending on the I/O block configuration. -
Does the unité support harsh environments?
Yes, with an operating range up to 60°C and high humidity tolerance, it is ideal for industrial settings. -
Is configuration required before use?
Yes, it requires proper addressing and network configuration to operate within a Genius Bus system. -
How does the IC660EBD120 differ from IC660EBD110?
While both are I/O electronics modules, the IC660EBD120 typically supports higher input voltage ranges and added robustness for extended use.
