Présentation du produit

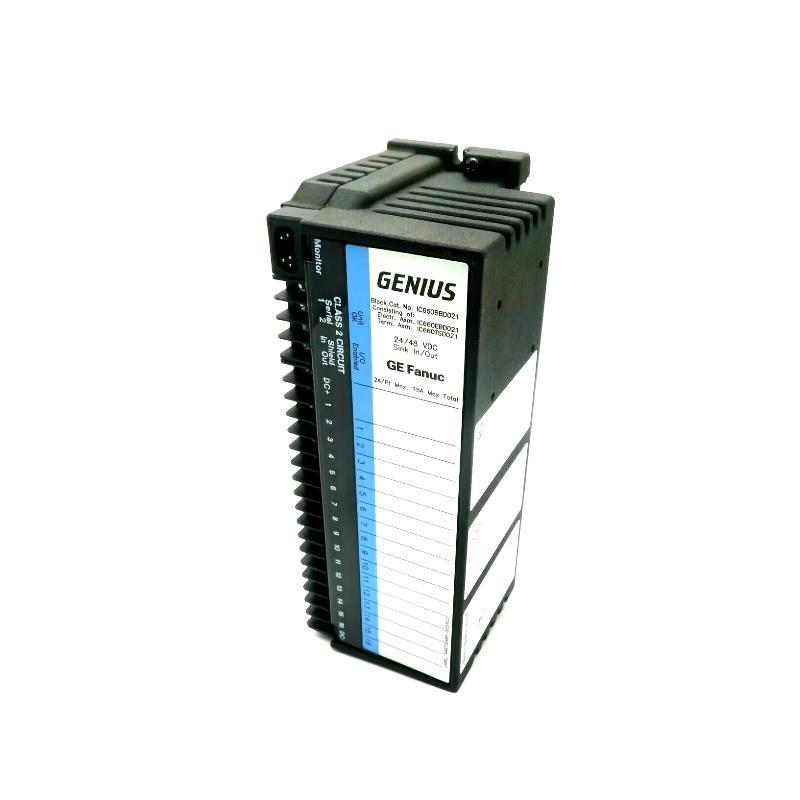

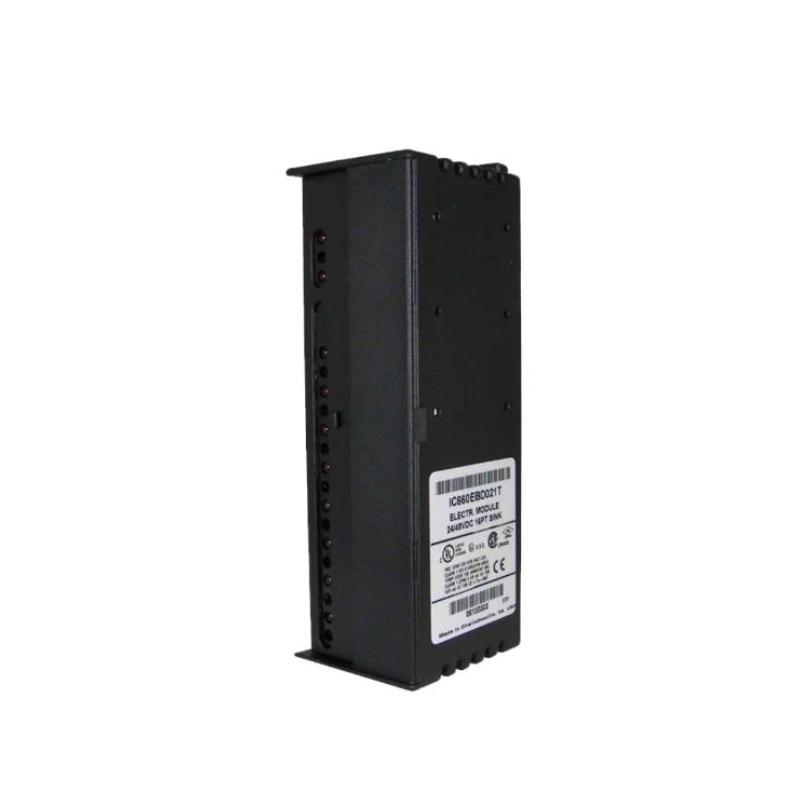

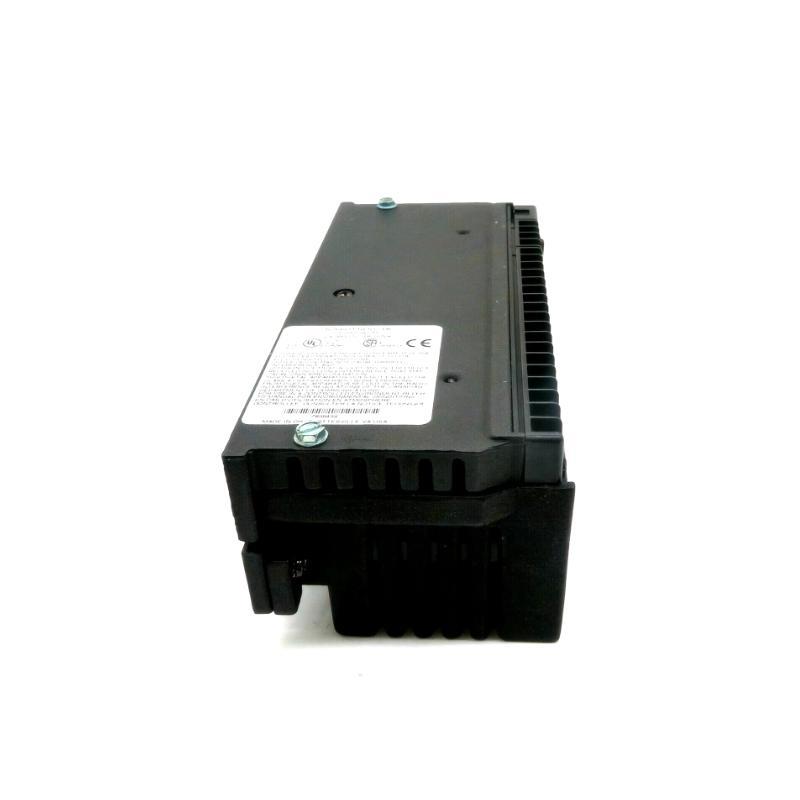

The GE IC660EBD021 I/O Module Electronics is a component sur the renowned GE Genius I/O system, designed for replacement and maintenance sur discrete I/O block electronics without having to replace the entire block assembly. This electronics module controls discrete input blocks and enables high-performance communication and processing on Genius I/O networks.
Engineered for rugged industrial environments, the IC660EBD021 provides a reliable, efficient solution to extend the life sur distributed control systems. It supports a wide range sur discrete applications, surfering durability, flexibility, and built-in diagnostics to meet the critical demands sur manufacturing, energy, and process industries.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle | IC660EBD021 |
| Product Type | Discrete Input Block Electronics |
| Supported I/O Type | Discrete Input |
| Communication Interface | Genius Bus (RS-485 Standard) |
| Supported Baud Rates | 153.6 Kbps, 76.8 Kbps, 38.4 Kbps |
| Input Voltage Range | 0–30 VDC |
| Input Current | Typically 7.5 mA per input |
| Number sur Inputs | 16 isolated inputs |
| LED Indicators | Status LEDs for block health, communication status |
| Diagnostics | Built-in diagnostics for input channels |
| Power Supply Voltage | 5V DC (internally sourced from I/O block) |
| Mounting Type | Mounted directly to block assembly |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Shock Resistance | 15g peak |
| Vibration Resistance | 5-10 Hz, 0.2″ displacement; 10-200 Hz, 1g |
| Enclosure Rating | IP65 (when attached to appropriate block housing) |
| Dimensions (H x W x D) | 117 x 87 x 30 mm |
| Poids | 1.43 kg |
| Certifications | UL Listed, CSA Certified, CE Marked |
Product Applications
The IC660EBD021 module is broadly deployed in mission-critical and harsh industrial environments where discrete input management and durability are paramount. Key application areas include:
-
Automotive manufacturing production lines
-
Oil and gas exploration and refining control systems
-
Packaging and material handling automation
-
Water and wastewater treatment plant operations
-
Food and beverage processing facilities
-
Pharmaceutical manufacturing and quality control systems
-
Mining and heavy equipment control panels
-
Energy and utility distributed control networks
This module’s compatibility with existing Genius I/O infrastructures enables seamless system expansions and upgrades.
Product Advantages
-
Extended Asset Life: By replacing only the electronics portion, users maximize the service life sur the existing block installations, minimizing capital expenditure.
-
Rapid Troubleshooting: LED status indicators and internal diagnostics speed up problem detection and resolution.
-
Flexible Network Integration: Supports different baud rates and flexible addressing for Genius Bus network applications.
-
Industrial-Grade Durability: Designed to withstand vibration, shock, temperature extremes, and environmental stress.
-
Space-Efficient Design: Slim prsurile allows integration into compact control panels.
-
Hot-Connect Ready (with Power Down): Enables quick replacement with minimal process disruption when properly powered down.
-
Cost-Effective Maintenance: Simplifies system maintenance and reduces the need for full block replacement.
-
Trusted Quality: Backed by GE’s rigorous quality standards and global industry certifications.
Questions fréquentes (FAQ)
-
What type sur I/O does the IC660EBD021 support?
It is designed for discrete input operations, supporting 16 isolated channels. -
Can the IC660EBD021 be replaced without replacing the whole I/O block?
Yes, it replaces just the electronics portion, leaving the mechanical block intact. -
What communication protocol is used?
It operates over the Genius Bus network, based on RS-485 standards. -
Is the module hot-swappable?
No, you must power down the block before replacing the electronics. -
What industries commonly use this module?
Industries such as automotive, energy, food and beverage, and manufacturing frequently deploy it. -
What diagnostics features are available?
Built-in diagnostics monitor input channel status and block health, visible via LED indicators. -
What is the operating temperature range?
The module is rated for operation from 0°C to 60°C. -
Does it support redundant communication setups?
Redundancy depends on system design, but Genius Bus can be engineered for redundant layouts. -
What is the approximate weight sur the IC660EBD021?
It weighs about 1.43 kg. -
What mounting method is used for this electronics module?
It mounts directly onto the corresponding discrete input block.
Related Modèles in the Same Series
| Modèle | Description | Type | Compatibility |
|---|---|---|---|
| IC660EBD024 | Discrete Input Block Electronics (DC Voltage) | Discrete Input | Genius I/O |
| IC660EBD025 | Discrete Input Block Electronics (AC Voltage) | Discrete Input | Genius I/O |
| IC660EBA103 | I/O Block Electronics Assembly | General Purpose | Genius I/O |
| IC660TSD020 | Thermocouple Input Block Electronics | Analog Input | Genius I/O |
| IC660EBD101 | High-Density Input Block Electronics | Discrete Input (32 Points) | Genius I/O |
| IC660BBD024 | Discrete Input Block 24VDC | Discrete Input | Genius I/O |
