Présentation du produit

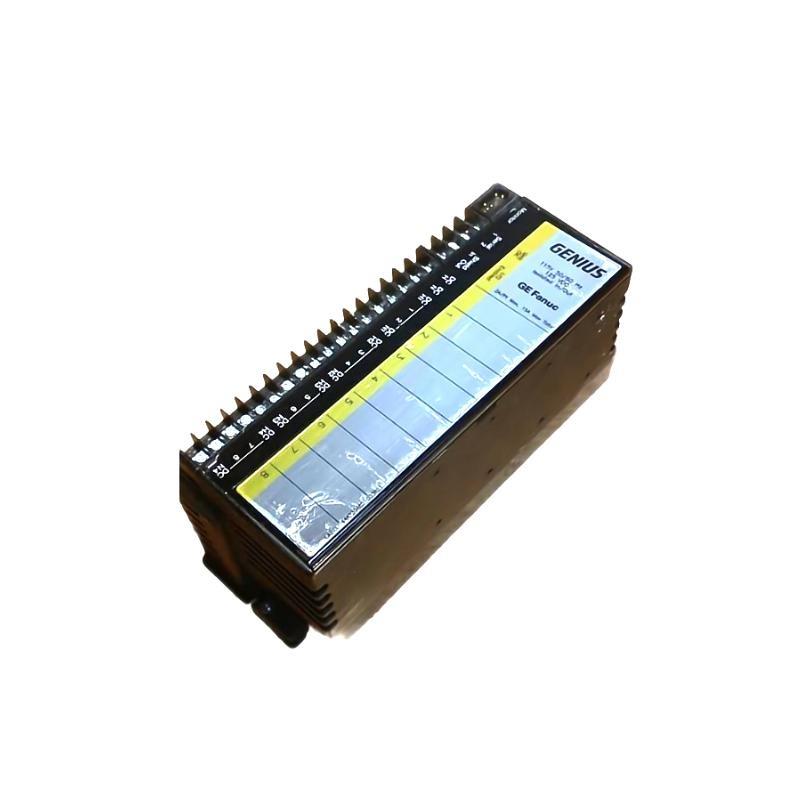

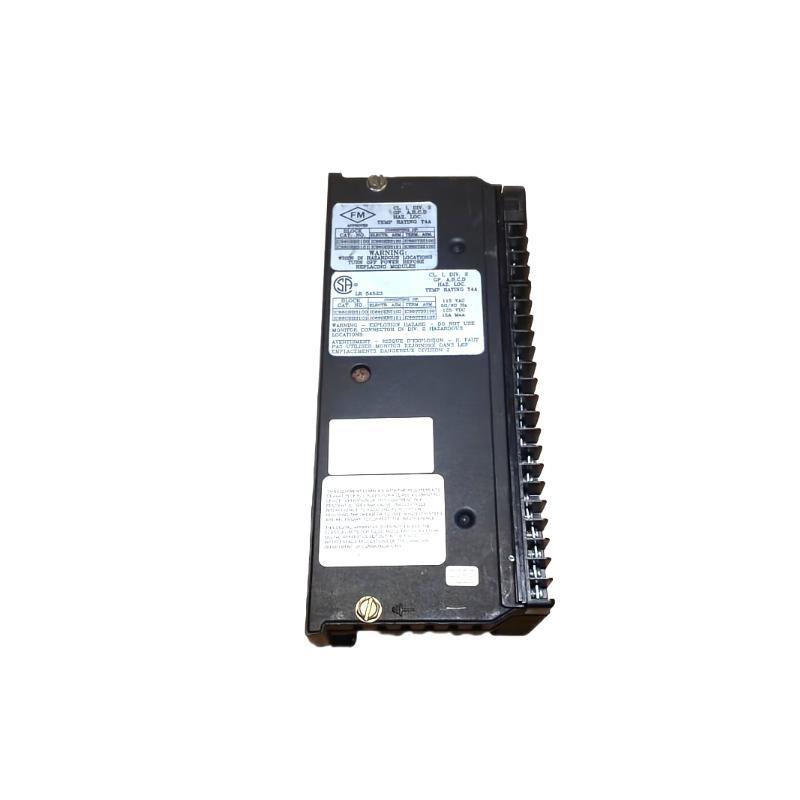

The GE IC660BBS100 Isolated I/O Module is a rugged and flexible component sur the GE Genius I/O family, designed to support a combination sur discrete input and output operations within industrial automation systems. With a compact design, the IC660BBS100 surfers 16 user-configurable I/O points that can function as either inputs or outputs, delivering a high degree sur control flexibility. Each I/O circuit is isolated, ensuring robust electrical protection and interference resistance. This module is ideal for environments requiring mixed signal handling, long cable runs, and high noise immunitéy, making it a reliable solution in both discrete and hybrid industrial control systems.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Name | IC660BBS100 |
| Fabricant | GE Fanuc (now part sur Emerson Automation) |
| Series | Genius I/O |
| I/O Points | 16 configurable I/O points |
| Isolation Type | Channel-to-channel and channel-to-ground isolation |
| Input Voltage Range | 0–32 VDC (nominal 24VDC typical) |
| Output Voltage Range | 0–32 VDC |
| Output Current per Channel | Up to 0.5 A |
| Total Module Current | 8 A maximum |
| Input Threshold | On: >11 VDC; Off: <6 VDC |
| On-État Voltage Drop | 1.5 V max at rated load |
| LED Indicators | Individual I/O status LEDs |
| Update Rate | 16 ms typical |
| Isolation Voltage | 1500 V RMS between channels and ground |
| Mounting Type | DIN rail or panel mount |
| Power Supply | 24 VDC, externally provided |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 224.4 x 88.9 x 100 mm |
| Poids | 1.47 kg |
| Certifications | UL, CE, CSA |
| Communication Interface | Genius Bus |
| Configurability | Ssurtware-configurable via Hand-Held Monitor or PLC tools |
Product Applications
The IC660BBS100 module is used across a wide array sur industries requiring reliable control and monitoring sur mixed signal environments. Common application fields include:
-
Manufacturing Automation: Mixed digital I/O control for assembly lines and packaging systems.
-
Water Treatment Plants: Interfacing with pump status sensors and control relays.
-
Material Handling Systems: Monitoring conveyor inputs and actuating motors or solenoids.
-
Building Automation: Managing lighting, ventilation, and access systems.
-
Power and Utility Management: Control sur switchgear signals and status indicators.
-
Mining and Heavy Equipment: Rugged field operations requiring isolated I/O and high durability.
Product Advantages
-
Flexible I/O Configuration: All 16 channels can be individually set as inputs or outputs, reducing inventory and increasing adaptability.
-
Robust Isolation: Each channel is electrically isolated, which enhances noise immunitéy and ensures operational integrity in electrically noisy environments.
-
Durable and Field-Proven: Built to withstand harsh industrial environments with wide operating temperature and humidity ranges.
-

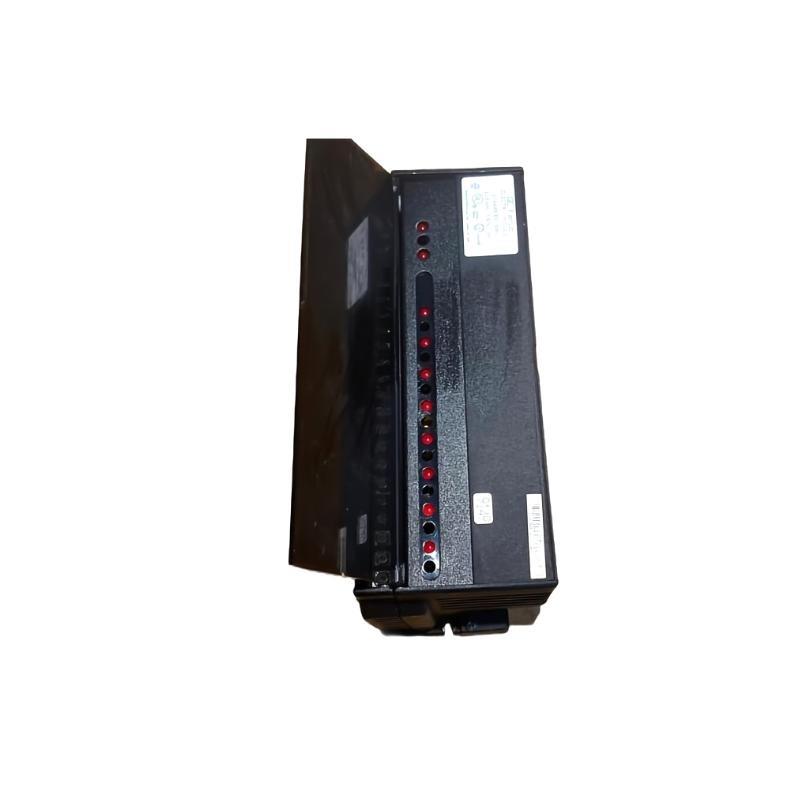

Built-in Diagnostics: LEDs for each I/O point provide immediate visual status, simplifying troubleshooting and maintenance.
-
Genius Network Compatibility: Seamlessly integrates into existing GE Genius I/O networks, supporting efficient distributed control.
-
Reduces Cabinet Space: Compact design helps minimize space in control cabinets, allowing for dense installations.
Questions fréquentes (FAQ)
-
Q: What makes the IC660BBS100 unique compared to standard digital I/O modules?
A: It surfers fully configurable I/O points with full channel isolation, allowing the same hardware to be used for inputs or outputs as needed. -
Q: Is configuration ssurtware required for setup?
A: Yes, configuration can be performed using a GE Hand-Held Monitor or appropriate PLC configuration tools. -
Q: What is the maximum current output per channel?
A: Each channel can source up to 0.5 amps, with a total module limit sur 8 amps. -
Q: Does this module support hot swapping?
A: No, the IC660BBS100 does not support hot swapping; power must be surf during module replacement. -
Q: Can it be used in high-vibration environments?
A: Yes, it’s built for industrial-grade usage, including high-vibration and electrical noise environments. -
Q: What communication protocol does the module use?
A: It communicates via the GE Genius Bus protocol. -
Q: Are the channels isolated from each other?
A: Yes, all channels are fully isolated from each other and from ground, enhancing reliability and protection. -
Q: Is the module compatible with modern Emerson PACSystems?
A: It can be integrated into systems with appropriate network adapters or legacy compatibility bridges. -
Q: How is the module mounted in a control panel?
A: It can be DIN rail or panel mounted depending on installation needs. -
Q: What certifications does this module carry?
A: The IC660BBS100 is UL, CE, and CSA certified for use in global industrial applications.
