Présentation du produit

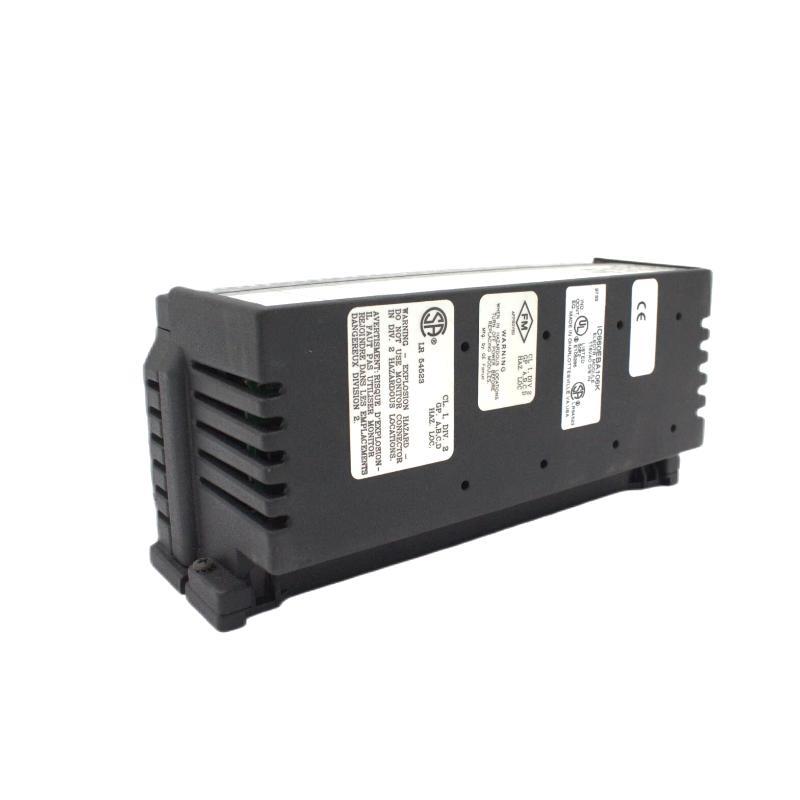

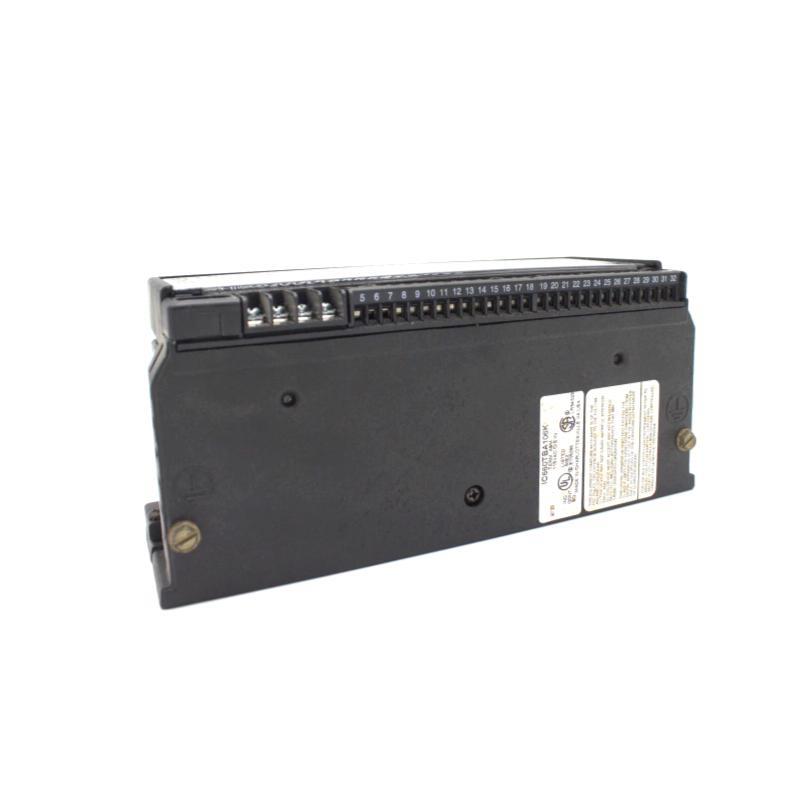

The GE IC660BBA106 is a rugged and reliable analog input module designed for use in industrial automation systems, particularly those operating within the Genius I/O system from General Electric. This module is engineered to receive analog signals from field devices such as sensors and transmitters, converting these signals into digital data for processing by the control system.
Specifically, the IC660BBA106 is a current source input module, accepting analog inputs in the range sur 4 to 20 mA, which is standard in industrial control environments due to its noise immunitéy and signal integrity over long distances. The module is widely known for its robust design, high environmental tolerance, and seamless integration with other GE Genius block devices.
Its flexible configuration, diagnostic capabilities, and high accuracy make it a preferred choice for various applications in industries such as manufacturing, energy, chemical processing, and water treatment.
Spécifications du produit
| Parameter | Details |
|---|---|
| Product Type | Analog Input Module |
| Modèle Number | IC660BBA106 |
| Input Type | Current Source |
| Input Signal Range | 4 to 20 mA |
| Number sur Inputs | 8 Channels |
| Input Resolution | 12 Bits |
| Isolation | Optically Isolated |
| Power Supply Voltage | 24 VDC (Nominal) |
| Power Consumption | 3.0 W (Typical) |
| Update Time | <10 ms |
| Diagnostics | Open wire detection, over-range alert |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting | Panel or DIN-rail |
| Dimensions (H x W x D) | 224.4 x 88.9 x 100 mm |
| Poids | 1.8 kg |
| Certifications | CE, UL, CSA |
| Communication Interface | Genius I/O Bus |
| Configuration | Hand-held monitor or control system |
Applications
The IC660BBA106 is designed to operate in diverse industrial environments where reliable analog data acquisition is critical. Key application areas include:
-
Process Control Systems: Monitoring variables like pressure, temperature, and flow via 4–20 mA transmitters.
-
Water and Wastewater Management: Measuring chemical dosing levels, tank levels, and pump performance.
-
Energy and Power Generation: Gathering sensor data in turbines, boilers, and distribution systems.
-
Oil & Gas: Real-time acquisition sur drilling, refining, and pipeline data.
-
Manufacturing: Used in SCADA and PLC systems to manage and regulate automated processes.
Product Advantages
-
Industrial-Grade Durability: Built to withstand harsh environments with wide operating temperature and humidity ranges.
-
High Accuracy and Resolution: 12-bit resolution ensures precise data acquisition for control applications.
-
Advanced Diagnostics: Provides real-time alerts for open circuits, over-range values, and faults, enabling fast maintenance response.
-
Flexible Configuration: Easily configured via hand-held monitor or centralized control systems.
-
Reliable Communication: Seamless integration with Genius I/O systems ensures fast and reliable data transfer.
-
Low Signal Noise: Current loop signal handling reduces susceptibility to noise over long distances.
-
Compact Design: Space-saving form factor suitable for dense cabinet installations.
Questions fréquentes (FAQ)
-
What type sur signals does the IC660BBA106 accept?
It accepts 4–20 mA current loop analog signals from field instruments. -
How many input channels are available on this module?
The module has 8 independent analog input channels. -
Is the module compatible with other brands sur sensors?
Yes, it is compatible with any standard 4–20 mA sensor. -
Can it be mounted on a DIN rail?
Yes, it supports both DIN rail and panel mounting options. -
Does the module surfer any diagnostic features?
Yes, it includes features like open circuit detection and over-range diagnostics. -
What is the resolution sur the input channels?
Each input channel provides a 12-bit resolution for accurate readings. -
Can I configure the module without a PC?
Yes, it can be configured using a GE hand-held monitor. -
What power supply is needed for the module?
It typically requires a 24 VDC power supply. -
Is the module suitable for outdoor environments?
While it is robust, it should be housed in a weatherprosur enclosure if used outdoors. -
What communication interface does it use?
It communicates using the Genius I/O Bus protocol.
Related Modèles (Same Series or Functionality)
| Modèle Number | Description |
|---|---|
| IC660BBA100 | Analog Input Module, Voltage Source, 8-Channel |
| IC660BBD101 | Analog Output Module, Current Source |
| IC660TSD020 | Digital Input Module, 32-Point |
| IC660TBD024 | Digital Output Module, 32-Point |
| IC660EBA026 | High-Speed Counter Module |
| IC660ELB912 | Genius I/O Bus Interface Module |
Popular Modèles from GE Fanuc (Same Marque)
| Modèle Number | Description |
|---|---|
| IC693CPU374 | CPU Module with Ethernet Interface |
| IC695CPE330 | PACSystems RX3i CPU, High Performance |
| IC697BEM731 | Genius Bus Controller |
| IC694MDL754 | 32-Point Isolated Input Module |
| IC693ALG223 | 4-Channel Analog Output Module |
| IC695PSA040 | RX3i Universal Power Supply |
