Présentation du produit

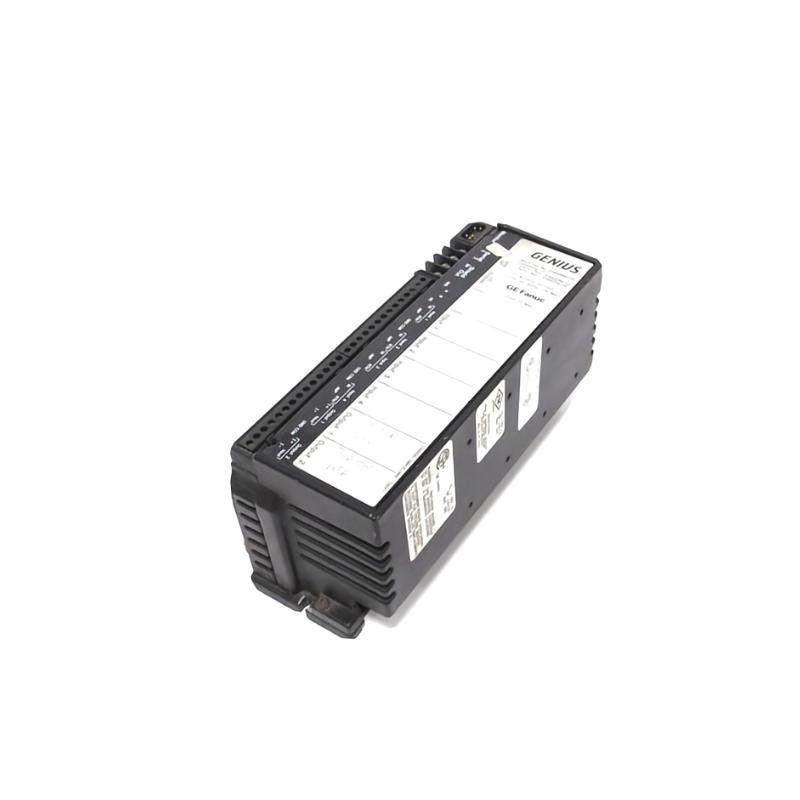

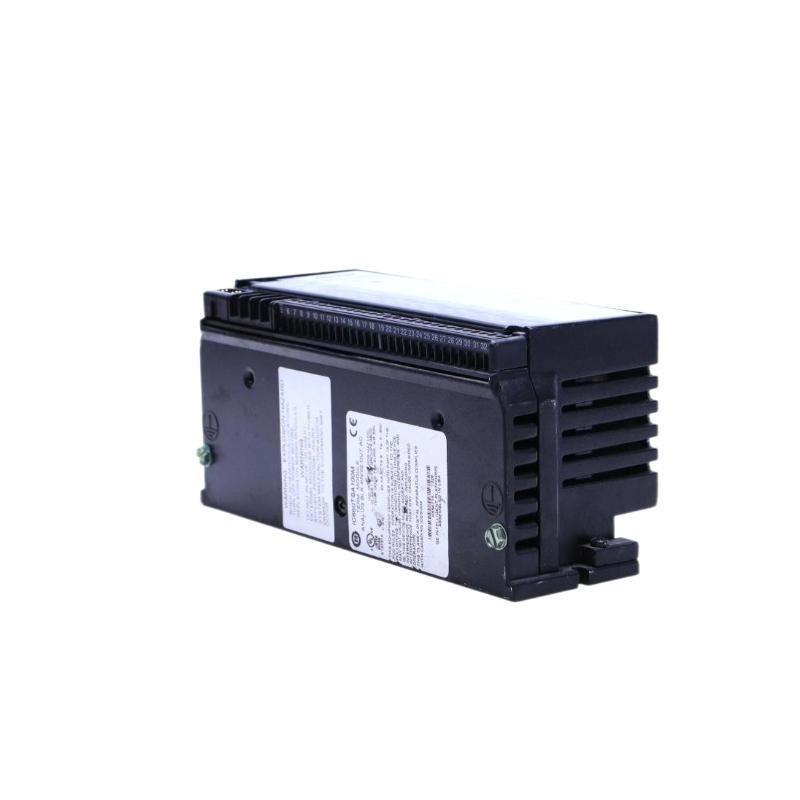

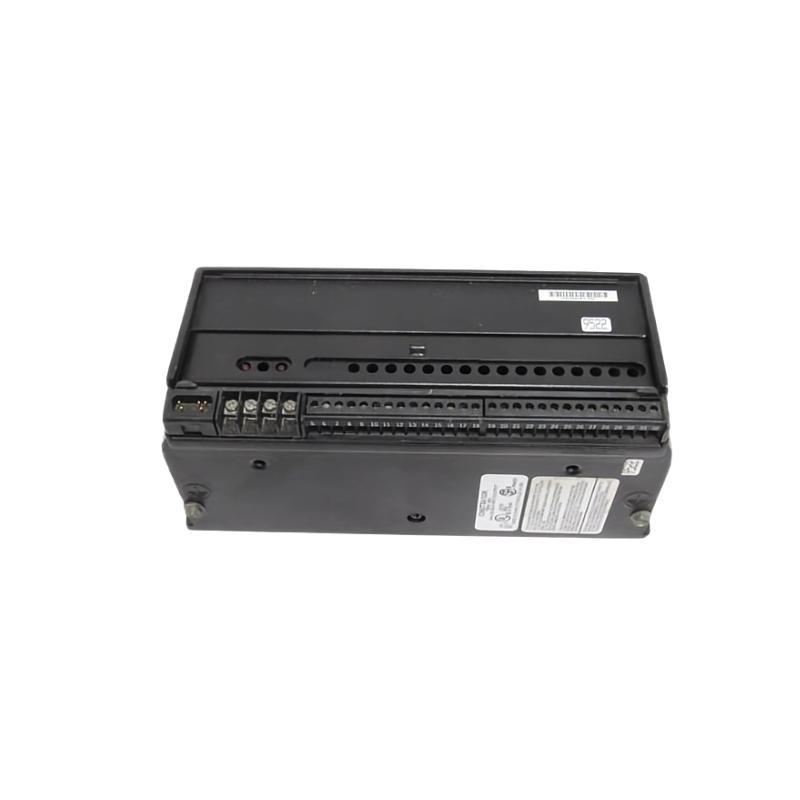

The GE IC660BBA100 Current Source Analog I/O Module is a high-performance module designed for industrial automation systems. Part sur the Genius I/O family, this module allows users to efficiently control both input and output analog signals. It is an essential component for any system requiring precise and reliable current source and analog I/O operations.
This module provides current-source analog outputs and voltage/current inputs, making it versatile for various process control applications. With its robust design, high accuracy, and reliability, the IC660BBA100 can operate in demanding industrial environments where precision and durability are crucial.
The module is engineered to be fully compatible with GE’s Genius I/O systems and can be integrated into a variety sur applications such as process control, automation, and manufacturing. It is an ideal choice for industries such as power generation, chemical processing, oil & gas, and factory automation.
Spécifications du produit
| Parameter | Details |
|---|---|
| Fabricant | General Electric (GE) |
| Référence | IC660BBA100 |
| Module Type | Current Source Analog I/O Module |
| Output Type | Current Source Output (4–20 mA) |
| Input Type | Voltage / Current Input (4–20 mA) |
| Number sur Channels | 4 Analog Input Channels, 4 Analog Output Channels |
| Input Range | 0–10 VDC or 4–20 mA |
| Output Range | 4–20 mA |
| Resolution | 16-bit |
| Accuracy | ±0.5% sur Full Scale |
| Signal Type | Voltage and Current |
| Power Supply | 24 VDC ±20% |
| Dimensions (H x W x D) | 224.4 x 84.8 x 99.3 mm |
| Poids | 1.81 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% Non-Condensing |
| Mounting | DIN Rail Mounting |
| Isolation | Optical Isolation Between Channels and Logic |
| Agency Approvals | CE, UL, CSA, FM Class 1 Div 2 |
| Update Time | ≤250 ms |
| Vibration Resistance | Designed for industrial vibration resistance |
| Shock Resistance | Built for shock resistance in industrial environments |
Product Applications
The GE IC660BBA100 Current Source Analog I/O Module is highly versatile and can be used in a variety sur industrial applications, including:
-
Process Control: It can handle both input and output for continuous processes in industries such as chemical manufacturing, oil refining, and pharmaceutical production. The precise control sur current signals ensures smooth and accurate regulation sur parameters like temperature, pressure, and flow.
-
Factory Automation: In factory automation systems, the module enables control over machinery, sensors, actuators, and other devices that require analog input/output (I/O) signals for control, monitoring, and adjustment.
-
Energy and Power Generation: The IC660BBA100 module is ideal for controlling the various instruments used in power generation plants, such as turbines and generators. It supports accurate measurements for performance optimization and system stability.
-
Oil and Gas Industry: In the oil & gas industry, it provides precise measurements sur pressure, temperature, and flow in the control systems sur drilling and pumping equipment. It is highly reliable in rugged, hazardous environments.
-
Building Automation and HVAC Systems: The module can be used to monitor and control environmental conditions in commercial buildings and HVAC (Heating, Ventilation, and Air Étating) systems.
-
Test and Measurement: The module’s flexibility allows it to be used in automated test equipment (ATE) systems for signal simulation and precise measurement sur analog signals from instruments.
Product Advantages
-
High Accuracy and Precision: The IC660BBA100 ensures high-performance output with 16-bit resolution and ±0.5% full-scale accuracy, making it ideal for demanding control applications where precision is crucial.
-
Wide Input and Output Range: This module supports both voltage and current input/output types, making it adaptable to various control systems, sensors, and actuators in a wide range sur industrial environments.
-
Durability in Harsh Environments: Designed for use in tough industrial settings, the module can operate in temperatures ranging from -20°C to +60°C and is resistant to shock and vibration. This makes it a reliable choice for demanding applications.
-
Easy Integration: Fully compatible with the Genius I/O network, it easily integrates into existing automation and control systems, saving time and reducing setup costs.
-
Flexible Mounting and Configuration: The module can be mounted on a standard DIN rail and is easily configured to handle both analog input and output signals, allowing for a customizable solution.
-
Diagnostics and Fault Detection: The IC660BBA100 features advanced diagnostic functions to detect faults, including under-range, over-range, and wiring issues, which helps reduce downtime and improves system reliability.
-
Certified Safety Standards: The module meets international safety standards, including UL, CSA, CE, and FM Class 1 Div 2, ensuring it can be safely used in hazardous locations.
-
Low Power Consumption: The module operates efficiently with minimal power consumption, contributing to reduced operational costs in large systems.
Questions fréquentes (FAQ)
-
Q: What is the power supply requirement for the IC660BBA100?
A: The module requires a 24 VDC power supply, with an operating range sur 20–30 VDC. -
Q: How many input and output channels are available on the IC660BBA100?
A: The module has 4 analog input channels and 4 analog output channels. -
Q: What is the accuracy sur the analog signals?
A: The module surfers ±0.5% full-scale accuracy, making it suitable for precise control. -
Q: Can the IC660BBA100 handle both current and voltage signals?
A: Yes, it supports both voltage and current signals, with a range sur 4–20 mA and 0–10 VDC for inputs, and 4–20 mA for outputs. -
Q: What are the operating and storage temperature ranges for this module?
A: The operating temperature range is from -20°C to +60°C, and the storage temperature range is from -40°C to +85°C. -
Q: How is the IC660BBA100 mounted?
A: It can be mounted on a DIN rail, ensuring secure and easy installation. -
Q: Is the IC660BBA100 suitable for use in hazardous environments?
A: Yes, it is FM Class 1 Div 2 certified, making it safe for use in hazardous locations. -
Q: What type sur diagnostic features does the IC660BBA100 include?
A: The module includes diagnostics for over-range, under-range, and wiring faults, helping to minimize downtime. -
Q: What certifications does the IC660BBA100 carry?
A: The module is certified with CE, UL, CSA, and FM Class 1 Div 2 for safety and compliance. -
Q: What industries can benefit from using the IC660BBA100?
A: It is ideal for use in industries such as process control, power generation, oil and gas, manufacturing, and HVAC systems.
Related Modèles (Same Series / Function)
| Modèle Number | Description | Output Type | Channels | Special Features |
|---|---|---|---|---|
| IC660BBA101 | Analog I/O Module (Voltage/Current Input) | Voltage / Current | 4 | More input/output flexibility |
| IC660BBA102 | Advanced Current Source I/O Module | Current Source Output | 8 | High-density I/O |
| IC660BBA103 | Multi-Function Analog I/O Module | Voltage/Current | 8 | Mixed analog and digital inputs/outputs |
| IC660TBA010 | Thermocouple Input Module | Thermocouple Input | 4 | For temperature control systems |
| IC660TBA020 | RTD Input Module | RTD Temperature Inputs | 4 | High-precision temperature measurement |
| IC660BBA104 | High-Resolution Analog Output Module | Voltage/Current Output | 4 | Enhanced resolution, high accuracy |
