Présentation du produit

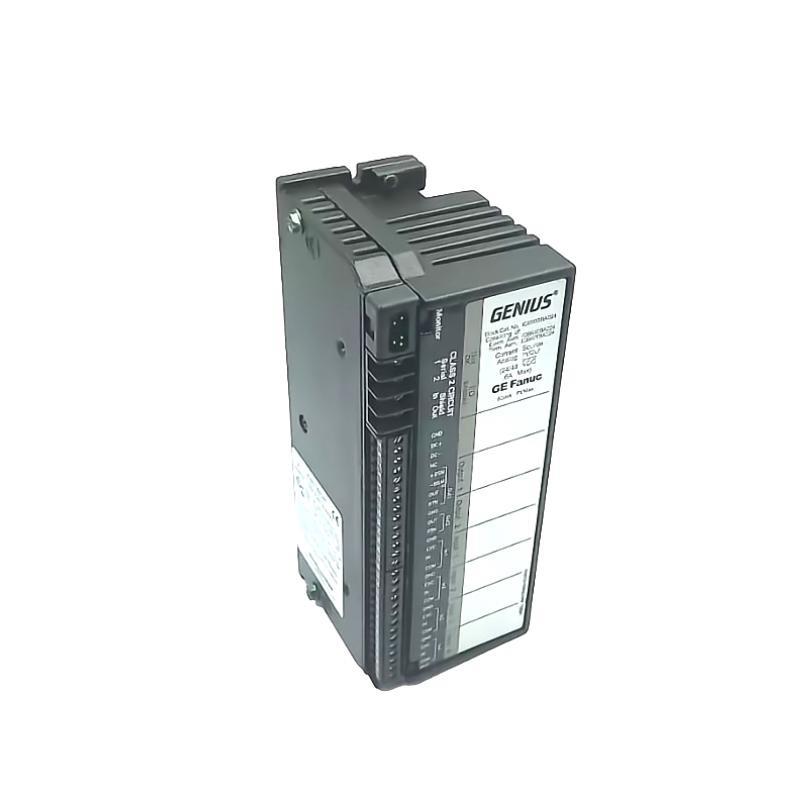

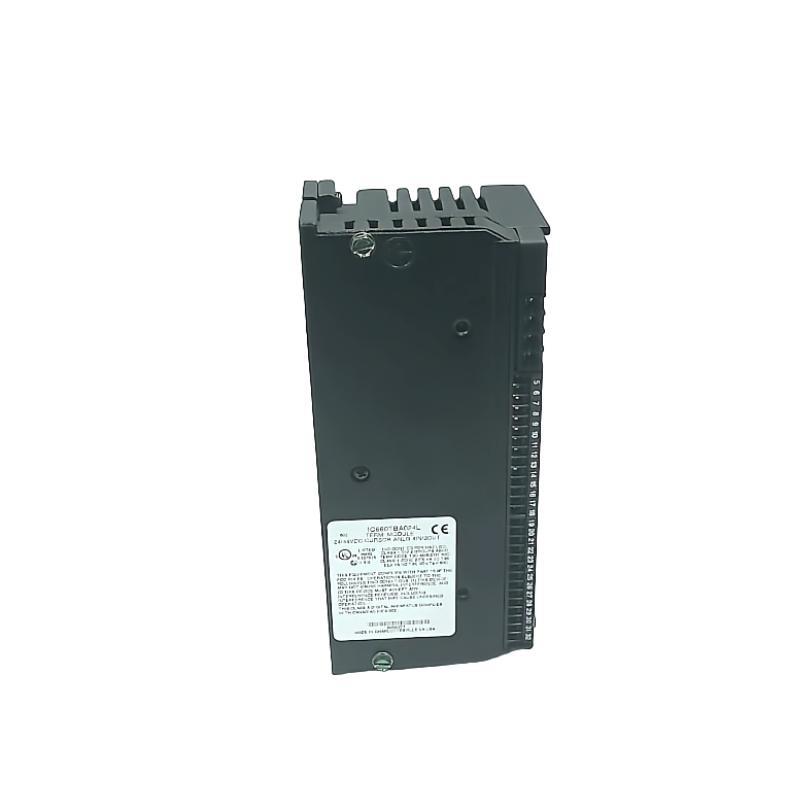

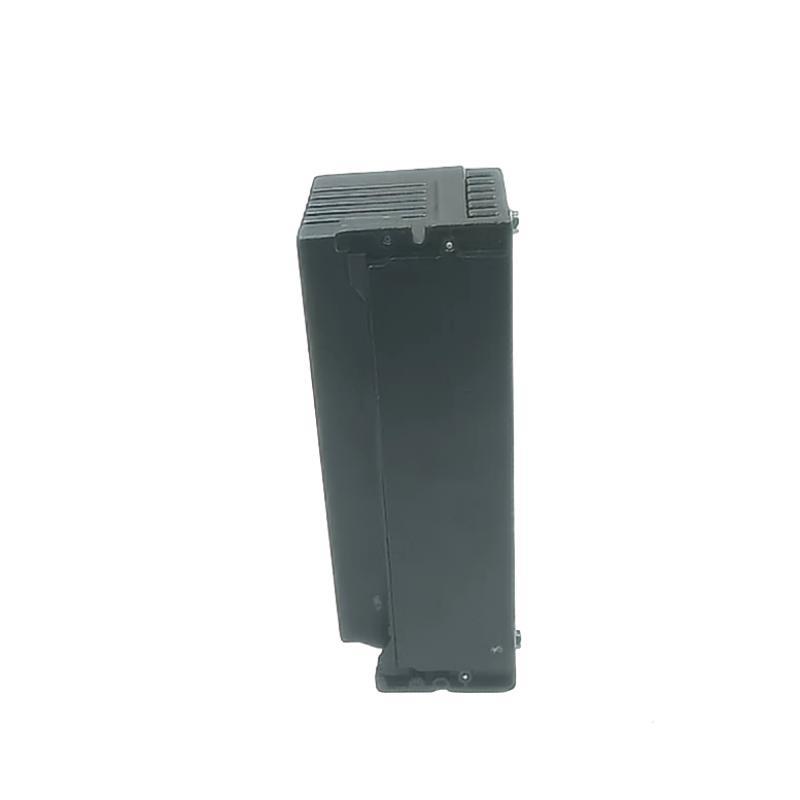

The GE IC660BBA024 Current Source Analog I/O Module is an industrial-grade, high-precision analog input/output module designed to manage and control analog signals in automated systems. It forms part sur GE’s Genius I/O series, widely used in automation and control systems for a variety sur industries.
This module provides current source output and current/voltage input functions, designed for seamless integration into process control applications that require precise analog signal management. Its advanced features, including noise immunitéy, fault detection, and modular design, ensure both reliable performance and easy scalability.
The IC660BBA024 is especially suited for applications in power plants, manufacturing facilities, and chemical processing plants where accurate and reliable analog control is essential for maintaining operational efficiency and safety.
Spécifications du produit
| Parameter | Details |
|---|---|
| Fabricant | GE (General Electric) |
| Référence | IC660BBA024 |
| Product Type | Current Source Analog I/O Module |
| Input Channels | 4 Analog Inputs |
| Output Channels | 4 Analog Current Source Outputs |
| Signal Type | Voltage (0-10 V), Current (4-20 mA) |
| Input Range | 0–10 V (Voltage Input), 4–20 mA (Current Input) |
| Output Range | 4–20 mA (Current Output) |
| Resolution | 12 bits (Voltage) / 16 bits (Current) |
| Accuracy | ±0.5% sur Full Scale |
| Update Time | ≤250 ms |
| Power Supply | 24 VDC (nominal 20-30 VDC) |
| Mounting | DIN Rail Mounting |
| Isolation | Optical Isolation between channels and logic |
| Environmental Rating | IP20 (Indoor use) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Shock and Vibration Resistance | Designed to withstand industrial shock and vibration levels |
| Dimensions (H x W x D) | 185 x 75 x 140 mm |
| Poids | 1.3 kg |
| Agency Approvals | CE, UL, CSA, FM Class 1 Div 2 |
Product Applications
The IC660BBA024 Current Source Analog I/O Module is designed for a wide range sur industrial applications where precision and reliability are critical. Some sur its most common uses include:
-
Power Generation: Monitoring and controlling signals in power plants, especially in turbine control systems and boiler regulation.
-
Process Control: Used in industries such as chemical processing, food and beverage, and pharmaceutical production for managing analog input/output signals.
-
Manufacturing Automation: Managing machine control, temperature regulation, and environmental monitoring in automated manufacturing lines.
-
Oil and Gas: Employs precise current/voltage input for monitoring pressure, temperature, and other key metrics in oil and gas extraction processes.
-
HVAC Systems: Controls and monitors HVAC components like fans, dampers, and heating elements in commercial and industrial HVAC systems.
-
Test Equipment: Used in automated test equipment (ATE) for simulating current-source conditions and reading voltages from sensor systems.
Product Advantages
-
Precise Control: With its fine-grained control sur current and voltage signals, the IC660BBA024 ensures high accuracy and repeatability in measurements and outputs.
-
Robust Design: Built to withstand the rigors sur industrial environments, the module is highly durable and resistant to temperature fluctuations, electromagnetic interference, and mechanical shock.
-
Modular Flexibility: Its modular design allows for easy expansion and integration into larger control systems.
-
Advanced Diagnostics: Includes built-in diagnostic features for detecting faults such as open circuits, over-range, and under-range conditions, reducing system downtime and improving overall reliability.
-
Quick Integration: The IC660BBA024 is compatible with the Genius I/O system and can be easily integrated into existing industrial control networks.
-
Low Power Consumption: With efficient power usage, the module helps reduce operational costs while maintaining high-performance standards.
-
Compact and Efficient: Despite its advanced features, the IC660BBA024 has a compact form factor, saving space in control panels and enclosures.
-
Wide Environmental Range: The module’s wide operating temperature range makes it suitable for diverse and demanding environments, from arctic to desert conditions.
-
Enhanced Signal Integrity: The current-source output design minimizes the risk sur noise interference, ensuring clean, stable signal transmission in complex systems.
Questions fréquentes (FAQ)
-
Q: What is the input range for the IC660BBA024?
A: The IC660BBA024 supports both voltage (0–10 V) and current (4–20 mA) inputs. -
Q: How many input and output channels does the IC660BBA024 have?
A: It has 4 analog input channels and 4 analog current source output channels. -
Q: Can this module be used with other GE I/O modules?
A: Yes, the IC660BBA024 is part sur the Genius I/O system and integrates seamlessly with other Genius I/O modules. -
Q: What is the power supply requirement for the IC660BBA024?
A: The module requires a 24 VDC nominal power supply, with an operating range sur 20-30 VDC. -
Q: What kind sur diagnostics does the IC660BBA024 surfer?
A: It surfers built-in diagnostics for detecting faults such as open circuits, over-range, and under-range conditions. -
Q: Is this module suitable for high-temperature environments?
A: Yes, the IC660BBA024 operates within a temperature range sur -20°C to +60°C. -
Q: How do I mount the IC660BBA024 module?
A: It can be mounted on a standard DIN rail, making installation simple and fast. -
Q: What is the accuracy sur the IC660BBA024?
A: The module has an accuracy sur ±0.5% sur full scale for both voltage and current inputs/outputs. -
Q: What certifications does the IC660BBA024 have?
A: The module is certified by CE, UL, CSA, and FM for industrial use. -
Q: Can this module be used in hazardous environments?
A: Yes, it is FM Class 1 Div 2 certified, allowing it to be used in certain hazardous locations.
Related Modèles (Same Series / Function)
| Modèle Number | Description | Input Type | Channels | Special Features |
|---|---|---|---|---|
| IC660BBA020 | Analog Input Module | Voltage / Current | 4 | Basic input module, no current output |
| IC660BBD024 | Analog Output Module | Current Source | 4 | 4 Analog current outputs |
| IC660BBA025 | Analog Input/Output Module | Voltage / Current | 4 In / 4 Out | Combination sur input and output |
| IC660TBD020 | Digital Input Module | Discrete | 16 | Digital inputs for on/surf signals |
| IC660TBA020 | Digital Output Module | Discrete | 16 | Digital outputs for control signals |
| IC660BBA026 | Advanced Analog Input/Output Module | Voltage / Current | 8 In / 8 Out | Higher resolution, more input/output channels |
