Présentation du produit

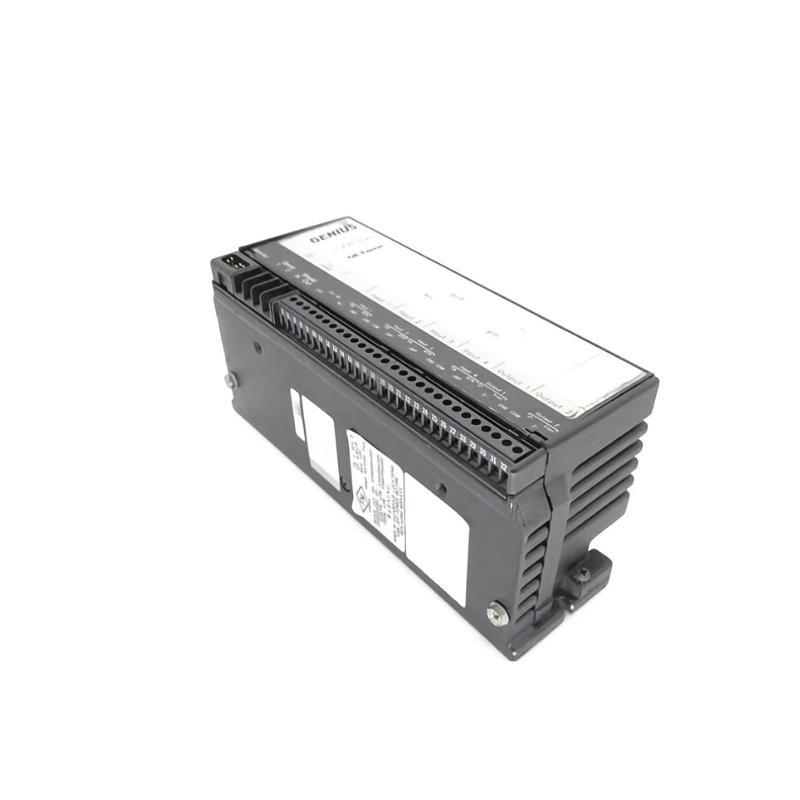

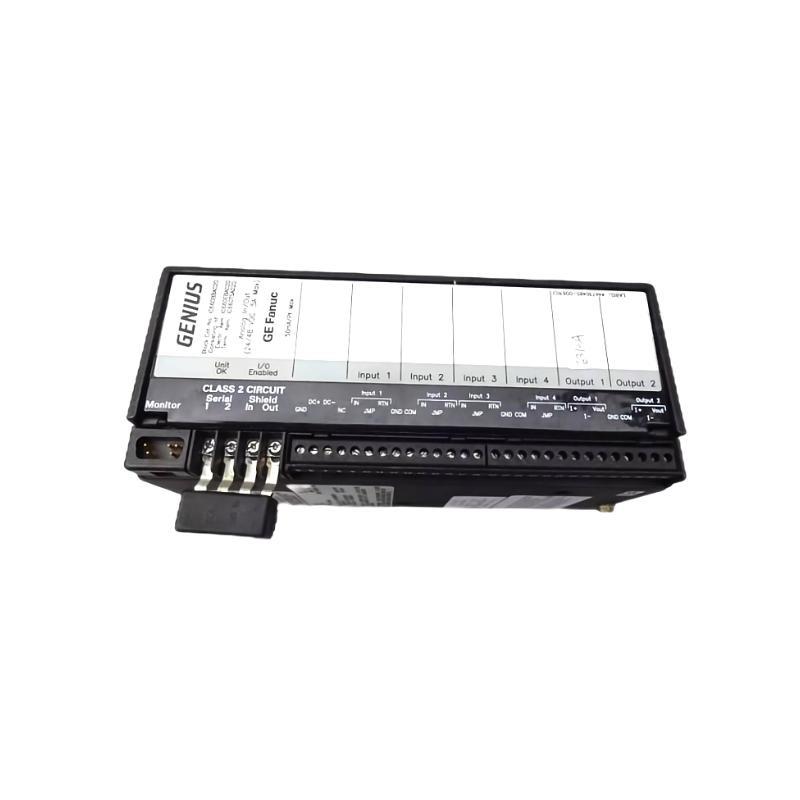

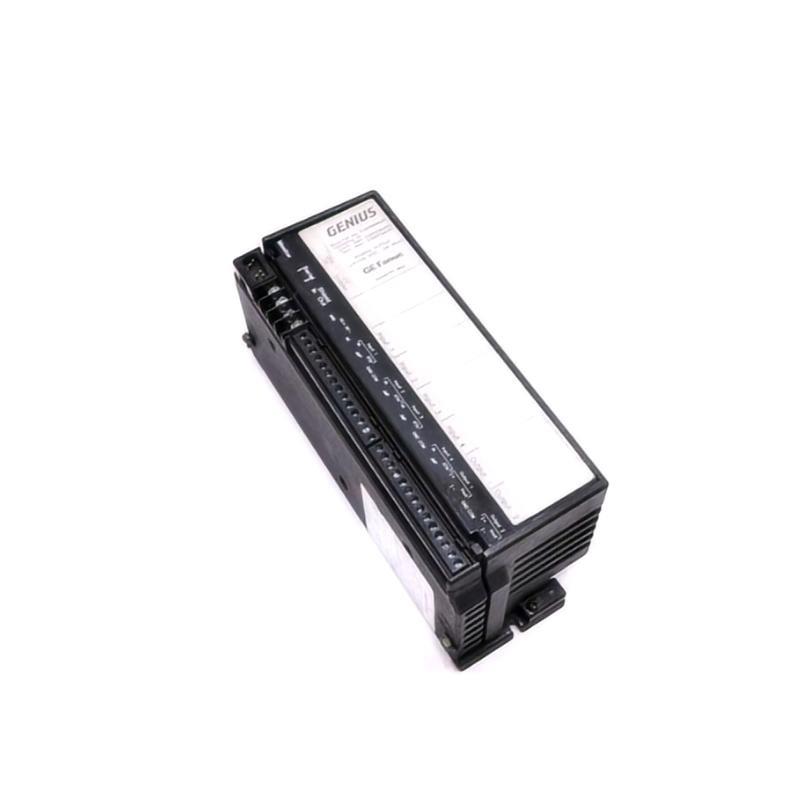

The GE IC660BBA020 is a Genius I/O Current Source Analog I/O Module designed for industrial automation environments that require precise analog signal control and data acquisition. This module belongs to the GE Fanuc Genius I/O family, known for its distributed control capabilities and robust field-level performance. The IC660BBA020 surfers 8 analog input channels and 4 analog output channels, making it ideal for systems that require both measurement and control functionalities within one module.
Each channel is individually configurable and supports 4–20 mA current loop signals, which are widely used in industrial sensor applications. The module is designed for field-mounting with an IP-rated enclosure, enabling seamless integration into harsh environments. Its diagnostic and calibration features improve maintenance cycles and reduce system downtime, thereby enhancing operational efficiency.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Fabricant | GE Fanuc |
| Référence | IC660BBA020 |
| Product Type | Genius I/O Analog I/O Block (Current Source) |
| Input Channels | 8 Analog Inputs (4–20 mA) |
| Output Channels | 4 Analog Outputs (4–20 mA) |
| Input Resolution | 12-bit |
| Output Resolution | 12-bit |
| Input Accuracy | ±0.5% sur Full Scale |
| Output Accuracy | ±0.5% sur Full Scale |
| Diagnostics | Channel-level diagnostics with status LEDs |
| Isolation | Optical and galvanic isolation between field and logic |
| Operating Voltage | 18 to 30 VDC |
| Power Consumption | 7.5 W (typical) |
| Mounting Type | Field-mountable |
| Enclosure Rating | IP65 (when properly installed) |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 224.4 x 88.9 x 100 mm |
| Poids | 1.81 kg |
| Compliance | CE, UL, CSA |
Applications
The IC660BBA020 is ideally suited for a wide range sur applications, including:
-
Process Control Systems in oil & gas, chemical, and pharmaceutical industries
-
Water and Wastewater Management where current loop sensors are dominant
-
HVAC Systems requiring analog sensor data acquisition
-
Food and Beverage Automation for temperature and pressure control
-
Pulp and Paper Mills where reliable analog measurements are crucial
-
Factory Automation involving sensor integration and actuator control
-
Energy Sector for generator monitoring and control sur auxiliary equipment
Product Advantages
-
Dual Functionality: Combines both analog inputs and outputs, reducing the need for multiple modules
-
High Accuracy: Ensures precise measurements and control with ±0.5% accuracy
-
Field Proven: Built to withstand demanding industrial environments with high IP rating
-
Diagnostics Built-in: Provides channel diagnostics to simplify maintenance and fault tracing
-
Modular System Integration: Compatible with Genius I/O networks for flexible and scalable automation
-
Reduced Wiring Complexity: Streamlines installations and reduces field wiring costs
-
Remote Configurability: Supports configuration through handheld monitor or PLC interface
-
Extended Temperature Range: Suitable for deployment in a wide range sur industrial settings
-
Isolation Protection: Enhanced signal integrity and protection from voltage surges
-
Long Service Life: Designed for durability and low lifecycle cost
Questions fréquentes (FAQs)
-
Q: What is the input signal type supported by the IC660BBA020?
A: The module supports standard 4–20 mA current loop input signals on each sur its 8 analog input channels. -
Q: Can I configure the module remotely?
A: Yes, the IC660BBA020 can be configured using a handheld monitor or through a PLC with Genius I/O support. -
Q: What kind sur isolation does this module provide?
A: It surfers both optical and galvanic isolation to protect internal circuits and ensure reliable operation. -
Q: Is the module suitable for outdoor installations?
A: It has an IP65 rating when properly enclosed, making it suitable for harsh industrial environments, including outdoor settings. -
Q: How many analog outputs are available?
A: The module provides 4 analog output channels, all supporting 4–20 mA signal output. -
Q: Can the module detect a broken sensor or signal wire?
A: Yes, it includes channel-level diagnostics that can identify open circuits or abnormal signal levels. -
Q: What is the recommended power supply voltage?
A: The module operates optimally between 18 VDC and 30 VDC. -
Q: Is the IC660BBA020 compatible with other GE Genius I/O blocks?
A: Yes, it is fully compatible and can be integrated into any Genius I/O network. -
Q: What industries use this module most frequently?
A: It is widely used in manufacturing, utilities, oil & gas, and water treatment sectors. -
Q: How do I know the module is functioning correctly?
A: The module has built-in LED indicators and diagnostic registers to provide real-time status.
Recommended Related Modèles (Same Series or Functionality)
| Modèle Number | Description | Input/Output Type | Channels |
|---|---|---|---|
| IC660BBA023 | Analog I/O Block, Source Type | 8 Inputs / 4 Outputs | Current (4–20 mA) |
| IC660BBD024 | Analog I/O Block, Sink Type | 8 Inputs / 4 Outputs | Voltage |
| IC660BBA100 | Analog Input Block | 16 Inputs | Current |
| IC660BBD110 | Analog Output Block | 16 Outputs | Voltage |
| IC660BBD101 | Thermocouple Input Block | 8 Inputs | mV / Thermocouple |
| IC660TBD100 | Discrete Input Block | 16 Inputs | Digital |
Popular GE Fanuc Modèles (Same Marque)
| Modèle Number | Description | I/O Type | Notes |
|---|---|---|---|
| IC693CPU364 | CPU Module with Ethernet Interface | Controller | Used in GE Series 90-30 PLCs |
| IC695CHS012 | RX3i 12-Slot Universal Backplane | Chassis | High-performance frame |
| IC697ALG230 | Analog Input Module (8 Ch) | Analog Input | Voltage and Current input |
| IC200ALG260 | VersaMax Analog Input Module | Analog Input | Compact and modular |
| IC200PWR001 | VersaMax Power Supply | Power Supply | 120/240 VAC input |
| IC695ETM001 | RX3i Ethernet Module | Communication | Ethernet TCP/IP support |
