Présentation du produit

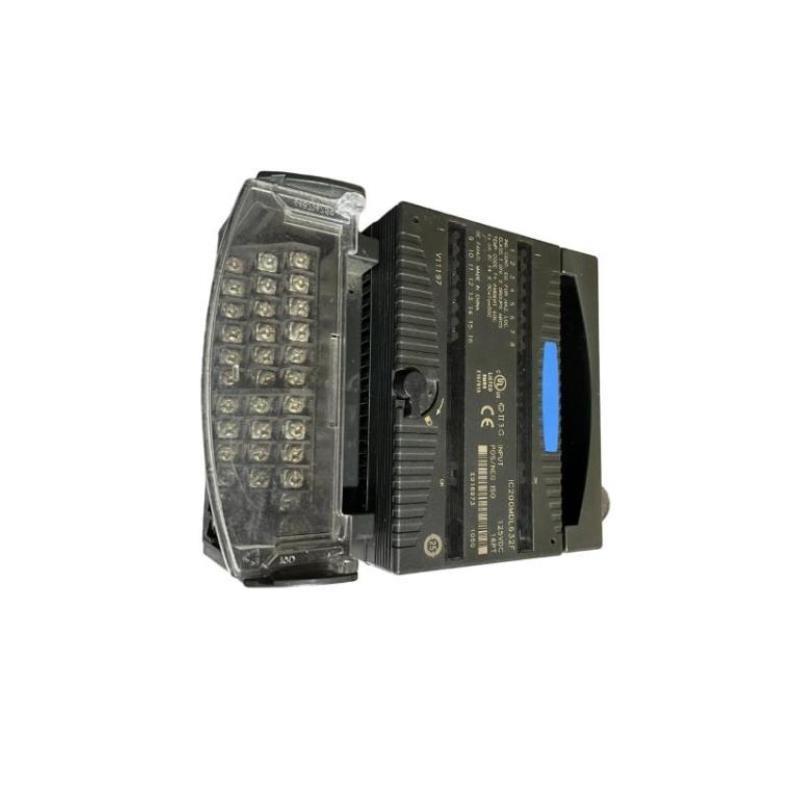

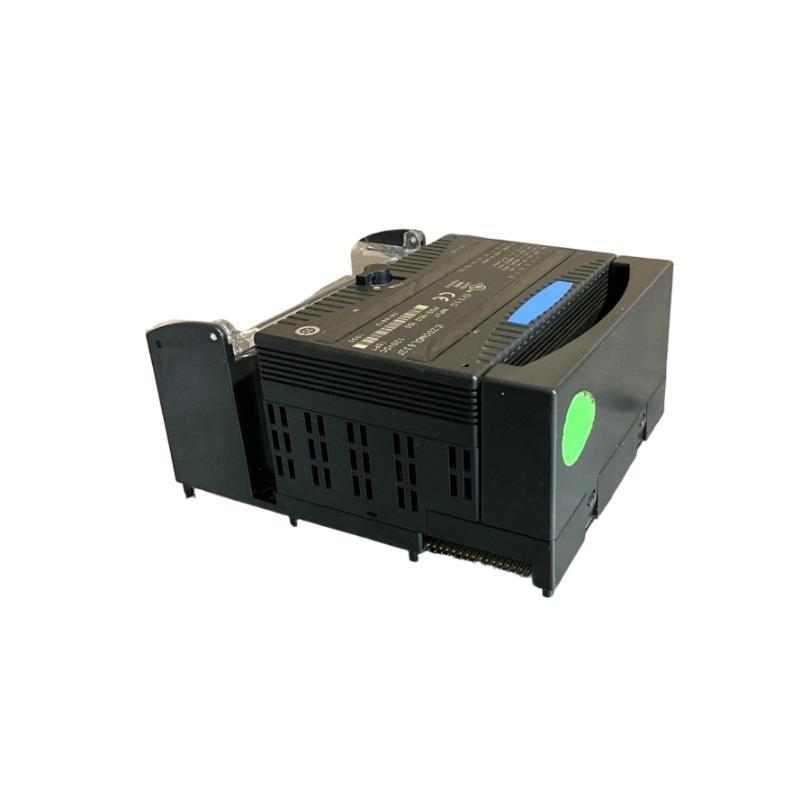

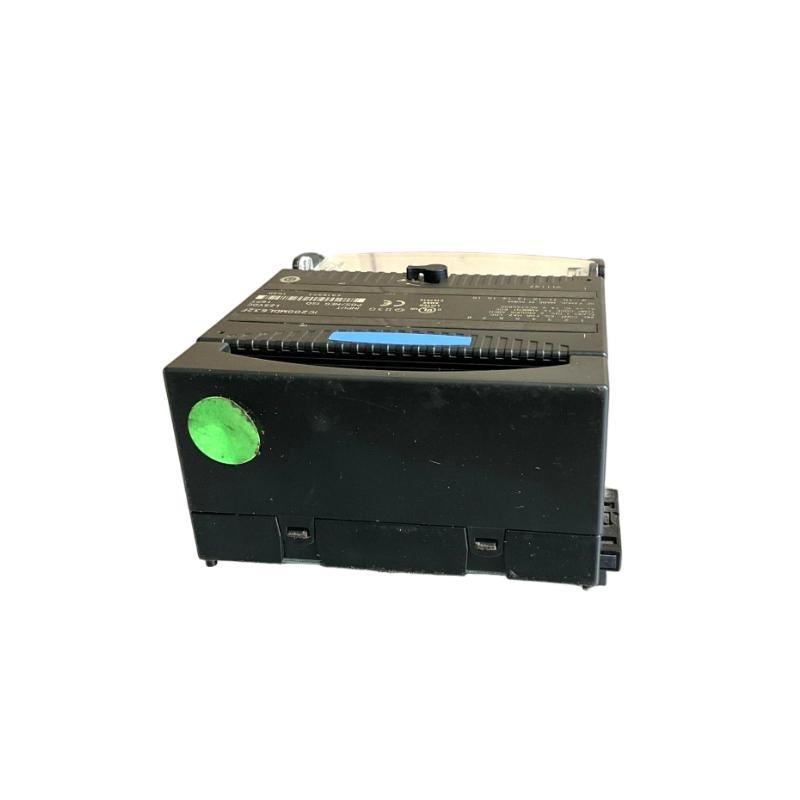

The GE IC200MDL632 VersaMax Discrete Input Module is an essential component in VersaMax PLC systems, designed to handle digital input signals from various field devices such as sensors, limit switches, and proximity sensors. This module provides 8 discrete input points that can detect binary on/surf signals and is typically used in industrial control systems, process automation, and safety monitoring applications.
The IC200MDL632 module surfers optical isolation for each input channel, which protects the system from electrical noise or voltage spikes that could affect performance. It is mounted on DIN rails, simplifying installation and ensuring a clean and organized control panel. The module operates with a 24 VDC input voltage, which is compatible with most industrial equipment.
Spécifications du produit
| Specification | Details |
|---|---|
| Modèle | IC200MDL632 |
| Module Type | Discrete Input Module |
| Number sur Inputs | 8 Inputs |
| Input Type | Digital (Discrete) |
| Input Voltage | 24 VDC |
| Mounting Type | DIN Rail |
| Dimensions | 110 x 66.8 x 50 mm |
| Poids | 0.136 kg |
| Optical Isolation | Yes |
| Operating Temperature Range | -20°C to 60°C |
| Status Indicators | Yes, for each input |
Product Applications
The GE IC200MDL632 VersaMax Discrete Input Module is used in a wide variety sur applications where reliable and accurate digital signal processing is required. Common uses include:
-
Sensor and Switch Input Monitoring: The module captures signals from proximity sensors, limit switches, and other digital devices that provide binary outputs, sending status information to the control system.
-
Conveyor Systems: It is ideal for use in automated conveyor systems, where it monitors positions and speeds sur items, enabling real-time control sur production lines.
-
Safety Systems: The module can interface with safety interlocks, emergency stop buttons, and other critical safety devices, providing feedback for system safety and triggering alerts when necessary.
-
Process Control Systems: The IC200MDL632 is widely used in process control applications to monitor the status sur critical devices like pressure switches, flow sensors, and level switches.
-
Packaging and Assembly Lines: In packaging and assembly lines, the module is used to monitor the position and operational status sur machinery, ensuring smooth and efficient operation.
Product Advantages
-
Optical Isolation for Signal Protection: Each input channel is optically isolated, which ensures that electrical interference or voltage spikes from external devices do not affect the performance sur the control system. This is particularly useful in industrial environments with high electrical noise.
-
Compact and Space-Saving Design: With dimensions sur 110 x 66.8 x 50 mm, the IC200MDL632 module has a compact design that allows for easy installation in small control cabinets or panels where space is limited.
-
Wide Operating Temperature Range: The module can operate in temperatures ranging from -20°C to 60°C, making it ideal for use in both hot and cold industrial environments.
-
Seamless Integration: The IC200MDL632 module integrates seamlessly with other VersaMax PLC modules, allowing for easy scalability and customization sur your control system.
-
Reliable Performance: With 8 input channels, the module is highly effective for handling binary input signals and ensuring accurate and reliable operation in demanding industrial applications.
-
Status Indicators for Easy Monitoring: The IC200MDL632 module includes status LEDs for each input, allowing operators to monitor the operational status sur connected devices and identify faults quickly.
FAQ
1. How many digital inputs does the IC200MDL632 module support?
The IC200MDL632 module supports a total sur 8 discrete digital input points.
2. What is the input voltage for the IC200MDL632 module?
The module operates with a 24 VDC power supply, which is standard for most industrial control systems.
3. Does the IC200MDL632 module provide protection against electrical interference?
Yes, each input channel sur the IC200MDL632 is optically isolated, providing protection against electrical noise and voltage spikes that could affect the system.
4. What types sur devices can be connected to the IC200MDL632 module?
The module can be used to connect a variety sur digital devices, including proximity sensors, limit switches, and temperature switches, among others.
5. What is the operating temperature range sur the IC200MDL632 module?
The IC200MDL632 module can operate in temperatures ranging from -20°C to 60°C, making it suitable for use in a wide variety sur industrial environments.
6. How is the IC200MDL632 module mounted?
The IC200MDL632 module is mounted on a DIN rail, allowing for secure installation in control panels and easy integration into existing systems.
7. Does the IC200MDL632 module support high-speed digital inputs?
The IC200MDL632 module is designed for general digital input applications, including sensors and switches. It may not be suitable for high-speed input requirements.
8. Can the IC200MDL632 module be used with any other PLC systems?
The IC200MDL632 module is designed specifically for the VersaMax PLC system and may not be compatible with other PLC systems unless they support similar I/O configurations.
9. Does the IC200MDL632 module include any diagnostic features?
The module includes status LEDs that indicate the operational state sur each input, allowing operators to monitor the status and quickly identify faults or issues.
10. Can the IC200MDL632 module handle analog inputs?
No, the IC200MDL632 module is designed to handle digital (discrete) input signals and is not suitable for analog input signals.
Recommended Modèles from the Same Series or Produits associés
| Modèle | Description |
|---|---|
| IC200MDL633 | 8-channel digital input module for advanced applications |
| IC200MDL634 | High-speed discrete input module for large systems |
| IC200MDL635 | Versatile input module with integrated protection features |
| IC200MDL636 | Compact input module with additional diagnostic functions |
| IC200MDL637 | Digital input module with extended range for specialized applications |
| IC200MDL638 | Input module with integrated relay outputs for more control options |
