Product Overview

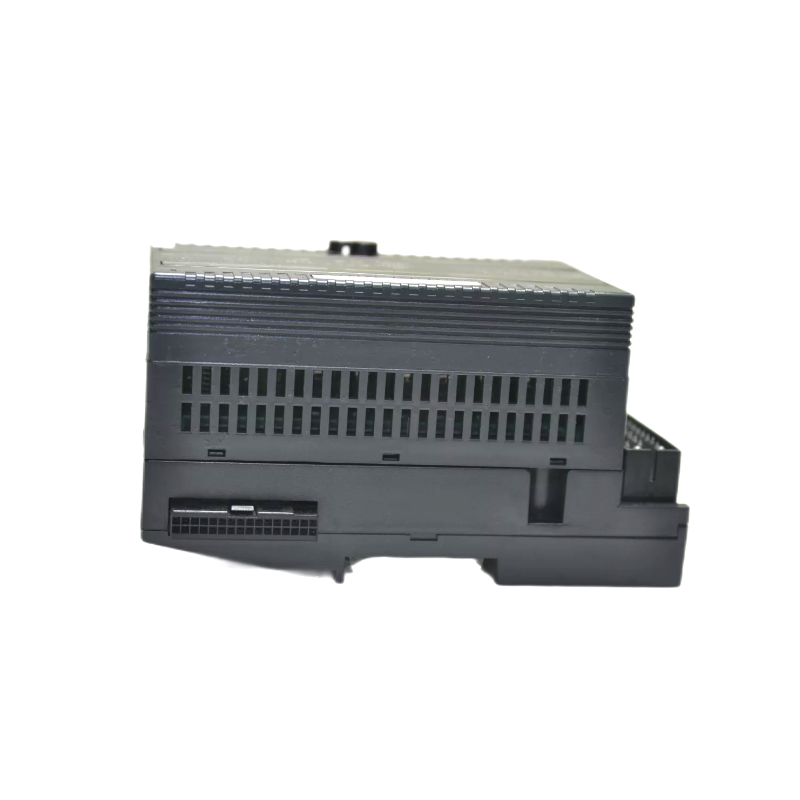

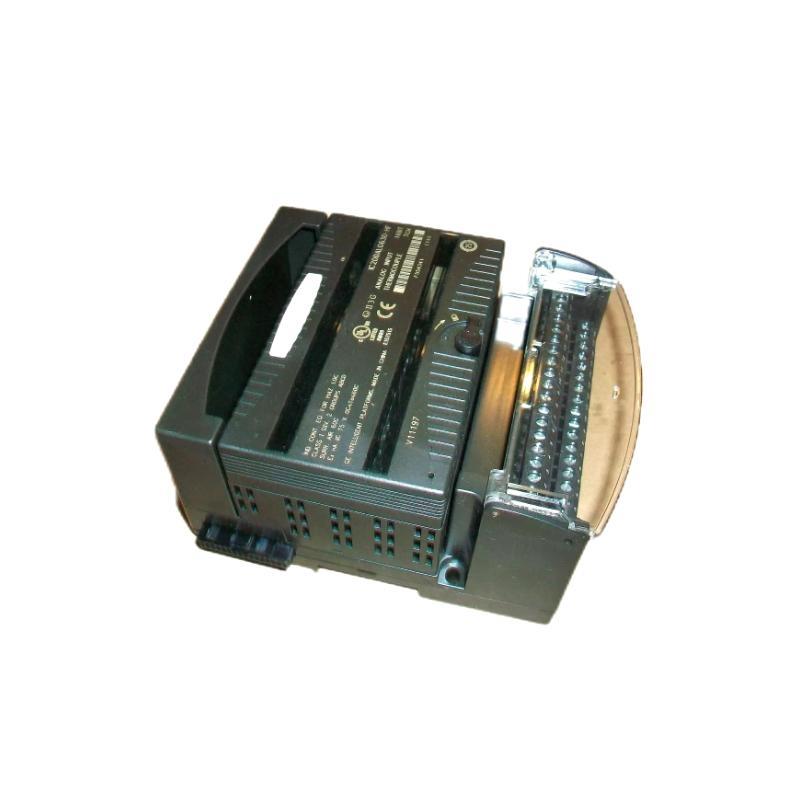

The GE IC200ALG630-BB is a high-performance Analog Input Module designed for use with the GE Fanuc VersaMax PLC series. This module provides 8 input channels, supporting both voltage and current inputs, making it ideal for industrial automation, process control, and monitoring applications. The IC200ALG630-BB ensures accurate and reliable signal acquisition from field sensors and devices, enhancing system efficiency and precision.
This module is widely used in various industries, including manufacturing, energy, water treatment, and building automation, where accurate data collection from sensors is critical. With its compact size and robust design, it is a preferred choice for engineers and system integrators who require reliable analog input solutions.
Spécifications du produit
The GE IC200ALG630-BB has the following technical specifications:
| Parameter | Specification |
|---|---|
| Fabricant | General Electric (GE) |
| Modèle Number | IC200ALG630-BB |
| Module Type | Analog Input Module |
| Number sur Channels | 8 Channels |
| Input Signal Type | Voltage (±10V) / Current (4-20mA, 0-20mA) |
| Resolution | 15-bit resolution |
| Accuracy | ±0.1% sur full scale |
| Input Impedance | > 10MΩ (Voltage mode) / 250Ω (Current mode) |
| Power Supply | 24V DC |
| Isolation Protection | 500V RMS isolation |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions (H x W x D) | 90 × 150 × 50 mm |
| Poids | 0.3 kg |
| Mounting | DIN Rail or Panel Mounting |
| Compliance Standards | CE, UL, RoHS |
Product Applications
The GE IC200ALG630-BB Analog Input Module is used in various industrial applications where precise analog signal measurement is required. Some common applications include:
-
Process Control: Used for real-time monitoring sur temperature, pressure, flow rate, and other key parameters in industries such as chemical processing, pharmaceuticals, and food production.
-
Manufacturing Automation: Integrated into automated assembly lines to capture sensor data for quality control and process optimization.
-
Energy Management: Ideal for power plants and renewable energy systems to monitor voltage and current levels.
-
Water and Wastewater Treatment: Helps in monitoring pH levels, chemical concentrations, and flow rates for environmental compliance.
-
Building Automation: Used in HVAC systems, lighting control, and environmental monitoring in smart buildings.
-
Oil & Gas Industry: Utilized for pipeline monitoring, pressure control, and safety instrumentation.
Product Advantages
The GE IC200ALG630-BB surfers several key advantages, making it a preferred choice for industrial applications:
-
High Precision & Accuracy – With 15-bit resolution and ±0.1% full-scale accuracy, this module ensures precise analog signal acquisition.
-
Dual Input Support – Supports both voltage (±10V) and current (4-20mA, 0-20mA) inputs, providing flexibility for various sensor types.
-
Robust Isolation – 500V RMS isolation ensures electrical safety and protects against interference.
-
Compact & Lightweight – Its small footprint and lightweight design make installation easy, even in space-constrained environments.
-
Wide Operating Temperature Range – Designed to function in extreme environments, from -20°C to +60°C.
-
Easy Integration – Seamlessly integrates with GE Fanuc VersaMax PLCs, reducing system complexity and setup time.
-
Reliable Performance – Engineered for 24/7 industrial operations, ensuring long-term stability and reliability.
-
Compliance with Industry Standards – Certified with CE, UL, and RoHS, making it suitable for global industrial applications.
Questions fréquentes (FAQ)
-
What input signal types does the IC200ALG630-BB support?
-
It supports voltage (±10V) and current (4-20mA, 0-20mA) inputs.
-
-
How many analog input channels does this module have?
-
The IC200ALG630-BB has 8 input channels.
-
-
What is the resolution sur this module?
-
It has a 15-bit resolution for high-precision data acquisition.
-
-
What type sur isolation does it provide?
-
The module provides 500V RMS isolation, ensuring electrical safety and signal integrity.
-
-
What is the module’s accuracy?
-
The accuracy is ±0.1% sur full scale.
-
-
Can this module be used with non-GE PLCs?
-
It is designed for GE Fanuc VersaMax PLCs, but with proper interfacing, it may work with other PLCs.
-
-
What is the power supply requirement?
-
It operates on 24V DC power.
-
-
What are the dimensions sur the IC200ALG630-BB?
-
It measures 90 × 150 × 50 mm.
-
-
What is the weight sur this module?
-
It weighs 0.3 kg.
-
-
Is this module RoHS compliant?
-
Yes, it is RoHS compliant and meets CE & UL certification standards.
-
Related Modèles
Below are 8 related models within the GE VersaMax series:
| Modèle Number | Description |
|---|---|
| IC200ALG620 | 8-Channel Analog Voltage Input Module (0-10V) |
| IC200ALG621 | 8-Channel Analog Current Input Module (4-20mA) |
| IC200ALG622 | 4-Channel Analog Input Module (Configurable) |
| IC200ALG624 | 8-Channel High-Resolution Analog Input Module |
| IC200ALG625 | 16-Channel Analog Input Module |
| IC200ALG626 | 8-Channel Universal Analog Input Module |
| IC200ALG627 | 12-Channel Voltage/Current Analog Input Module |
| IC200ALG628 | 16-Channel High-Speed Analog Input Module |
Popular GE Modèles
Below are 8 popular models from General Electric (GE) Industrial Automation:
| Modèle Number | Description |
|---|---|
| IC200PWR001 | VersaMax Power Supply Module (24V DC) |
| IC200MDL750 | 32-Point Digital Input Module (24V DC) |
| IC200MDL241 | 16-Point Relay Output Module |
| IC200MDL650 | 32-Point Digital Output Module |
| IC200CPU001 | VersaMax PLC CPU Module |
| IC200CHS002 | VersaMax 16-Point I/O Base |
| IC695CPU310 | PACSystems RX3i CPU Module |
| IC695ETM001 | Ethernet Interface Module for PACSystems RX3i |
