Product Overview

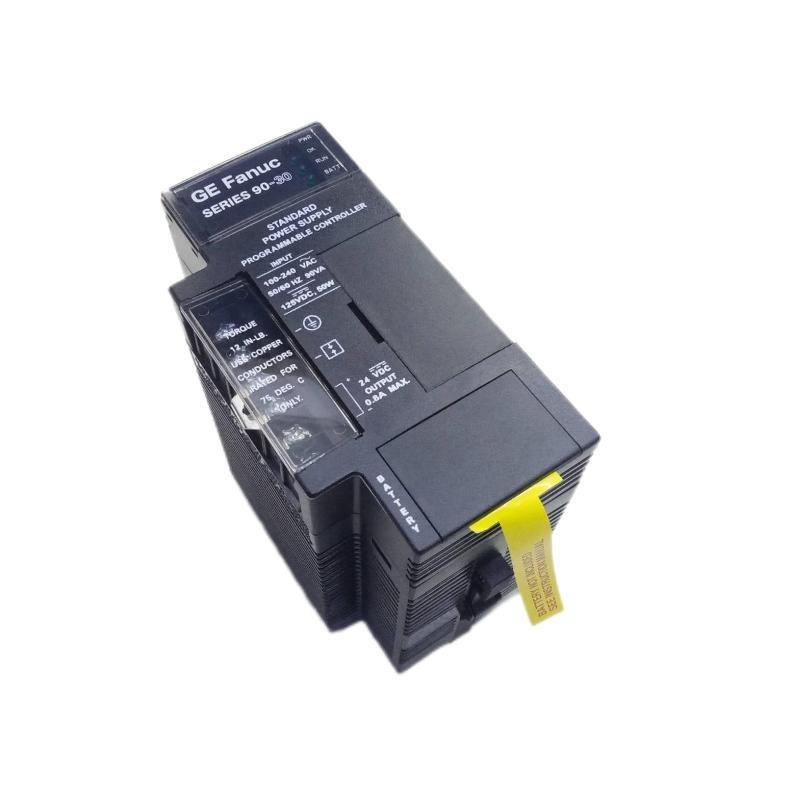

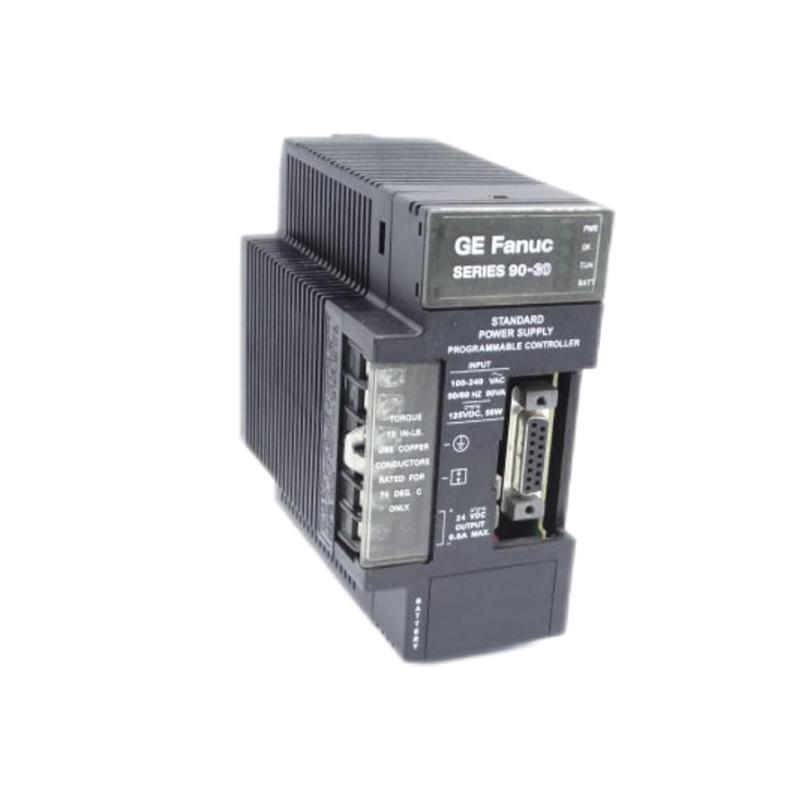

The GE Fanuc IC693PWR321Y Power Supply Module is a reliable and efficient power source designed for use with the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. This compact power module delivers consistent power to the PLC CPU, I/O modules, and other rack-mounted devices, ensuring uninterrupted operation in a wide range sur industrial applications.
With robust protection features and flexible input voltage options, the IC693PWR321Y provides the dependable power foundation required for critical automation tasks. Its design is optimized for easy integration, long operational life, and high system availability, making it ideal for manufacturing, utilities, and infrastructure environments.
Key Features
-
Universal Input Voltage Range: Accepts both AC and DC input power sources
-
Compact Design: Space-saving form factor for efficient use sur control cabinet space
-
High Output Stability: Provides consistent power to support reliable PLC system operation
-
Overload and Short Circuit Protection: Safeguards connected devices and enhances system safety
-
Diagnostic LED Indicators: Simplifies monitoring sur power status and fault conditions
-
Compatible with Series 90-30 Racks: Seamless integration with GE Fanuc Series 90-30 PLC systems
-
Industrial Durability: Designed for continuous operation in harsh industrial environments
-
Global Certifications: Meets international standards for safety and reliability
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Power Supply Module |
| Marque | GE Fanuc |
| Modèle Number | IC693PWR321Y |
| Compatible PLC Series | GE Fanuc Series 90-30 |
| Input Voltage Range | 85 to 264 VAC or 125 VDC |
| Input Frequency | 47 to 63 Hz (AC operation) |
| Output Voltage | 5 VDC and 24 VDC regulated outputs |
| Output Current Capacity | 5 VDC @ 1 A, 24 VDC @ 0.4 A |
| Power Consumption | 14 W typical, 22 W maximum |
| Isolation | 1500 V RMS input-to-output isolation |
| Protection Features | Overvoltage, overload, short circuit protection |
| Diagnostics | LED indicators for power and fault status |
| Operating Temperature Range | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to +85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% non-condensing |
| Certifications | CE, UL, CSA compliant |
| Dimensions | 129 x 52 x 117 mm |
| Poids | 0.5 kg |
| Mounting | Rack-mounted in Series 90-30 baseplates |
Industry Applications
The IC693PWR321Y Power Supply Module is designed for industries where reliable and stable power delivery is essential:
-
Manufacturing Automation: Ensures continuous operation sur production lines and machinery
-
Power Generation: Supports control systems for turbines, generators, and substations
-
Oil & Gas: Provides reliable power to field control and safety systems
-
Water & Wastewater Treatment: Ensures operational integrity sur pumps, valves, and instrumentation
-
Transportation and Infrastructure: Powers traffic management, tunnel control, and building automation systems
-
Chemical and Process Industries: Provides stable power for process control equipment
Product Advantages
-
Wide Input Voltage Support: Compatible with both AC and DC power sources for flexible deployment
-
Reliable Power Delivery: Stable output voltage protects sensitive PLC and control components
-
Built-in Protection Circuits: Prevents damage from electrical faults, improving system longevity
-
Compact, Modular Design: Enregistrers rack space and simplifies installation within existing control systems
-
LED Diagnostics: Enables fast status checks and maintenance response
-
Seamless Series 90-30 Integration: Fully compatible with other GE Fanuc Series 90-30 modules
-
Industrial-Grade Reliability: Designed to perform in challenging environmental conditions
-
Global Standards Compliance: Certified for worldwide use, ensuring safe operation in diverse industries
-
Long Service Life: Durable components ensure years sur dependable performance
-
Minimal Maintenance Requirements: High reliability reduces the need for frequent servicing
Questions fréquentes (FAQ)
-
What is the function sur the IC693PWR321Y module?
It supplies regulated 5 VDC and 24 VDC power to GE Fanuc Series 90-30 PLC systems and connected modules. -
What types sur power inputs does it accept?
It operates on 85 to 264 VAC or 125 VDC input power. -
What output currents does the module provide?
It provides 5 VDC at 1 A and 24 VDC at 0.4 A. -
Is the module protected against electrical faults?
Yes, it includes overvoltage, overload, and short circuit protection features. -
Does the module surfer status diagnostics?
Yes, LED indicators provide clear status for power and fault conditions. -
Can this power supply be used with other Series 90-30 modules?
Yes, it is fully compatible with all GE Fanuc Series 90-30 baseplates and modules. -
What is the recommended operating environment?
The module operates reliably between 0°C to +60°C and 5% to 95% humidity. -
Is it suitable for industrial environments?
Yes, it is designed for demanding applications with robust protection and durability. -
Does the module comply with international safety standards?
Yes, it carries CE, UL, and CSA certifications. -
Is the installation process complicated?
No, it features a modular, rack-mounted design for straightforward integration.
