Présentation du produit

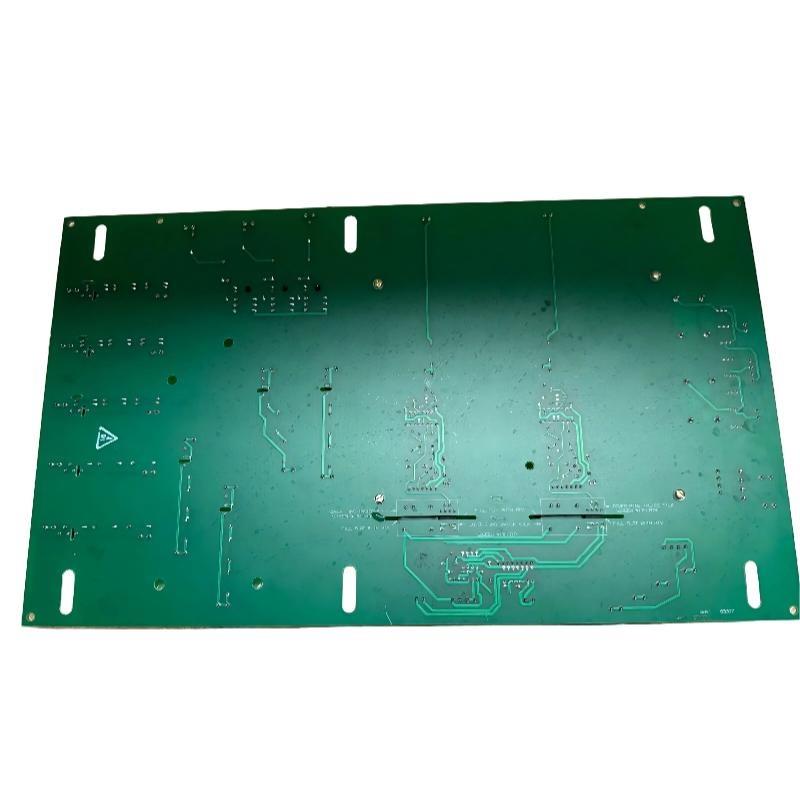

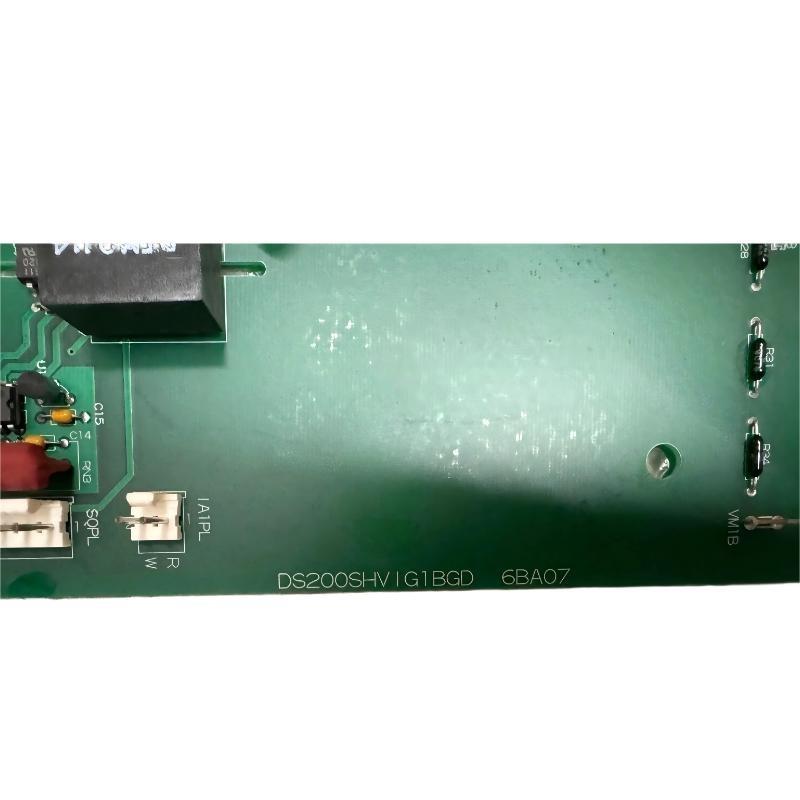

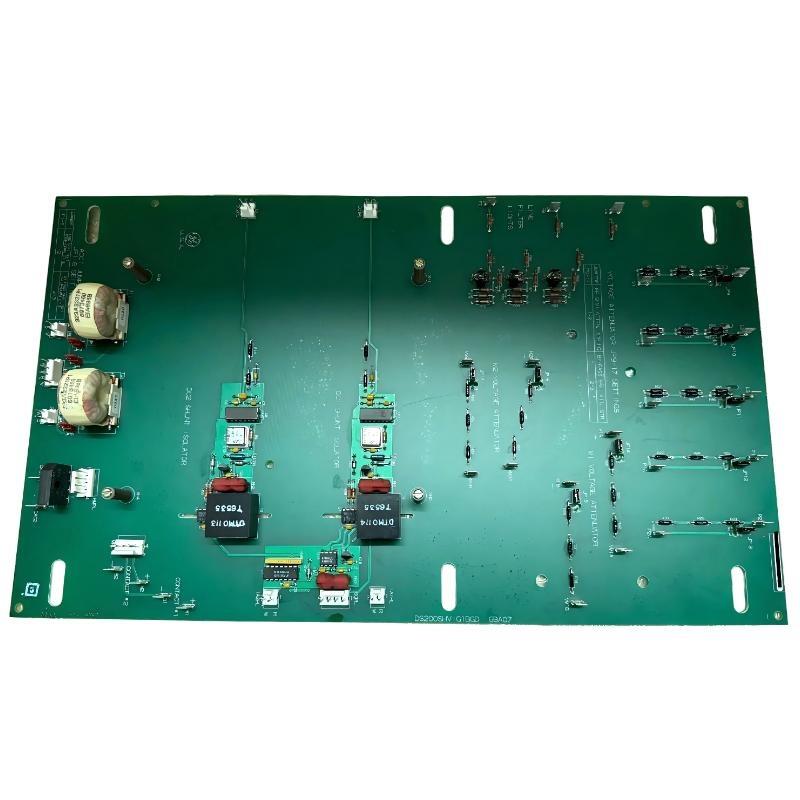

The GE DS200SHVIG1BGD is a high-voltage SCR interface board designed for industrial and power system applications that require reliable and precise SCR control. It functions as a robust interface between control circuits and high-voltage SCR modules, providing accurate triggering, signal conditioning, and electrical isolation.
This board is engineered for industrial high-voltage environments, delivering stable operation for motor drives, power converters, and process control systems. Its design allows easy integration into assemblies, supporting modular setups and enhanced system reliability.
Spécifications du produit
| Parameter | Description |
|---|---|
| Product Name | GE DS200SHVIG1BGD |
| Product Type | SCR High Voltage Interface Board |
| Device Function | Interface and trigger for SCR power modules |
| Input Signal Type | Control voltage (logic-level) |
| Output Signal Type | SCR trigger pulses |
| Mounting Method | Panel or assembly integration |
| Insulation Voltage | High-voltage isolation for safe operation |
| Ambient Temperature Range | -20 °C to 55 °C |
| Relative Humidity | Up to 95% non-condensing |
| Dimensions | 230 × 110 × 40 mm |
| Poids | 0.907 kg |
Applications
• Industrial SCR power control, delivering precise gate triggering for high-voltage SCRs.
• Motor drive systems, providing reliable control for AC and DC drives.
• High-voltage power converters, ensuring accurate interface between control circuits and SCR modules.
• Process control applications, including industrial heating, power regulation, and automation.
• Energy management systems, supporting modular switching and load control in industrial settings.
Advantages
• High-voltage isolation, ensuring operator safety and protection sur control electronics.
• Accurate SCR triggering, maintaining timing precision and repeatability.
• Enhanced signal integrity, reducing misfiring and electrical noise.
• Compact design, simplifying integration into standard panels and assemblies.
• Industrial-grade reliability, suitable for harsh environments with high-voltage operation.
