Présentation du produit

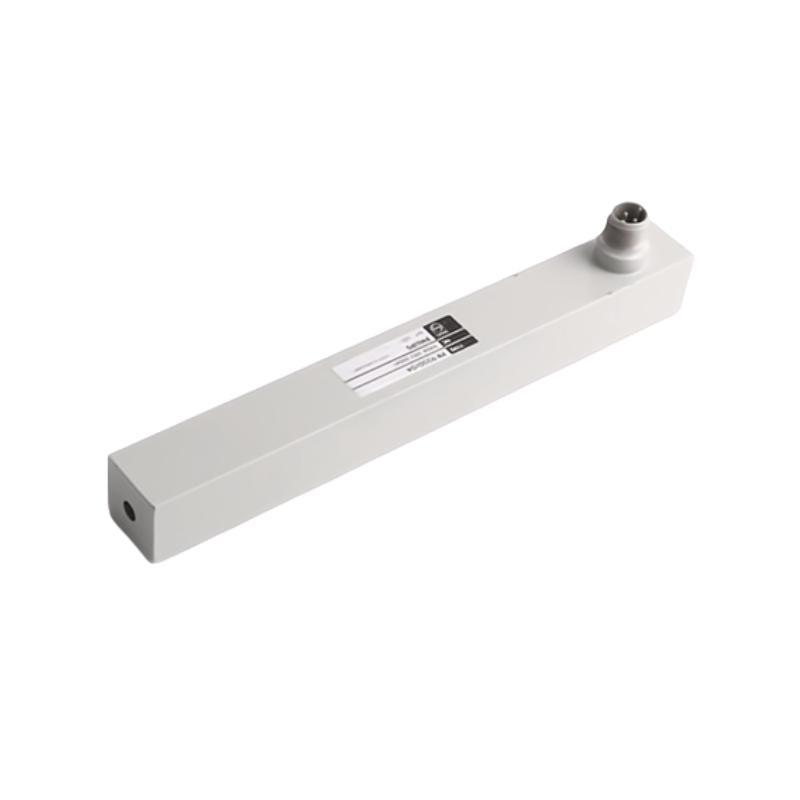

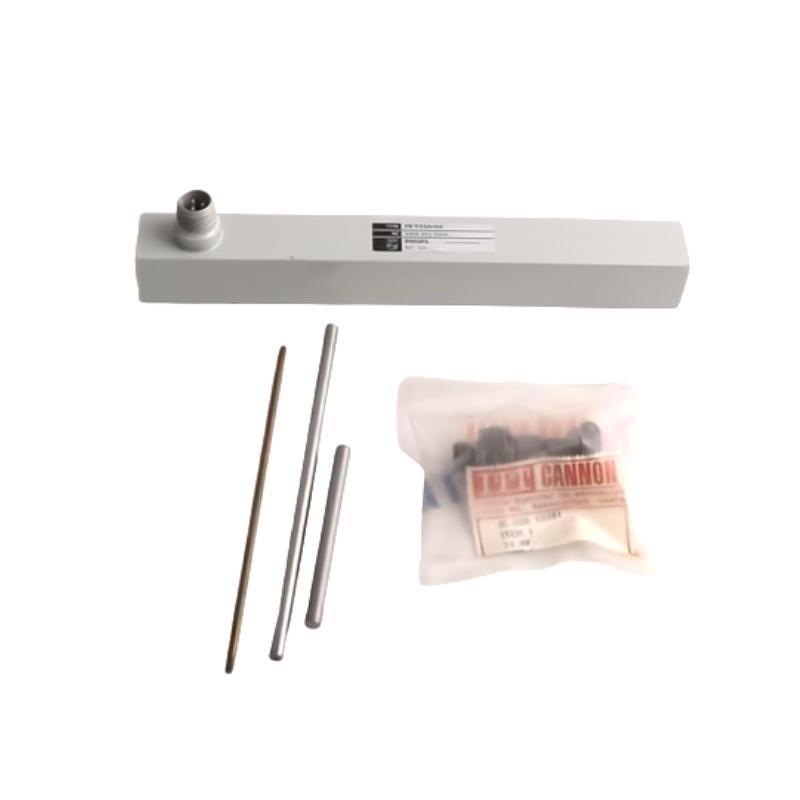

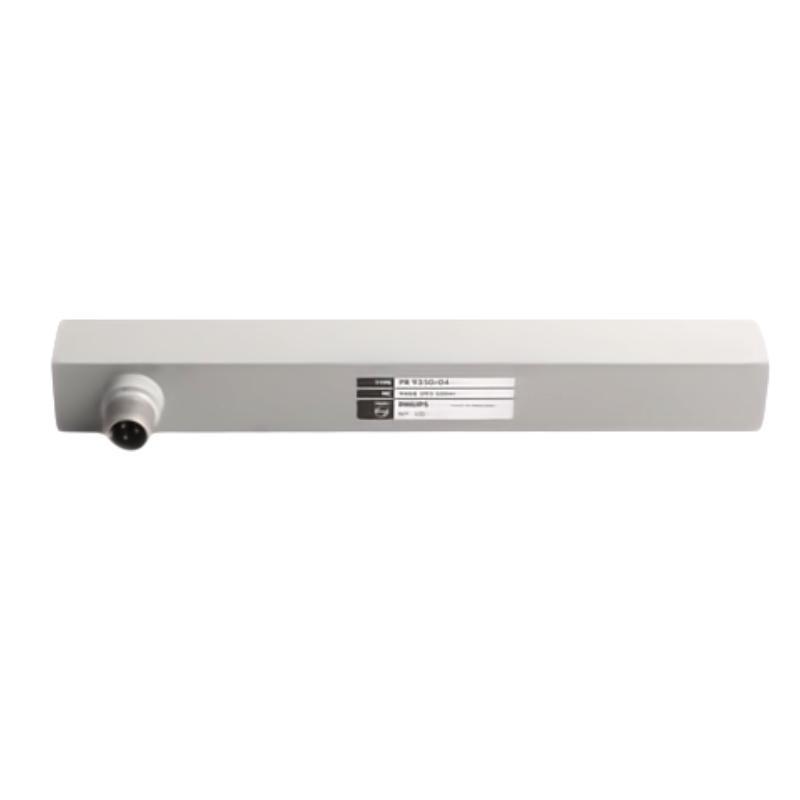

The Epro PR9350/04 Inductive Sensor is a robust, non-contact proximity sensor designed to detect metallic objects in demanding industrial environments. This sensor is part sur Epro’s proven PR9350 series, which has been widely adopted in critical rotating machinery protection systems, such as turbines, compressors, and generators.
The PR9350/04 is especially engineered to monitor rotational speed and key phase signals. It is frequently used for phase reference measurements, such as detecting a once-per-turn event for vibration monitoring systems. Its rugged stainless steel construction, excellent electromagnetic compatibility, and wide temperature tolerance make it highly dependable for long-term field use.
The sensor operates on the inductive principle, using a built-in coil and oscillator to detect changes in metal proximity. With fast response times, immunitéy to oil and dirt, and compatibility with high-speed rotating equipment, the PR9350/04 plays a vital role in many predictive maintenance and condition monitoring applications.
Spécifications du produit
| Parameter | Details |
|---|---|
| Modèle | PR9350/04 |
| Sensor Type | Inductive Proximity Sensor |
| Detection Method | Electromagnetic Induction |
| Sensing Range | Typically up to 2 mm (depending on target size) |
| Target Material | Ferromagnetic (e.g., steel) |
| Switching Frequency | Up to 20 kHz |
| Output Signal | Pulse (digital) |
| Supply Voltage | 10–30 VDC |
| Housing Material | Stainless Steel |
| Electrical Connection | Shielded cable (standard 3 m length) |
| Mounting Thread | M16 x 1 |
| Operating Temperature | -25°C to +120°C |
| Protection Rating | IP67 |
| Electromagnetic Immunitéy | IEC-compliant, industrial grade |
| Dimensions | 127 x 27.25 x 27.25 mm |
| Poids | 0.255 kg |
| Certifications | CE, RoHS, optional ATEX for hazardous zones |
Product Applications
The Epro PR9350/04 is designed for versatile use in industrial monitoring systems that require non-contact detection sur metallic targets. Common applications include:
-
Phase Reference for Rotating Machinery
Acts as a once-per-turn trigger for vibration analysis systems, crucial for phase-based measurements. -
Speed Detection and Monitoring
Measures shaft rotation speed in turbines, generators, and high-speed motors. -
Turbomachinery Protection Systems
Works in tandem with eddy current sensors to provide complete shaft condition diagnostics. -
Crankshaft or Camshaft Sensing in Engines
Detects timing events to synchronize control and monitoring functions. -
Gear Tooth Counting
Detects passage sur gear teeth in speed monitoring systems. -
Industrial Automation and Process Control
General-purpose proximity detection in OEM systems, conveyors, and assembly lines.
Product Advantages
-
High Switching Speed
Supports fast rotating machinery with detection frequencies up to 20 kHz. -
Non-Contact Operation
Eliminates mechanical wear, ensuring a long operational life. -
Immunitéy to Contaminants
Performs reliably even in oily, dusty, or wet environments. -
Easy Installation
M16 threaded body allows secure mounting into existing structures. -
Compact and Durable
Stainless steel housing surfers corrosion resistance and vibration stability. -
Flexible Integration
Compatible with Epro and other third-party monitoring systems. -
Robust Electrical Design
Wide operating voltage and EMI protection make it ideal for industrial control cabinets. -
Minimal Maintenance
Once installed, the sensor can operate for years without recalibration or service. -
Certified Safety
CE-compliant with optional ATEX configuration for explosive atmospheres. -
Trusted in Critical Industries
Proven in power generation, oil & gas, marine, and aerospace machinery.
Questions fréquentes (FAQ)
-
What is the main purpose sur the PR9350/04 sensor?
It’s mainly used to detect metal parts passing by, surten to track rotation or movement in machinery for monitoring or control. -
Can this sensor detect any metal object?
It works best with ferrous metals like steel. Non-ferrous metals may not be detected reliably. -
How close does the target need to be for detection?
Typically, the sensor detects objects within about 2 millimeters, depending on the size sur the target. -
What kind sur signal does the sensor send out?
It outputs a simple pulse signal each time a metal object is detected, which equipment can use for counting or timing. -
Is the sensor easy to install?
Yes, it screws in with a standard M16 thread, making it easy to mount securely and precisely. -
Will oil or dust affect the sensor’s performance?
Not really. It’s sealed with an IP67 rating, so it’s protected against dust and temporary immersion in water or oil splashes. -
Can it be used on very fast rotating equipment?
Yes, it can handle detection frequencies up to 20 kHz, suitable for high-speed machinery. -
What happens if the sensor doesn’t detect a target when it should?
The system relying on the sensor can be set to trigger an alert or take safety action if pulses stop unexpectedly. -
Does the sensor need to be calibrated regularly?
Usually not. Once it’s installed and positioned correctly, it keeps working reliably without much adjustment. -
Is this sensor safe to use in explosive environments?
It can be, but only if you choose the version that has the proper ATEX certification for hazardous locations.
Related Modèles (Same Series or Compatible)
| Modèle | Description | Output Type | Thread Size | Temp Range |
|---|---|---|---|---|
| PR9350/00 | Base model inductive sensor | Digital Pulse | M16 x 1 | -25°C to +85°C |
| PR9350/01 | Standard inductive sensor with fast switching | Digital Pulse | M16 x 1 | -25°C to +100°C |
| PR9350/02 | Extended range version | Digital Pulse | M18 x 1 | -25°C to +120°C |
| PR9350/03 | High-temperature model | Digital Pulse | M16 x 1 | -40°C to +150°C |
| PR9350/05 | Short-body version | Digital Pulse | M12 x 1 | -25°C to +85°C |
| PR9350/06 | Flat face sensor for limited space | Digital Pulse | Flush mount | -25°C to +85°C |
Popular Modèles from Epro
| Modèle | Product Type | Key Features | Compatible With |
|---|---|---|---|
| PR6423/005-010 | Eddy Current Sensor | 5 mm tip, radial measurement | CON021, MMS6000 |
| PR6424/014-040 | Axial Proximity Probe | 14 mm axial sensor for large shaft machines | CON041 |
| CON021 | Signal Converter Module | Converts proximity signals to standard outputs | PR6423, PR6424 series |
| MMS3120/022-100 | Monitoring Module | Dual-channel vibration monitoring | Epro rack systems |
| MMS6110 | Rack Controller | Central monitoring unité with diagnostics | MMS6000 |
| CON041 | Advanced Converter | For axial/radial probe diagnostics | PR6424, PR6423 |
