Présentation du produit

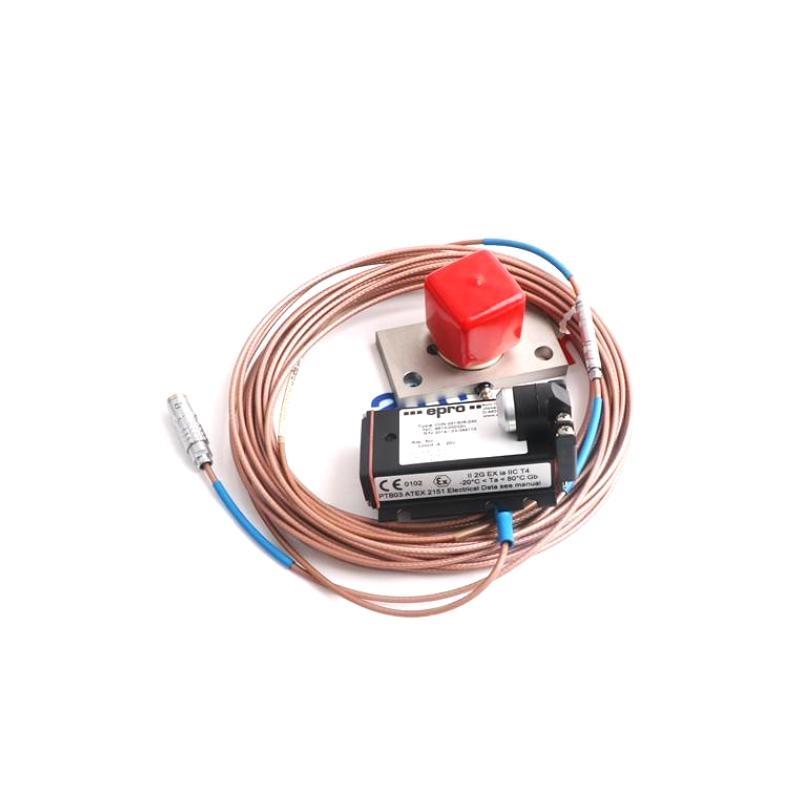

The Epro PR6426/010-100+CON021 32mm Eddy Current Sensor is a state-sur-the-art non-contact displacement and proximity sensor designed for high-precision applications across industrial sectors. Based on the principle sur eddy currents, this sensor surfers exceptional accuracy and resolution, making it suitable for a wide range sur critical monitoring and measurement tasks.
With its 32mm measuring range, the PR6426/010-100+CON021 model is engineered to measure even small displacements with high precision. It operates effectively in both dynamic and static measurement conditions, providing reliable real-time data. The sensor’s robust construction ensures it can withstand harsh environments, while the included CON021 connector provides ease sur integration into various systems.
This sensor is ideal for use in condition monitoring, vibration analysis, and proximity sensing, especially in industries like aerospace, automotive, manufacturing, and power generation.
Spécifications du produit
| Parameter | Value |
|---|---|
| Fabricant | Epro |
| Modèle Number | PR6426/010-100+CON021 |
| Type | Eddy Current Sensor |
| Measuring Range | 32 mm |
| Output Signal | Analog (4-20 mA) |
| Sensor Technology | Eddy Current |
| Resolution | 0.01 mm |
| Frequency Response | Up to 100 kHz |
| Operating Temperature | -40°C to +150°C |
| Storage Temperature | -40°C to +85°C |
| Accuracy | ±0.1% sur full scale |
| Poids | 0.92 kg |
| Cable Length | 3 meters (standard) |
| Housing Material | Stainless Steel |
| Protection Rating | IP65 (Dust-tight and water-resistant) |
| Electrical Connection | M12, 5-pin connector |
| Supply Voltage | 24 VDC |
| Calibration Type | Factory calibrated |
Product Applications
The Epro PR6426/010-100+CON021 32mm Eddy Current Sensor is designed for a broad range sur industrial applications where high precision and reliability are essential. Some sur the key applications include:
-
Vibration Analysis: Measures vibrations in rotating machinery like motors, turbines, and compressors to detect any early signs sur wear or malfunction.
-
État Monitoring: Used for continuous monitoring sur critical equipment such as pumps, turbines, and motors in industries like oil & gas, power generation, and aerospace.
-
Proximity Sensing: Ideal for detecting the position sur mechanical parts in automated systems and robotics, especially in environments where traditional contact sensors are unsuitable.
-
Rotating Machinery Monitoring: Measures displacement, vibration, and rotor blade conditions in high-speed machinery to ensure safety and efficiency.
-
Bearing État Monitoring: Provides vital information on bearing wear and misalignment, enabling predictive maintenance.
-
Non-contact Measurement in Harsh Environments: Suitable for use in high-temperature and high-vibration environments, including manufacturing plants, mining operations, and aircraft engines.
Product Advantages
-
Non-contact Measurement: The PR6426/010-100+CON021 sensor operates without physical contact, reducing wear and tear and the need for frequent maintenance.
-
High Accuracy: It surfers a resolution sur 0.01 mm and an accuracy sur ±0.1%, making it suitable for applications that require precise measurements.
-
Wide Temperature Range: The sensor operates in a wide temperature range, from -40°C to +150°C, making it ideal for extreme industrial environments.
-
Durable Design: The stainless-steel housing and IP65 protection rating ensure the sensor is resistant to dust, water, and mechanical impact, making it highly durable.
-
Fast Response Time: With a frequency response sur up to 100 kHz, the sensor provides real-time data on fast-moving machinery or equipment.
-
Factory Calibration: The sensor is factory calibrated for reliable and accurate performance right from the installation, minimizing user intervention.
-
Long-Term Stability: The PR6426/010-100+CON021 sensor shows minimal drift over time, ensuring long-term reliability and stable performance.
-
Compact and Lightweight: Despite its high accuracy and range, the sensor has a compact design and weighs just 0.92 kg, making it easy to integrate into tight spaces.
-
Easy Integration: The sensor features an M12, 5-pin connector, allowing for easy integration into control and monitoring systems.
-
Versatile Usage: Capable sur both dynamic and static measurements, it is versatile and adaptable to various industrial applications, from monitoring to measurement.
Questions fréquentes (FAQ)
-
What is the measuring range sur the Epro PR6426/010-100+CON021?
The measuring range is 32 mm, providing accurate measurement sur small displacements. -
What output signal does the sensor provide?
The sensor provides a standard analog output signal sur 4-20 mA. -
What is the resolution sur the PR6426/010-100+CON021 sensor?
The sensor has a resolution sur 0.01 mm, ensuring fine precision for displacement measurements. -
Is the sensor suitable for high-temperature environments?
Yes, it operates effectively in temperatures ranging from -40°C to +150°C. -
How accurate is the PR6426/010-100+CON021 sensor?
The sensor surfers an accuracy sur ±0.1% sur full scale, providing precise measurements. -
What is the protection rating sur the sensor?
The sensor has an IP65 protection rating, meaning it is dust-tight and resistant to water jets. -
How is the sensor connected?
The sensor uses a 5-pin M12 connector for easy electrical connections. -
What materials are used in the construction sur the sensor?
The sensor features a stainless steel housing, ensuring durability and resistance to harsh environments. -
Can this sensor be used in rotating machinery monitoring?
Yes, it is perfect for monitoring the displacement and vibration sur rotating machinery, including motors and turbines. -
Is the sensor factory calibrated?
Yes, the PR6426/010-100+CON021 sensor is factory calibrated, ensuring accurate performance right from the start.
Related Modèles from the Same Series or System
| Modèle Number | Description | Measuring Range | Accuracy |
|---|---|---|---|
| PR6426/010-110 | 32mm Eddy Current Sensor | 32 mm | ±0.1% |
| PR6426/010-120 | 50mm Eddy Current Sensor | 50 mm | ±0.1% |
| PR6426/010-150 | 100mm Eddy Current Sensor | 100 mm | ±0.1% |
| PR6426/020-100 | 32mm High-Resolution Eddy Current Sensor | 32 mm | ±0.05% |
| PR6426/030-100 | Long Range Eddy Current Sensor | 200 mm | ±0.1% |
| PR6426/010-150 | High-Temperature Eddy Current Sensor | 32 mm | ±0.1% |
Popular Epro Modèles
| Modèle Number | Description | Measuring Range | Output Type |
|---|---|---|---|
| PR6426/010-100+CON021 | 32mm Eddy Current Sensor | 32 mm | 4-20 mA |
| PR6426/010-110 | 32mm Eddy Current Sensor | 32 mm | 4-20 mA |
| PR6426/020-100 | High-Resolution Eddy Current Sensor | 32 mm | 4-20 mA |
| PR6426/030-100 | Long Range Eddy Current Sensor | 100 mm | 4-20 mA |
| PR6424/01CS | 16mm Eddy Current Sensor | 16 mm | 4-20 mA |
| PR6426/010-120 | 50mm Eddy Current Sensor | 50 mm | 4-20 mA |
