Présentation du produit

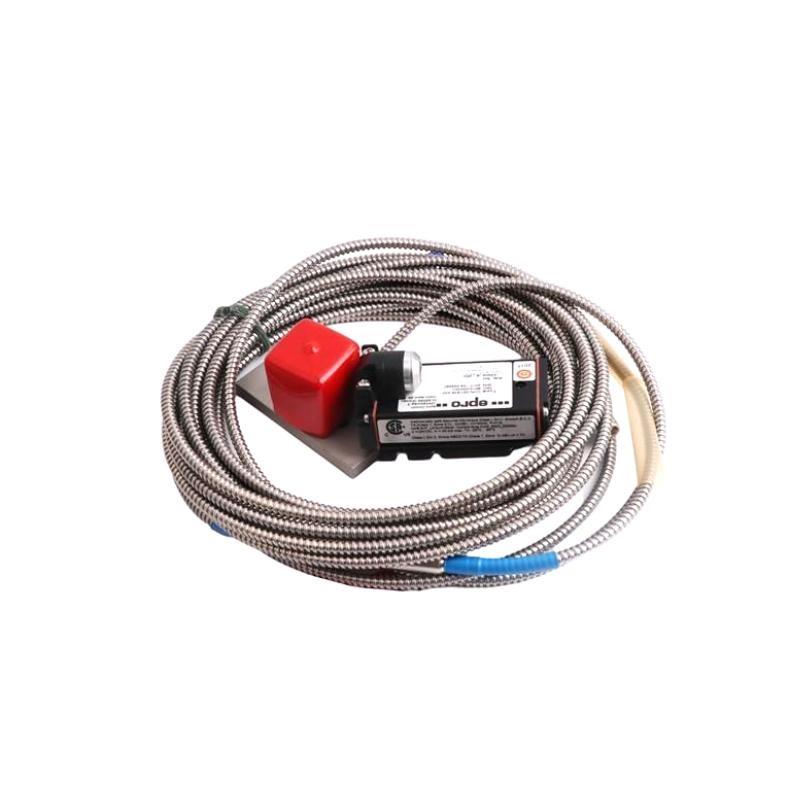

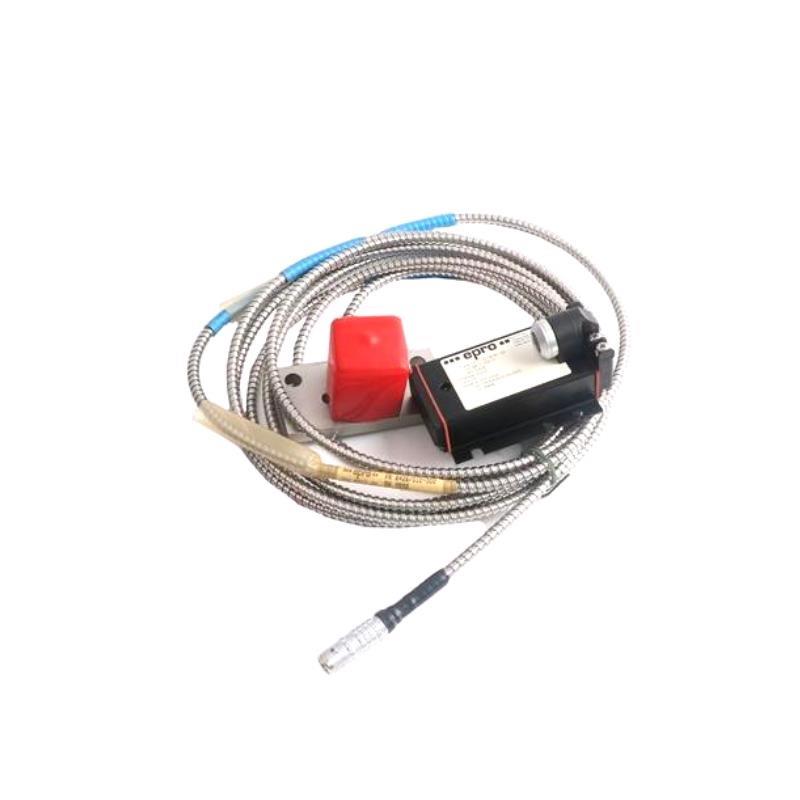

The Epro PR6426/010-000+CON021/916-160 is a high-performance eddy current displacement sensor developed for precise and reliable non-contact measurement sur the distance, position, or vibration sur rotating or reciprocating machinery. With a 32mm probe diameter, this sensor is designed for heavy industrial use, including harsh and demanding operating conditions such as those found in turbines, compressors, pumps, and motors.
Manufactured by Epro, now part sur Bently Nevada / Baker Hughes, the PR6426 series is widely respected for its superior signal fidelity, mechanical robustness, and compatibility with industrial monitoring systems. The sensor works in conjunction with the CON021/916-160 converter, which processes the raw analog signal for integration into condition monitoring systems.
This eddy current sensor is part sur a trusted and proven series used globally for machine protection and predictive maintenance in power generation, oil & gas, and heavy industry environments.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle Number | PR6426/010-000+CON021/916-160 |
| Sensor Type | Eddy Current Proximity Sensor |
| Sensor Head Diameter | 32 mm |
| Measuring Range | 0 to 4 mm |
| Frequency Range | 0 to 10 kHz |
| Sensitivity | 7.87 mV/μm (standard) |
| Linearity Deviation | ≤ ±1% sur full-scale range |
| Output Signal | Analog Voltage (via CON021 converter) |
| Connector Type | Integrated with CON021/916-160 converter |
| Operating Temperature | -35°C to +180°C (sensor), -35°C to +85°C (CON021 converter) |
| Material (Probe Housing) | Stainless Steel |
| Cable Length | Standard 5 m (custom lengths available) |
| Environmental Protection | IP65 (sensor), IP66 (converter) |
| Power Supply | 24 VDC (via CON021) |
| Mounting Thread | M14 x 1.5 or customized |
| Dimensions (Sensor) | 32 mm diameter, 80 mm length |
| Poids | 0.92 kg |
| Certifications | CE, ATEX (optional), IECEx |
| RoHS Compliance | Yes |
Product Applications
The PR6426/010-000+CON021/916-160 sensor is a preferred solution across various industries requiring high-accuracy vibration and displacement measurements. It is ideal for:
-
Turbomachinery Monitoring: Real-time monitoring sur shaft vibration, axial displacement, and runout in turbines and compressors.
-
Predictive Maintenance Systems: Used in machine health diagnostics to detect early-stage faults.
-
Rotating Equipment Protection: Protects critical assets such as generators, pumps, blowers, and motors by triggering alarms on abnormal movements.
-
Oil & Gas Industry: For compressor and expander monitoring in refineries and petrochemical plants.
-
Power Generation Plants: Both fossil fuel and hydroelectric plants use these sensors for rotor vibration analysis.
-
Steel and Paper Mills: Ensures operational reliability sur high-speed rotating machinery.
Product Advantages
-
High Measurement Precision: Offers high linearity and sensitivity for accurate displacement detection.
-
Non-Contact Operation: Reduces wear and tear, prolonging system longevity.
-
Industrial-Grade Design: Built for harsh environmental conditions including high temperature and vibration.
-
Modular System: Flexible combination with CON021 converter allows integration with most monitoring systems.
-
Wide Compatibility: Works seamlessly with Epro and Bently Nevada monitoring systems, ensuring smooth upgrades or replacements.
-
Certified Safety: Disponible with ATEX and IECEx certification for use in explosive environments.
-
Reliable Signal Transmission: Shielded cable and robust housing minimize electromagnetic interference.
-
Customizable Options: Sensor length, cable length, and thread type can be adapted to project requirements.
Questions fréquentes (FAQ)
-
Q: What does the PR6426/010-000+CON021/916-160 sensor measure?
A: It measures non-contact displacement or vibration sur metallic rotating components such as shafts. -
Q: Can this sensor be used in high-temperature environments?
A: Yes, the sensor itself is rated up to +180°C, suitable for many high-temperature applications. -
Q: Is it compatible with Bently Nevada monitoring systems?
A: Yes, it is fully compatible with both Epro and Bently Nevada vibration monitoring platforms. -
Q: What is the measuring range sur this sensor?
A: It supports a measurement range sur 0 to 4 mm for displacement. -
Q: Is the converter included in the package?
A: Yes, the model includes the CON021/916-160 signal converter. -
Q: What certifications are available for this sensor?
A: CE is standard, with optional ATEX and IECEx certifications for hazardous area installations. -
Q: How is the sensor mounted?
A: The sensor features an M14 × 1.5 mounting thread for secure installation. -
Q: What kind sur output signal does the sensor provide?
A: It provides an analog voltage signal through the CON021 converter, suitable for condition monitoring systems. -
Q: Is the cable length customizable?
A: Yes, standard length is 5 meters, but custom lengths can be ordered as needed. -
Q: What industries most commonly use this sensor?
A: It is used extensively in oil & gas, power generation, chemical, and heavy manufacturing industries.
Related Modèles in the Same Series
| Modèle Number | Description | Probe Diameter | Measuring Range |
|---|---|---|---|
| PR6426/000-010+CON021 | Standard eddy current sensor with 8mm probe | 8 mm | 0–2 mm |
| PR6426/005-010+CON021 | Mid-range sensor with 16mm probe | 16 mm | 0–3 mm |
| PR6426/008-010+CON021 | Compact sensor for limited space installations | 25 mm | 0–3.5 mm |
| PR6426/014-010+CON021 | Extended length sensor for deep access | 32 mm | 0–4 mm |
| PR6426/016-010+CON021 | High-temp rated version for extreme environments | 32 mm | 0–4 mm |
| PR6426/018-010+CON021 | With integrated cable and IP68 rating | 32 mm | 0–4 mm |
Popular Modèles from the Same Marque (Epro / Bently Nevada)
| Modèle Number | Description | Application |
|---|---|---|
| MMS6120 | Vibration monitoring system module | General machinery condition monitoring |
| PR6423/10R-010 | Eddy current sensor for axial displacement | Turbomachinery |
| CON041 | Universal converter for PR6423/PR6424 series | Signal processing |
| MMS6110 | Speed monitoring module | Overspeed protection |
| PR6424/010-000+CON021 | Displacement sensor with 16mm probe | General purpose |
| TQ402 | Dual-channel signal conditioner for eddy current sensors | Signal transmission |
