Présentation du produit

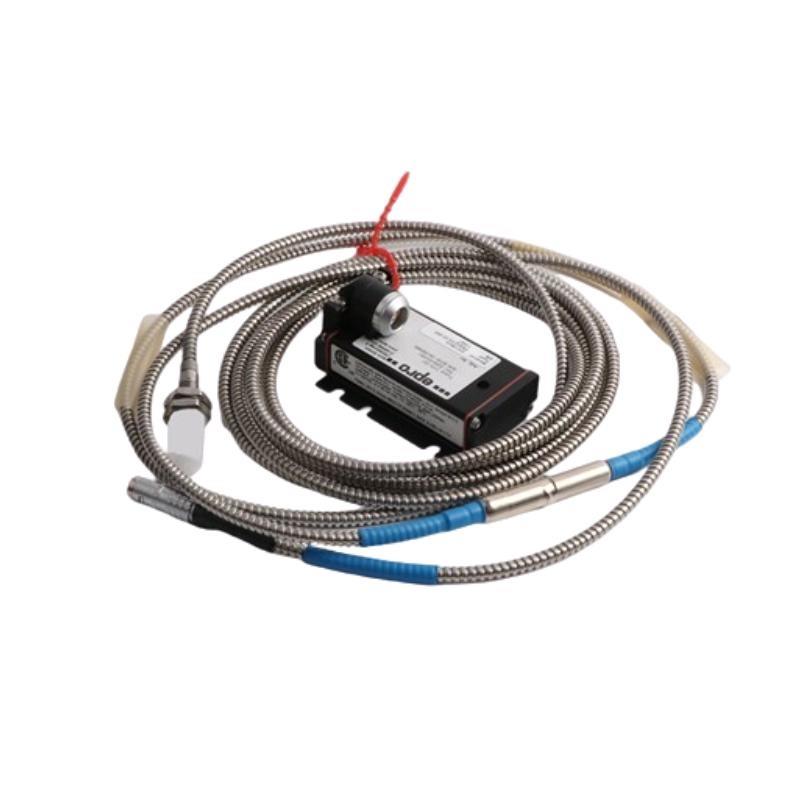

The Epro PR6426/000-100 32mm Eddy Current Sensor is a high-performance, non-contact displacement and vibration measurement device designed for industrial machinery monitoring. It is engineered to provide accurate and reliable detection sur shaft vibration, axial displacement, and rotational movement in critical rotating equipment.
Utilizing the eddy current principle, the sensor generates an electromagnetic field at the probe tip. When a conductive target enters this field, the induced eddy currents alter the field, producing a voltage proportional to the distance from the target. This non-contact measurement method eliminates mechanical wear, enhances reliability, and ensures long-term stability even under harsh industrial conditions.
The PR6426/000-100 is compatible with Epro signal conditioning converters, providing linear output to monitoring systems for continuous machinery protection. Its 32mm sensor head diameter makes it suitable for monitoring larger shafts or broader target surfaces, ensuring high sensitivity and robust performance in turbines, compressors, generators, and other rotating machinery.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle | PR6426/000-100 |
| Sensor Type | Eddy Current Proximity Probe |
| Measuring Principle | Non-contact electromagnetic induction (eddy current) |
| Sensor Head Diameter | 32 mm |
| Measuring Range | 0.25 mm – 4.0 mm (typical, depending on target material) |
| Linearity | ≤ ±1% sur full scale |
| Frequency Response | DC to 10 kHz (-3 dB) |
| Sensitivity | 4–8 mV/µm (depending on converter) |
| Target Material | Ferromagnetic and conductive materials (e.g., steel, nickel alloys) |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Housing Material | Stainless steel (AISI 316L) |
| Protection Class | IP67 |
| Mounting Thread | M32 × 1.5 |
| Output Signal | Compatible with Epro signal conditioning converters |
| Poids | 0.8 kg |
| Compliance | CE, RoHS, optional ATEX Zone 2 |
Product Applications
The PR6426/000-100 is suitable for industrial machinery condition monitoring where precision and reliability are critical. Typical applications include:
-
Steam and gas turbines – Measurement sur axial displacement and shaft vibration for early fault detection.
-
Compressors and pumps – Monitoring rotor alignment and bearing conditions.
-
Generators and motors – Detecting shaft movement and abnormal vibrations.
-
Gearboxes and turboexpanders – Monitoring eccentric motion and mechanical stress.
-
Industrial plants – Integration with predictive maintenance systems for continuous machinery protection.
Its rugged design and IP67-rated housing make it suitable for harsh industrial environments including high temperatures, oil exposure, and vibration.
Product Advantages
-
Non-Contact Measurement – Reduces mechanical wear and enhances long-term reliability.
-
High Accuracy and Linearity – Provides precise displacement and vibration readings across the full measurement range.
-
Wide Frequency Response – Captures both low and high-frequency vibration events effectively.
-
Robust Industrial Design – Stainless steel housing and IP67 protection ensure durability in harsh environments.
-
Large Sensor Head Diameter – 32 mm head allows reliable measurement for larger shafts or broad surfaces.
-
Easy Integration – Compatible with Epro signal conditioning converters for linear output to monitoring systems.
-
Temperature Compensation – Maintains measurement stability over a wide temperature range.
-
Proven Industrial Reliability – Extensively used in turbines, compressors, and generators worldwide.
FAQ
-
What is the operating principle sur the PR6426/000-100 sensor?
It uses the eddy current principle, measuring changes in the electromagnetic field caused by conductive targets. -
Which materials are suitable targets for this sensor?
Ferromagnetic and conductive materials such as steel and nickel alloys. -
Can this sensor measure both radial and axial displacement?
Yes, depending on installation orientation and setup with monitoring systems. -
What is the sensor’s frequency response range?
DC to 10 kHz (-3 dB), allowing detection sur low and high-frequency shaft vibrations. -
How is the sensor integrated into monitoring systems?
It connects through Epro signal conditioning converters to provide a linear voltage or current output. -
Does the sensor maintain accuracy under temperature changes?
Yes, temperature compensation ensures stable readings over -35 °C to +180 °C. -
Is the sensor suitable for high-vibration industrial environments?
Yes, the robust design ensures stable signal performance under mechanical vibration and shock. -
Does the sensor require field calibration?
It is factory-calibrated, though fine-tuning can be performed using Epro configuration tools. -
Can the PR6426/000-100 be used in dual-channel monitoring systems?
Yes, it supports integration into redundant or dual-channel setups. -
What type sur output signal does the sensor provide?
The sensor, via Epro converters, provides a linear voltage or current signal proportional to target displacement.
Related Modèles (Same Series)
| Modèle | Description | Sensor Head Diameter | Poids |
|---|---|---|---|
| PR6426/000-000 | Standard eddy current probe | 32 mm | 0.8 kg |
| PR6426/000-010 | High-temperature variant | 32 mm | 0.8 kg |
| PR6426/000-030 | Converter-compatible version | 32 mm | 0.92 kg |
| PR6426/000-031 | Standard high-precision probe | 32 mm | 0.8 kg |
| PR6426/000-041 | Industrial grade sensor | 32 mm | 0.8 kg |
| PR6426/000-050 | Explosion-prosur version | 32 mm | 0.9 kg |
Popular Modèles from the Same Marque (Epro)
| Modèle | Description | Measurement Type | Poids |
|---|---|---|---|
| PR6423/002-030 | Standard eddy current sensor | Vibration/Displacement | 0.6 kg |
| PR6424/014-040 | Proximity probe | Axial displacement | 0.7 kg |
| PR6425/010-030 | Shaft vibration sensor | Vibration | 0.8 kg |
| PR6422/010-030 | Compact displacement sensor | Bearing displacement | 0.5 kg |
| MMS3120/022-100 | Vibration monitoring module | État monitoring | 1.2 kg |
| MMS6822 | Dual-channel vibration monitor | Shaft and casing vibration | 1.5 kg |
