Présentation du produit

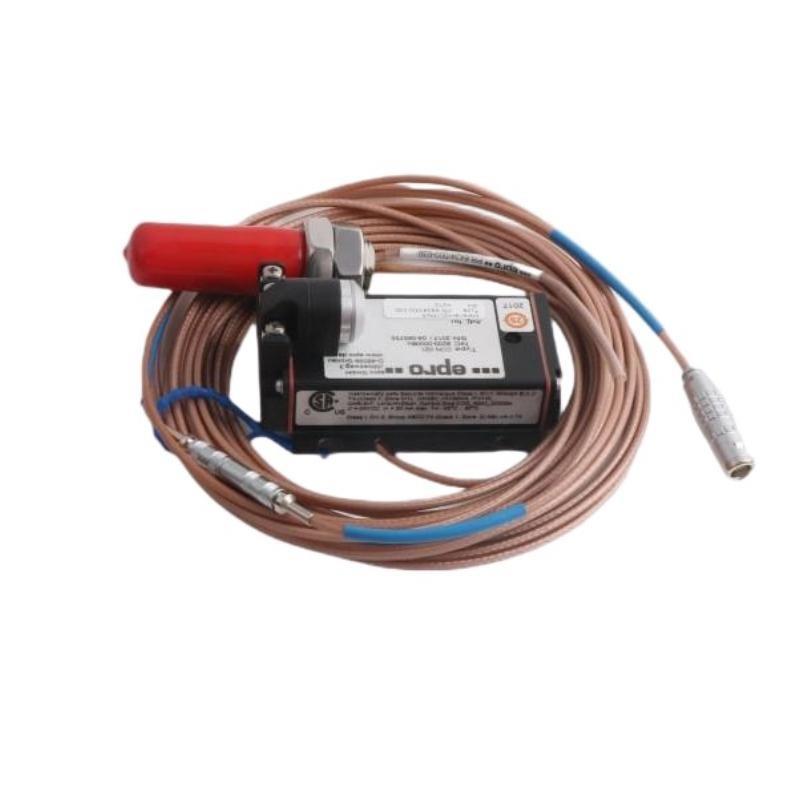

The Epro PR6426/000-030+CON021 32mm Eddy Current Sensor is a high-performance proximity probe system designed for precise, non-contact measurement sur vibration, shaft displacement, and position in critical rotating machinery. This model integrates the PR6426/000-030 eddy current probe with the CON021 converter, forming a complete measuring chain optimized for dynamic monitoring in harsh industrial environments.
The system operates based on the eddy current principle, generating an electromagnetic field that reacts to the movement sur conductive targets such as steel shafts. This allows accurate and continuous monitoring sur mechanical components without physical contact, ensuring long-term reliability and reduced maintenance. The robust stainless-steel housing and hermetically sealed design make the PR6426/000-030+CON021 suitable for severe operating conditions found in turbines, compressors, and generators.
The addition sur the CON021 converter enhances signal conditioning, providing a linear voltage or current output proportional to displacement. Together, they deliver dependable measurement accuracy, stability, and compatibility with machine protection and monitoring systems, including Epro’s MMS6000 and MMS8000 series.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle | Epro PR6426/000-030+CON021 |
| Sensor Type | Eddy Current Proximity Probe with Converter |
| Measuring Principle | Non-contact electromagnetic induction (eddy current) |
| Sensor Head Diameter | 32 mm |
| Measuring Range | Typically 4 mm to 8 mm (depending on target material and configuration) |
| Linearity | ≤ ±1% sur full-scale |
| Sensitivity | 8 mV/µm (nominal, adjustable via CON021) |
| Frequency Response | Up to 10 kHz (-3 dB) |
| Target Material | Ferromagnetic and conductive materials (steel, nickel, cobalt alloys) |
| Operating Temperature (Probe) | -35 °C to +180 °C |
| Operating Temperature (Converter) | -25 °C to +85 °C |
| Storage Temperature | -40 °C to +200 °C |
| Pressure Rating | Up to 20 bar (depending on installation) |
| Output Signal | Voltage or current output (depending on configuration) |
| Power Supply | 18–30 VDC (via CON021 converter) |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Housing Material | Stainless steel (AISI 316L) |
| Mounting Thread | M32 x 1.5 |
| Connector Type | Compatible with Epro coaxial or twin-core systems |
| Poids | 0.92 kg |
| Protection Class | IP67 (fully sealed, oil and moisture resistant) |
| Compliance | CE, ATEX Zone 2 (optional), RoHS compliant |
Product Applications
The PR6426/000-030+CON021 is designed for advanced condition and vibration monitoring sur critical rotating equipment. Its high precision, robust build, and integration flexibility make it an essential component in numerous industrial sectors, including:
-
Turbomachinery monitoring – Continuous shaft vibration and axial displacement measurement in gas and steam turbines.
-
Compressors and pumps – Detection sur rotor imbalance, misalignment, and bearing wear.
-
Generators and motors – Monitoring sur shaft movement to prevent mechanical failures.
-
Gearboxes and expanders – Real-time detection sur eccentric motion or mechanical deformation.
-
Petrochemical and power industries – Integration with distributed control and safety systems for predictive maintenance.
This model provides a reliable interface with Epro CON021 signal conditioning unités, ensuring accurate data output for control and protection systems.
Product Advantages
-
Non-Contact Operation – Prevents mechanical wear, ensuring reliable long-term measurement stability.
-
High Accuracy and Sensitivity – Offers superior linearity and resolution for dynamic shaft vibration detection.
-
Extended Operating Temperature Range – Ensures stable performance even in high-temperature or oil-rich environments.
-
Rugged Industrial Design – Built with corrosion-resistant stainless steel housing and IP67 protection.
-
Wide Frequency Response – Enables accurate monitoring sur high-speed rotating machinery.
-
Seamless Converter Integration – Fully compatible with CON021 and CON041 converters for signal conditioning.
-
Enhanced Diagnostics – The system supports status monitoring, fault detection, and calibration verification.
-
Flexible Mounting Options – Threaded design simplifies installation in confined or high-vibration locations.
-
Stable Output Signal – The CON021 provides highly linear voltage or current outputs for control systems.
-
Proven Reliability – Extensively tested and used in industrial vibration protection systems worldwide.
FAQ
-
What measuring principle does the PR6426/000-030+CON021 operate on?
It uses the eddy current principle, detecting variations in electromagnetic fields generated by the proximity sur conductive targets. -
How does the CON021 converter enhance sensor performance?
The CON021 provides linearization, signal conditioning, and temperature compensation to ensure precise and stable measurements. -
Can this sensor system measure both vibration and displacement?
Yes, depending on installation orientation, it can measure both shaft vibration and axial displacement. -
What frequency range can the sensor handle effectively?
The combined system provides reliable operation up to 10 kHz (-3 dB), suitable for most high-speed machinery. -
Is the PR6426/000-030+CON021 suitable for hazardous areas?
Yes, it can be supplied with ATEX Zone 2 certification for use in hazardous environments. -
What kind sur materials can be detected by the probe?
It is designed for ferromagnetic and conductive materials such as steel, nickel, and cobalt alloys. -
How does temperature affect the measurement accuracy?
The system incorporates temperature compensation in the CON021 converter to minimize drift over wide temperature ranges. -
Is this model compatible with existing Epro monitoring systems?
Yes, it integrates seamlessly with Epro MMS6000, MMS8000, and other machinery monitoring systems. -
What is the typical output format sur the CON021 converter?
The converter provides either voltage or current output, typically 0–10 VDC or 4–20 mA, proportional to displacement. -
Does the system support on-site calibration or adjustment?
Yes, calibration can be performed using Epro configuration tools without removing the probe from service.
Related Modèles (Same Series)
| Modèle | Description | Sensor Head Diameter | Poids |
|---|---|---|---|
| PR6426/000-000+CON021 | Standard version | 32 mm | 0.92 kg |
| PR6426/000-010+CON021 | High-temperature version | 32 mm | 0.92 kg |
| PR6426/000-020+CON021 | Pressure-resistant version | 32 mm | 0.92 kg |
| PR6426/000-040+CON021 | Compact housing version | 25 mm | 0.80 kg |
| PR6426/000-050+CON021 | Explosion-prosur version | 32 mm | 0.95 kg |
| PR6426/000-060+CON021 | Extended frequency response version | 32 mm | 0.92 kg |
Popular Modèles from the Same Marque (Epro)
| Modèle | Description | Measurement Type | Poids |
|---|---|---|---|
| PR6423/002-030+CON021 | Eddy current sensor | Vibration/Displacement | 0.78 kg |
| PR6424/014-040+CON021 | Proximity probe | Axial displacement | 0.80 kg |
| PR6425/010-030+CON021 | Eddy current sensor | Shaft vibration | 0.86 kg |
| PR6422/010-030+CON021 | Compact proximity probe | Bearing displacement | 0.70 kg |
| MMS3120/022-100 | Monitoring module | État and vibration monitoring | 1.2 kg |
| MMS6822 | Dual-channel vibration monitor | Shaft and casing vibration | 1.5 kg |
