Présentation du produit

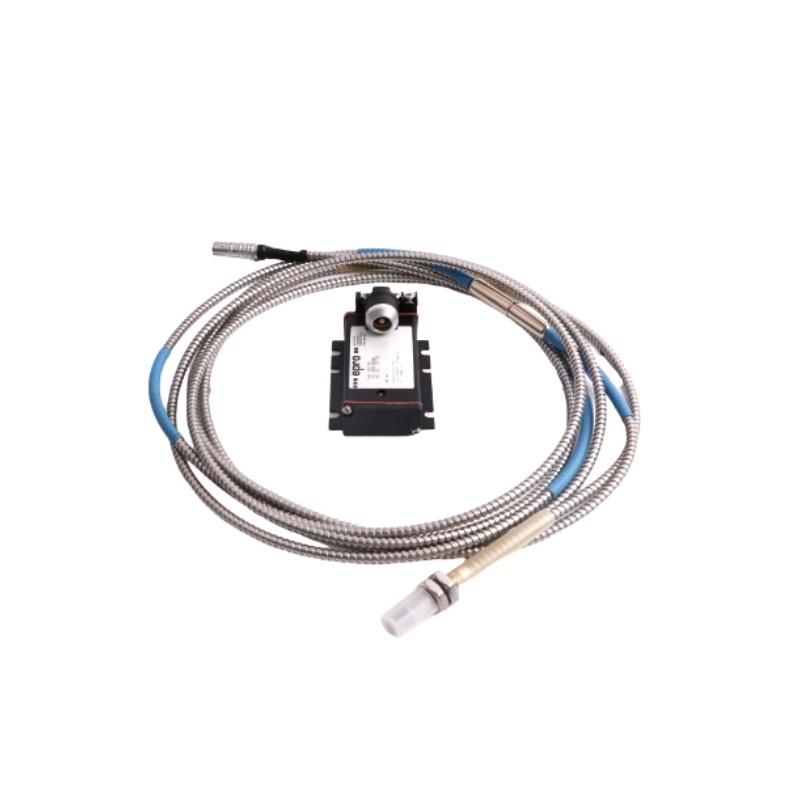

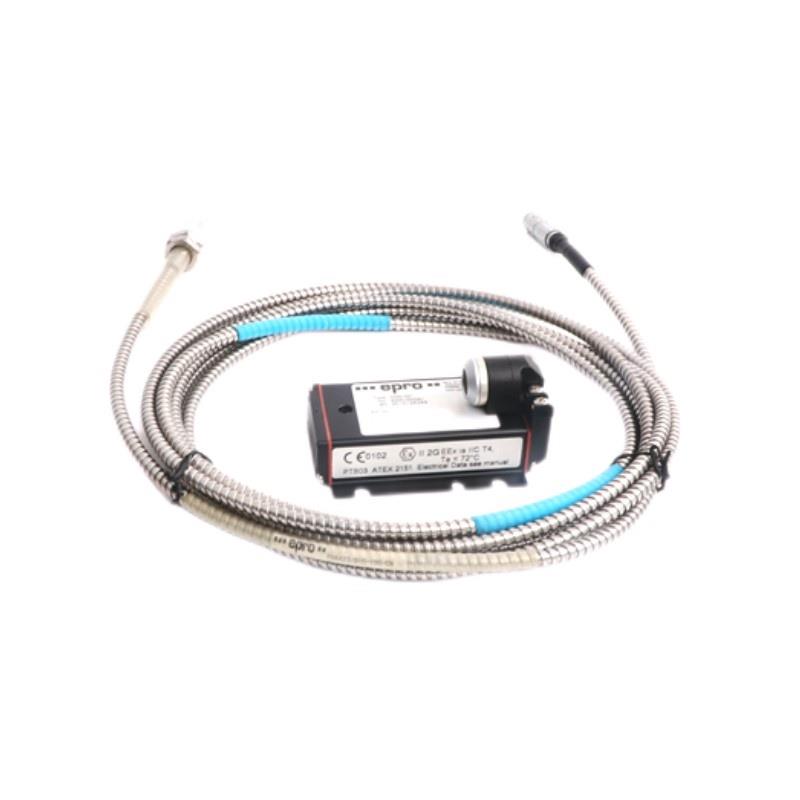

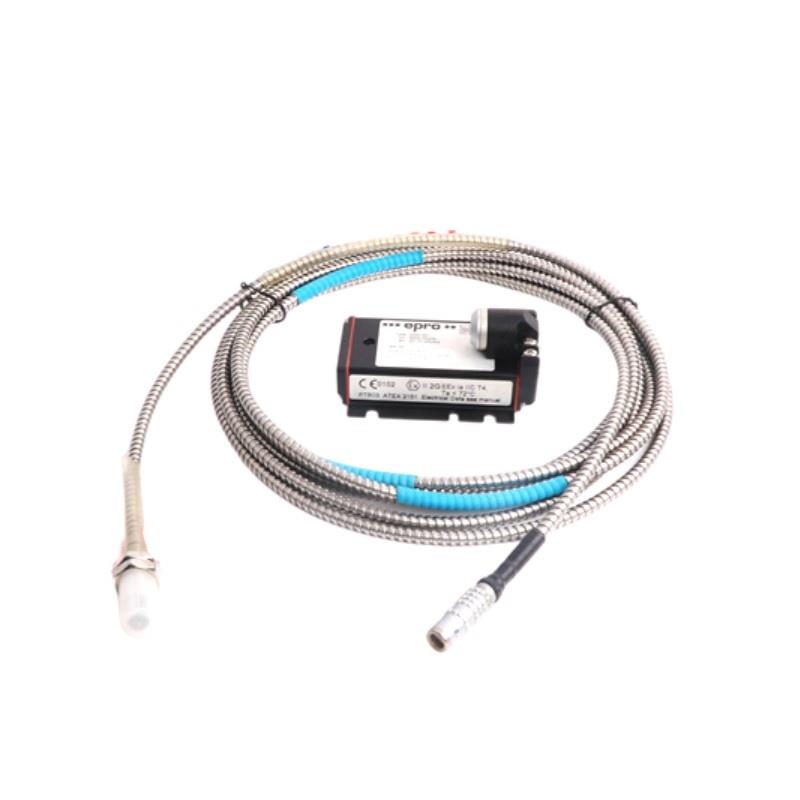

The Epro PR6424/116-000 16mm Eddy Current Sensor is a precision monitoring device designed for measuring shaft displacement, vibration, and position in industrial rotating machinery. Employing eddy current technology, this sensor delivers high-resolution, contactless measurements, making it suitable for critical machinery applications where accuracy and reliability are essential.
Its 16 mm sensor head diameter allows for integration into compact and constrained mounting locations, while its robust design ensures consistent performance in harsh industrial environments. The PR6424/116-000 provides continuous real-time data, supporting predictive maintenance and condition monitoring programs to detect early signs sur mechanical issues and reduce unplanned downtime.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | Epro PR6424/116-000 |
| Sensor Type | Eddy Current Displacement / Vibration Sensor |
| Sensor Head Diameter | 16 mm |
| Measurement Range | ±2 mm (typical, adjustable depending on setup) |
| Output Signal Type | Analog 0–10 V / 4–20 mA |
| Excitation Voltage | 8–12 VDC (via interface module) |
| Frequency Response | DC to 10 kHz (typical) |
| Operating Temperature Range | -40°C to +120°C |
| Environmental Protection | IP65 / IP67 (depending on mounting) |
| Poids | 0.2 kg |
| Mounting Type | Threaded or flange mount |
Product Applications
The PR6424/116-000 sensor is widely used across critical industrial and process control environments, including:
-
Power Generation – Monitors turbine and generator shaft displacement to ensure precise alignment.
-
Rotating Machinery – Measures vibration and position in pumps, compressors, and motors.
-
Petrochemical and Refining Plants – Provides high-resolution shaft position monitoring for high-speed machinery.
-
Process Automation – Feeds accurate displacement and vibration data to control systems and SCADA unités.
-
Predictive Maintenance – Enables early detection sur abnormal behavior to prevent costly downtime.
Product Advantages
-
High Precision: Non-contact eddy current technology provides accurate displacement and vibration measurements.
-
Durable Construction: Resistant to high temperatures, vibrations, and industrial contaminants.
-
Compact Size: 16 mm diameter allows installation in constrained spaces.
-
Wide Frequency Response: Captures both low-frequency displacement and high-frequency vibration signals.
-
Flexible Integration: Analog outputs compatible with a variety sur industrial monitoring systems.
-
Supports Predictive Maintenance: Provides reliable real-time data to detect potential issues early.
FAQ
-
What is the sensor head diameter?
The PR6424/116-000 features a 16 mm sensor head suitable for compact mounting locations in industrial equipment. -
Which parameters does this sensor measure?
It measures shaft displacement, vibration, and rotational position using eddy current technology. -
What is the typical measurement range?
The sensor operates over ±2 mm, adjustable depending on installation requirements. -
What output signals are provided?
Analog outputs include 0–10 V and 4–20 mA, compatible with most monitoring systems. -
What excitation voltage does it require?
The sensor requires 8–12 VDC, supplied through the compatible interface module. -
What is the frequency response sur the sensor?
The sensor responds accurately from DC to 10 kHz, covering both slow and fast dynamic events. -
Can this sensor operate in harsh environments?
Yes, it functions reliably from -40°C to +120°C and has protection ratings up to IP67. -
How is the sensor mounted?
It supports threaded or flange mounting for secure industrial installation. -
Is this sensor suitable for predictive maintenance?
Yes, it provides continuous high-resolution data to detect early abnormal vibration or displacement. -
Which industries commonly use this sensor?
Power generation, petrochemical, industrial motors, compressors, pumps, and process automation systems.
Recommended Related Modèles (Same Series / Function)
| Modèle Number | Description |
|---|---|
| PR6424/115-100 | 16 mm Eddy Current Sensor, standard version |
| PR6424/115-110 | 16 mm Sensor with high-frequency response |
| PR6424/115-120 | 16 mm Sensor with differential analog output |
| PR6424/115-121 | 16 mm Sensor, standard version |
| PR6424/115-130 | 16 mm Sensor with extended temperature range |
| PR6424/115-140 | 16 mm High-precision displacement sensor |
Popular Modèles from the Same Marque (Epro)
| Modèle Number | Description |
|---|---|
| PR6423/005-010 | 10 mm Eddy Current Sensor |
| PR6423/010-020 | 12 mm Eddy Current Sensor |
| PR6424/014-040 | 14 mm Eddy Current Sensor |
| PR6424/022-100 | 22 mm Eddy Current Sensor |
| PR6425/030-020 | 30 mm Eddy Current Sensor |
| PR6425/040-030 | 40 mm High-precision Eddy Current Sensor |
