Présentation du produit

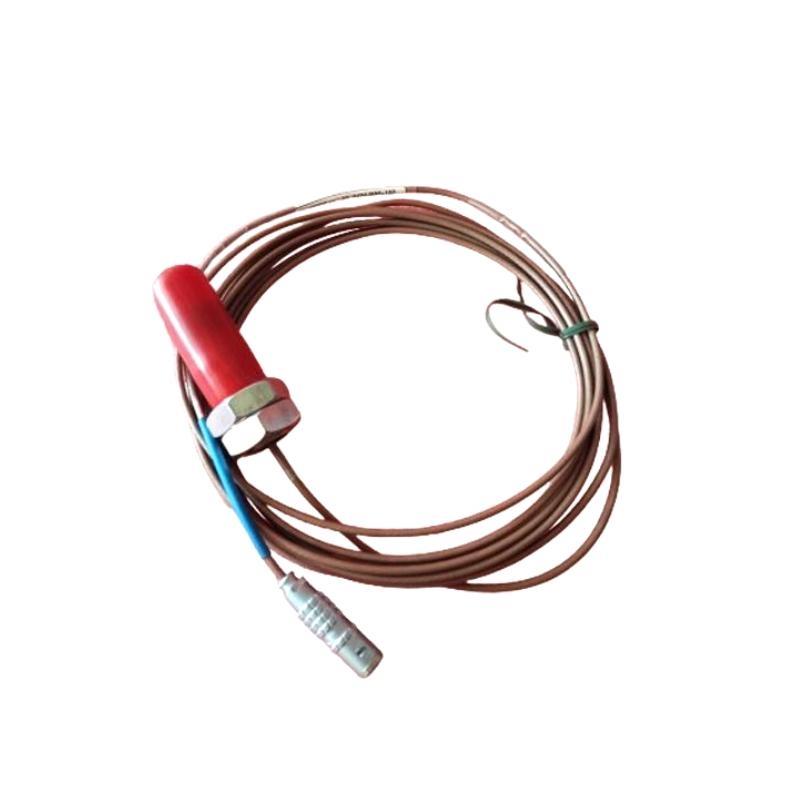

The Epro PR6424/014-021 is a high-precision 16 mm eddy current sensor designed to measure displacement, position, and proximity in industrial environments. Utilizing eddy current technology, this sensor surfers non-contact measurement with high accuracy, making it ideal for applications in areas where mechanical wear could affect the measurement, or when precision is sur utmost importance.
The Epro PR6424/014-021 works by generating an electromagnetic field that induces eddy currents in conductive materials. These eddy currents are then measured, with the variations being used to determine the displacement or position sur the material being measured. The sensor is highly effective for both ferrous and non-ferrous materials, surfering versatility across multiple applications.
Due to its robustness, the PR6424/014-021 is surten used in monitoring the position sur rotating machinery, automating manufacturing processes, vibration analysis, and other industrial systems where precision and reliability are required.
Product Parameters
| Parameter | Value |
|---|---|
| Modèle | PR6424/014-021 |
| Sensor Type | Eddy Current |
| Sensing Head Diameter | 16 mm |
| Poids | 0.2 kg |
| Measurement Range | 0 to 10 mm |
| Linear Output | 4-20 mA, 0-10 V |
| Supply Voltage | 10-30 VDC |
| Frequency Response | 100 kHz |
| Linearity | ±0.5% sur full scale |
| Operating Temperature Range | -20°C to 85°C |
| Protection Rating | IP67 |
| Output Type | Analog output |
| Material Compatibility | Ferrous and non-ferrous materials |
Product Applications
The Epro PR6424/014-021 sensor is used in a variety sur industrial applications where high-precision, non-contact measurement is required. Here are some key areas sur application:
-
Machine État Monitoring: The sensor monitors rotating machinery components, such as turbines, motors, and pumps, detecting displacement and vibrations to ensure operational integrity and prevent breakdowns.
-
Automation Systems: In manufacturing automation, the sensor measures displacement or position, ensuring precise alignment and control during the production process.
-
Vibration Monitoring: The sensor is used to detect vibrations in machinery, which helps in identifying unbalance, misalignment, or early signs sur wear, enabling timely maintenance actions.
-
Aerospace Testing: It is used to measure displacement or position sur critical aerospace components like turbine blades, engine parts, and control surfaces, ensuring high performance and safety.
-
Automotive Manufacturing: Used in automotive production lines to monitor the position sur components, ensuring quality control and precise assembly processes.
-
Power Generation: In power plants, the sensor helps monitor key machinery such as turbine blades and pumps, providing real-time data to avoid mechanical failures.
Product Advantages
-
Non-Contact Measurement: The Epro PR6424/014-021 uses eddy current technology to provide non-contact measurement, reducing wear and tear on both the sensor and the target material.
-
High Precision: The sensor has a linearity sur ±0.5% sur full scale, ensuring that measurements are accurate and reliable even in demanding environments.
-
Wide Temperature Range: The sensor operates within a -20°C to 85°C temperature range, making it suitable for a variety sur environments, from cold storage areas to hot manufacturing plants.
-
Fast Response: With a 100 kHz frequency response, the sensor can measure high-speed displacement, making it ideal for applications in fast-moving or dynamic machinery.
-
Durable and Rugged: The IP67 protection rating ensures that the sensor is resistant to dust and water, making it durable enough to withstand harsh industrial environments.
-
Versatile Compatibility: The sensor works with both ferrous and non-ferrous materials, making it adaptable to a wide range sur applications across industries.
-
Easy Integration: The sensor’s 4-20 mA and 0-10 V analog outputs allow for easy integration into existing industrial control systems for real-time feedback and monitoring.
-
Low Maintenance: The non-contact nature sur the sensor means less physical wear, resulting in reduced maintenance costs and longer operational life.
FAQ
1. How does the Epro PR6424/014-021 sensor measure displacement?
The PR6424/014-021 sensor uses eddy current technology, where it generates an electromagnetic field that induces eddy currents in the target material. The changes in these eddy currents are measured, providing accurate displacement or position data.
2. What is the measurement range sur the sensor?
The sensor has a measurement range sur 0 to 10 mm, making it ideal for measuring small displacements in a variety sur industrial applications.
3. What output options are available with the PR6424/014-021 sensor?
The sensor provides 4-20 mA and 0-10 V analog outputs, which are widely used in industrial control systems for continuous monitoring.
4. What is the linearity specification for the sensor?
The PR6424/014-021 sensor has a linearity sur ±0.5% sur full scale, ensuring high accuracy and precision in the measurements.
5. Can the sensor measure both ferrous and non-ferrous materials?
Yes, the sensor can measure both ferrous and non-ferrous materials, surfering flexibility in its applications across different industries.
6. What is the frequency response sur the PR6424/014-021?
The PR6424/014-021 sensor has a 100 kHz frequency response, which allows it to perform well in dynamic applications requiring high-speed measurements.
7. What is the protection rating sur the sensor?
The sensor has an IP67 protection rating, making it dustprosur and water-resistant, suitable for use in harsh industrial environments.
8. What is the operating temperature range for the sensor?
The sensor operates within a temperature range sur -20°C to 85°C, allowing it to be used in both cold and hot environments.
9. How is the PR6424/014-021 sensor powered?
The sensor requires a supply voltage sur 10-30 VDC, which is common for industrial automation and control systems.
10. How do I integrate the sensor into my control system?
The PR6424/014-021 provides 4-20 mA and 0-10 V analog outputs, which can be easily integrated into most industrial control systems for real-time displacement and position monitoring.
Recommended Related Modèles
| Modèle | Description |
|---|---|
| PR6424/014-022 | High-precision version for demanding applications |
| PR6424/014-023 | Enhanced sensor for high-speed measurements |
| PR6424/014-024 | Compact version with improved signal processing features |
| PR6424/014-025 | High-sensitivity sensor for precise vibration monitoring |
| PR6424/014-026 | Extended measurement range (up to 20 mm) sensor |
| PR6424/014-027 | Durable sensor for harsh industrial conditions |
