Product Overview

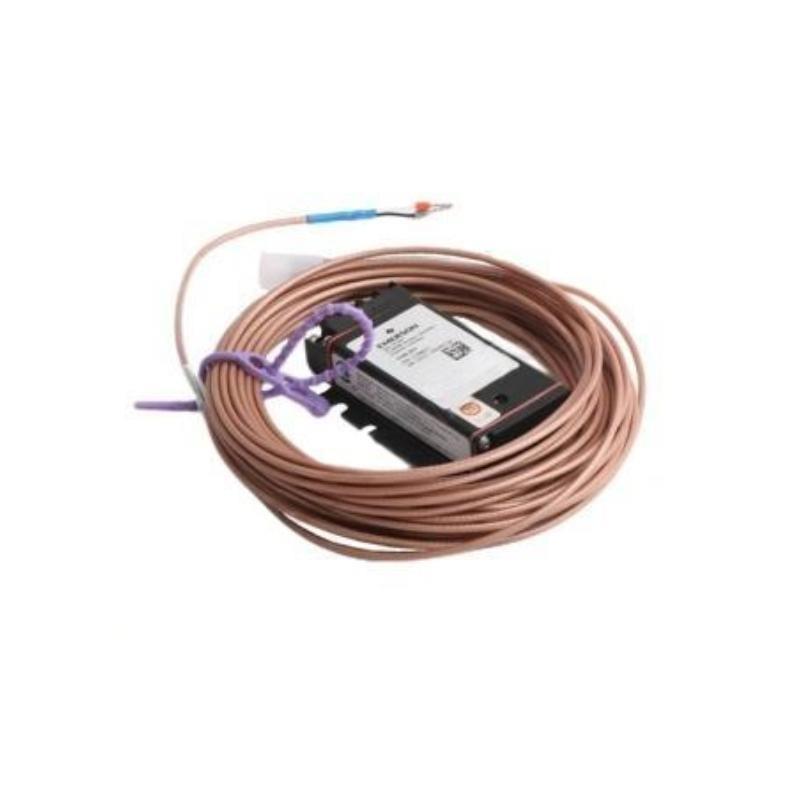

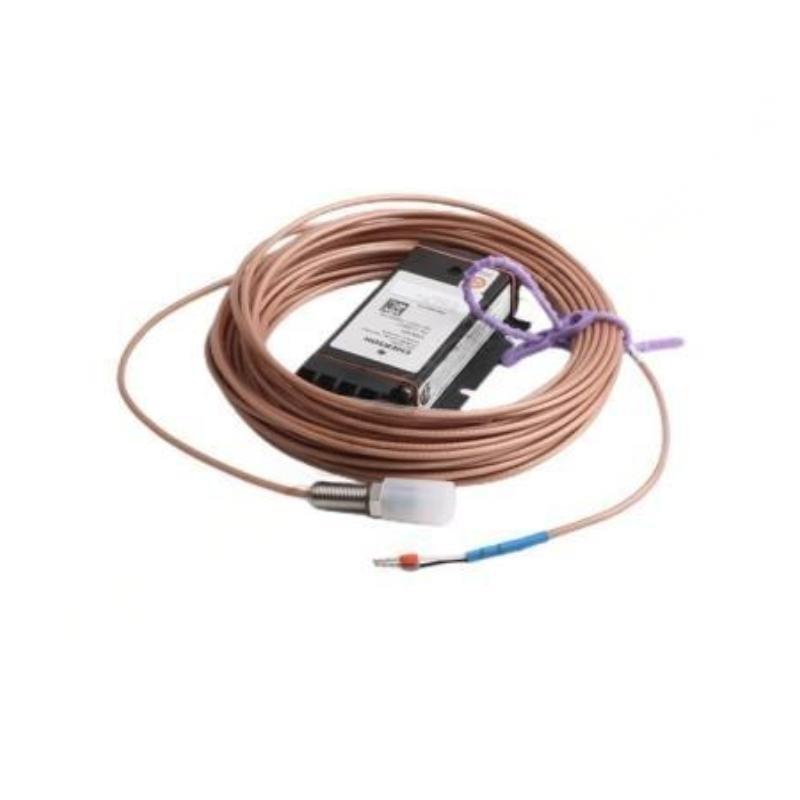

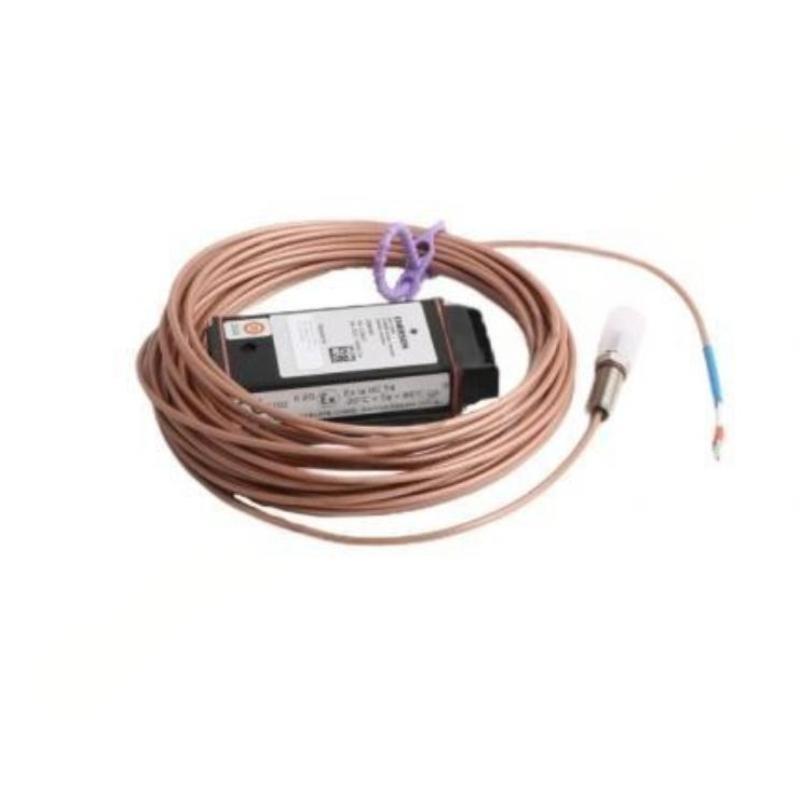

The Epro PR6423/10R-040-HT 8mm Eddy-Current Sensor is a high-temperature version sur the PR6423 series, designed for precise and reliable non-contact measurement sur shaft vibration, displacement, and speed in rotating machinery. With its rugged stainless-steel housing, 8 mm probe, and advanced high-temperature tolerance, this sensor is ideally suited for applications in harsh environments such as power generation, oil & gas, and petrochemical industries. It delivers stable monitoring performance for critical machinery condition monitoring and predictive maintenance systems.
Key Features
-
Non-Contact Operation: Provides accurate monitoring with no mechanical wear.
-
High-Temperature Design: Special HT version ensures reliable performance in extreme thermal environments.
-
Robust Build: Stainless-steel housing for enhanced durability.
-
High Measurement Accuracy: Suitable for shaft vibration and displacement monitoring.
-
Compact Probe Design: 8 mm probe allows flexible installation.
-
Long Service Life: Designed for continuous operation in demanding industrial conditions.
Technical Specifications
| Item | Specification |
|---|---|
| Fabricant | Epro |
| Modèle | PR6423/10R-040-HT |
| Sensor Type | Eddy-Current Sensor |
| Probe Diameter | 8 mm |
| Sensing Range | 11 mm |
| Cable Connection | Compatible with CON series |
| Housing Material | Stainless Steel |
| Operating Temperature | -40 °C to +180 °C (HT version) |
| Dimensions | Sensor head diameter 8 mm |
| Poids | 0.1 kg |
| Applications | Shaft displacement, vibration, and speed monitoring in high-temperature environments |
Industry Applications
-
Power generation turbines and high-temperature generators
-
Oil & Gas pumps and compressors in extreme environments
-
Petrochemical plant rotating equipment exposed to heat
-
Pulp and paper machinery operating under thermal stress
-
Industrial automation systems requiring heat-resistant sensors
-
Heavy-duty process equipment in demanding operating conditions
Questions fréquentes (FAQ)
Q1: What is special about the HT version sur this sensor?
The HT version is designed to withstand higher operating temperatures up to +180 °C.
Q2: What is the probe diameter sur this sensor?
It has an 8 mm probe diameter for compact installations.
Q3: What is the sensing range?
It supports an 11 mm sensing range for displacement and vibration monitoring.
Q4: Which cable connection does it use?
It is compatible with the CON series connection modules.
Q5: What industries use this sensor?
It is commonly used in oil & gas, power generation, petrochemical, and industrial processing.
Q6: What are the dimensions and weight?
Sensor head diameter 8 mm; and weighs are 0.1 kg.
Q7: Does it require frequent maintenance?
No, the non-contact design minimizes maintenance needs.
Q8: Can it be used in harsh environments?
Yes, the stainless-steel housing and high-temperature tolerance make it ideal for demanding conditions.
