Présentation du produit

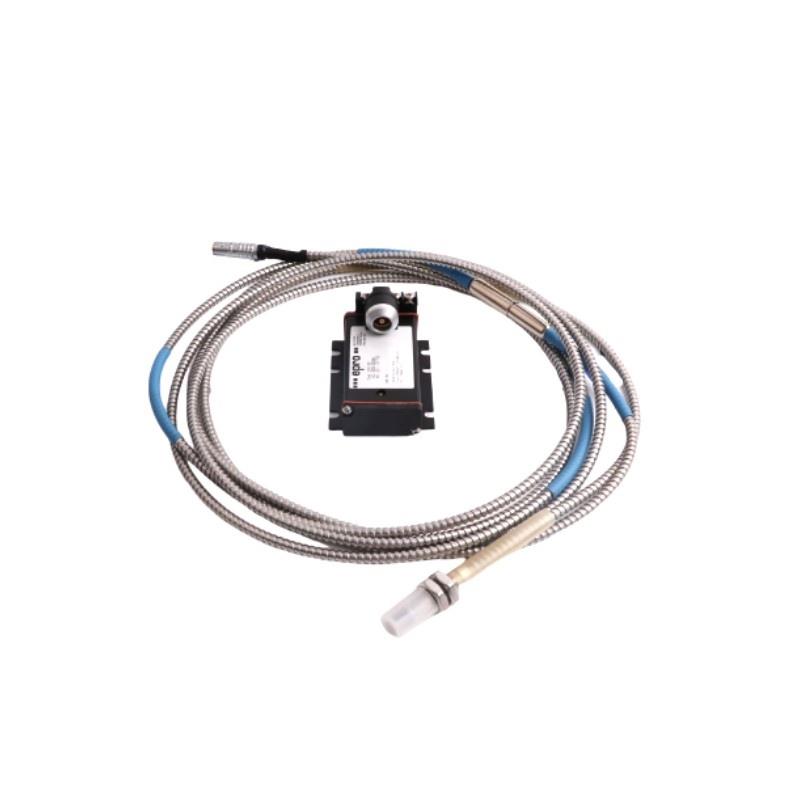

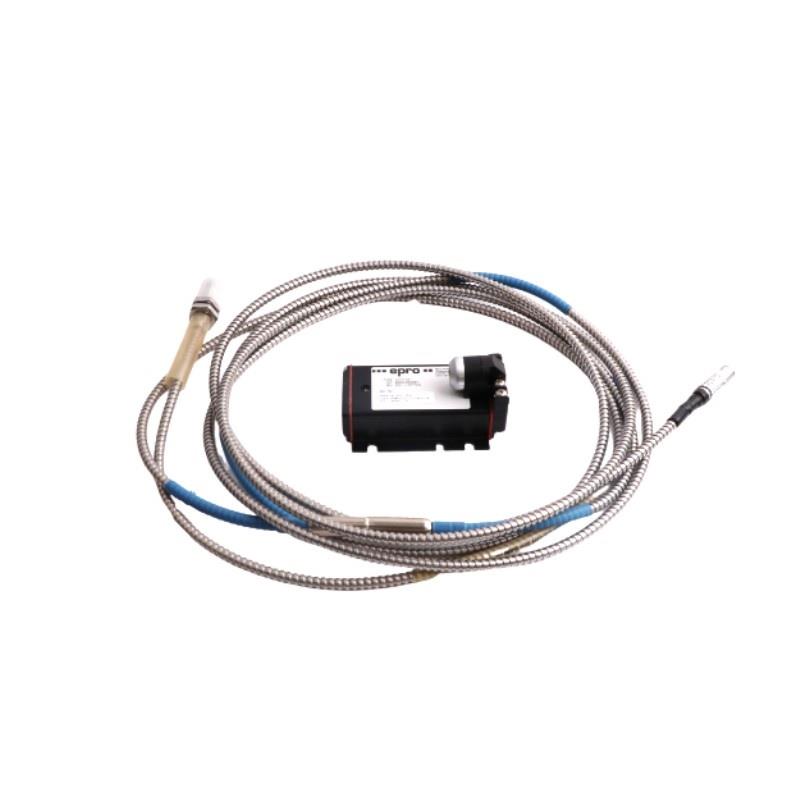

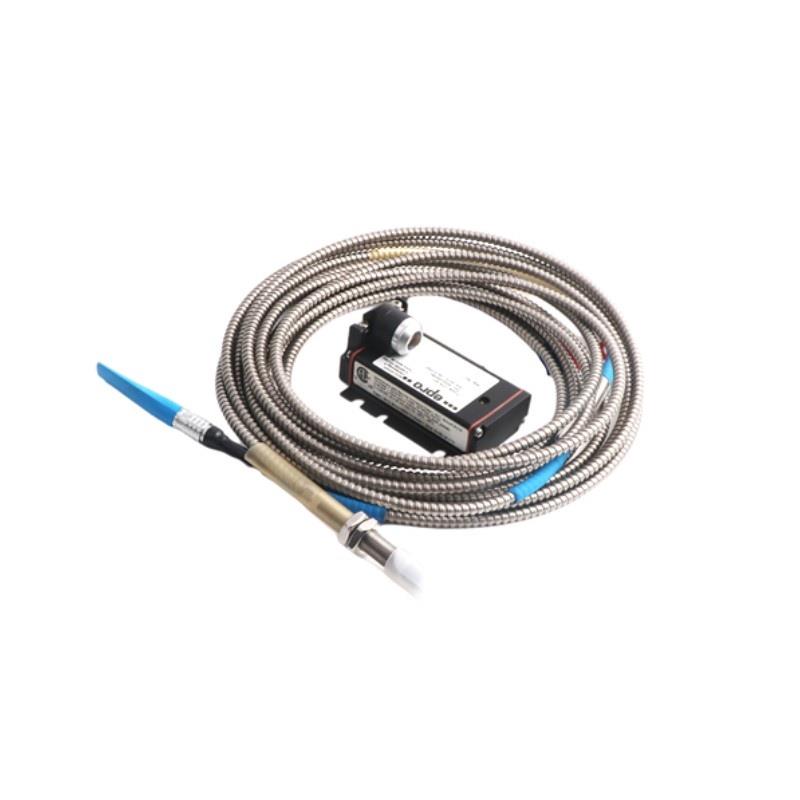

The Epro PR6423/002-131 is an 8 mm Eddy Current Sensor designed for high-precision measurement sur displacement, vibration, and position in demanding industrial and research applications. As part sur the PR6423 series, this sensor delivers reliable performance, repeatable accuracy, and robust construction, making it suitable for use in turbines, pumps, motors, gearboxes, and rotating shafts.
Utilizing non-contact eddy current technology, the PR6423/002-131 ensures stable measurement without mechanical wear, providing long-term operational reliability. The stainless steel housing protects the sensor from corrosion and mechanical stress, enabling installation in harsh or confined environments.
This sensor provides stable analog output signals, which can be directly integrated with industrial controllers, vibration monitoring systems, or data acquisition platforms. Its compact size, accuracy, and robustness make it an ideal solution for predictive maintenance, condition monitoring, and experimental setups in mechanical engineering.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy Current Sensor |
| Sensor Head Diameter | 8 mm |
| Poids | 0.1 kg |
| Measurement Range | 0–13 mm |
| Linearity | ±0.5% F.S. |
| Operating Temperature | -40°C to +125°C |
| Output Signal | Analog voltage / current |
| Housing Material | Stainless Steel |
| Connector Type | CN |
| Frequency Response | Up to 10 kHz |
| Power Supply | 24 VDC nominal |
Applications
The PR6423/002-131 sensor is widely applied in industries and research environments that require precise measurement:
-
Rotating Machinery Monitoring: Detecting shaft vibration, rotor displacement, and misalignment.
-
Turbines and Generators: Measuring rotor and shaft movement to prevent operational failures.
-
Pumps and Compressors: Monitoring axial and radial displacement to optimize system performance.
-
Motors and Gearboxes: Detecting imbalance, wear, and bearing degradation.
-
Research and Development: Laboratory testing sur mechanical systems, vibration studies, and component validation.
-
Predictive Maintenance Systems: Integration into condition monitoring frameworks for real-time equipment health analysis.
Advantages
The PR6423/002-131 sensor surfers multiple advantages for industrial and laboratory use:
-
High Precision: Provides accurate measurements with minimal deviation.
-
Compact Design: 8 mm sensor head allows installation in tight or restricted spaces.
-
Non-Contact Operation: Eliminates mechanical wear and reduces maintenance needs.
-
Robust Construction: Stainless steel housing ensures resistance to mechanical stress and corrosion.
-
Wide Temperature Range: Functions reliably from -40°C to +125°C.
-
High-Frequency Response: Captures rapid vibration and transient events effectively.
-
Versatile Output: Compatible with analog voltage or current systems for easy integration.
-
Long-Term Stability: Maintains measurement accuracy over extended operational periods.
FAQ
-
What is the maximum measurement range sur the PR6423/002-131?
The sensor can measure displacements up to 13 mm with consistent linearity. -
Can this sensor operate in extreme temperature conditions?
Yes, it functions reliably from -40°C to +125°C. -
What type sur output signals does the sensor provide?
It provides analog voltage or current outputs compatible with industrial control systems. -
How precise is the PR6423/002-131?
It maintains linearity within ±0.5% sur the full-scale measurement range. -
Is the sensor suitable for vibration monitoring?
Yes, with a frequency response up to 10 kHz, it accurately detects high-speed vibrations. -
What materials are used for the sensor housing?
The housing is made sur stainless steel, surfering mechanical durability and corrosion resistance. -
Can the sensor detect both axial and radial displacement?
Yes, the eddy current principle allows measurement in both axial and radial directions. -
Is the sensor compatible with automated monitoring systems?
Yes, the analog outputs can be integrated into industrial controllers and predictive maintenance platforms. -
Does the sensor require calibration before use?
Factory calibration ensures accuracy, but field calibration is recommended for critical applications. -
What connector type does this sensor use?
It uses a CN connector for secure and reliable electrical connection.
Recommended Related Modèles (Same Series or Similar)
| Modèle | Sensor Head Diameter | Measurement Range | Poids |
|---|---|---|---|
| PR6423/005-010-CN | 5 mm | 10 mm | 0.08 kg |
| PR6423/010-020-CN | 10 mm | 20 mm | 0.12 kg |
| PR6423/012-025-CN | 12 mm | 25 mm | 0.13 kg |
| PR6423/015-030-CN | 15 mm | 30 mm | 0.15 kg |
| PR6423/017-030-CN | 8 mm | 30 mm | 0.10 kg |
| PR6423/01M-010 | 8 mm | 10 mm | 0.10 kg |
Popular Modèles from Epro (Same Marque)
| Modèle | Sensor Head Diameter | Measurement Range | Poids |
|---|---|---|---|
| PR6424/014-040 | 14 mm | 40 mm | 0.17 kg |
| PR6424/022-050 | 22 mm | 50 mm | 0.22 kg |
| PR6425/010-030 | 10 mm | 30 mm | 0.14 kg |
| PR6425/018-035 | 18 mm | 35 mm | 0.19 kg |
| PR6426/012-025 | 12 mm | 25 mm | 0.13 kg |
| PR6426/020-040 | 20 mm | 40 mm | 0.21 kg |
