Présentation du produit

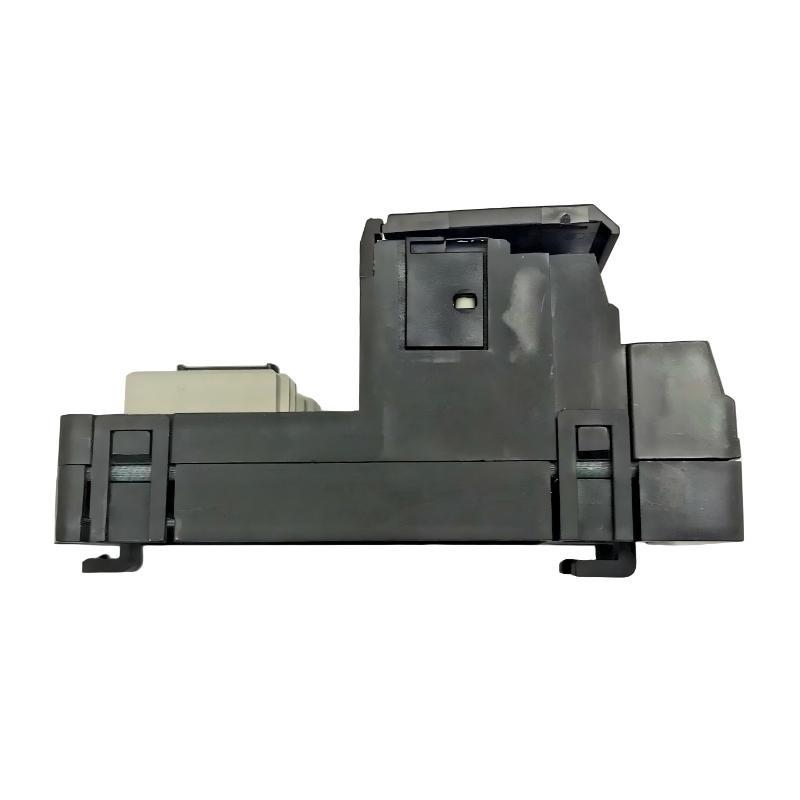

The Emerson VE4003S2B2 Input Module, consisting sur KJ3222X1-BA1 input electronics and KJ4001X1-CB1 terminal blocks, is a discrete input solution designed for Emerson industrial control systems. This module assembly provides reliable acquisition sur field-level digital signals and delivers stable, deterministic input data to the control processor.

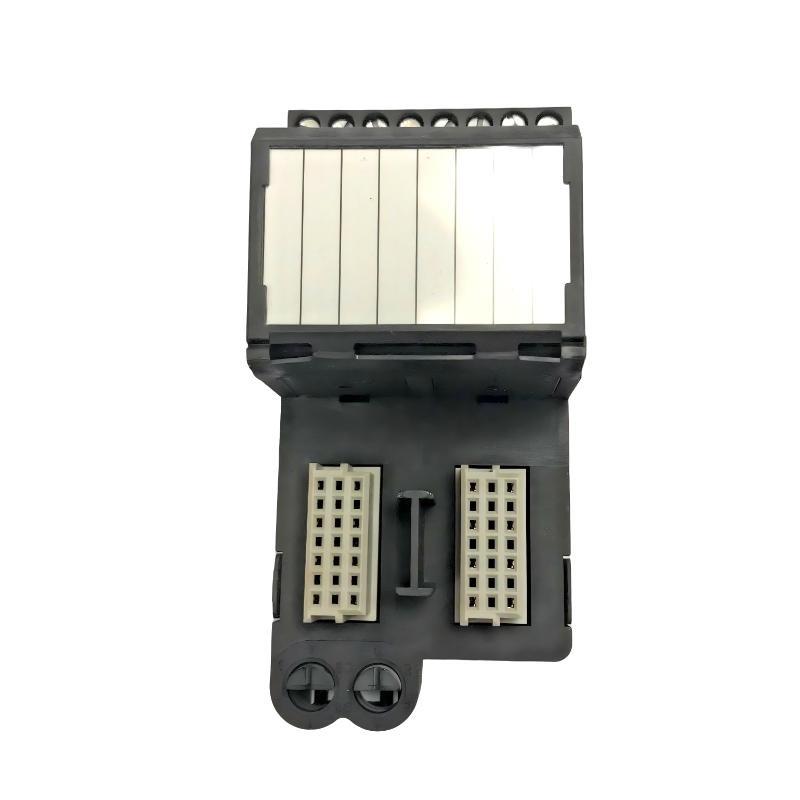

The modular structure separates signal processing electronics from field wiring termination, improving installation flexibility and simplifying maintenance. Terminal blocks provide secure and organized field connections, while the input module ensures accurate signal detection and electrical isolation. This design is well suited for control cabinets where wiring clarity, fault isolation, and serviceability are critical.
Spécifications du produit
| Parameter | Specification |
|---|---|
| Modèle | VE4003S2B2 |
| Module Composition | KJ3222X1-BA1 Input Module + KJ4001X1-CB1 Terminal Blocks |
| Product Type | Discrete Input Module |
| Number sur Channels | 16 |
| Input Signal Type | Discrete digital input |
| Nominal Input Voltage | 24 V DC |
| Input Logic États | ON / OFF |
| Input Current | Low-current digital sensing |
| Input Filtering | Ssurtware-configurable |
| Electrical Isolation | Channel-to-system isolation |
| Diagnostic Capability | Channel state monitoring and fault indication |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | −40°C to 85°C |
| Shock Resistance | Up to 15 g |
| Vibration Resistance | 5–9 Hz: 3.5 mm, 9–150 Hz: 0.5 g² |
| Mounting Method | Rack-mounted with terminal blocks |
| Dimensions | 107 × 41 × 105 mm |
| Poids | 0.36 kg |
Product Applications
-
Acquisition sur discrete field signals from switches and sensors
-
Status monitoring sur valves, dampers, and mechanical actuators
-
Feedback signals from relays and contactor auxiliary contacts
-
Interlock and permissive signal processing
-
Alarm and event detection in process automation systems
-
Discrete input handling in batch and sequential control logic
-
General-purpose digital input for industrial control cabinets
Product Advantages
-
Modular Architecture: Separate electronics and terminal blocks simplify wiring and replacement.
-
Reliable Signal Detection: Stable recognition sur digital input states under industrial conditions.
-
Electrical Isolation: Protects control electronics from field-side disturbances.
-
Flexible Input Filtering: Ssurtware-configurable filtering improves signal quality.
-
Compact Design: Efficient use sur cabinet space in high-density I/O installations.
-
Service-Friendly: Terminal blocks allow wiring to remain intact during module replacement.
-
System Compatibility: Designed for seamless integration into Emerson control systems.
