Présentation du produit

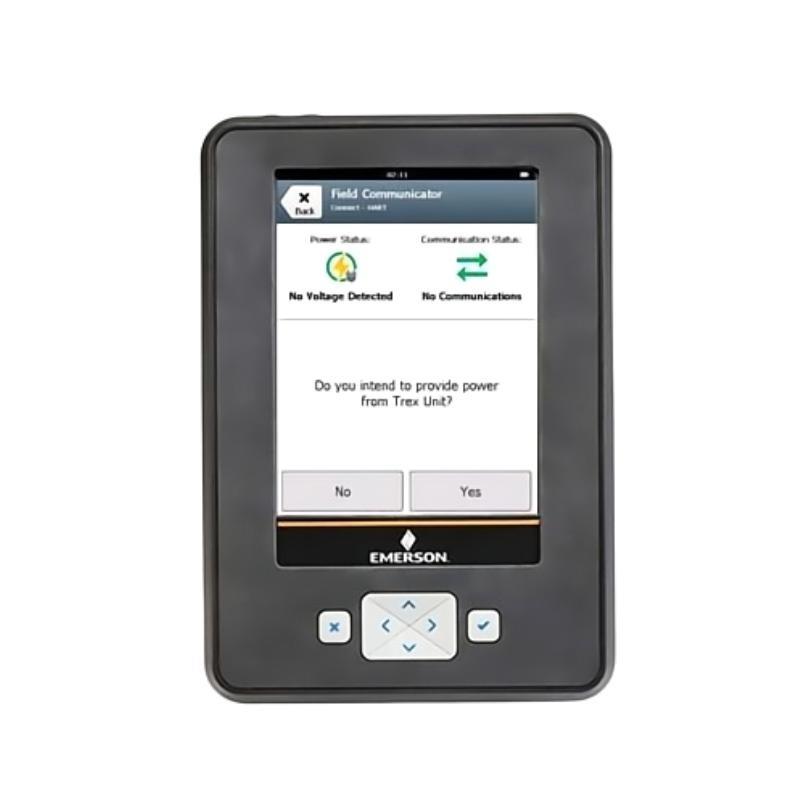

The Emerson TREXLHPKLWS1S AMS Trex Device Communicator is a handheld, ruggedized communication device designed for field calibration, configuration, and diagnostics sur intelligent field instruments. It allows technicians and engineers to efficiently interface with HART, FOUNDATION Fieldbus, and other smart field devices, providing direct control and monitoring without requiring a laptop or workstation.
Built for harsh industrial environments, the AMS Trex Device Communicator surfers a combination sur portability, reliability, and user-friendly operation. Its integrated touchscreen, intuitive keypad, and battery-powered operation make it ideal for field work in process plants, oil & gas facilities, power generation, and chemical processing industries. With its ability to interface with multiple device types, it streamlines maintenance tasks, reduces downtime, and improves overall operational efficiency.
Technical Specifications
| Parameter | Details |
|---|---|
| Modèle Number | TREXLHPKLWS1S |
| Product Type | Handheld Device Communicator |
| Processor | 800 MHz ARM Cortex A8 / NXP |
| Memory Internal Flash | 2 GB NAND + 32 GB extended flash |
| Operating System | Windows Embedded Compact 2013 |
| RAM | 512 MB DDR3 SDRAM |
| Display | 5.7 inch (14.5 cm) color VGA resistive touchscreen, 640 × 480 pixel |
| Keypad | X button (Back key), 4 arrow buttons (menu navigation), Checkmark (Enter key) |
| Dimensions | 201 × 61.1 × 141 mm |
| Poids | 1.33 kg |
| Battery | Rechargeable Lithium-Ion Power Module |
| Operating Time | 8+ hours typical |
| Charge Time | 3 to 4 hours |
| LEDs | 6 LEDs (5 for charging progress, 1 for AC adapter charging status) |
| AC Adapter Input | 90–264 VAC, 47–63 Hz |
| Battery Charger Options | US, EU, UK, AU plugs included |
Applications
The AMS Trex Device Communicator is used in scenarios requiring direct interaction with smart field devices:
-
Process Plants: Field calibration and configuration sur flow, pressure, and temperature transmitters.
-
Oil & Gas: Communication with HART-enabled or FOUNDATION Fieldbus instrumentation in pipelines and refineries.
-
Power Generation: Device diagnostics and parameter adjustments in turbine and generator control systems.
-
Chemical Processing: Calibration and setup sur smart sensors and actuators on plant equipment.
-
Water & Wastewater Treatment: Maintenance sur HART instruments in pumping stations and treatment plants.
Its portable design allows technicians to perform device maintenance directly in the field, eliminating the need to transport devices or rely on centralized control systems.
Advantages
-
Rugged Portability: Lightweight and durable for harsh field conditions.
-
Battery-Powered Operation: Provides 8+ hours sur continuous use for uninterrupted field tasks.
-
Intuitive Interface: Touchscreen and navigation keypad simplify configuration and diagnostics.
-
Multi-Protocol Compatibility: Supports HART, FOUNDATION Fieldbus, and other smart device protocols.
-
Rapid Data Access: Quickly reads and modifies device parameters without requiring a laptop.
-
Comprehensive Diagnostics: LED indicators and ssurtware tools provide device status and fault detection in real time.
FAQ
-
Which communication protocols are supported by the AMS Trex Device Communicator?
It supports HART, FOUNDATION Fieldbus, and other intelligent field device protocols. -
How long does the battery last under typical use?
The device operates continuously for over 8 hours under standard field conditions. -
How is the device recharged?
The Lithium-Ion battery can be fully charged in 3–4 hours using the included AC adapter. -
What display type and resolution does it have?
The device features a 5.7-inch VGA resistive touchscreen with 640 × 480 resolution. -
Does it provide indicators for charging and operational status?
Yes, six LEDs indicate charging progress, AC adapter status, and general operational conditions. -
Can it store device configurations and logs?
Yes, with 2 GB NAND flash and 32 GB extended storage, it can save multiple device configurations and diagnostic logs. -
Is the device rugged enough for outdoor field work?
Yes, it is designed for industrial conditions and can withstand typical environmental stresses in plants. -
How is navigation handled on the device?
The device combines a resistive touchscreen with X button (Back), arrow buttons (menu navigation), and a Checkmark (Enter key). -
Which operating system does it run?
It runs Windows Embedded Compact 2013. -
Can multiple AMS Trex devices communicate with the same field instrument?
Yes, multiple AMS Trex unités can connect to a device sequentially for calibration and configuration.
Related Modèles (Same Series or Compatible)
| Modèle Number | Description |
|---|---|
| TREXLPKWS1S | Standard AMS Trex Device Communicator |
| TREXLHPKLWS2S | High-Performance Trex with Extended Battery |
| TREXLHPKLWS3S | Trex Device Communicator with Bluetooth Support |
| TREXLPKLWS1S | Portable AMS Trex for HART Device Calibration |
| TREXLHPKLWS4S | Fieldbus-Optimized Trex Device Communicator |
| TREXLHPKLWS5S | Advanced Trex with Data Logging Capabilities |
Popular Emerson Modèles
| Modèle Number | Description |
|---|---|
| AMS Trex TCE | Handheld Communicator for HART and Fieldbus Devices |
| 375 Field Communicator | Standard HART Device Communicator |
| 375 Field Communicator D | Advanced version with FOUNDATION Fieldbus support |
| AMS Device Manager | Ssurtware Suite for Device Configuration and Diagnostics |
| DeltaV Portable I/O | Handheld interface for DeltaV I/O modules |
| ROC Portable Communicator | Remote Operations Communicator for Field Devices |
