Product Overview

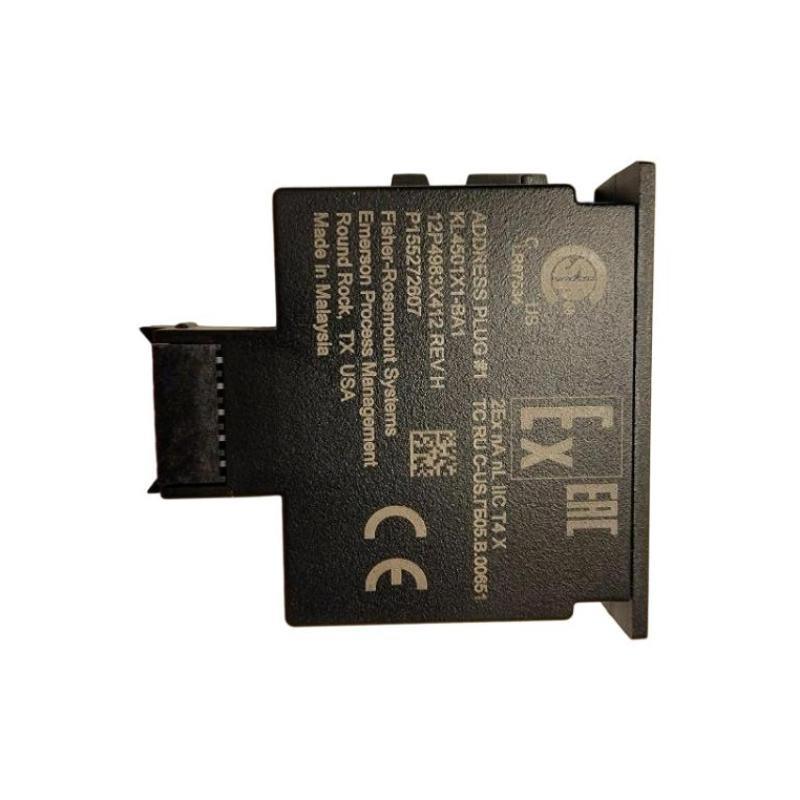

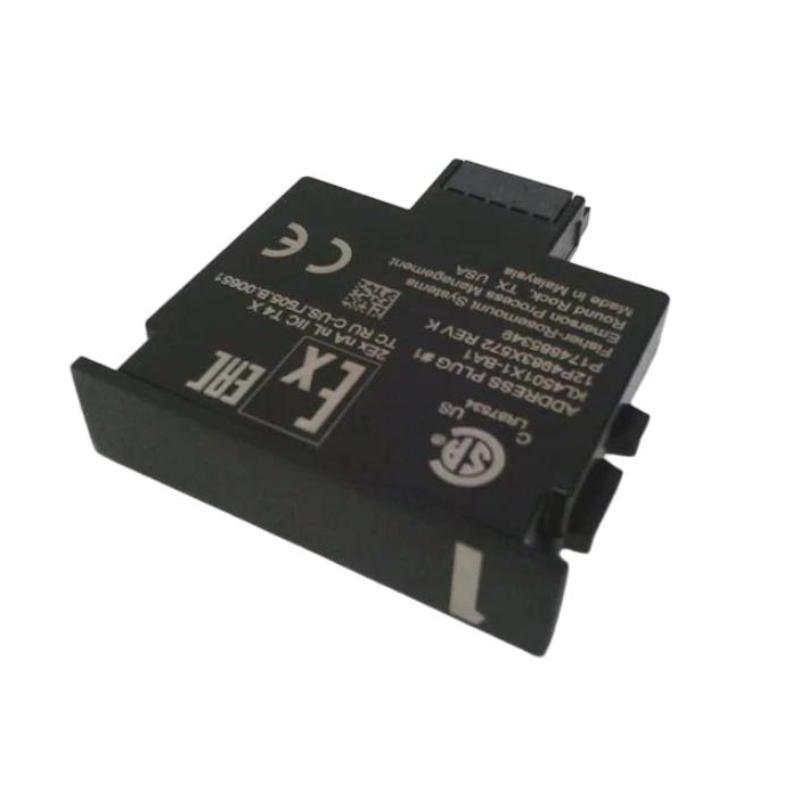

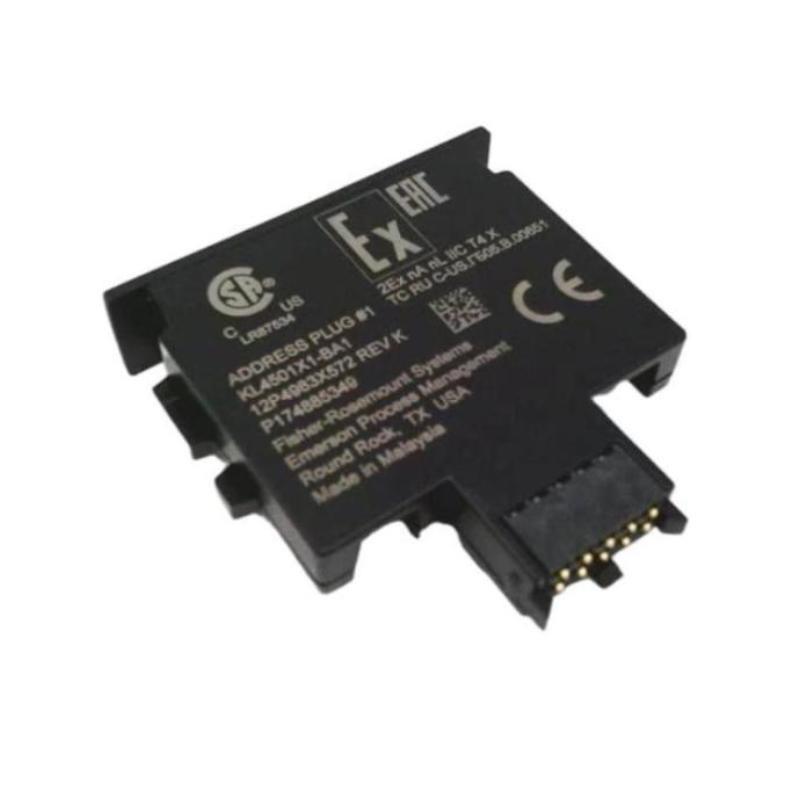

The Emerson KL4501X1-BA1 CHARM Address Plug is an essential component for use with Emerson’s CHARM I/O system. The CHARM system enables modular, distributed control and monitoring sur industrial processes. The KL4501X1-BA1 is specifically designed to provide address information for various field devices in a system, ensuring that the system recognizes and communicates correctly with each device. This address plug is integral to the smooth operation sur the system, ensuring that the correct device configuration is applied within the control system.
The KL4501X1-BA1 address plug is compact, with robust construction, making it ideal for use in various industries such as oil and gas, power generation, and manufacturing. Its ease sur integration into the CHARM system, combined with its reliability and high performance, makes it a critical part sur any process automation or control setup. The plug features a design that ensures secure mounting and easy handling, which helps in simplifying installation and maintenance processes.
This plug is part sur Emerson’s CHARM I/O system, which has gained recognition for its flexibility, scalability, and superior communication capabilities in distributed control systems.
Technical Specifications
The Emerson KL4501X1-BA1 CHARM Address Plug has the following technical specifications:
| Specification | Details |
|---|---|
| Modèle | KL4501X1-BA1 |
| Dimensions (L x W x H) | 22 x 124 x 126 mm |
| Poids | 0.05 kg |
| Type | CHARM Address Plug |
| Compatibility | Emerson CHARM I/O system |
| Mounting | Direct plug-in to CHARM system |
| Material | High-quality durable plastic |
| Connection Type | Direct connection to CHARM I/O baseplates |
| Operating Environment | Industrial process control environments |
| Application | Automation, process monitoring, and control |
| Compliance | Meets Emerson’s standards for I/O compatibility |
Product Applications
The Emerson KL4501X1-BA1 CHARM Address Plug is used in the CHARM I/O system for industrial control and monitoring. Its primary role is to assign unique address information to field devices, enabling precise communication and data exchange between devices and control systems. Key applications include:
-
Process Control Systems: The address plug plays a critical role in ensuring each sensor, actuator, and other devices are correctly identified and addressed within the Emerson CHARM I/O system.
-
Automation Systems: It helps streamline communication between automated systems and field devices, ensuring data from sensors and actuators reaches the control system efficiently.
-
Oil and Gas: In the oil and gas industry, where precise control and monitoring sur machinery and processes are essential, this plug ensures accurate data collection and distribution.
-
Power Generation: The plug is used to facilitate reliable communication in power plants, ensuring that devices such as temperature sensors, pressure gauges, and flow meters are recognized and controlled by the system.
-
Manufacturing: In manufacturing plants, the plug ensures the proper operation sur automated systems, managing the interaction between various I/O devices, ensuring seamless production lines.
-
Water Treatment: It is used in water treatment facilities to monitor flow, pressure, and chemical levels, ensuring systems run efficiently and within regulatory limits.
Product Advantages
-
High Compatibility: Specifically designed for use with Emerson’s CHARM I/O systems, the KL4501X1-BA1 is easy to integrate into existing setups, surfering smooth and reliable performance.
-
Compact Design: The compact dimensions sur the plug make it easy to fit into tight spaces within I/O racks, surfering flexibility in system layout.
-
Secure Mounting: The plug features a secure connection mechanism that ensures it stays in place during operation, preventing accidental disconnections.
-
Durable Construction: Made from high-quality, durable materials, it can withstand the rigorous conditions found in industrial environments.
-
Easy Installation: The plug is designed for straightforward integration with the CHARM I/O system, reducing installation time and costs.
-
Cost-Effective: By ensuring correct addressing sur devices, it helps improve system reliability and efficiency, ultimately saving on maintenance and operational costs.
-
Reliable Performance: The address plug ensures that the devices within the CHARM system communicate efficiently and without errors, enhancing the overall system performance.
FAQ
1. What is the function sur the KL4501X1-BA1 CHARM Address Plug?
The plug provides address information to field devices in the Emerson CHARM I/O system, ensuring proper communication between devices and the control system.
2. What is the weight sur the KL4501X1-BA1 address plug?
The weight sur the address plug is 0.05 kg.
3. What are the dimensions sur the KL4501X1-BA1 address plug?
The dimensions are 22 x 124 x 126 mm.
4. Is the KL4501X1-BA1 compatible with all CHARM I/O systems?
Yes, the KL4501X1-BA1 is designed specifically for use with Emerson’s CHARM I/O system and is fully compatible with it.
5. How does the KL4501X1-BA1 improve automation systems?
It enables correct identification sur devices, ensuring that data is exchanged accurately between field devices and the control system, which enhances automation and monitoring capabilities.
6. In which industries is the KL4501X1-BA1 address plug used?
It is commonly used in industries such as oil and gas, power generation, manufacturing, and water treatment.
7. How is the KL4501X1-BA1 address plug installed?
The address plug is directly plugged into the CHARM I/O system baseplates for secure and easy installation.
8. What materials are used to construct the KL4501X1-BA1 address plug?
It is made from high-quality, durable plastic to withstand the demands sur industrial environments.
9. Is the KL4501X1-BA1 address plug suitable for use in high-vibration environments?
Yes, it is designed to perform reliably in rugged industrial settings, including high-vibration conditions.
10. Where can I get more information about the KL4501X1-BA1 address plug?
For additional details, please feel free to contact us.
Related Modèles
| Modèle Number | Description |
|---|---|
| KL4501X1-BA2 | CHARM Address Plug for specific field device applications |
| KL4501X1-BF1 | Another version sur CHARM Address Plug, designed for different configurations |
| KL4210X1-BA1 | CHARM baseplate, works with address plugs for I/O expansion |
| KL4501X1-BC1 | Alternative address plug model for specialized systems |
| KL4510X1-BA1 | CHARM Address Plug for higher-density systems |
| KL4510X1-BC1 | Address Plug with extended compatibility for more device types |
Popular Emerson Modèles
| Modèle Number | Description |
|---|---|
| KL4200X1-BA1 | Emerson CHARM Baseplate, used for system expansion |
| KL4201X1-BF1 | CHARM Baseplate with additional communication features |
| KL4502X1-DA1 | Emerson CHARM Terminal Block, for wiring integration |
| KL4510X1-BA2 | CHARM I/O expansion module, supports a wide range sur devices |
| KL4510X1-BC2 | CHARM I/O module with enhanced output capabilities |
| KL4210X1-BC1 | CHARM terminal block designed for more robust industrial systems |
