Product Overview

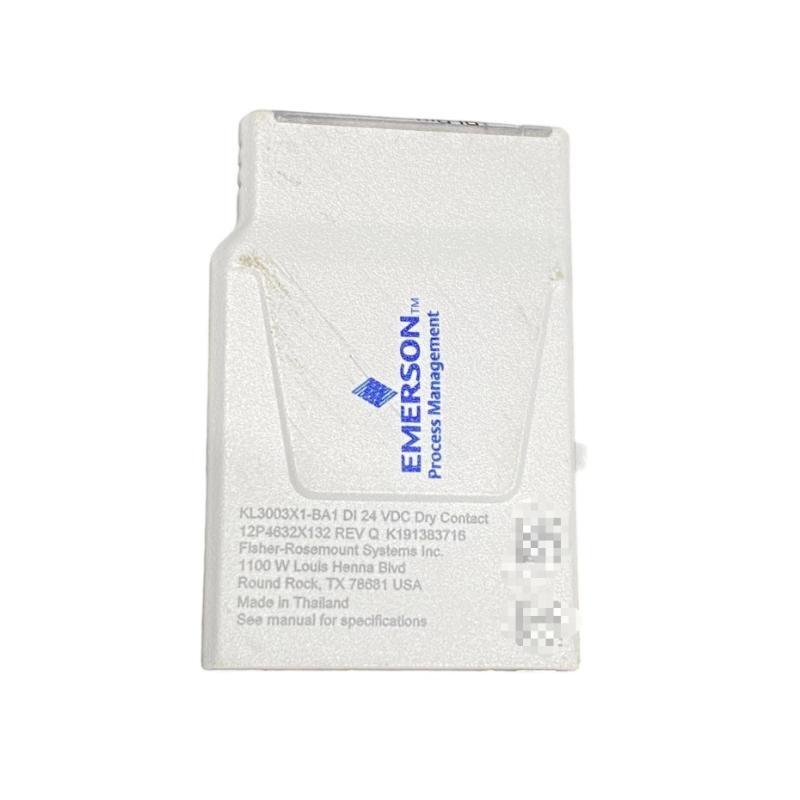

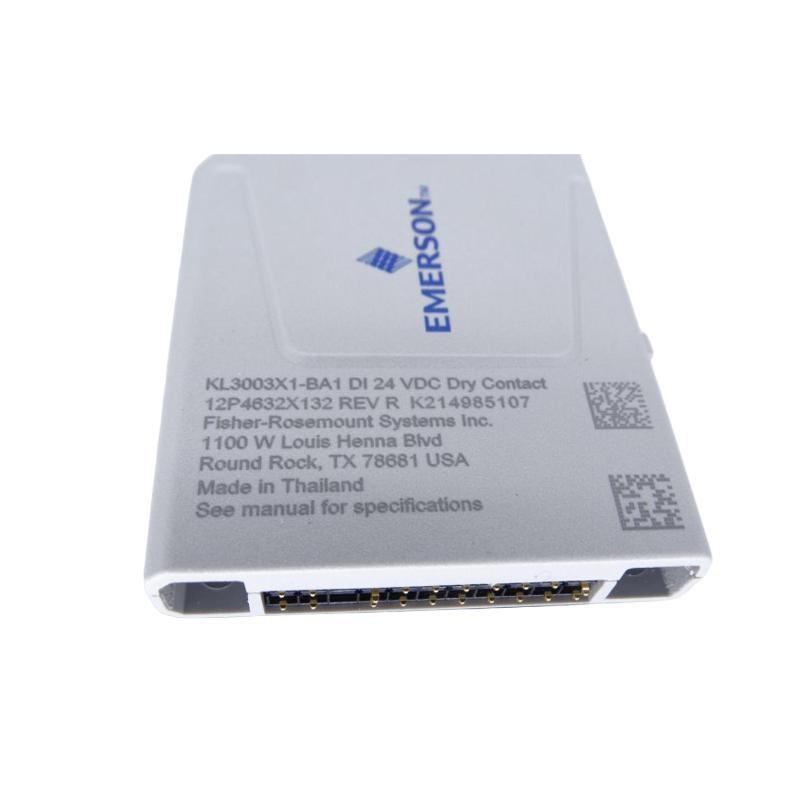

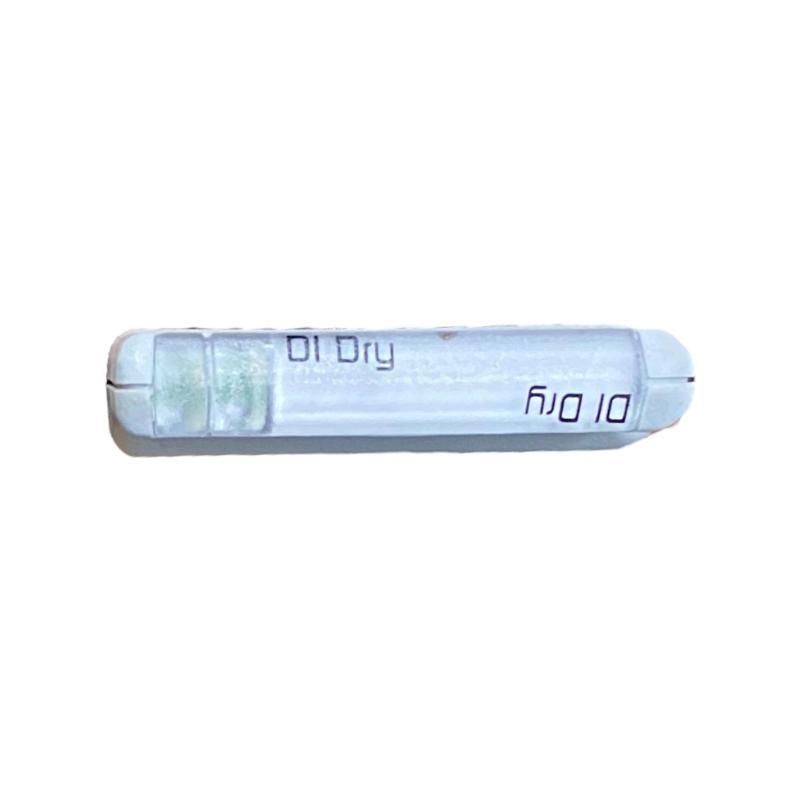

The Emerson KL3003X1-BAI is a digital input I/O card designed to handle 24VDC dry contact signals. This I/O module is part sur Emerson’s KL series and provides a reliable interface between control systems and field devices. The card is designed to handle dry contact inputs, which are commonly used in industrial automation to monitor the status sur various equipment such as switches, relays, or sensors. Its compact design allows for easy integration into automation systems, surfering seamless data acquisition for real-time process monitoring and control.
This module is highly suitable for environments where monitoring and controlling industrial equipment using simple on/surf signals are required. Its 24VDC dry contact I/O ensures safe and efficient operation, making it a versatile solution for many industrial applications, including manufacturing, process control, and energy management systems.
Key Features
-
Dry Contact Inputs: Supports 24VDC dry contact signals for reliable monitoring and control sur field devices.
-
Compact Design: The card’s compact dimensions enable easy integration into control cabinets or other space-constrained setups.
-
Seamless Integration: Compatible with Emerson’s KL series automation systems, allowing for plug-and-play installation and configuration.
-
High Reliability: Built with industrial-grade components to ensure long-term durability and stable performance.
-
Efficient Data Handling: Provides efficient and fast data transfer between field devices and control systems, ensuring real-time monitoring sur system status.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | KL3003X1-BAI |
| Type | Digital Input (DI) 24 VDC Dry Contact I/O Card |
| Dimensions | 150 × 100 × 35 mm |
| Poids | 0.036 kg |
| Input Voltage | 24 VDC (Dry Contact) |
| Input Type | Digital Inputs (Dry Contact) |
| Mounting Type | Modular (DIN Rail) |
| Operating Temperature | -20°C to +60°C |
| Environmental Protection | IP20 |
| Power Consumption | Low power consumption |
| Communication Interface | Compatible with Emerson KL series systems |
| Signal Isolation | Galvanic isolation for protection from electrical noise |
Applications
The KL3003X1-BAI DI 24 VDC Dry Contact I/O Card is designed for use in a variety sur industrial automation applications:
-
Manufacturing: Ideal for controlling and monitoring automated machines, conveyors, and other equipment in production lines.
-
Process Control: Widely used in process industries to monitor the status sur equipment such as valves, pumps, and actuators.
-
Energy Management: Useful in energy management systems for monitoring electrical equipment, including circuit breakers and alarms.
-
Building Automation: Suitable for building automation systems where monitoring switches, fire alarms, and security devices is essential.
-
Safety Systems: Used in safety-critical systems that require fast, reliable monitoring sur safety devices like emergency stops and safety interlocks.
Advantages
-
Reliable Performance: The KL3003X1-BAI is engineered for high reliability, ensuring consistent operation even in harsh industrial environments.
-
Easy Integration: With modular mounting and compatibility with Emerson’s KL series, the card can be easily integrated into existing control systems, reducing setup time and cost.
-
Cost-Effective Solution: Provides an affordable means sur adding dry contact I/O functionality to control systems without the need for complex additional hardware.
-
Versatility: The card’s ability to handle 24VDC dry contact signals makes it versatile and widely applicable across different industries.
-
Compact and Space-Saving: Its small footprint ensures that it fits into space-constrained industrial systems, providing flexibility in system design.
-
Enhanced Safety: The isolation features protect against electrical noise, ensuring accurate signal processing and minimizing the risk sur system failure.
FAQ
-
What is the input voltage supported by the KL3003X1-BAI card?
Answer: The KL3003X1-BAI supports 24VDC dry contact inputs. -
Can the KL3003X1-BAI card be used for both digital and analog inputs?
Answer: No, the KL3003X1-BAI is designed specifically for digital inputs, utilizing dry contact signals. -
How does the KL3003X1-BAI card handle electrical noise?
Answer: The card is equipped with galvanic isolation, which protects against electrical noise and ensures accurate data transmission. -
Is the KL3003X1-BAI card compatible with other Emerson automation systems?
Answer: Yes, it is designed to be compatible with Emerson’s KL series automation systems for seamless integration. -
What type sur environment is the KL3003X1-BAI suitable for?
Answer: The KL3003X1-BAI is designed for industrial environments with an operating temperature range sur -20°C to +60°C. -
How is the KL3003X1-BAI card mounted?
Answer: The card is mounted using a modular DIN rail mounting system, making installation and replacement easy. -
What industries typically use the KL3003X1-BAI card?
Answer: It is commonly used in manufacturing, process control, energy management, building automation, and safety-critical systems. -
Can the KL3003X1-BAI card be used for controlling output devices?
Answer: No, the KL3003X1-BAI is only designed for digital input applications and cannot be used for controlling output devices. -
What types sur devices can be connected to the KL3003X1-BAI?
Answer: The card is designed to connect to devices that use 24VDC dry contact signals, such as switches, relays, and sensors. -
What is the power consumption sur the KL3003X1-BAI card?
Answer: The card has low power consumption, making it energy-efficient for continuous industrial operation.
Related / Same-Series Modèle Recommendations
| Modèle | Description |
|---|---|
| KL3001X1-BAI | Similar I/O card supporting 24VDC inputs with a different configuration for specific applications. |
| KL3002X1-BAI | A variant with enhanced isolation features, suitable for environments with high electrical interference. |
| KL3004X1-BAI | Provides additional digital I/O points for systems requiring more input capacity. |
| KL3005X1-BAI | Designed for applications that require an extended temperature range for extreme environments. |
| KL3006X1-BAI | Includes support for both digital and analog inputs, surfering more versatile functionality. |
| KL3007X1-BAI | A model with enhanced diagnostic capabilities for easier troubleshooting and maintenance. |
Popular Emerson Modèles
| Modèle | Description |
|---|---|
| KL3023X1-BAI | A high-performance I/O module with additional communication features for larger systems. |
| KL3022X1-BAI | Compact I/O module designed for space-constrained systems that need flexible integration. |
| KL3031X1-BAI | Designed for industrial automation, surfering faster data transfer and real-time control capabilities. |
| KL3041X1-BAI | Offers extended I/O points for systems with higher processing needs in manufacturing and process control. |
| KL3052X1-BAI | A multi-functional I/O card with both digital and analog input/output support, ideal for mixed applications. |
| KL3063X1-BAI | Designed for energy management and building automation systems, focusing on energy efficiency and system integration. |
