Présentation du produit

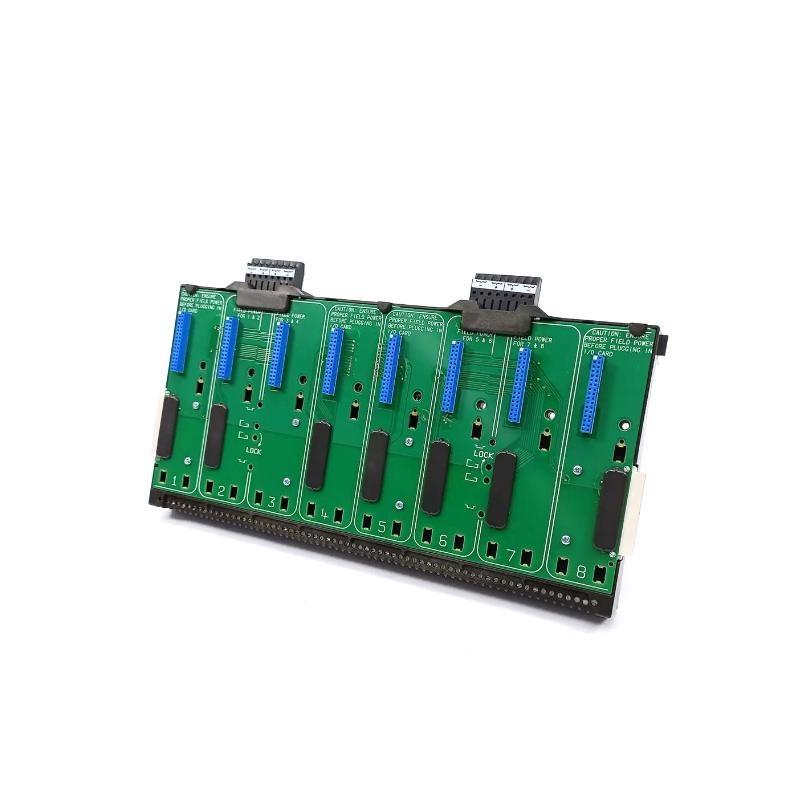

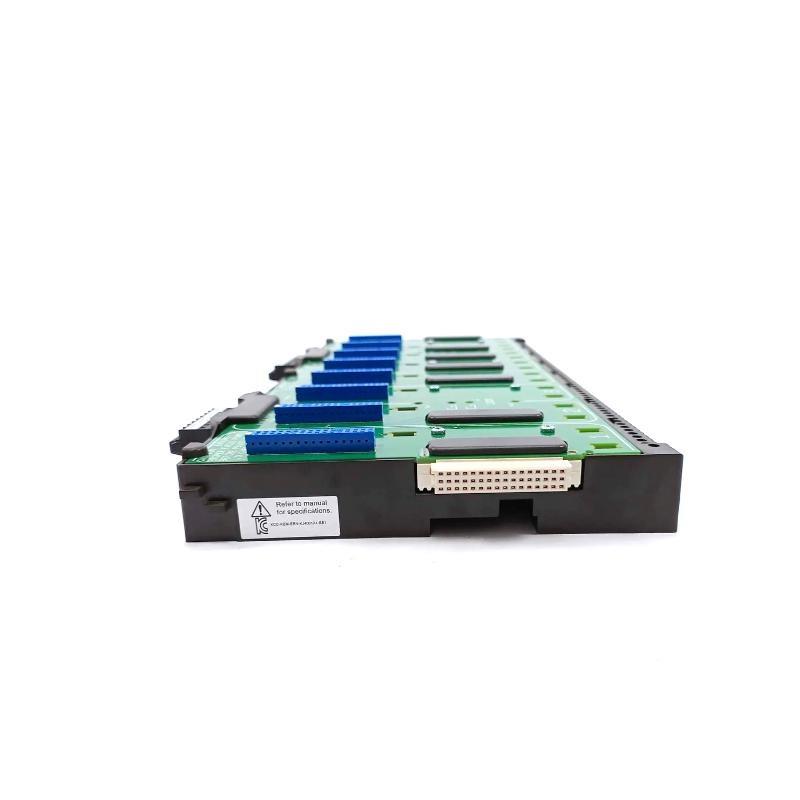

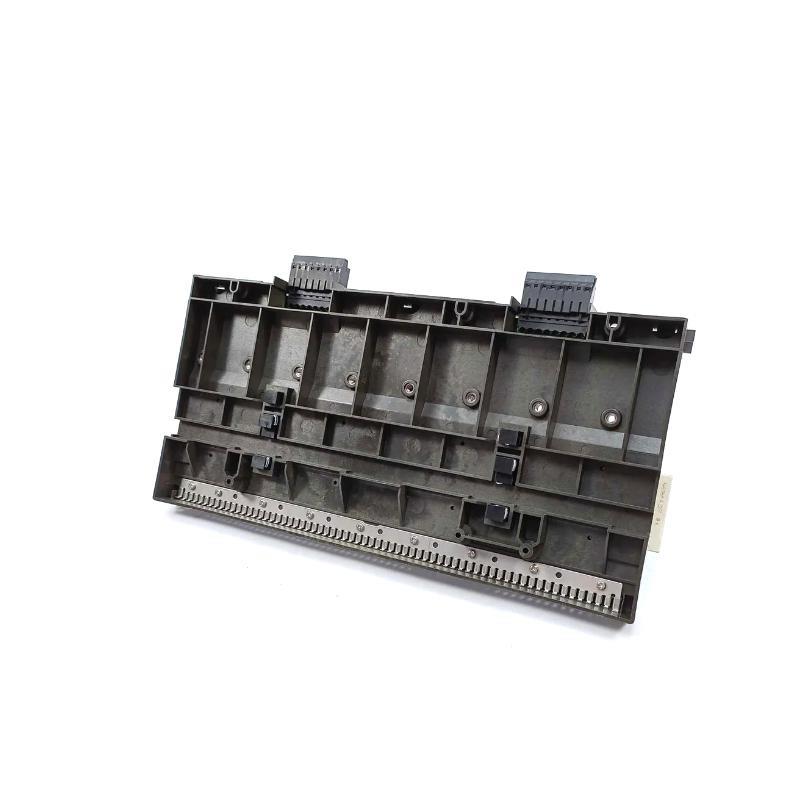

The Emerson KJ4001X1-BE1 12P0818X072 is an 8-wide I/O carrier module designed specifically for Emerson’s DeltaV™ distributed control system (DCS). This carrier provides a robust and reliable physical platform to mount up to eight I/O modules side by side, facilitating modular and scalable system architecture.
Equipped with an integrated shield, this carrier ensures superior electromagnetic interference (EMI) protection, which is critical in industrial environments where electrical noise can degrade signal integrity and system performance. The shield enhances the overall system reliability by minimizing signal disturbances and providing secure grounding pathways.
Manufactured with high-quality materials and designed for easy installation and maintenance, the KJ4001X1-BE1 carrier supports a wide range sur digital and analog I/O modules. It plays a crucial role in optimizing space, simplifying wiring, and improving overall system durability in process automation, power plants, and manufacturing industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | 8-Wide I/O Carrier with Shield |
| Modèle Number | KJ4001X1-BE1 12P0818X072 |
| Carrier Width | 8 slots |
| Compatible Modules | Emerson DeltaV I/O modules (analog, digital, specialty) |
| Shielding | Integrated EMI shield |
| Mounting | Rack-mounted or panel-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Power Consumption | Dependent on installed I/O modules |
| Dimensions (HxWxD) | 330 x 140 x 50 mm |
| Poids | 0.689 kg |
| Material | High-grade aluminum and plastic composite |
| Certifications | CE, UL, CSA |
Applications
The Emerson KJ4001X1-BE1 8-Wide I/O Carrier with Shield is used across multiple industries and system setups, including:
-
Process Control Plants: Housing multiple I/O modules for controlling valves, sensors, and actuators in chemical, petrochemical, and refining plants.
-
Power Generation Facilities: Facilitating the integration sur digital and analog signals for turbine, boiler, and auxiliary system controls.
-
Water and Wastewater Treatment: Supporting distributed I/O for remote monitoring and control sur pumps, filters, and chemical dosing systems.
-
Manufacturing Automation: Providing flexible I/O mounting solutions for assembly line and machinery control systems.
-
Food and Beverage Industry: Ensuring reliable signal interfacing for hygienic process automation.
-
Pharmaceutical Production: Supporting precise instrumentation and control through secure and shielded I/O mounting.
Advantages
-
Integrated EMI Shield: Significantly reduces electrical noise interference ensuring signal integrity.
-
Modular Design: Supports up to eight I/O modules side by side, optimizing space and installation time.
-
Durability and Reliability: Built with high-quality materials that resist industrial environmental stresses.
-
Easy Maintenance: Tool-less module installation and removal simplify system upgrades and troubleshooting.
-
Compatibility: Supports wide range sur DeltaV I/O modules for versatile application needs.
-
Compact Form Factor: Minimizes panel space while maximizing I/O density.
-
Secure Mounting: Designed for stable rack or panel mounting ensuring vibration resistance.
-
Wide Operating États: Suitable for industrial temperature and humidity ranges.
-
Certified for Safety: Meets major global safety and quality certifications, ensuring compliance.
-
Improved System Performance: Shielding and grounding reduce downtime caused by EMI-related faults.
Questions fréquentes (FAQ)
-
Q: What is the purpose sur the KJ4001X1-BE1 I/O Carrier?
A: It provides a physical platform to mount and connect up to eight Emerson DeltaV I/O modules in a secure and organized manner. -
Q: Does this carrier provide any protection against electromagnetic interference?
A: Yes, it features an integrated EMI shield to protect the installed modules from electrical noise. -
Q: What types sur modules are compatible with this carrier?
A: It supports a wide range sur Emerson DeltaV analog, digital, and specialty I/O modules. -
Q: What are the physical dimensions and weight sur the carrier?
A: The carrier measures 330 x 140 x 50 mm and weighs 0.689 kg. -
Q: Can the carrier be mounted in different orientations?
A: It is designed primarily for rack or panel mounting with stable and secure fixation. -
Q: What temperature range does the carrier operate within?
A: It operates reliably from 0°C to 60°C. -
Q: Is the carrier suitable for harsh industrial environments?
A: Yes, it is built with durable materials and includes shielding to withstand challenging conditions. -
Q: How does the shielding benefit system performance?
A: The shielding reduces EMI-induced faults and signal disturbances, improving system reliability. -
Q: Are there any certifications associated with this product?
A: The carrier holds CE, UL, and CSA certifications ensuring safety and compliance. -
Q: Can I upgrade or replace modules easily within this carrier?
A: Yes, the carrier allows tool-less installation and removal sur I/O modules for easy maintenance.
Related or Similar Modules (Same Series/Function)
| Modèle Number | Description | Type |
|---|---|---|
| KJ4001X1-BE2 | 8-Wide I/O Carrier without Shield | I/O Carrier |
| KJ4002X1-BE1 | 4-Wide I/O Carrier with Shield | I/O Carrier |
| KJ4003X1-BE1 | 16-Wide I/O Carrier with Shield | I/O Carrier |
| KJ4004X1-BE1 | 8-Wide I/O Carrier with Enhanced EMI | I/O Carrier |
| KJ4005X1-BE1 | I/O Expansion Carrier for DeltaV | Expansion Carrier |
| KJ4006X1-BE1 | I/O Carrier with Integrated Diagnostics | I/O Carrier |
