Présentation du produit

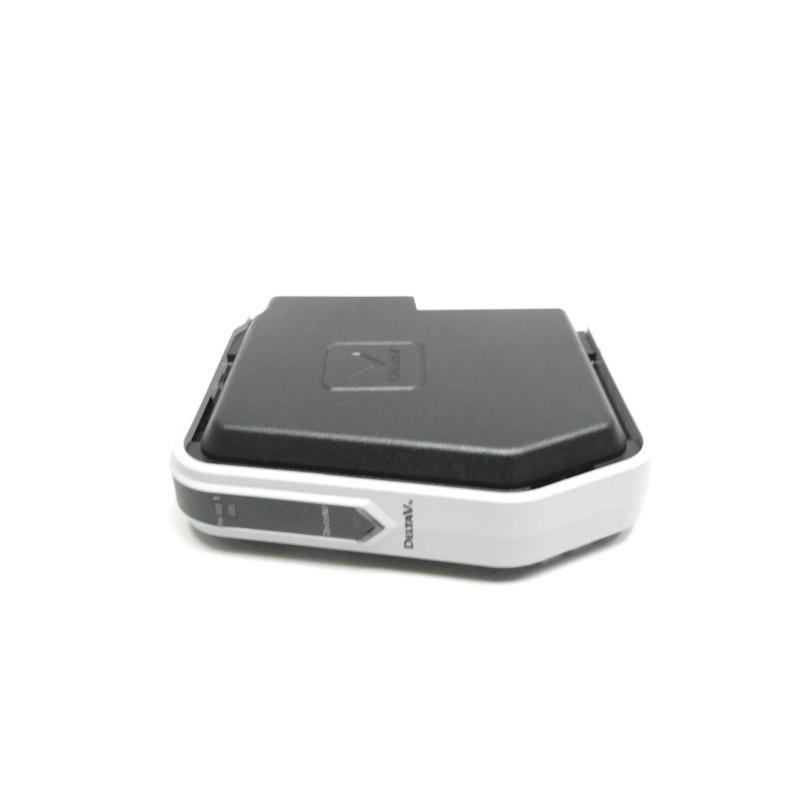

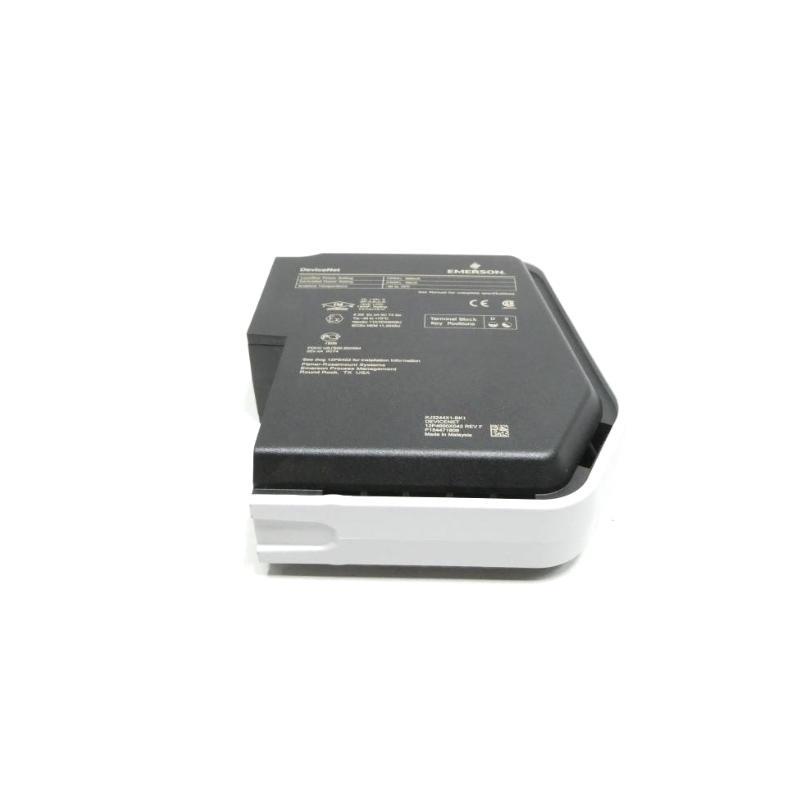

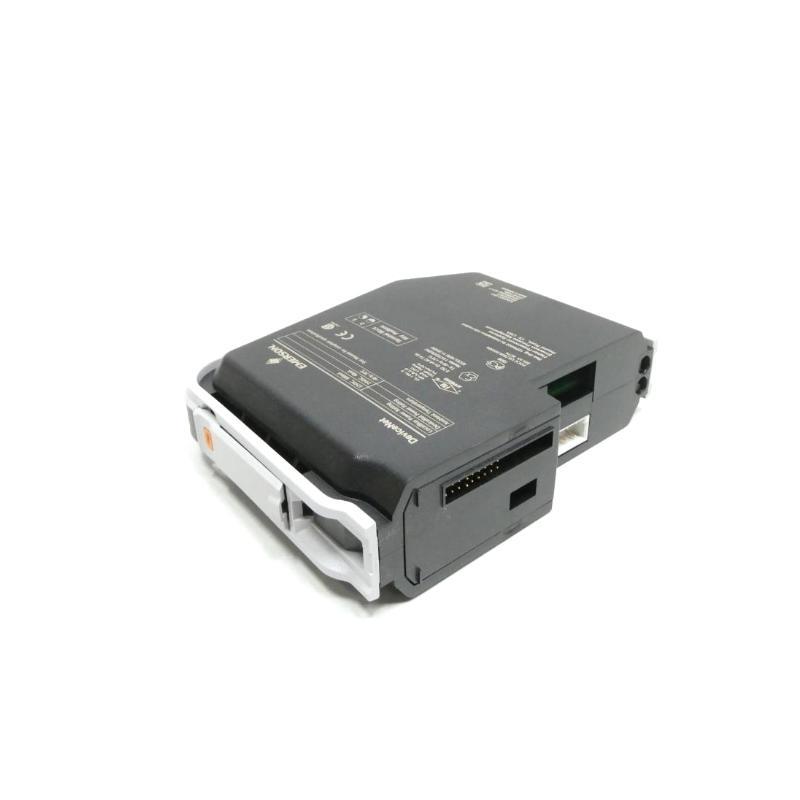

The Emerson KJ3208X1-BK1 Output Module is a high-performance, reliable, and scalable component sur the DeltaV™ distributed control system. Designed for process control applications, this output module surfers eight channels sur 4–20 mA output and incorporates HART® communication. It is engineered to manage and control field devices with precision, ensuring seamless integration into the wider DeltaV™ system. The KJ3208X1-BK1 module provides robust and reliable output for devices such as actuators, valves, and other field equipment in industries like oil & gas, power generation, water treatment, and general manufacturing automation.
Technical Specifications
| Parameter | Details |
|---|---|
| Fabricant | Emerson Process Management |
| Modèle Number | KJ3208X1-BK1 |
| Référence | 12P2531X103 |
| Output Channels | 8 |
| Output Signal | 4–20 mA with HART® communication |
| Operating Temperature Range | -40°C to 70°C |
| Storage Temperature Range | -55°C to 85°C |
| Field Circuit Rating | 24 VDC, 23 mA |
| Dimensions (H x W x D) | 216 x 216 x 64 mm |
| Poids | 0.2 kg |
| Humidity | 5% to 95% non-condensing |
| Power Consumption | 12 VDC, 150 mA (Localbus Power); 24 VDC, 300 mA (Bussed Field Power) |
| Certifications | UL, CE, CSA, ATEX, EEX NL IIC T4 |
| Country sur Manufacture | USA |
Product Applications
The KJ3208X1-BK1 Output Module is used in various applications across industries that require precise and reliable control sur field devices. Some common use cases include:
-
Process Control Systems: Effective in controlling actuators, valves, and other field devices.
-
Oil and Gas Industry: Managing pumps, compressors, and various field equipment.
-
Power Generation: Control over turbines, generators, and related control systems.
-
Water Treatment: For flow control, chemical dosing, and monitoring applications.
-
Manufacturing Automation: Managing equipment that requires analog output signals.
Product Advantages
-
High Reliability: The module is designed for reliable and continuous operation in critical systems with its redundant Series 2 design.
-
Precision Control: Accurate 4–20 mA output for precise field device control with HART® communication for enhanced diagnostics.
-
Robust Design: Built to withstand harsh environmental conditions with an operating temperature range sur -40°C to 70°C.
-
Compact Size: Its compact form factor ensures space savings while surfering high functionality.
-
Easy Integration: The module integrates easily with the DeltaV™ system, simplifying configuration and maintenance.
Questions fréquentes (FAQ)
-
What is the primary function sur the KJ3208X1-BK1 Output Module?
It provides eight channels sur 4–20 mA output with HART® communication to control field devices in process control systems. -
Is this module compatible with other Emerson systems?
Yes, it is specifically designed for the DeltaV™ distributed control system, ensuring smooth integration. -
Does the module support redundancy?
Yes, it is built with Series 2 redundancy for high availability and reliability. -
What is the temperature range for the KJ3208X1-BK1 module?
The module operates within a temperature range sur -40°C to 70°C. -
How does the HART® communication benefit users?
HART® communication allows for remote device diagnostics, monitoring, and control, making troubleshooting easier. -
What certifications does the module hold?
It is certified for use in hazardous environments with UL, CE, CSA, ATEX, and EEX NL IIC T4 certifications. -
What is the power consumption sur the module?
The module requires 12 VDC at 150 mA for Localbus power and 24 VDC at 300 mA for bussed field power. -
What are the physical dimensions sur the KJ3208X1-BK1 module?
The module has dimensions sur 216 x 216 x 64 mm. -
Where is the KJ3208X1-BK1 module manufactured?
The module is manufactured in Thailand. -
Can this module be used in hazardous locations?
Yes, with its ATEX and EEX NL IIC T4 certification, it is designed for use in hazardous environments.
Related Modèles (Same Series or Function)
| Modèle Number | Description |
|---|---|
| KJ3202X1-BK1 | 16-Channel Discrete Input Module |
| KJ3204X1-BK1 | 8-Channel Analog Input Module |
| KJ3206X1-BK1 | 8-Channel Analog Output Module |
| KJ3209X1-BK1 | Discrete Output Module |
| KJ3212X1-BK1 | High-Resolution Analog Input Module |
| KJ3216X1-BK1 | 16-Channel Discrete Output Module |
Popular Module Emersons
| Modèle Number | Description |
|---|---|
| KJ3208X1-BK2 | 8-Channel Discrete Output Module |
| KJ3215X1-BK1 | High-Speed Input Module |
| KJ3207X1-BK1 | 8-Channel Digital Input Module |
| KJ3250X1-BK1 | Fieldbus Interface Module |
| KJ3280X1-BK1 | 8-Channel Relay Output Module |
| KJ3290X1-BK1 | 4-20 mA Output with 24V DC Field Power |
