Présentation du produit

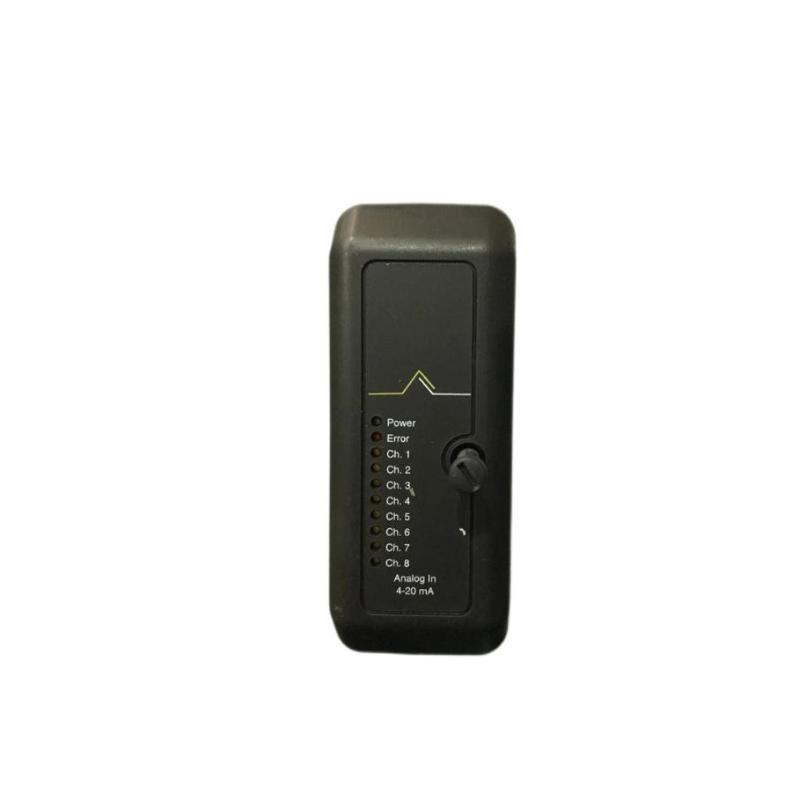

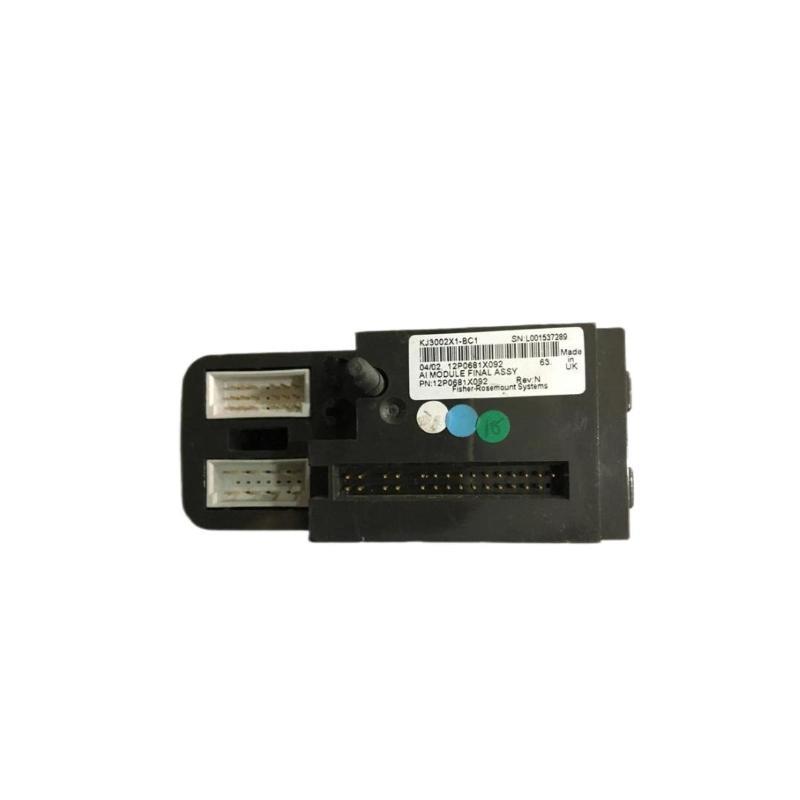

The Emerson KJ3002X1-BC1 is an 8-channel analog input module designed for integration with Emerson’s DeltaV distributed control system (DCS). It facilitates the accurate measurement sur analog signals from field instruments, supporting various input types including 4–20 mA, HART, and RTD. This module ensures reliable data acquisition for process control applications across diverse industries.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Analog Input Module |
| Modèle Number | KJ3002X1-BC1 |
| Number sur Channels | 8 |
| Input Signal Types | 4–20 mA, HART, RTD |
| Accuracy | ±0.1% sur full scale |
| Resolution | 0.01% sur full scale |
| Operating Temperature | -40°C to 80°C (-40°F to 176°F) |
| Power Consumption | 15 W |
| Mounting | DIN rail mountable |
| Dimensions (W x H x D) | 107 x 41 x 105 mm |
| Poids | 0.181 kg |
| Compatibility | Emerson DeltaV DCS |
| Certifications | CE, UL, CSA |
Product Applications
The KJ3002X1-BC1 module is suitable for various industrial applications requiring precise analog signal measurement:
-
Process Manufacturing: Monitoring variables such as temperature, pressure, and flow rate.
-
Oil and Gas: Measuring parameters like level, density, and composition in refineries and pipelines.
-
Power Generation: Tracking power output, voltage, and current in power plants.
-
Water and Wastewater Treatment: Assessing pH, conductivity, and turbidity in treatment facilities.
-
Chemical Processing: Controlling process variables in chemical plants.
-
Food and Beverage: Ensuring precise control sur process variables in production lines.
Product Advantages
-
High Accuracy and Resolution: Ensures precise measurement sur analog signals, enhancing process control.
-
Multi-Signal Support: Accommodates various input types, including 4–20 mA, HART, and RTD, providing flexibility.
-
Wide Operating Temperature Range: Operates reliably in extreme environmental conditions.
-
Compact Design: Small form factor allows for efficient use sur panel space.
-
Easy Integration: Seamlessly integrates with Emerson’s DeltaV DCS, simplifying system configuration.
-
Robust Construction: Built to withstand industrial environments, ensuring long-term reliability.
Questions fréquentes (FAQ)
-
What types sur input signals does the KJ3002X1-BC1 support?
It supports 4–20 mA, HART, and RTD input signals. -
How many channels are available on this module?
The module provides 8 analog input channels. -
Can this module be mounted on a DIN rail?
Yes, it is designed for DIN rail mounting. -
What is the operating temperature range?
The module operates between -40°C and 80°C (-40°F to 176°F). -
Is the module compatible with Emerson’s DeltaV DCS?
Yes, it is specifically designed for integration with the DeltaV system. -
What is the accuracy sur the analog inputs?
The module surfers an accuracy sur ±0.1% sur full scale. -
Does the module support HART communication?
Yes, it supports HART protocol for enhanced device communication. -
What is the power consumption sur the module?
It consumes approximately 15 W sur power. -
What are the dimensions and weight sur the module?
Dimensions are 107 x 41 x 105 mm, and it weighs 0.181 kg. -
Is the module certified for industrial use?
Yes, it carries CE, UL, and CSA certifications.
