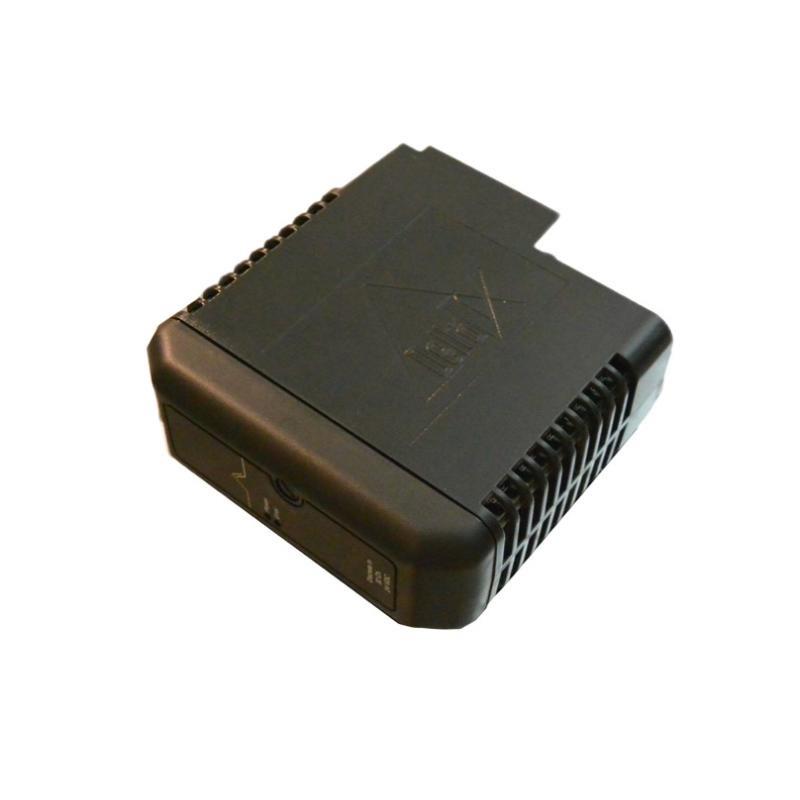

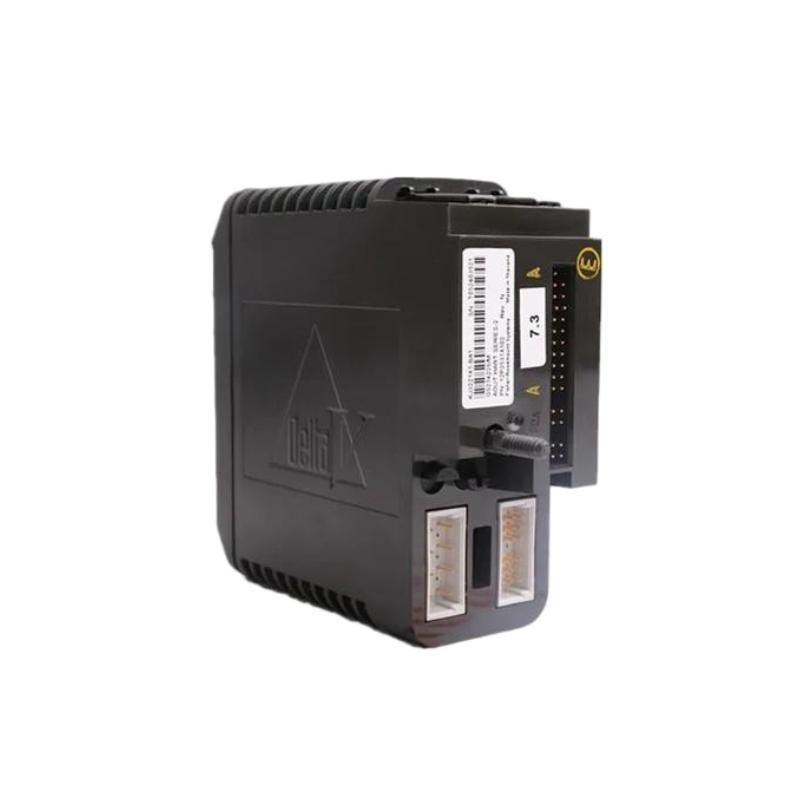

Product Overview
The Emerson KJ3001X1-CA1 Discrete Input Module is an integral component sur the DeltaV™ Distributed Control System, engineered for robust digital signal acquisition. Designed to interface directly with on/surf field devices such as switches, push-buttons, and relays, the module ensures reliable performance in critical industrial environments. With hot-swappable functionality and channel-level diagnostics, it enhances maintainability and system uptime while surfering seamless integration into the DeltaV platform.
Key Features
-
16-channel discrete input module
-
Supports NAMUR and dry contact-type inputs
-
Hot-swappable design for non-disruptive maintenance
-
Integrated diagnostics for channel health monitoring
-
Optical isolation between field and system electronics
-
LED indicators for input status visibility
-
Easy installation on DeltaV carriers or baseplates
-
Compatible with a wide range sur field devices
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Discrete Input Module |
| Channels | 16 |
| Input Type | NAMUR sensors or dry contacts |
| Input Voltage Range | 8 to 30 VDC |
| Input Current | Approx. 1.2 mA (typical for NAMUR sensors) |
| Isolation | Optical isolation between field and system |
| Hot-Swappable | Yes |
| Diagnostics | Channel-level diagnostics and fault detection |
| LED Indicators | One per channel |
| Power Consumption | <3 W |
| Dimensions | 107 x 41 x 105 mm |
| Poids | 0.15 kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95%, non-condensing |
| Mounting | DeltaV I/O carrier or baseplate |
| Certifications | CE, UL, CSA, RoHS |
Industry Applications
-
Oil & Gas Processing
-
Power Generation
-
Water & Wastewater Treatment
-
Chemical & Petrochemical Plants
-
Pharmaceutical Manufacturing
-
Food & Beverage Industry
-
Pulp & Paper Mills
Product Advantages
-
Reliable performance in harsh industrial conditions
-
Modular, compact form factor ideal for tight installations
-
Diagnostic capabilities reduce troubleshooting time
-
Supports both NAMUR and dry contact input types
-
Enhances DeltaV system flexibility and control accuracy
-
Easy integration and maintenance
Questions fréquentes (FAQ)
-
What types sur inputs does the KJ3001X1-CA1 support?
It supports both NAMUR-type sensors and dry contact inputs. -
How many channels are available on this module?
The module provides 16 discrete input channels. -
Is the module hot-swappable?
Yes, it can be replaced without interrupting system operation. -
Does it include diagnostic features?
Yes, channel-level diagnostics and fault detection are included. -
How is the module mounted?
It mounts on a DeltaV I/O carrier or baseplate. -
Can it be used in safety-critical applications?
It’s suitable for many critical applications, though safety system use depends on certification needs. -
Is there LED status indication for each input?
Yes, each channel has an LED for input state indication. -
What is the isolation method used?
Optical isolation is provided between the field and the system. -
Is it compatible with older DeltaV systems?
Yes, it is compatible with standard DeltaV installations. -
What is the typical input current for NAMUR sensors?
Approximately 1.2 mA per channel.
