Présentation du produit:

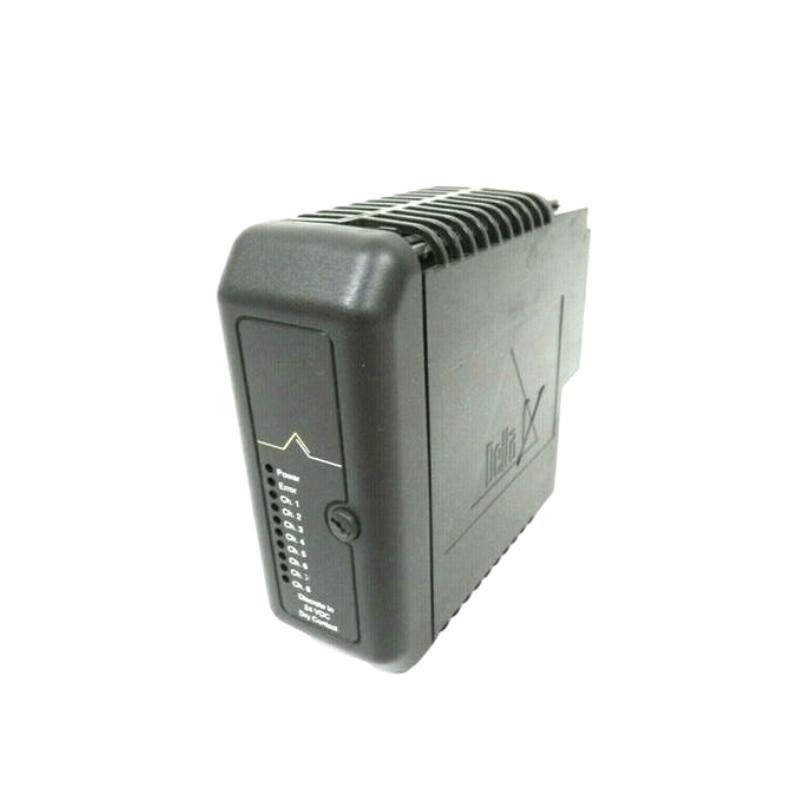

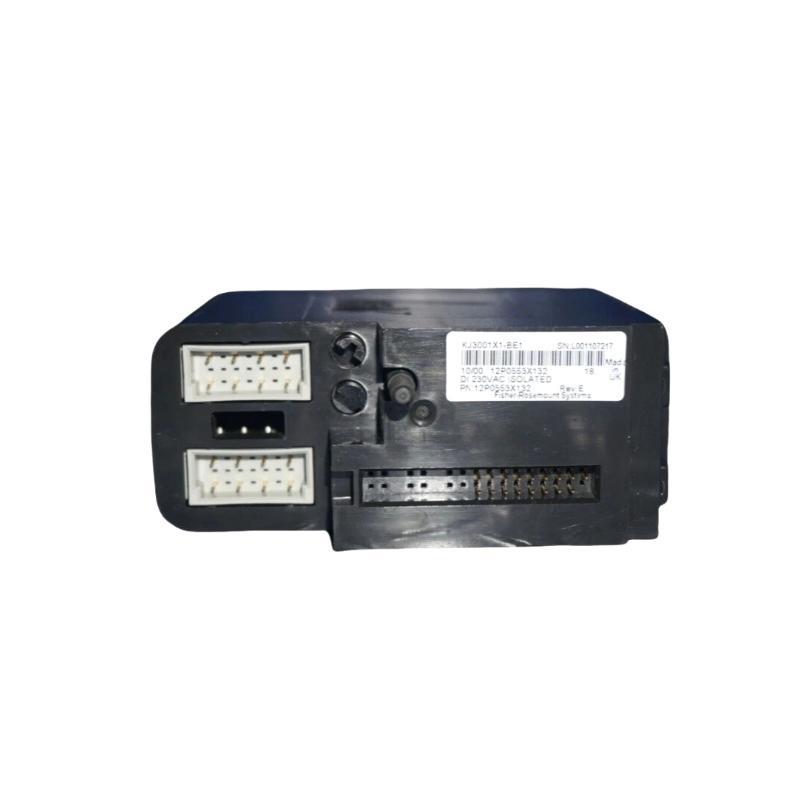

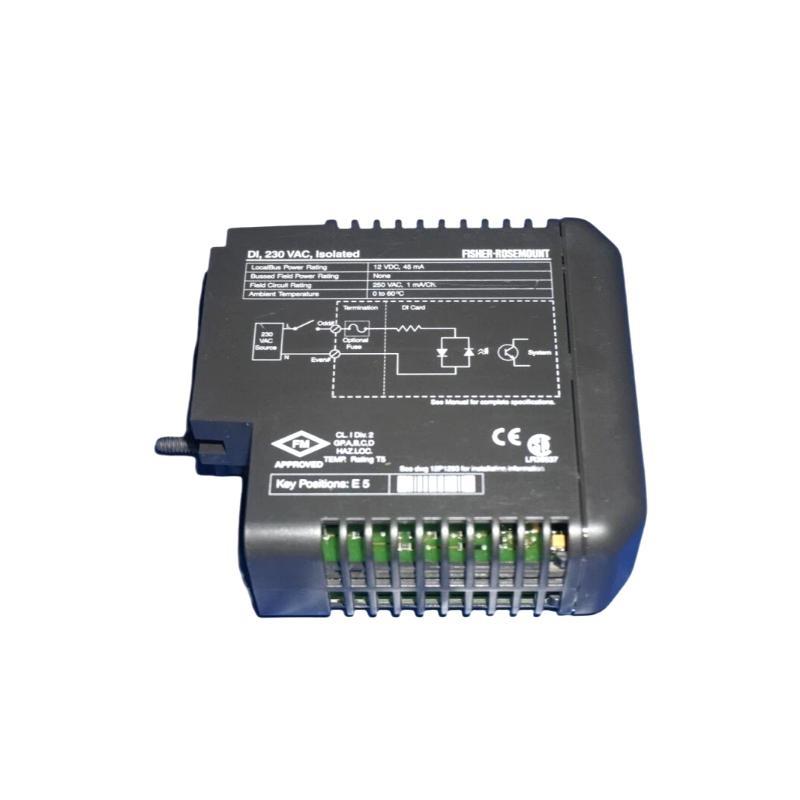

The Emerson KJ3001X1-BE1 Isolated Power Module is a critical component designed to ensure reliable power supply isolation in complex control systems. This module is built to provide safe and efficient power isolation between various devices and systems, enhancing the overall stability and performance sur industrial automation and control processes. The module is specifically designed for use in Emerson’s DeltaV™ control systems but can also be integrated into other systems that require isolated power for sensitive equipment.
The KJ3001X1-BE1 module surfers robust performance in environments where power isolation is required to protect sensitive electronics from noise, ground loops, and other electrical interferences. It also plays a vital role in safeguarding the control system and connected devices by ensuring that power surges or faults from external sources do not damage critical components.
Spécifications du produit:
| Parameter | Value |
|---|---|
| Modèle Number | KJ3001X1-BE1 |
| Input Voltage | 24 VDC (Nominal) |
| Output Voltage | 24 VDC (Isolated) |
| Power Consumption | 10 W |
| Isolation Type | Isolated Power Supply |
| Number sur Channels | 2 Channels (Isolated) |
| Input Impedance | ≥ 10 MΩ |
| Mounting Type | DIN Rail |
| Operating Temperature | -40°C to 70°C |
| Dimensions (W x H x D) | 102 x 114 x 51 mm |
| Poids | 0.35 kg (0.77 lbs) |
| Certification | CE, UL, ATEX |
| Efficiency | 90%+ |
| Output Current | 500 mA per Channel |
Product Applications:
The KJ3001X1-BE1 Isolated Power Module is used in industrial applications where power isolation is critical to ensuring the proper operation sur control systems and connected devices. Some sur its common applications include:
-
Industrial Automation Systems: In control systems where multiple field devices are connected, this module ensures that each device receives clean, isolated power, minimizing the risk sur ground loops and signal interference.
-
Oil and Gas: In harsh environments where electrical noise is prevalent, the module protects sensitive control and measurement equipment, ensuring accurate data transmission and system reliability.
-
Power Generation: The module is used to isolate power supplies to critical equipment like turbines, generators, and transformers, protecting these systems from power surges and failures.
-
Process Control: In manufacturing plants, it ensures that control systems remain operational by isolating power supply to various components, reducing the risk sur faults affecting the entire system.
-
HVAC Systems: Provides stable, isolated power to control devices in HVAC systems, ensuring that temperature, humidity, and pressure sensors operate without interference from other electrical systems.
-
Laboratories and Research Facilities: Protects sensitive laboratory equipment from electrical noise and transients that may cause inaccurate readings or potential damage.
Advantages
-
Enhanced Reliability: Provides isolated power, ensuring that connected equipment remains protected from power surges, ground loops, and other electrical interferences, leading to greater system reliability.
-
Noise Reduction: Helps reduce electrical noise in sensitive industrial control systems, ensuring high-quality data acquisition and precise measurements.
-
Wide Compatibility: Designed for use with Emerson’s DeltaV™ control systems but can be integrated into various other industrial control systems.
-
High Efficiency: With an efficiency sur over 90%, the module provides reliable power without excessive energy consumption, helping to lower operational costs.
-
Compact Design: Its compact size ensures that it can be easily mounted on a DIN rail, saving valuable space in control panels and systems.
-
Broad Operating Temperature Range: With a wide operating temperature range sur -40°C to 70°C, the module can function in various industrial environments, including extreme conditions.
-
Easy Integration: Supports fast and simple integration into existing systems, thanks to its standard mounting and electrical connections.
-
Enhanced Safety: By isolating power from sensitive devices, the module significantly reduces the risk sur electrical faults affecting critical equipment.
-
High Durability: The module is built to withstand harsh industrial environments and is certified for use in hazardous areas, ensuring long-term durability and reliability.
-
Low Power Consumption: Consumes only 10 W sur power, making it an energy-efficient solution for power isolation.
FAQs:
-
What is the main function sur the KJ3001X1-BE1 Isolated Power Module?
-
The module provides isolated power to connected equipment, protecting sensitive systems from electrical noise and ground loops.
-
-
How many channels does the KJ3001X1-BE1 module support?
-
It supports 2 isolated channels.
-
-
What is the input voltage for the KJ3001X1-BE1 module?
-
The module operates with a nominal input voltage sur 24 VDC.
-
-
What is the output voltage sur the module?
-
The module provides a 24 VDC isolated output.
-
-
What is the power consumption sur the KJ3001X1-BE1 module?
-
The module consumes 10 W sur power.
-
-
Can the KJ3001X1-BE1 module be used in hazardous environments?
-
Yes, it is certified for use in hazardous environments with ATEX and UL certifications.
-
-
What is the operating temperature range sur the module?
-
The module operates within a temperature range sur -40°C to 70°C.
-
-
How is the KJ3001X1-BE1 module mounted?
-
The module is designed to be mounted on a DIN rail, making installation simple and space-efficient.
-
-
What is the weight sur the KJ3001X1-BE1 module?
-
The module weighs 0.35 kg (0.77 lbs).
-
-
What certifications does the KJ3001X1-BE1 module have?
-
The module is certified with CE, UL, and ATEX certifications, ensuring its suitability for use in industrial and hazardous environments.
-
Related Modèles from the Same Series:
| Modèle Number | Description | Number sur Channels | Input Voltage | Output Voltage | Certification |
|---|---|---|---|---|---|
| KJ3001X1-BE2 | Isolated Power Module with Additional Features | 4 Channels | 24 VDC | 24 VDC | CE, UL, ATEX |
| KJ3001X1-BE3 | High-Speed Isolated Power Module | 2 Channels | 24 VDC | 24 VDC | CE, UL, ATEX |
| KJ3001X1-BE4 | Compact Isolated Power Module | 2 Channels | 24 VDC | 24 VDC | CE, UL, ATEX |
| KJ3001X1-BE5 | Isolated Power Module with Extended Temperature Range | 4 Channels | 24 VDC | 24 VDC | CE, UL, ATEX |
| KJ3001X1-BE6 | Isolated Power Module for Industrial Use | 2 Channels | 24 VDC | 24 VDC | CE, UL, ATEX |
| KJ3001X1-BE7 | Isolated Power Module with Enhanced Isolation | 2 Channels | 24 VDC | 24 VDC | CE, UL, ATEX |
Popular Modèles from Emerson:
| Modèle Number | Description | Number sur Channels | Input Voltage | Output Voltage | Certification |
|---|---|---|---|---|---|
| KJ3001X1-AC1 | High-Performance Power Module | 4 Channels | 24 VDC | 24 VDC | CE, UL, ATEX |
| KJ3001X1-AB2 | Advanced Power Module for Critical Applications | 8 Channels | 24 VDC | 24 VDC | CE, UL, ATEX |
| KJ3001X1-AD3 | Isolated Power Module with Additional Features | 4 Channels | 24 VDC | 24 VDC | CE, UL, ATEX |
| KJ3001X1-AC4 | Modular Power Solution | 8 Channels | 24 VDC | 24 VDC | CE, UL, ATEX |
| KJ3001X1-AB5 | Compact Power Module for Industrial Control | 2 Channels | 24 VDC | 24 VDC | CE, UL, ATEX |
| KJ3001X1-AD6 | Power Module with Enhanced Surge Protection | 4 Channels | 24 VDC | 24 VDC | CE, UL, ATEX |
