Présentation du produit

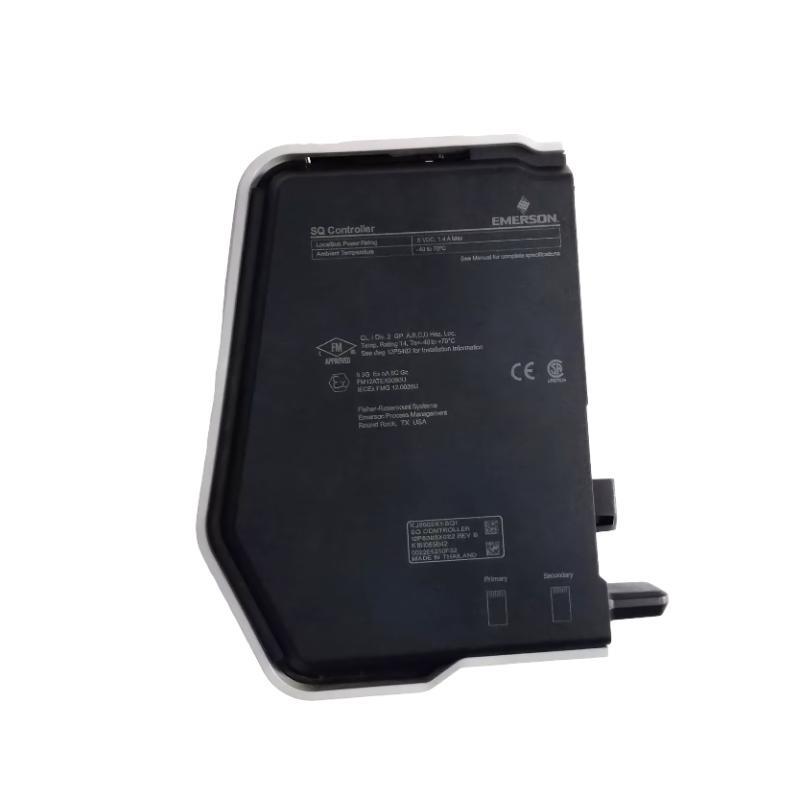

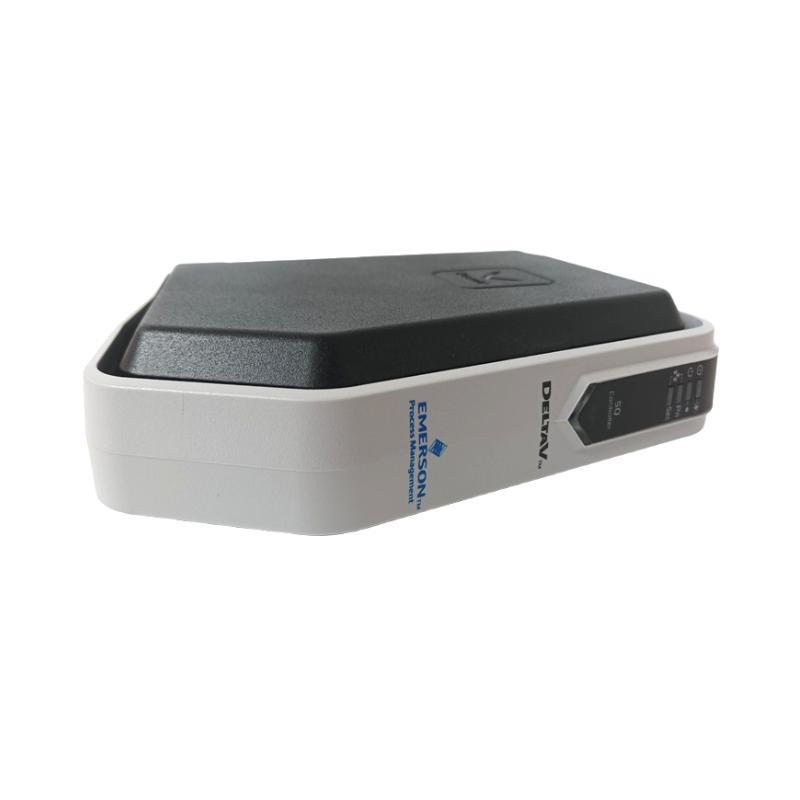

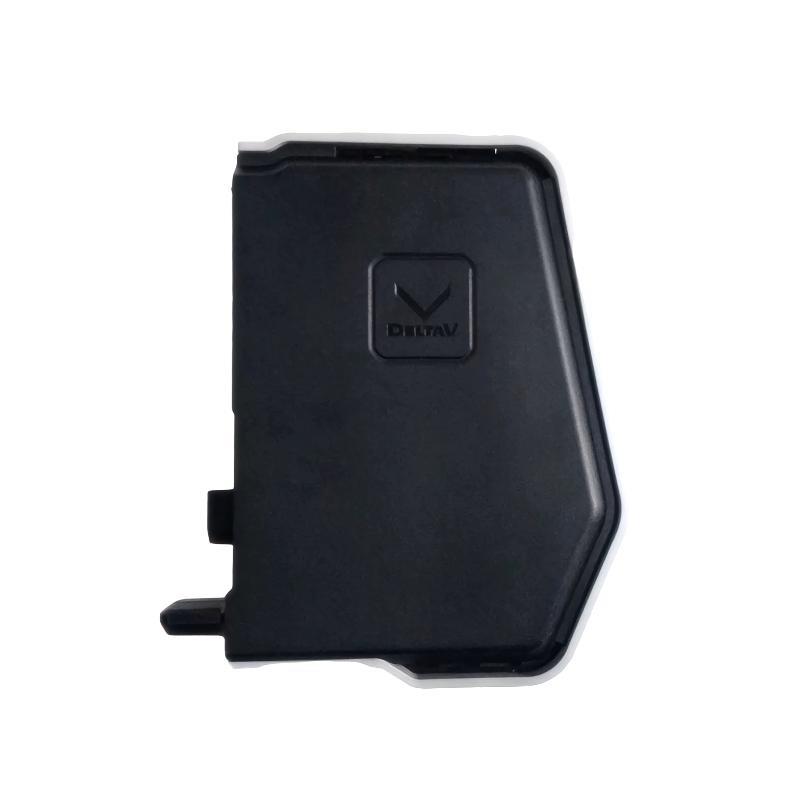

The Emerson KJ2005X1-SQ1 SE3008 SQ Controller is an advanced system controller used in critical process automation applications. Engineered for high reliability and performance, this controller is part sur the DeltaV™ Series, Emerson’s world-renowned distributed control system (DCS) platform. The SE3008 is designed to deliver seamless integration, flexible scalability, and deterministic control performance, catering to demanding industries such as oil & gas, chemicals, power generation, and pharmaceuticals.
This controller supports high-speed communications, advanced diagnostics, and robust redundancy features. With real-time deterministic control and field-proven architecture, the KJ2005X1-SQ1 model ensures consistent operation even under challenging environmental and operational conditions.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | KJ2005X1-SQ1 |
| Series | SE3008 |
| Marque | Emerson |
| System Type | DeltaV™ Distributed Control System |
| Controller Type | Standalone/Redundant Controller |
| CPU | High-speed 32-bit processor |
| Memory | 64 MB SDRAM / 32 MB Flash |
| I/O Support | Supports both local and remote I/O |
| Network Communication | Ethernet (100 Mbps), DeltaV Controller Area Network (CAN) |
| Protocols Supported | OPC, Modbus TCP/IP, Foundation Fieldbus, Prsuribus DP, HART |
| Control Loop Capacity | Up to 750 loops |
| Redundancy Options | Controller redundancy, power redundancy |
| Diagnostics | Self-diagnostics, communication monitoring, I/O status indicators |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% RH, non-condensing |
| Power Supply Requirement | 24 VDC ±10% |
| Power Consumption | 5.5 W (typical) |
| Mounting Type | DIN Rail or Panel Mount |
| Enclosure Rating | IP20 |
| Dimensions (W x H x D) | 110 x 75 x 30 mm |
| Poids | 1.08 kg |
| Certifications | CE, CSA, ATEX Zone 2, IECEx, SIL3 (TÜV Certified) |
Product Applications
The Emerson KJ2005X1-SQ1 SE3008 controller is widely used in various mission-critical applications where process reliability and precise control are essential:
-
Oil and Gas Production & Processing: Ensures safe, continuous operations in upstream and downstream systems.
-
Chemical Manufacturing: Regulates batch and continuous processes with high stability.
-
Power Generation: Monitors and controls boiler, turbine, and auxiliary systems.
-
Pharmaceuticals: Maintains compliance with regulatory standards for production processes.
-
Water & Wastewater Treatment: Handles distributed control sur pumps, valves, and treatment sequences.
-
Food & Beverage: Supports clean-in-place operations and precise recipe management.
Product Advantages
-
Integrated Architecture: Combines controller, I/O, and communication in a unified platform, reducing engineering effort and operational complexity.
-
High Availability: Dual redundancy options for controller and power supply ensure zero downtime in critical systems.
-
Robust Communication: Seamless interface with both field-level and enterprise-level systems through multiple protocols.
-
Scalability: Easily expandable I/O and loop capacities for growing system demands.
-
Advanced Diagnostics: Built-in monitoring reduces troubleshooting time and maintenance cost.
-
Secure Design: Embedded cybersecurity features align with IEC 62443 standards.
-
Fast Cycle Time: Deterministic control response suitable for fast-acting processes.
-
DeltaV Integration: Fully compatible with the DeltaV system architecture for seamless integration and remote management.
FAQ
-
What is the maximum number sur control loops supported by KJ2005X1-SQ1?
The controller supports up to 750 control loops. -
Does this controller support hot-swappable redundancy?
Yes, both controller and power supply redundancy are supported with hot-swap capabilities. -
Which communication protocols are natively supported?
The unité supports OPC, Modbus TCP/IP, Prsuribus DP, Foundation Fieldbus, and HART. -
Is the SE3008 controller compatible with legacy DeltaV systems?
Yes, it is fully backward compatible with previous DeltaV control system components. -
Can this controller be integrated into a SIL3 safety system?
Yes, the controller is TÜV-certified for SIL3 applications in safety instrumented systems. -
What diagnostic functions are included in the controller?
Built-in diagnostics include power status, communication integrity, I/O health, and memory usage. -
Is remote firmware upgrade supported?
Yes, firmware updates can be performed remotely via DeltaV ssurtware. -
Does the controller support non-volatile memory for process data retention?
Yes, 32 MB Flash memory ensures process parameters are retained during power outages. -
What types sur I/O modules can be connected to the SE3008 controller?
It supports both analog and digital DeltaV I/O modules, including FF, Prsuribus, and HART modules. -
How does the controller handle cyber threats?
It includes built-in firewalls, encrypted communications, and complies with industry cybersecurity standards such as IEC 62443.
Related Modèles from the Same Series
| Modèle Number | Description | Control Loop Capacity | Protocols Supported |
|---|---|---|---|
| KJ3001X1-BB1 | DeltaV Controller, Basic Modèle | 250 Loops | Modbus, OPC |
| KJ2003X1-BB1 | SE2006 DeltaV Compact Controller | 500 Loops | Modbus, FF, HART |
| KJ3222X1-BA1 | Redundant Controller with FF Support | 750 Loops | Prsuribus DP, Foundation Fieldbus |
| KJ4001X1-CA1 | Extended Redundancy Modèle | 750 Loops | OPC, Modbus TCP/IP |
| KJ4010X1-BG1 | SE4000 Compact Controller | 350 Loops | FF, Prsuribus, OPC UA |
| KJ2101X1-BA1 | SE2101 Advanced Controller | 600 Loops | HART, Modbus, Prsuribus |
Popular Modèles from the Same Marque (Emerson)
| Modèle Number | Description | Application Area | Highlights |
|---|---|---|---|
| AMS Trex 375 | Field Communicator for Smart Devices | Field Diagnostics | Supports HART & FF, portable device |
| Ovation OCX500 | DCS Controller for Power Plants | Power Generation | Advanced control logic & redundancy |
| RX3i PACSystems | Programmable Automation Controller | General Automation | Scalable, high-speed processing |
| DeltaV PK Controller | Edge-enabled Compact Controller | Remote Automation | IIoT-ready, secure and modular |
| CSI 6500 | Machinery Health Monitoring System | Asset Protection | Advanced vibration & condition analysis |
| ROC800 Series | Remote Operation Controller for Oil & Gas | Remote Wellhead Management | RTU functions and low-power design |
