Product Overview

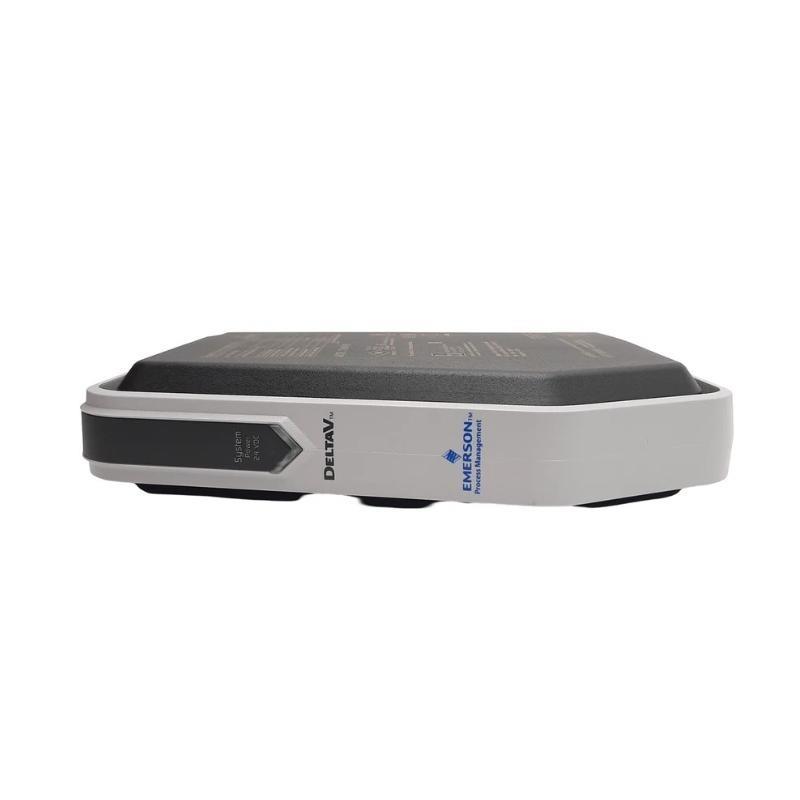

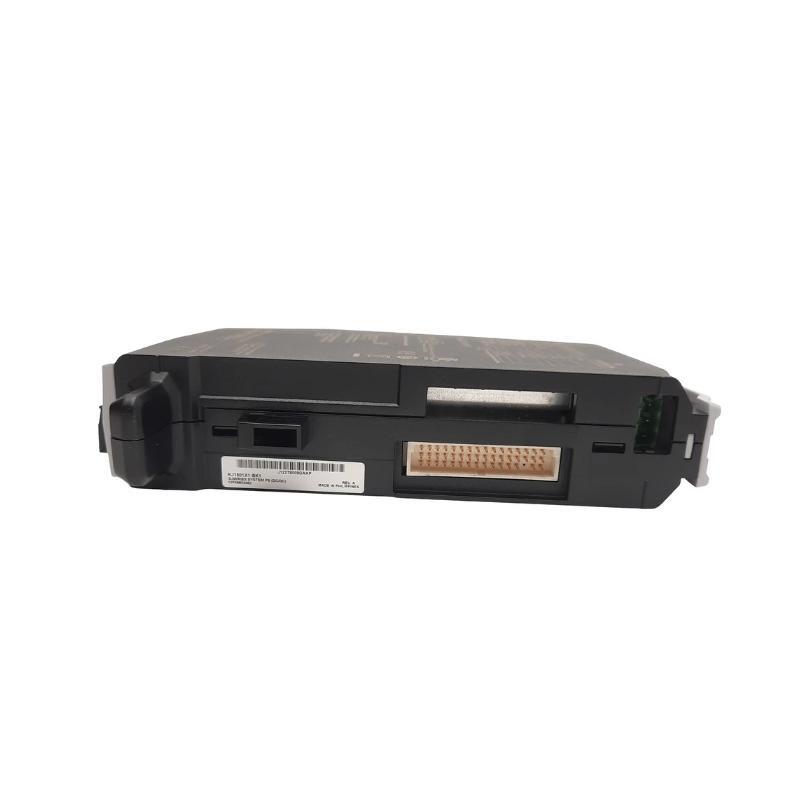

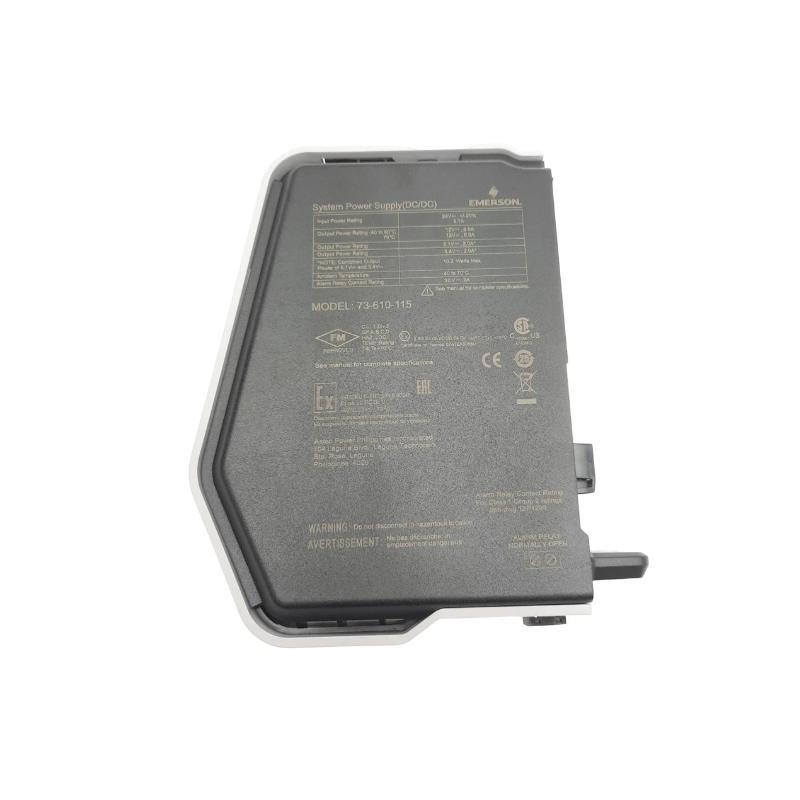

The Emerson KJ1501X1-BK1 Power Module is a high-performance, reliable power supply module designed for use in the Emerson DeltaV™ distributed control system (DCS). It delivers stable and efficient power to system components such as I/O cards, controllers, and communication modules within the DeltaV architecture. Known for its high reliability, compact design, and robust construction, the KJ1501X1-BK1 ensures minimal system downtime and is suitable for mission-critical industrial automation applications.
This module is hot-swappable and includes LED indicators for status diagnostics, allowing for convenient maintenance without disrupting system operation.
Key Features
-
Designed specifically for Emerson DeltaV™ systems
-
Hot-swappable for uninterrupted system operation
-
LED status indicators for power and health diagnostics
-
Provides stable DC output power to DeltaV backplane components
-
Built with over-voltage and short-circuit protection
-
Compact and rugged design suitable for industrial environments
-
Supports redundant power configurations for enhanced system availability
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Power Supply Module |
| Modèle Number | KJ1501X1-BK1 |
| Input Voltage Range | 24 VDC nominal (19–30 VDC operating range) |
| Output Voltage | 24 VDC regulated |
| Output Power | Up to 100 W |
| Current Capacity | 4.2 A max at 24 VDC |
| Redundancy Support | Yes, supports redundant configuration |
| Cooling Method | Natural convection |
| Mounting Type | DIN rail or system chassis |
| Indicators | LED for power and fault status |
| Hot-Swappable | Yes |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Compliance | CE, UL, CSA, ATEX, RoHS |
| Dimensions | 125 x 105 x 40 mm |
| Poids | 1.08 kg |
Industry Applications
-
Chemical Processing Plants
-
Oil & Gas Production Facilities
-
Power Generation Systems
-
Pharmaceutical Manufacturing
-
Water & Wastewater Treatment Plants
-
Food & Beverage Automation Lines
-
Pulp & Paper Mills
Advantages
-
Improved system reliability with redundancy and diagnostic features
-
Seamless integration into DeltaV systems for efficient power distribution
-
Quick replacement with hot-swappable capability reduces downtime
-
Energy-efficient design reduces overall system power consumption
-
Industrial-grade durability ensures long-term performance in harsh environments
-
Compact form factor allows for space-efficient installation
Questions fréquentes (FAQ)
-
Is the KJ1501X1-BK1 compatible with all DeltaV systems?
Yes, it is fully compatible with standard DeltaV system chassis and power distribution configurations. -
Can this module be installed while the system is running?
Yes, it is hot-swappable, allowing for replacement without shutting down the system. -
What type sur input voltage does the KJ1501X1-BK1 accept?
It operates with a nominal input voltage sur 24 VDC (range 19–30 VDC). -
Does the module support redundancy?
Yes, it can be used in redundant configurations to ensure continuous operation. -
Are there built-in protection features?
Yes, it includes over-voltage, over-current, and short-circuit protection. -
How do I know the status sur the module?
LED indicators on the front panel display power and fault statuses. -
What is the typical operating temperature range?
The module operates reliably between -40°C and +70°C. -
Can the module be mounted on a DIN rail?
Yes, it supports both DIN rail and chassis mounting. -
Is the KJ1501X1-BK1 RoHS compliant?
Yes, it is compliant with RoHS and other international standards. -
How much power does the module supply?
It can deliver up to 100 W, with a maximum output current sur 4.2 A.
