Présentation du produit

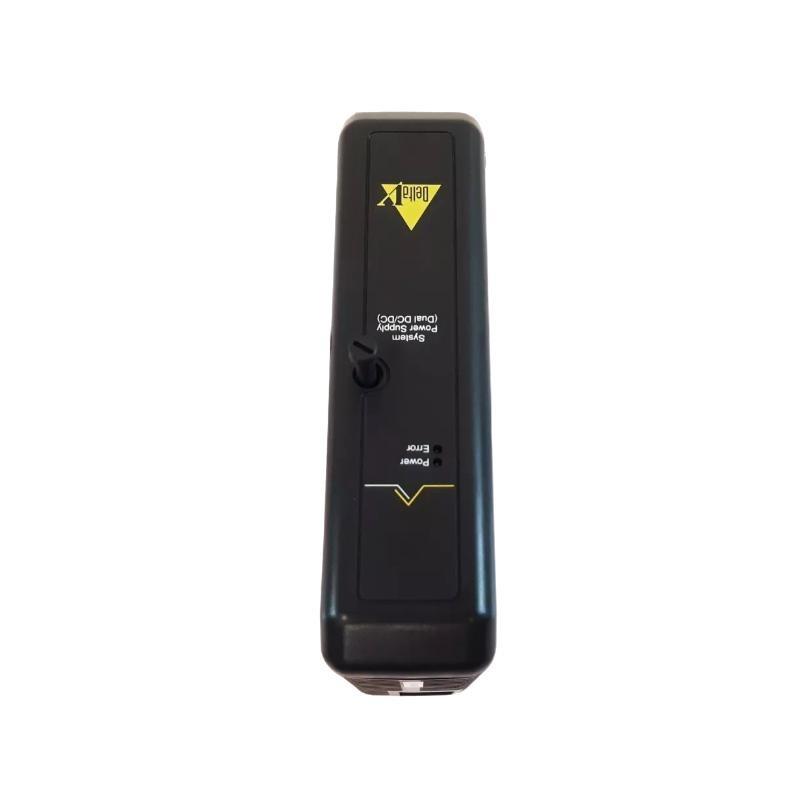

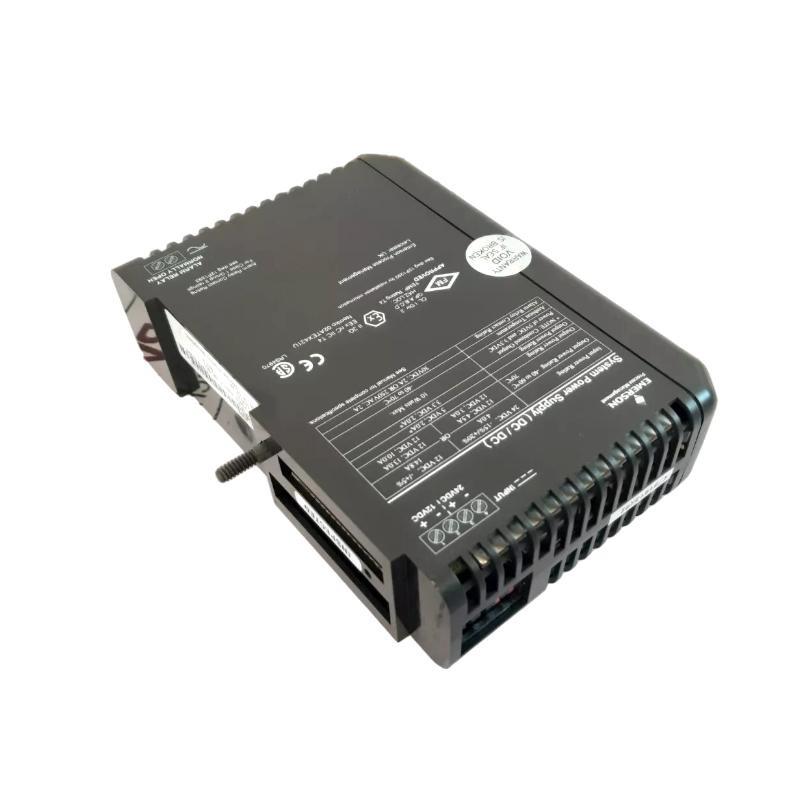

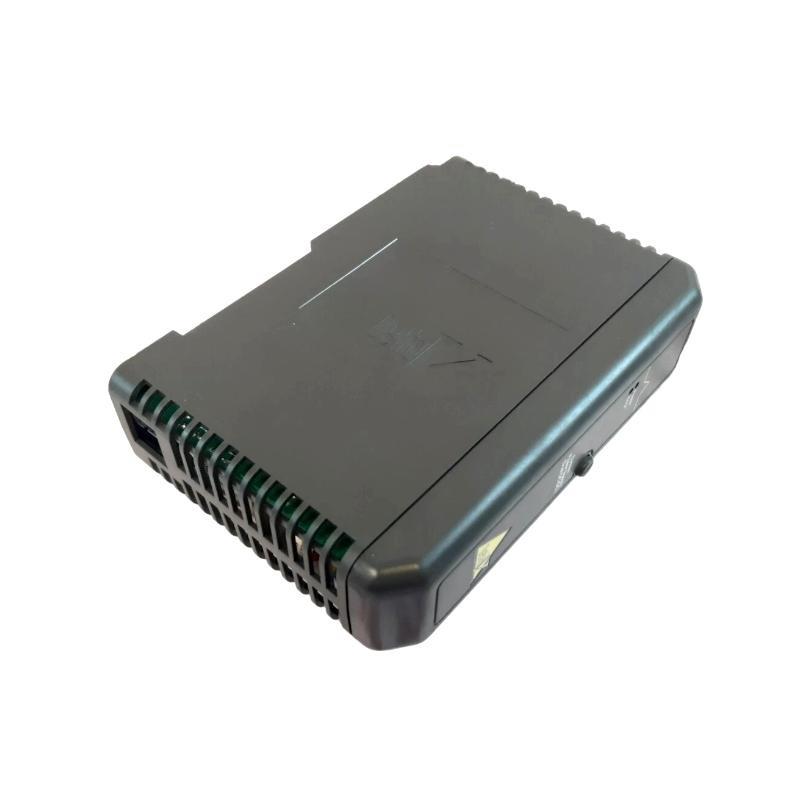

The Emerson KJ1501X1-BC2 12P2186X042 System DC Power Supply is a high-performance power module designed to provide stable DC voltage for Emerson DeltaV control systems. Engineered to deliver reliable power to controllers, I/O cards, and communication modules, it plays a critical role in maintaining continuous operation sur process automation systems.
The KJ1501X1-BC2 surfers industrial-grade power conversion with advanced protection features, ensuring uninterrupted operation even under challenging conditions such as power fluctuations, high load demands, and industrial electrical noise. Its modular and redundant-ready design makes it a core component sur Emerson’s DeltaV architecture, ensuring maximum uptime and operational safety in critical industries.
Spécifications du produit
| Parameter | Description |
|---|---|
| Modèle Number | KJ1501X1-BC2 |
| Référence | 12P2186X042 |
| Fabricant | Emerson |
| Series | DeltaV Control System |
| Function | System DC Power Supply |
| Input Voltage Range | 85 to 264V AC |
| Output Voltage | 24V DC nominal |
| Output Current | Up to 10A |
| Ripple and Noise | < 50mV RMS |
| Efficiency | > 90% typical |
| Redundancy Support | Yes, supports redundant power configurations |
| Protection Features | Overvoltage, overload, short-circuit, thermal protection |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | Rack/Panel mounted |
| Compliance | CE, UL, RoHS |
| Dimensions (H×W×D) | 145 × 120 × 60 mm |
| Poids | 0.68 kg |
Product Applications
-
DeltaV Control Systems: Provides regulated DC power for controllers, I/O modules, and network hardware.
-
Process Automation Plants: Ensures continuous power delivery to maintain critical process operations.
-
Oil & Gas Industry: Used in surfshore and onshore platforms where reliable power supply is essential.
-
Power Generation Unités: Supplies stable voltage to turbine and generator control systems.
-
Chemical and Petrochemical Plants: Powers distributed control systems in hazardous industrial environments.
-
Industrial Manufacturing: Supports high-availability control architectures with redundant power options.
Product Advantages
-
High Power Stability: Provides clean, regulated DC voltage for sensitive control equipment.
-
Redundant Operation: Supports dual power supply configurations for maximum uptime.
-
Industrial-Grade Design: Built to withstand harsh electrical environments and fluctuating power conditions.
-
Advanced Protection: Integrated overvoltage, overload, and short-circuit protection for system safety.
-
Efficient Conversion: High power efficiency reduces heat generation and energy consumption.
-
Seamless Integration: Designed specifically for Emerson DeltaV control platforms, ensuring easy deployment.
FAQ
-
What is the primary function sur the KJ1501X1-BC2 power supply?
It provides stable DC voltage to DeltaV controllers, I/O cards, and communication modules. -
What is the nominal DC output voltage sur the KJ1501X1-BC2?
The output voltage is 24V DC with low ripple for clean power delivery. -
Does the KJ1501X1-BC2 support redundant power supply configurations?
Yes, it can operate in parallel with another power module for redundancy. -
What type sur protection features are built into the KJ1501X1-BC2?
It includes overvoltage, overload, short-circuit, and thermal protection circuits. -
Is the KJ1501X1-BC2 compatible with all DeltaV systems?
Yes, it is fully compatible with standard DeltaV controllers and I/O subsystems. -
What is the maximum output current supported by the KJ1501X1-BC2?
It can supply up to 10A sur regulated DC current. -
Does the KJ1501X1-BC2 provide electrical isolation between input and output?
Yes, it provides galvanic isolation to protect control circuits from AC mains disturbances. -
How does the KJ1501X1-BC2 handle power fluctuations?
It uses industrial-grade filtering and regulation circuits to maintain stable output under varying input conditions. -
Can the KJ1501X1-BC2 be hot-swapped during system operation?
No, the system must be powered down before replacing the power module. -
What is the efficiency rating sur the KJ1501X1-BC2?
It typically achieves over 90% efficiency, minimizing energy losses and heat generation.
Related Modèles (Same Series)
| Modèle Number | Description |
|---|---|
| KJ1501X1-BB1 | System DC Power Supply, alternate specification |
| KJ1501X1-BA1 | Standard System Power Module for DeltaV |
| KJ1502X1-BB1 | High-Current System DC Power Supply |
| KJ2003X1-BB1 | DeltaV Power Supply for Controller Modules |
| KJ1502X1-BC2 | Redundant-Capable System Power Supply |
| VE4006P2 | DeltaV CHARMS Power Supply Module |
Popular Emerson Modèles (Same Marque)
| Modèle Number | Description |
|---|---|
| KJ3006X1-BA1 | Multifunction I/O Card for DeltaV systems |
| KJ4001X1-CA1 | DeltaV Controller Module |
| KJ3008X1-BB1 | Analog Output I/O Card |
| VE3007P2 | DeltaV Processor Module |
| VE4003S2B1 | DeltaV CHARMS Analog Input Module |
| KJ2101X1-BB1 | Communication Interface Module |
