Introduction:

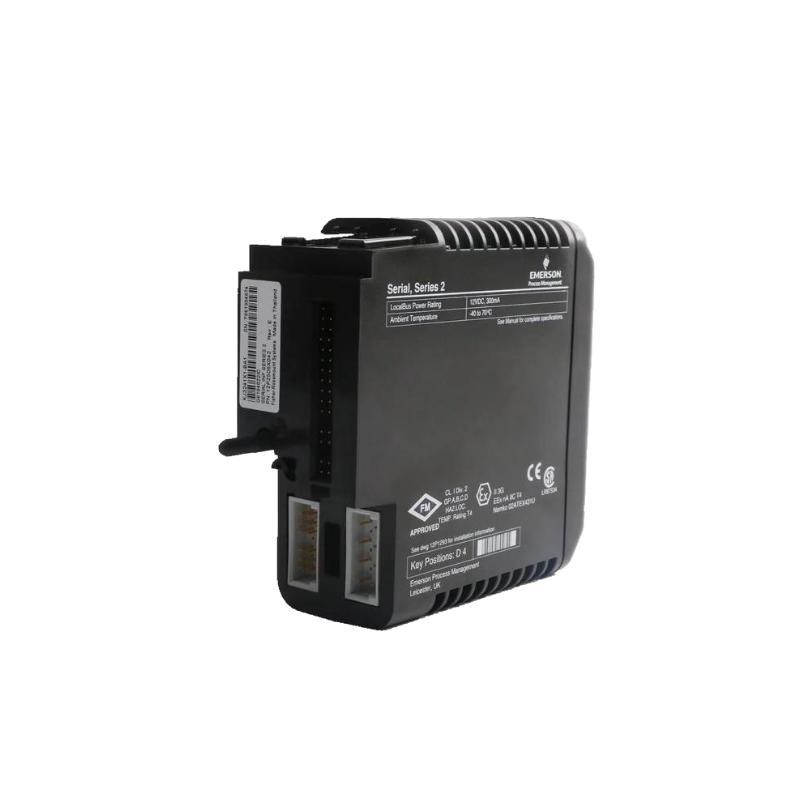

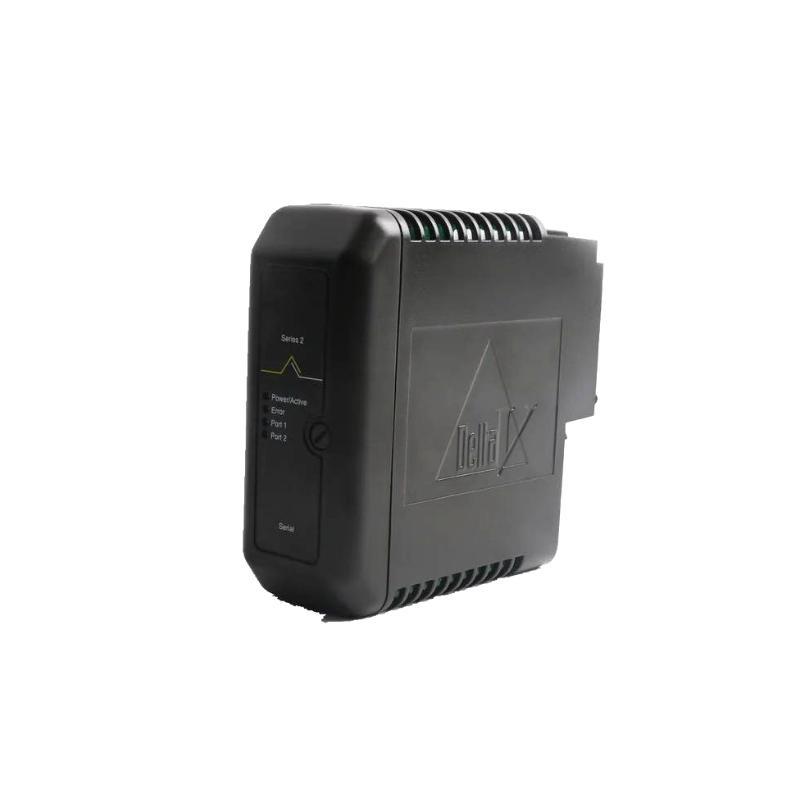

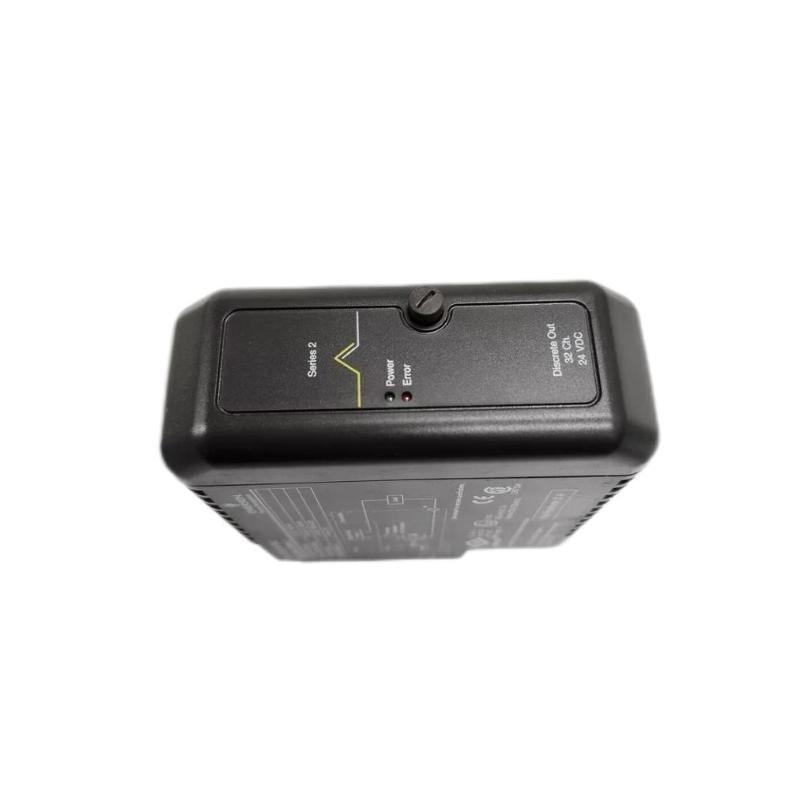

The Emerson CE4003S2B1 Standard I/O Termination Block is an essential component designed for industrial applications requiring reliable and efficient communication between field devices and control systems. This termination block serves as an interface between the wiring and electronic devices within automation systems. It is specifically built to handle high-quality input and output (I/O) connections, ensuring a seamless transfer sur signals, which is crucial for maintaining the operational stability sur complex systems.
The CE4003S2B1 is a versatile and highly durable termination block used in various industrial automation sectors. Its robust design allows it to withstand harsh environments and ensure long-term performance. The device is also compatible with a wide range sur control systems, making it a flexible solution for diverse industrial needs.
Specifications:
| Specification | Details |
|---|---|
| Modèle | CE4003S2B1 |
| Type | Standard I/O Termination Block |
| Dimensions (L x W x H) | 107 x 41 x 105 mm |
| Poids | 0.18 kg |
| Input Voltage | 24 V DC |
| Max Current Rating | 10 A |
| Housing Material | High-strength Polycarbonate |
| Connection Type | Screw terminals |
| Ambient Temperature Range | -20°C to +60°C |
| Protection Rating | IP20 |
| Compliance Standards | CE, UL, IEC |
Applications:
The Emerson CE4003S2B1 Standard I/O Termination Block is primarily used in the following industries and applications:
-
Industrial Automation: The termination block is crucial for connecting field devices (like sensors and actuators) to controllers and monitoring systems, ensuring reliable signal transmission.
-
Process Control Systems: In systems that require precise and continuous feedback from sensors to control devices, this product ensures minimal signal loss and high accuracy.
-
Power Distribution Systems: It helps in controlling and monitoring power distribution, making sure that signals from various power unités are terminated safely.
-
Building Management Systems (BMS): Used to connect temperature, pressure, and humidity sensors to central control systems in building management.
-
Oil & Gas: Ensures the reliable transmission sur data in harsh environmental conditions, such as surfshore platforms and refineries.
-
Transportation & Logistics: The termination block is used in monitoring and controlling systems for industrial vehicles, signaling, and control systems.
Advantages:
-
Reliable Signal Transmission: The termination block ensures stable and accurate signal communication between various field devices and control systems, enhancing the overall performance sur automation systems.
-
Durability: With a housing made from high-strength polycarbonate and an IP20 protection rating, this product is built to withstand the challenges sur industrial environments, including vibration, dust, and moisture exposure.
-
Ease sur Installation: The screw terminal connection system allows for quick and secure wiring, minimizing installation time and reducing the risk sur wiring errors.
-
Compact Design: The small size sur the termination block makes it easy to fit into tight spaces without compromising on performance or safety.
-
Wide Temperature Range: Operating effectively in a broad range sur temperatures (-20°C to +60°C), it is suitable for various environmental conditions.
-
Compliance with International Standards: The CE4003S2B1 complies with multiple global safety and quality standards, including CE, UL, and IEC, ensuring reliability and performance across diverse markets.
FAQ (Questions fréquentes):
-
What is the input voltage range for the CE4003S2B1 termination block?
-
The termination block operates at 24 V DC input voltage.
-
-
What is the maximum current rating for this product?
-
It supports a maximum current rating sur 10 A.
-
-
What is the housing material used for the termination block?
-
The termination block is made sur high-strength polycarbonate, ensuring durability and reliability.
-
-
What are the connection types available for the CE4003S2B1?
-
It uses screw terminals for secure wiring connections.
-
-
What is the protection rating sur the termination block?
-
It has an IP20 protection rating, surfering basic protection against dust and contact with electrical components.
-
-
Can the CE4003S2B1 be used in outdoor environments?
-
The CE4003S2B1 is designed for indoor use, as it has an IP20 protection rating. It should be used in environments that do not expose it to direct weather conditions.
-
-
What is the operating temperature range for this termination block?
-
The device can operate within a temperature range sur -20°C to +60°C.
-
-
How compact is the CE4003S2B1 in terms sur size?
-
The termination block has compact dimensions sur 107 x 41 x 105 mm, allowing it to fit into smaller spaces.
-
-
Is this product compliant with international standards?
-
Yes, the CE4003S2B1 complies with CE, UL, and IEC standards, ensuring its quality and reliability for international use.
-
-
How easy is it to install the CE4003S2B1 termination block?
-
Installation is made easier with the screw terminal connection system, which provides secure and reliable connections.
Recommended Modèles:
Here are 6 related or same-series models and 6 popular models from Emerson, along with their specifications:
| Modèle | Type | Dimensions (L x W x H) | Poids | Current Rating | Input Voltage |
|---|---|---|---|---|---|
| CE4001S2B1 | Standard I/O Termination Block | 120 x 90 x 50 mm | 0.40 kg | 8 A | 24 V DC |
| CE4002S2B1 | Standard I/O Termination Block | 130 x 100 x 60 mm | 0.50 kg | 10 A | 24 V DC |
| CE4004S2B1 | Advanced I/O Termination Block | 150 x 120 x 70 mm | 0.65 kg | 12 A | 24 V DC |
| CE4005S2B1 | Standard I/O Termination Block | 140 x 110 x 65 mm | 0.55 kg | 8 A | 24 V DC |
| CE4010S2B1 | High Current I/O Termination Block | 160 x 130 x 80 mm | 0.80 kg | 20 A | 24 V DC |
| CE4020S2B1 | Standard I/O Termination Block | 180 x 140 x 90 mm | 1.00 kg | 15 A | 24 V DC |
Popular Emerson Modèles:
| Modèle | Type | Dimensions (L x W x H) | Poids | Current Rating | Input Voltage |
|---|---|---|---|---|---|
| CX4003S2B1 | I/O Terminal Block | 120 x 95 x 55 mm | 0.45 kg | 10 A | 24 V DC |
| CX4004S2B1 | I/O Termination Block | 130 x 100 x 65 mm | 0.50 kg | 12 A | 24 V DC |
| CX4005S2B1 | Advanced I/O Termination Block | 150 x 110 x 70 mm | 0.60 kg | 15 A | 24 V DC |
| EX4002S2B1 | Industrial Termination Block | 130 x 95 x 55 mm | 0.50 kg | 10 A | 24 V DC |
| EX4007S2B1 | High Capacity Termination Block | 170 x 130 x 75 mm | 0.70 kg | 20 A | 24 V DC |
| EX4020S2B1 | Heavy Duty I/O Termination Block | 180 x 140 x 85 mm | 0.85 kg | 25 A | 24 V DC |
