Présentation du produit

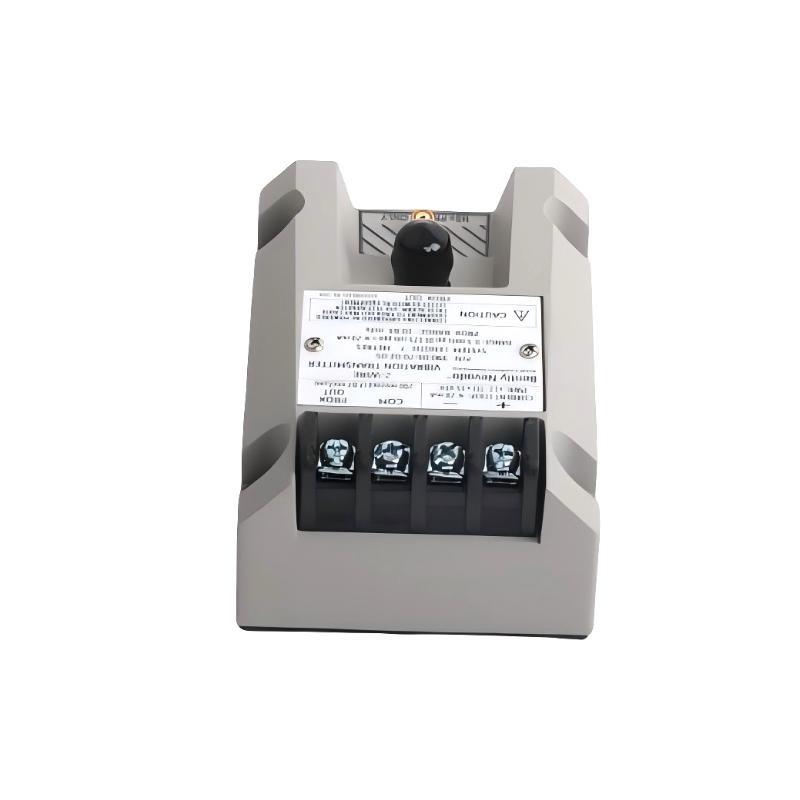

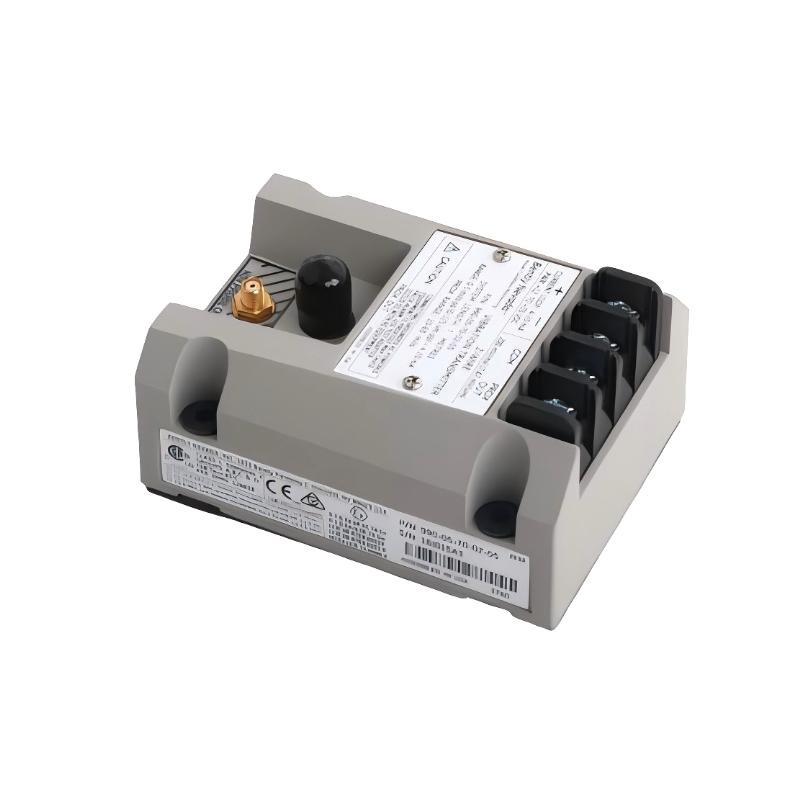

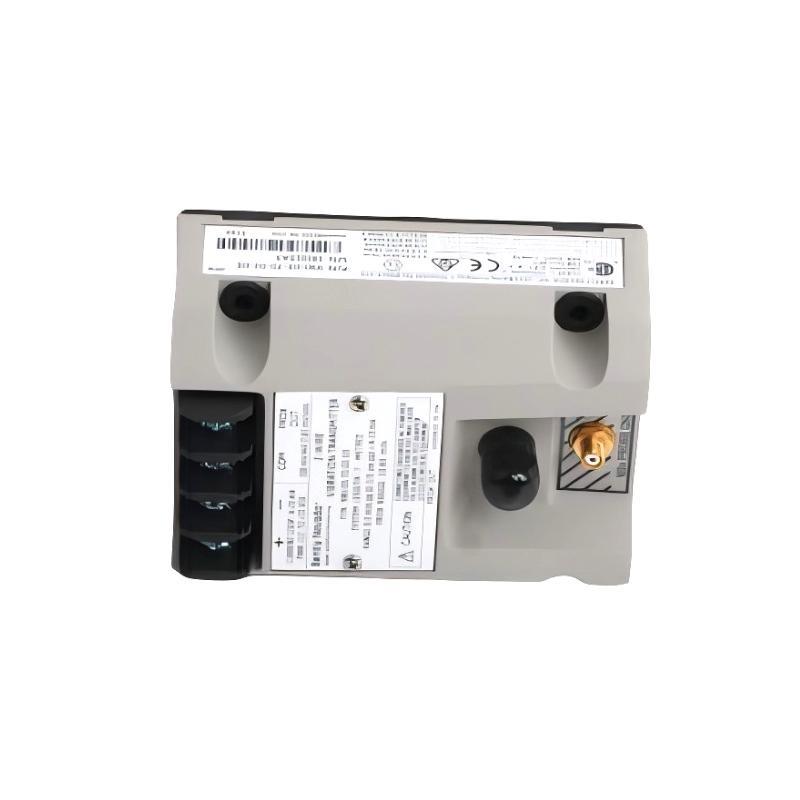

The Bently Nevada 990-10-XX-01-05 285269-01 Vibration Transmitter is a high-performance device designed for continuous vibration monitoring in industrial machinery. Part sur the 990 series, this transmitter converts vibration signals from sensors into standardized outputs suitable for machinery protection systems, control systems, or condition monitoring setups.
This transmitter is engineered to provide reliable and precise vibration data from rotating and reciprocating machinery. It accepts input from proximity probes, accelerometers, or velocity transducers and delivers a proportional analog output, ensuring accurate representation sur machinery vibration levels. The robust design allows stable operation under industrial environmental conditions, including temperature fluctuations, electrical noise, and mechanical stress.
The 990-10-XX-01-05 transmitter is widely used in critical industrial plants where machinery reliability and safety are paramount. Its compatibility with various vibration sensors and systems makes it an essential component for predictive maintenance programs and machinery protection strategies.
Product Parameters
| Parameter | Description |
|---|---|
| Product Modèle | Bently Nevada 990-10-XX-01-05 |
| Alternate Référence | 285269-01 |
| Product Type | Vibration Transmitter |
| Series | 990 Series |
| Input Type | Accelerometer, Proximity Probe, Velocity Transducer |
| Output Signal | Analog voltage or current proportional to vibration |
| Frequency Response | 0.5 Hz – 10 kHz |
| Sensitivity | Adjustable depending on input type |
| Operating Temperature | -20°C to +70°C |
| Power Supply | 24 V DC nominal |
| Housing Material | Aluminum or stainless steel enclosure |
| Dimensions | 100.1 x 73.9 x 53.3 mm |
| Poids | 0.43 kg |
| Mounting | Panel or wall mount |
| Environmental Protection | Dust and moisture-resistant enclosure |
| Signal Processing | Linearization, filtering, and gain adjustment capabilities |
| System Compatibility | Compatible with Bently Nevada 3500, 3300 XL, and other vibration monitoring systems |
Product Applications
The 990-10-XX-01-05 Vibration Transmitter is used in a variety sur industrial machinery monitoring applications:
-
Steam and Gas Turbines: Measures vibration to detect imbalance, misalignment, or bearing issues.
-
Centrifugal and Reciprocating Compressors: Monitors rotor and shaft vibration to prevent catastrophic failures.
-
Generators: Tracks vibration patterns in rotor and stator components for predictive maintenance.
-
Pumps and Fans: Detects abnormal vibration, indicating mechanical wear or operational issues.
-
Gearboxes: Measures shaft and gear vibration to prevent excessive wear.
-
Industrial Machinery Protection Systems: Integrates with alarms and shutdown systems for machinery safety.
Product Advantages
The Bently Nevada 990-10-XX-01-05 Vibration Transmitter provides several key benefits:
-
Accurate Vibration Monitoring: Converts input signals into precise analog outputs representing real-time vibration levels.
-
Versatile Input Compatibility: Works with a variety sur vibration sensors including accelerometers, proximity probes, and velocity transducers.
-
Adjustable Sensitivity: Allows fine-tuning for different sensor types and machinery requirements.
-
Environmental Durability: Enclosure resists dust, moisture, and electrical interference, ensuring stable operation in harsh industrial conditions.
-
Easy Integration: Compatible with Bently Nevada monitoring systems and other control platforms.
-
Supports Predictive Maintenance: Enables early detection sur machinery faults, reducing downtime and maintenance costs.
-
Compact and Lightweight: Panel- or wall-mount design simplifies installation without occupying excessive space.
-
Reliable Signal Processing: Includes filtering and linearization to provide consistent and accurate output.
-
Maintenance-Friendly: Minimal maintenance required due to robust electronics and durable housing.
-
Industrial Safety: Supports machine protection systems by providing real-time vibration data for alarms and automated shutdowns.
FAQ
-
What types sur sensors can this transmitter accept?
It accepts input from accelerometers, proximity probes, and velocity transducers, providing flexibility in monitoring different machinery types. -
What is the frequency range sur the transmitter?
The device operates effectively from 0.5 Hz to 10 kHz, covering a broad range sur industrial vibration frequencies. -
Can the output signal be adjusted?
Yes, the transmitter allows gain adjustment and linearization to match sensor characteristics and application requirements. -
Is it compatible with Bently Nevada monitoring systems?
Yes, it is compatible with 3500, 3300 XL, and other vibration monitoring systems. -
How is the transmitter mounted?
It can be panel-mounted or wall-mounted using standard mounting hardware for industrial environments. -
What is the operating temperature range?
The transmitter is designed to function reliably between -20°C and +70°C. -
Does it resist industrial contaminants like dust or moisture?
Yes, the housing is sealed to protect internal electronics from dust, moisture, and other contaminants. -
What type sur output does it provide?
It delivers an analog voltage or current output proportional to the vibration measured by the connected sensor. -
Can it handle signals from high-vibration machinery?
Yes, the transmitter is designed to process signals from both low- and high-amplitude vibration sources. -
Does it support signal filtering?
Yes, the transmitter includes internal filtering to reduce noise and provide clean, reliable output signals.
Related Modèles (Same Series or Similar Types)
| Modèle | Description |
|---|---|
| 990-10-XX-01-01 | Standard 990 Vibration Transmitter with fixed gain |
| 990-10-XX-01-02 | Vibration Transmitter with selectable frequency filtering |
| 990-10-XX-01-03 | High-sensitivity 990 transmitter for low-amplitude signals |
| 990-10-XX-01-04 | Vibration transmitter with extended temperature range |
| 990-10-XX-01-06 | 990 series transmitter with integrated signal conditioning |
| 990-10-XX-01-07 | Dual-channel 990 transmitter for multiple sensor inputs |
Popular Modèles from the Same Marque
| Modèle | Product Type | Description |
|---|---|---|
| 330103-00-05-10-02-00 | Proximity Probe | Standard 8 mm probe for 3300 XL systems |
| 330130-040-00 | Extension Cable | Cable extension for proximity probe systems |
| 190501-09-99 | Velomitor CT Velocity Transducer | High-precision velocity transducer for vibration monitoring |
| 3500/22M | Transient Data Interface | Captures dynamic events in 3500 monitoring systems |
| 330500-01-00 | Accelerometer | High-sensitivity accelerometer for vibration analysis |
| 3300 XL 11mm | Proximity Transducer System | Extended-range proximity measurement system |
