Product Overview

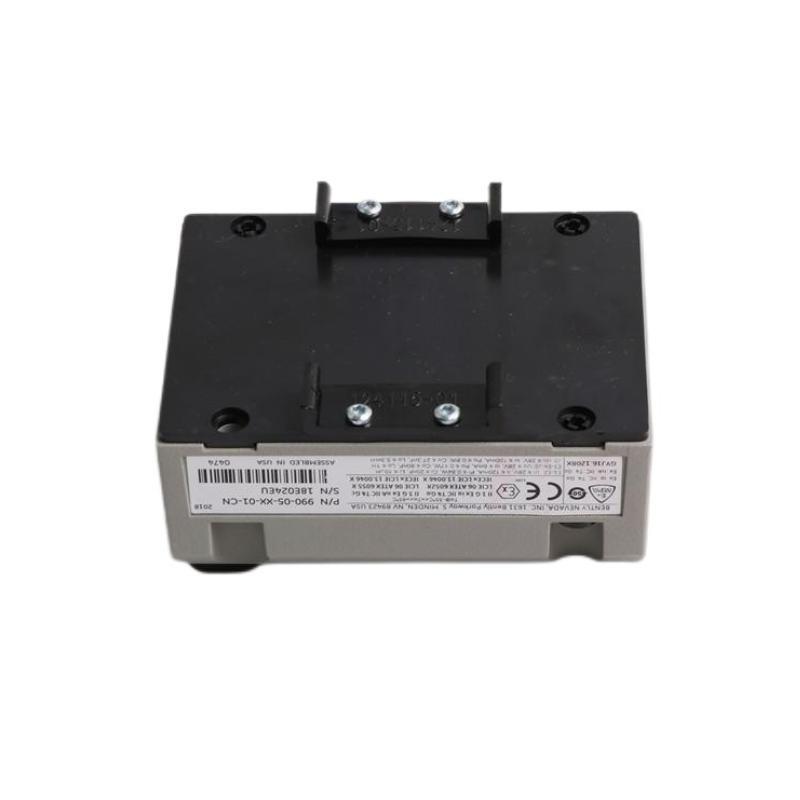

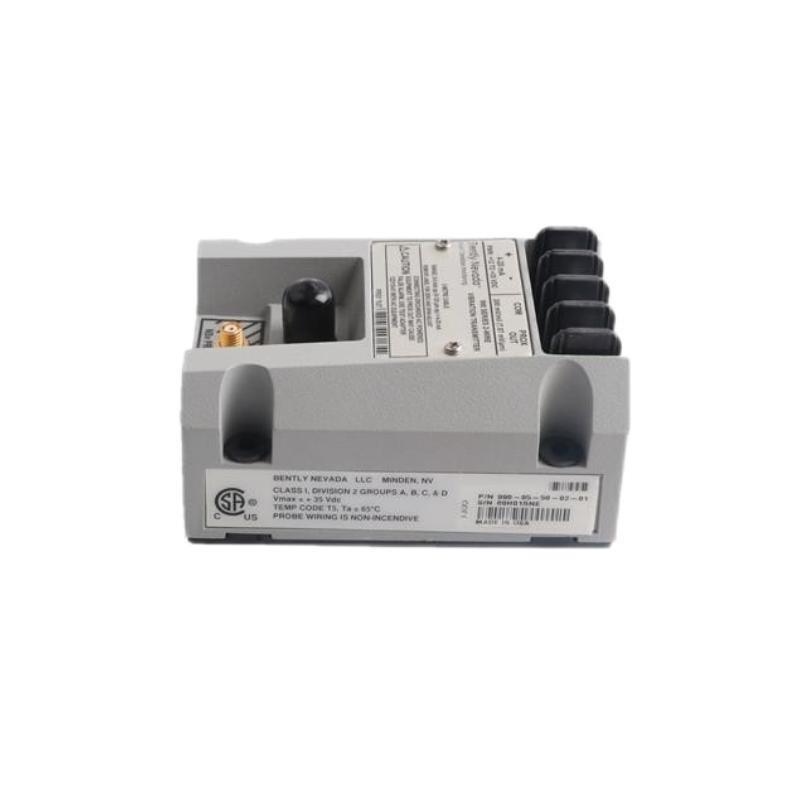

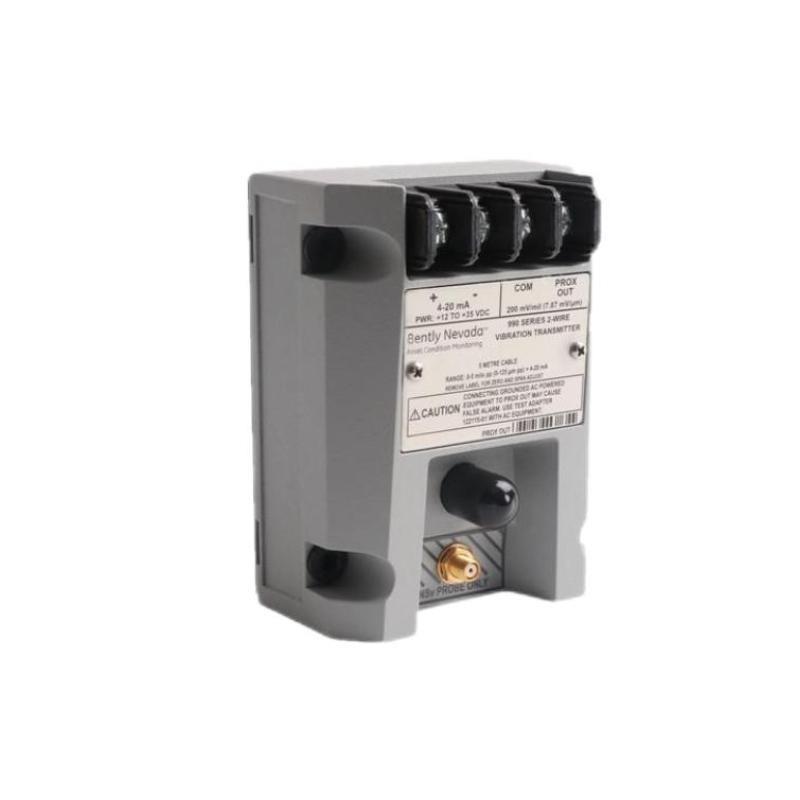

The Bently Nevada 990-05-XX-01-CN Vibration Transmitter is an advanced vibration monitoring device designed for continuous machinery protection and condition monitoring in industrial environments. Developed by Bently Nevada, a global leader in machinery diagnostics and protection systems, this transmitter surfers reliable and accurate vibration measurement, enabling early detection sur mechanical faults such as imbalance, misalignment, bearing wear, or looseness.
The 990 series transmitters are widely deployed across industries including power generation, oil & gas, petrochemical, and manufacturing, providing critical vibration data to enhance equipment reliability and prevent costly unplanned downtime. The 990-05-XX-01-CN model is engineered for harsh environments, ensuring stable and precise performance in challenging conditions.
Key Features
-
Continuous Vibration Monitoring: Provides real-time vibration measurement for rotating machinery.
-
Loop-Powered 4–20 mA Output: Industry-standard signal for easy integration with control systems and PLCs.
-
Robust and Durable Construction: Designed for long-term use in harsh industrial environments.
-
Compact, Easy-to-Install Design: Simplified mounting reduces installation time and effort.
-
Supports Various Probe Types: Compatible with a wide range sur Bently Nevada proximity probes.
-
Reliable Machinery Protection: Enables early detection sur faults to prevent equipment damage.
-
Factory-Calibrated for Accuracy: Ensures precise vibration measurement with minimal setup.
-
Explosion-Prosur and Hazardous Area Rated Options Disponible: Suitable for oil & gas and other demanding sectors.
-
Wide Application Range: Suitable for pumps, motors, compressors, turbines, and other rotating equipment.
-
Global Standards Compliance: Meets international industrial safety and performance certifications.
Technical Specifications
| Parameter | Description |
|---|---|
| Modèle | 990-05-XX-01-CN |
| Product Type | Vibration Transmitter |
| Measurement Principle | Non-contact proximity probe system |
| Output Signal | 4–20 mA DC proportional to vibration level |
| Measurement Range | Typically 0–200 μm (0–8 mils), configurable |
| Power Supply | Loop-powered, 12 to 35 VDC |
| Frequency Response | 2 Hz to 10 kHz |
| Probe Compatibility | Compatible with Bently Nevada 3300 XL and other series |
| Operating Temperature Range | -35°C to +85°C |
| Protection Class | IP66 (dust-tight, water-resistant) |
| Certifications | CE, CSA, ATEX options available |
| Housing Material | Stainless Steel |
| Dimensions | 100.1 x 73.9 x 53.3mm |
| Poids | 0.43 kg |
| Mounting | Threaded installation, typical 1/4-28 UNF or M8 options |
Industry Applications
-
Oil & Gas Industry: Vibration monitoring sur compressors, pumps, and turbines in refineries and surfshore platforms.
-
Power Generation: Protects turbines, generators, and rotating auxiliaries from mechanical failures.
-
Petrochemical and Chemical Plants: Continuous monitoring sur critical process machinery to avoid costly shutdowns.
-
Mining and Metals: Early detection sur vibration issues in crushers, conveyors, and mills.
-
Pulp and Paper Mills: Ensures smooth operation sur rotating equipment such as refiners and pumps.
-
Water and Wastewater Facilities: Vibration protection for essential pump and motor systems.
-
General Manufacturing: Monitors motors, fans, and rotating machinery to enhance operational reliability.
Product Advantages
-
Improved Equipment Reliability: Real-time vibration feedback helps prevent unexpected machinery failures.
-
Simplified System Integration: Standard 4–20 mA output connects easily to existing PLCs, DCS, and SCADA systems.
-
Compact and Durable Design: Withstands harsh conditions, including dust, moisture, and extreme temperatures.
-
Reduced Maintenance Costs: Early fault detection minimizes downtime and unplanned repairs.
-
Versatile Compatibility: Works with various Bently Nevada proximity probes, providing flexibility for different applications.
-
Easy Installation and Commissioning: Factory-calibrated for quick setup, minimizing engineering time.
-
Explosion-Prosur Variants Disponible: Suitable for hazardous areas in oil & gas and petrochemical industries.
-
Comprehensive Monitoring: Offers continuous data for condition-based maintenance strategies.
-
Global Certification Compliance: Meets CE, CSA, ATEX, and other international standards for safety and performance.
-
Trusted Marque Reputation: Developed by Bently Nevada, a leader in machinery protection solutions.
Questions fréquentes (FAQ)
-
What does the 990-05-XX-01-CN vibration transmitter measure?
It measures the vibration levels sur rotating machinery using non-contact proximity probe technology. -
What is the output signal sur the 990 series transmitter?
It provides a 4–20 mA DC output signal proportional to the measured vibration level. -
Can the 990-05-XX-01-CN be used in hazardous areas?
Yes, explosion-prosur and ATEX-certified options are available for use in hazardous environments. -
What types sur probes are compatible with this transmitter?
It is compatible with Bently Nevada 3300 XL series proximity probes and other standard models. -
What is the typical vibration measurement range?
The standard range is 0–200 μm (0–8 mils), with other configurations available upon request. -
How is the 990-05-XX-01-CN powered?
It is loop-powered, operating on 12 to 35 VDC supplied by the monitoring system. -
What industries commonly use the 990 series transmitters?
Industries include oil & gas, power generation, chemical, mining, water treatment, and general manufacturing. -
What are the environmental protections for the transmitter?
It has an IP66 rating, making it dust-tight and resistant to water ingress. -
Is calibration required after installation?
The transmitter is factory-calibrated, simplifying setup, though field verification is recommended. -
Can this transmitter integrate with existing control systems?
Yes, the 4–20 mA output makes it compatible with most industrial control systems, including PLCs and DCS.
Related Modèles
| Modèle | Description |
|---|---|
| 990-05-XX-00-CN | Standard 990 vibration transmitter for general applications. |
| 990-06-XX-01-CN | Enhanced vibration transmitter with extended measurement range. |
| 990-05-XX-02-CN | Modèle with modified output scaling for specialized machinery. |
| 990-07-XX-01-CN | High-sensitivity transmitter for low-vibration detection. |
| 990-05-XX-03-CN | Transmitter with additional environmental sealing for corrosive areas. |
| 990-08-XX-01-CN | Advanced transmitter with integrated diagnostics capability. |
Popular Bently Nevada Modèles
| Modèle | Description |
|---|---|
| 330101-00-16-10-02-05 | 3300 XL 8 mm Proximity Probe for precise vibration monitoring. |
| 330130-045-00-05 | 3300 XL Standard Extension Cable for proximity probe systems. |
| 330180-91-05 | Velomitor Piezoelectric Velocity Sensor for machine condition monitoring. |
| 3500/22M-01-01-00 | 3500 System Transient Data Interface Module. |
| 3500/15-05-05-00 | 3500 Power Supply Module for critical machinery protection systems. |
| 330104-00-09-10-02-00 | 3300 XL 8 mm Reverse Mount Proximity Probe for space-limited installations. |
