Product Overview

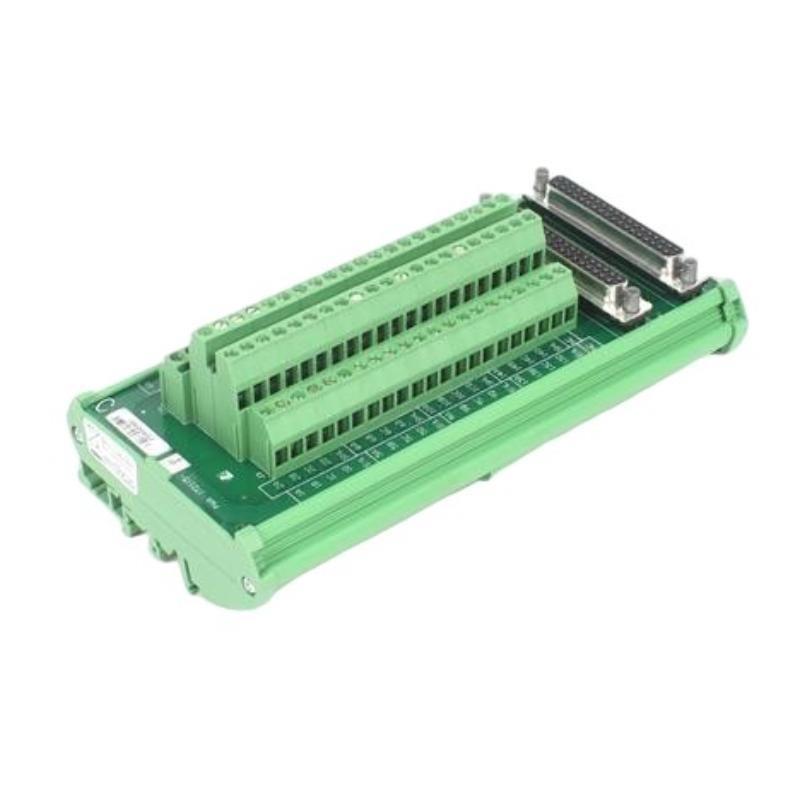

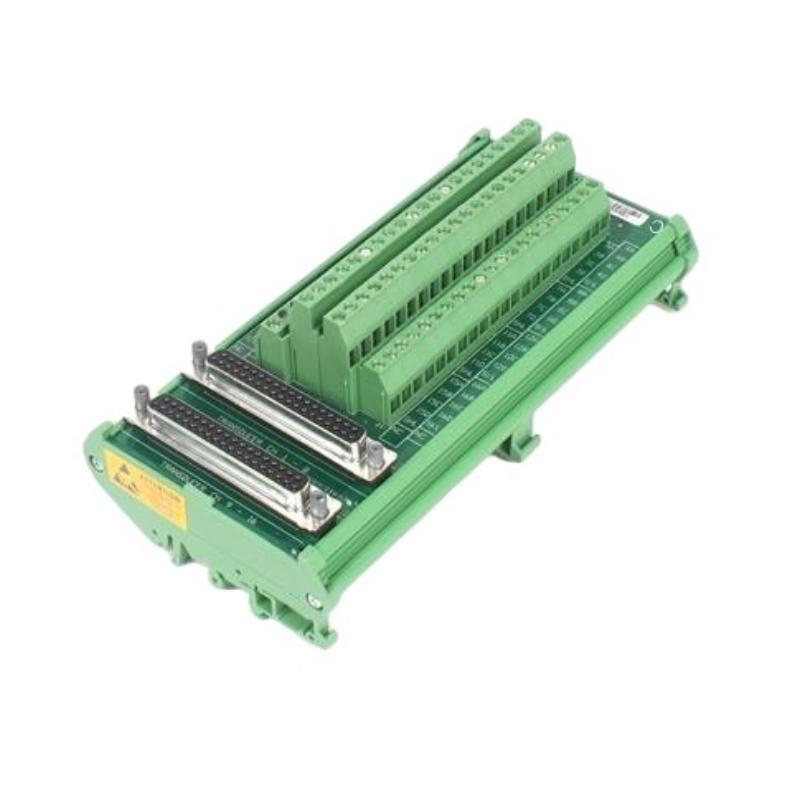

The Bently Nevada 3500/65 172115-01 is an external terminal block designed for RTD (Resistance Temperature Detector) and isolated tip thermocouple (TC) connections in 3500/65 temperature monitoring systems. It provides secure and reliable field wiring connections for temperature sensors, ensuring accurate monitoring and long-term system reliability. The terminal block is suitable for industrial environments requiring precise temperature measurement and isolation.
Key Features
-
Supports RTD and isolated tip thermocouple connections
-
Secure and reliable external field wiring
-
Designed for integration with 3500/65 Temperature Monitor modules
-
Simplifies installation and maintenance
-
Provides electrical isolation for thermocouple inputs
-
Rugged construction for industrial environments
-
Facilitates accurate temperature monitoring
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | RTD/Isolated Tip TC External Terminal Block |
| Modèle Number | 172115-01 |
| System Compatibility | Bently Nevada 3500/65 Temperature Monitor Modules |
| Number sur Channels | Up to 16 RTD/TC connections |
| Terminal Type | Screw-type field connections |
| Isolation | Electrical isolation for TC inputs |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 150 × 100 × 50 mm |
| Poids | 0.8 kg |
Industry Applications
-
Power Generation – Connecting RTD and TC sensors for turbines, boilers, and auxiliary equipment
-
Oil & Gas – Precise temperature monitoring sur pumps, compressors, and process systems
-
Chemical & Petrochemical – Field wiring for process temperature control
-
Pharmaceuticals – Accurate temperature measurement for batch processing
-
Water & Wastewater – Connecting field RTD and TC sensors to monitoring systems
-
Industrial Machinery – Reliable temperature measurement for rotating and stationary equipment
Questions fréquentes (FAQ)
Q1: What is the function sur the 172115-01 terminal block?
It provides secure field connections for RTD and isolated tip thermocouple sensors.
Q2: How many sensor channels does it support?
It supports up to 16 RTD or TC connections.
Q3: Is electrical isolation provided for TC inputs?
Yes, the module ensures proper electrical isolation for thermocouple connections.
Q4: What is the operating temperature range?
-20°C to 70°C.
Q5: What type sur terminals are used for wiring?
Screw-type field terminals.
Q6: Can it be used with 3500/65 Temperature Monitor modules?
Yes, it is fully compatible.
Q7: What are the module dimensions?
150 mm × 100 mm × 50 mm.
Q8: How much does the module weigh?
Approximately 0.8 kg.
Q9: Is the module suitable for industrial environments?
Yes, it is designed for rugged industrial use.
Q10: Does it simplify maintenance?
Yes, the external terminal block allows easy wiring inspection and replacement sur sensors.
Related Modèles
| Modèle Number | Description |
|---|---|
| 172115-01 | RTD/Isolated Tip TC External Terminal Block |
| 172109-01 | RTD/Isolated Tip TC I/O Module |
| 172103-01 | RTD/Isolated Tip TC I/O Module |
| 133827-01 | RTD/TC Non-Isolated I/O Module |
| 133819-01 | RTD/TC Temperature I/O Module |
| 140734-05 | Dynamic Pressure Module |
