Product Description

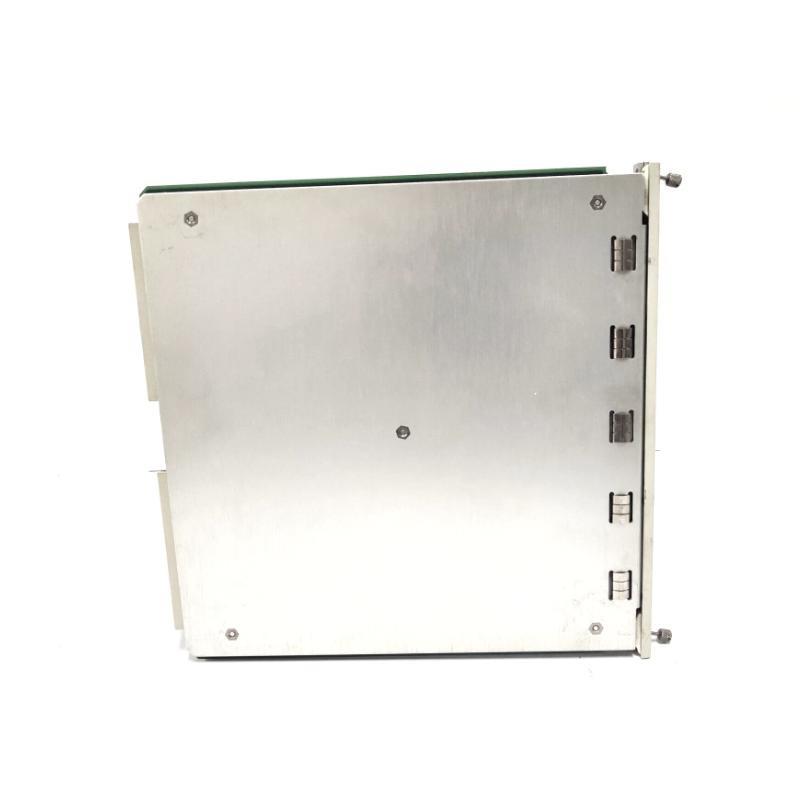

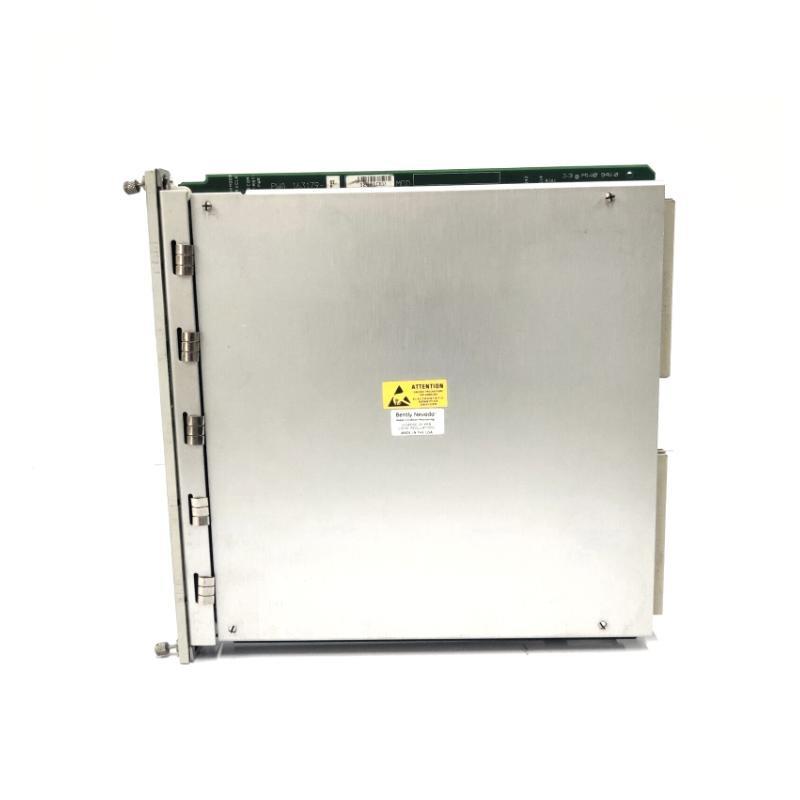

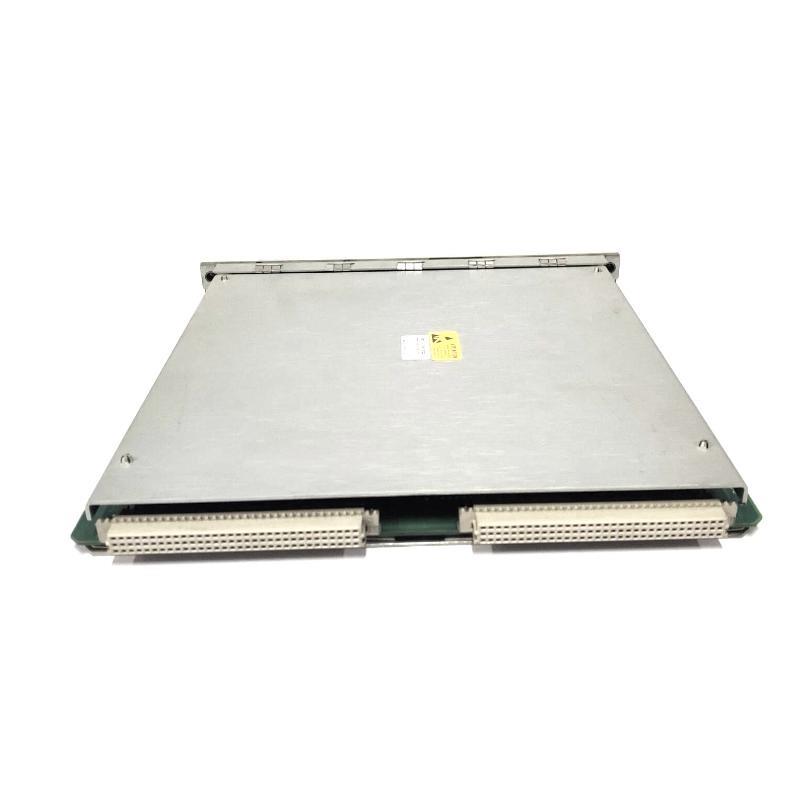

The Bently Nevada 3500/61 163179-02 is a high-performance temperature monitoring module with integrated recording capability. Designed for industrial machinery protection, it continuously monitors bearing and process temperatures, providing real-time data to prevent equipment damage and unplanned downtime. Its reliable design ensures precise measurement, robust operation, and seamless integration with 3500 series monitoring systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle | 3500/61 163179-02 |
| Function | Temperature monitoring with recording |
| Power Supply | 24 VDC nominal |
| Channels | Up to 8 analog temperature inputs |
| Input Type | RTD (Resistance Temperature Detector) |
| Accuracy | ±0.5 °C |
| Response Time | 500 ms |
| Communication | 3500 series backplane |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Poids | 0.91 kg |
| Operating Temperature | -40 to 85 °C |
| Mounting | Rack-mounted, 3500 series |
Applications
-
Continuous monitoring sur critical machinery bearings and components
-
Industrial gas and steam turbines, compressors, and generators
-
Process temperature monitoring in refineries and petrochemical plants
-
Integration with 3500 series machinery protection systems
Advantages
-
High precision temperature measurement ensures machinery safety
-
Built-in recording functionality for historical data analysis
-
Easy installation and maintenance within 3500 system racks
-
Rapid response time for immediate detection sur abnormal conditions
-
Scalable design suitable for large industrial operations
FAQ
1. What types sur temperature sensors are supported?
The module supports RTD sensors, including Pt100 and Pt1000 types.
2. How many channels can it monitor simultaneously?
It can monitor up to 8 analog temperature channels per module.
3. Can it be integrated with other Bently Nevada 3500 modules?
Yes, it seamlessly integrates with other 3500 series modules via the backplane.
4. What is the module’s measurement accuracy?
The accuracy is ±0.5 °C under standard operating conditions.
5. Is historical temperature data recorded?
Yes, the module has built-in recording functionality for trend analysis.
6. What is the typical response time for temperature changes?
The response time is approximately 500 ms.
7. Can it operate in extreme temperatures?
Yes, it operates reliably between -40 °C and 85 °C.
8. What is the power requirement?
The module operates on a 24 VDC nominal power supply.
9. How is the module mounted?
It is rack-mounted within the 3500 series system.
10. Can it trigger alarms for over-temperature conditions?
Yes, it provides configurable alarm outputs for temperature thresholds.
Related Modèles (Same Series / Function)
| Modèle | Function | Channels | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|
| 3500/60 163179-01 | Temperature Monitor | 8 | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/62 163179-03 | High-speed Temperature Monitor | 8 | 241.3 × 24.4 × 241.8 | 0.92 |
| 3500/63 163179-04 | Dual-channel Temperature Monitor | 16 | 241.3 × 48.8 × 241.8 | 1.80 |
| 3500/65 163179-05 | Temperature & Vibration Monitor | 8 | 241.3 × 24.4 × 241.8 | 0.95 |
| 3500/66 163179-06 | Redundant Temperature Monitor | 8 | 241.3 × 24.4 × 241.8 | 0.93 |
| 3500/67 163179-07 | Extended Temperature Recorder | 8 | 241.3 × 24.4 × 241.8 | 0.94 |
Popular Bently Nevada Modèles
| Modèle | Function | Channels | Dimensions (mm) | Poids (kg) |
|---|---|---|---|---|

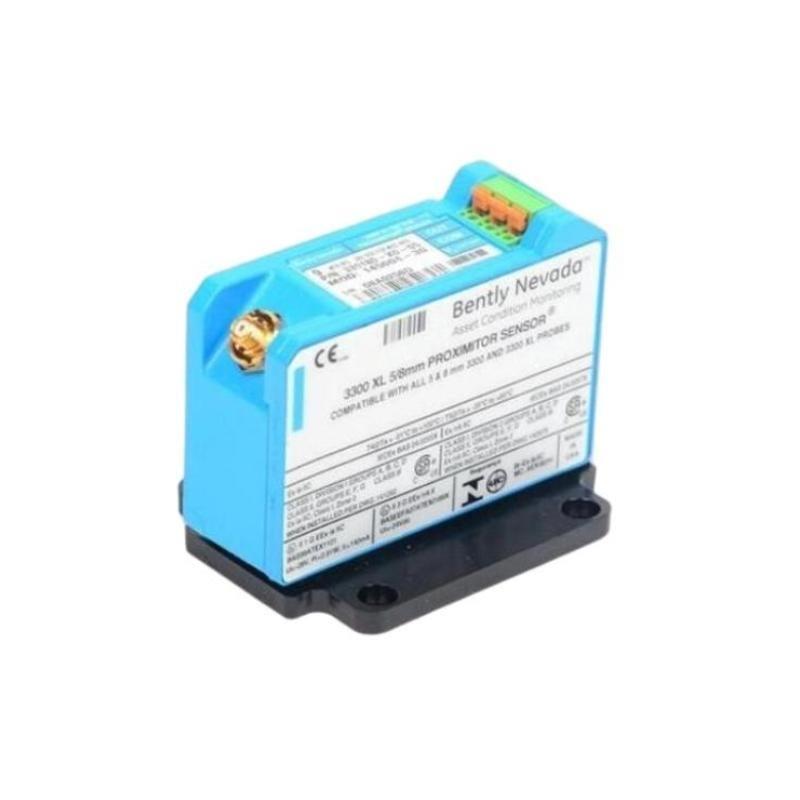

| 3300 XL Proximitor Sensor | Shaft vibration measurement | 1-8 | 127 × 25 × 25 | 0.45 |
| 3500/32 163179-08 | Vibration Monitor | 8 | 241.3 × 24.4 × 241.8 | 0.90 |
| 3500/25 163179-09 | Keyphasor & Speed Monitor | 2 | 241.3 × 24.4 × 241.8 | 0.89 |
| 3500/33 163179-10 | Machinery Vibration Monitor | 8 | 241.3 × 24.4 × 241.8 | 0.91 |
| 3300/20 163179-11 | Proximitor Sensor with Trip | 1 | 127 × 25 × 25 | 0.43 |
| 3500/35 163179-12 | Overall Vibration Monitor | 8 | 241.3 × 24.4 × 241.8 | 0.92 |
