Product Overview

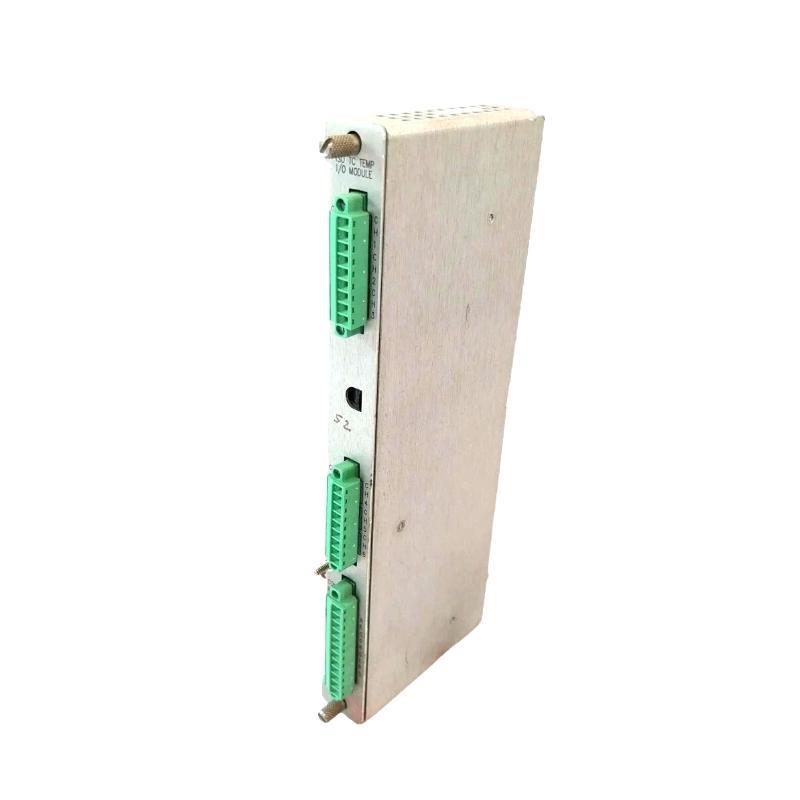

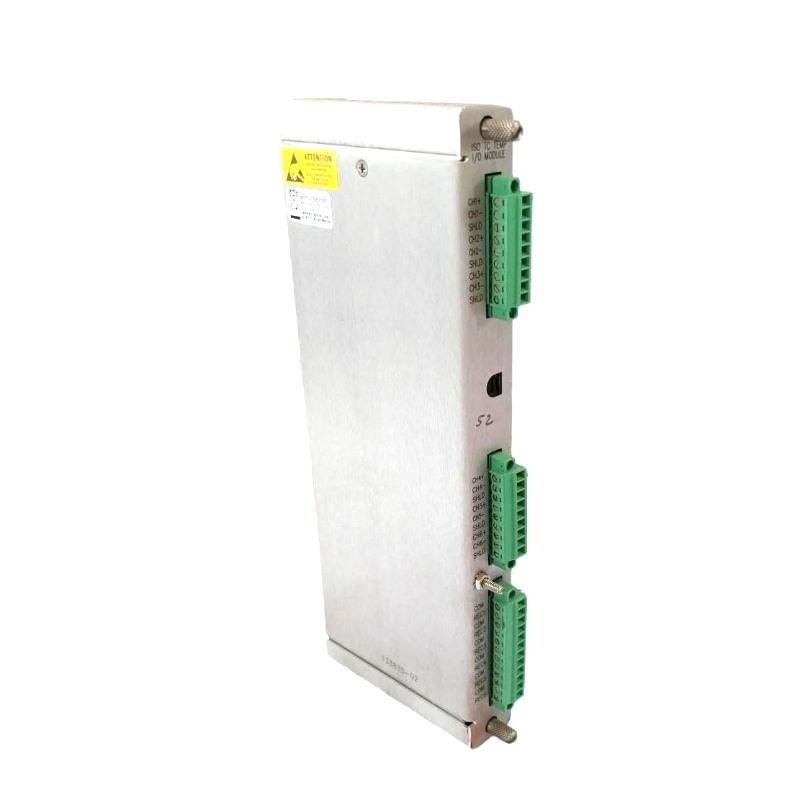

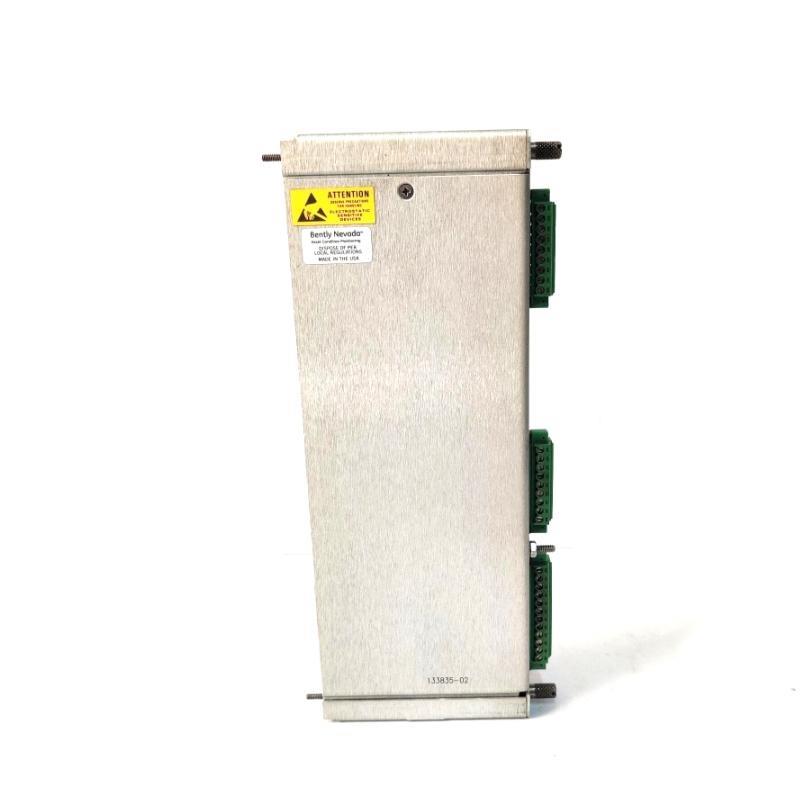

The Bently Nevada 3500/61 133835-02 is a Thermocouple (TC) Isolated I/O Module designed for the 3500 Machinery Monitoring System. It provides six temperature monitoring channels with internal terminations and 250 Vdc channel-to-channel isolation, ensuring accurate readings and protection against electrical interference.
Spécifications du produit
| Feature | Specification |
|---|---|
| Modèle | 3500/61-03-00 |
| Référence | 133835-02 |
| Input Type | Thermocouple (TC) |
| Number sur Channels | 6 |
| Isolation | 250 Vdc channel-to-channel |
| Recorder Outputs | Yes |
| Terminations | Internal |
| Dimensions | 241.3 x 24.4 x 99.1 mm |
| Poids | 0.45 kg |
Applications
-
Industrial Machinery Monitoring: Monitors critical equipment temperatures in power plants, oil & gas facilities, and manufacturing plants.
-
Process Control Systems: Integrates with Distributed Control Systems (DCS) for real-time temperature data acquisition.
-
Predictive Maintenance: Enables early detection sur overheating issues for proactive maintenance.
Advantages
-
Enhanced Protection: 250 Vdc isolation safeguards against electrical noise and ground loops.
-
High Channel Density: Monitors six temperature points simultaneously, reducing system complexity.
-
Recorder Outputs: Allows data logging and historical analysis for each channel.
-
Ease sur Integration: Compatible with Bently Nevada 3500 Rack Configuration Ssurtware for straightforward setup.
Questions fréquentes (FAQs)
-
What is the main function sur the 3500/61 module?
It monitors temperature using thermocouple inputs and provides recorder outputs for each channel. -
How many channels are available?
Six temperature channels are supported. -
What input types does the module accept?
Thermocouple (TC) inputs only. -
Does the module provide isolation?
Yes, 250 Vdc channel-to-channel isolation is provided. -
Are recorder outputs available?
Yes, each channel has a recorder output. -
What is the operating temperature range?
-30°C to +65°C. -
Is this module compatible with 3500 Rack Configuration Ssurtware?
Yes, full compatibility for configuration and monitoring. -
Can the module handle RTD inputs?
No, it is designed for thermocouple inputs only. -
What is the weight sur the module?
0.45 kg. -
Is the module suitable for industrial hazardous environments?
Yes, it is designed for robust industrial applications.
