Product Overview

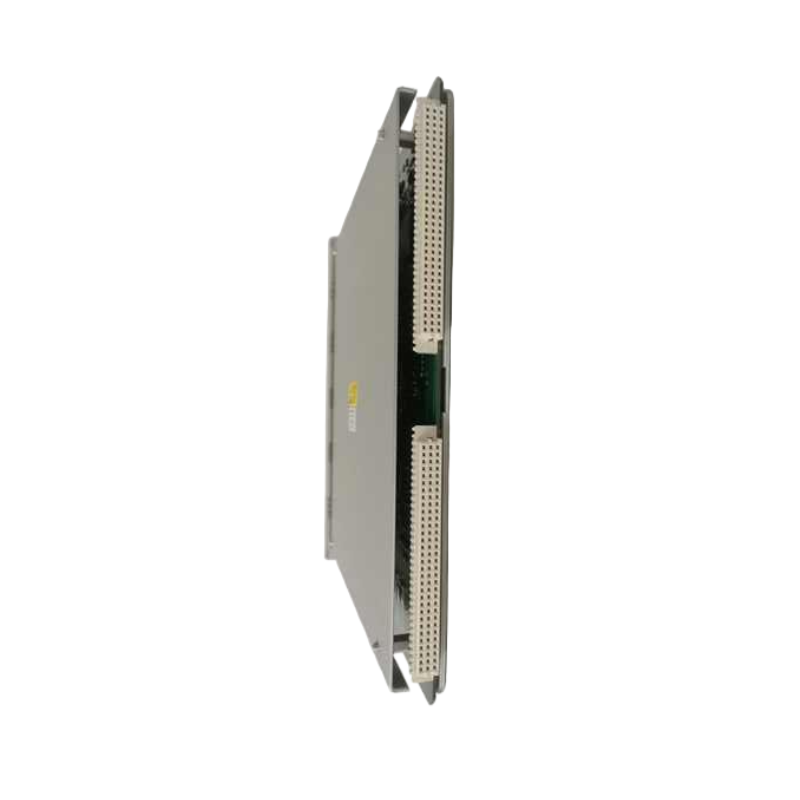

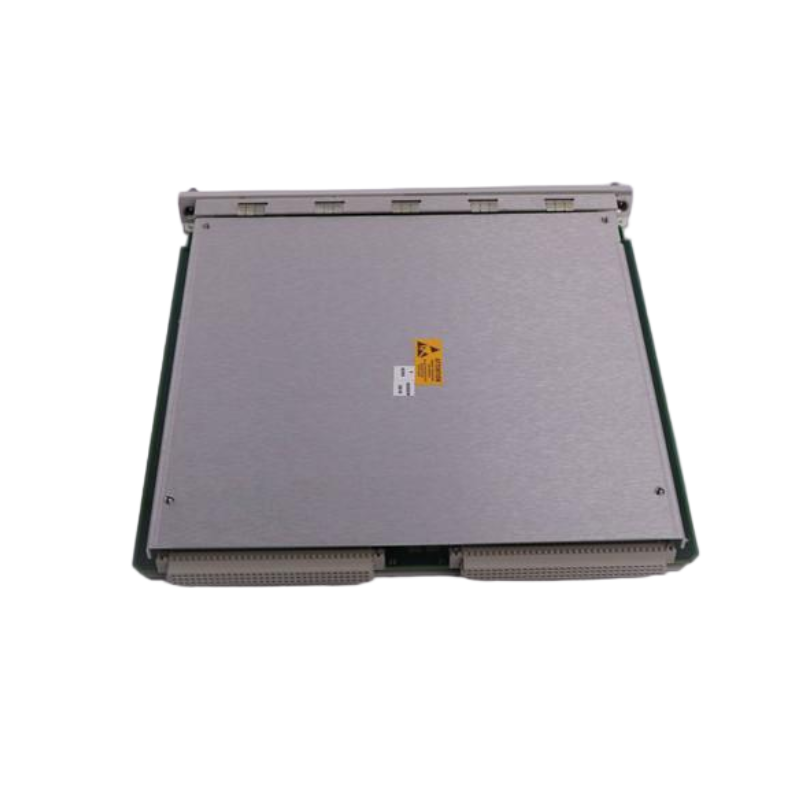

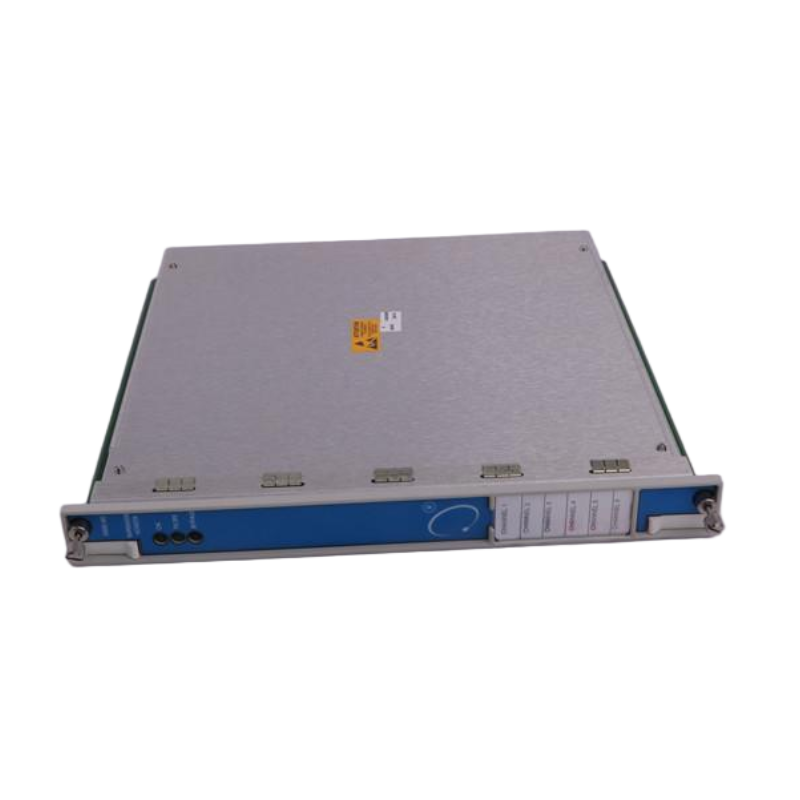

The Bently Nevada 3500/60 163179-01 Temperature Monitor is a high-performance monitoring module designed for accurate temperature measurement in critical machinery applications. As part sur the 3500 series, this monitor delivers dependable condition monitoring and protection by processing inputs from thermocouples (TC) and resistance temperature detectors (RTD). It features advanced alarm capabilities, flexible configuration options, and seamless integration into the 3500 rack system, ensuring optimal protection for turbines, compressors, and other rotating equipment.
Key Features
-
Supports both RTD and thermocouple sensors
-
Four independent temperature input channels
-
Configurable alarm setpoints for each channel
-
Channel-to-channel and channel-to-ground isolation
-
High accuracy for reliable machinery protection
-
Hot-swappable for minimal downtime
-
Full compatibility with Bently Nevada 3500 racks
Technical Specifications
| Parameter | Specification |
|---|---|
| Modèle Number | 3500/60 163179-01 |
| Module Type | Temperature Monitor |
| Fabricant | Bently Nevada (Baker Hughes) |
| Supported Sensors | RTDs (2-wire, 3-wire, 4-wire) and TCs (Types E, J, K, T, B, R, S, N) |
| Channels | 4 temperature channels |
| Measurement Range | Dependent on sensor type |
| Accuracy | High-precision measurement, per sensor specs |
| Alarm Capabilities | Independently configurable per channel |
| Communication | Via 3500 rack backplane |
| Isolation Type | Channel-to-channel and channel-to-ground |
| Mounting Type | Rack-mounted (3500 rack) |
| Power Supply | From 3500 rack backplane |
| Operating Temperature | 0°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 0% to 95% non-condensing |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Poids | 0.91 kg |
| Certifications | CE, CSA, ATEX, IECEx |
Industry Applications
-
Gas turbine and steam turbine monitoring
-
Compressor and pump temperature measurement
-
Oil and gas production facilities
-
Petrochemical and refining plants
-
Power generation equipment monitoring
Questions fréquentes (FAQ)
Q1: How many channels does this temperature monitor have?
It has four independent temperature channels.
Q2: Can it work with both RTDs and thermocouples?
Yes, it supports multiple RTD wiring types and thermocouple types.
Q3: Are alarms configurable for each channel?
Yes, each channel has independent alarm setpoints.
Q4: Is this module isolated?
Yes, it provides isolation between channels and between channels and ground.
Q5: Does it require external power?
No, it draws power directly from the 3500 rack backplane.
Q6: Is it hot-swappable?
Yes, it can be replaced without shutting down the rack.
Q7: What types sur thermocouples does it support?
It supports types E, J, K, T, B, R, S, and N.
Q8: What are the dimensions and weight?
It measures 241.3mm x 24.4mm x 241.8 mm and weighs 0.91 kg.
Q9: Can it be used in hazardous locations?
Yes, it meets CE, CSA, ATEX, and IECEx requirements.
Q10: Which 3500 rack positions can it be installed in?
It can be installed in any available monitor slot in the 3500 rack.
Related Modèles
| Modèle Number | Description |
|---|---|
| 3500/60 133819-01 | RTD/TC Temperature I/O Module (Isolated) |
| 3500/60 133827-01 | RTD/TC Non-Isolated I/O Module |
| 3500/60 133835-01 | TC Isolated I/O Module (Internal Terminals) |
| 3500/60 133840-01 | TC Isolated I/O Module (External Terminals) |
| 3500/61 | RTD Temperature Monitor |
