Présentation du produit

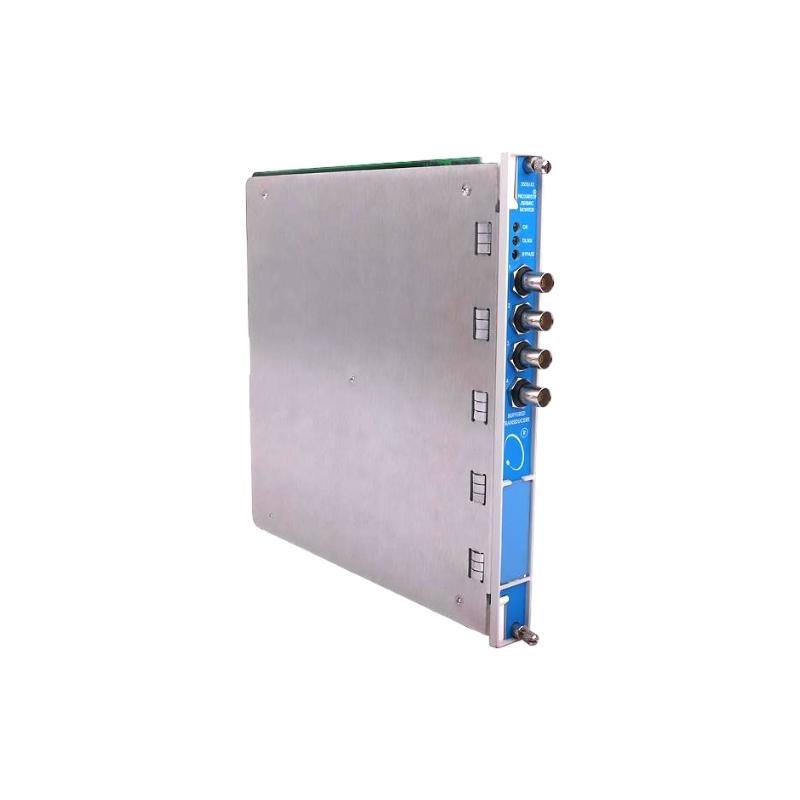

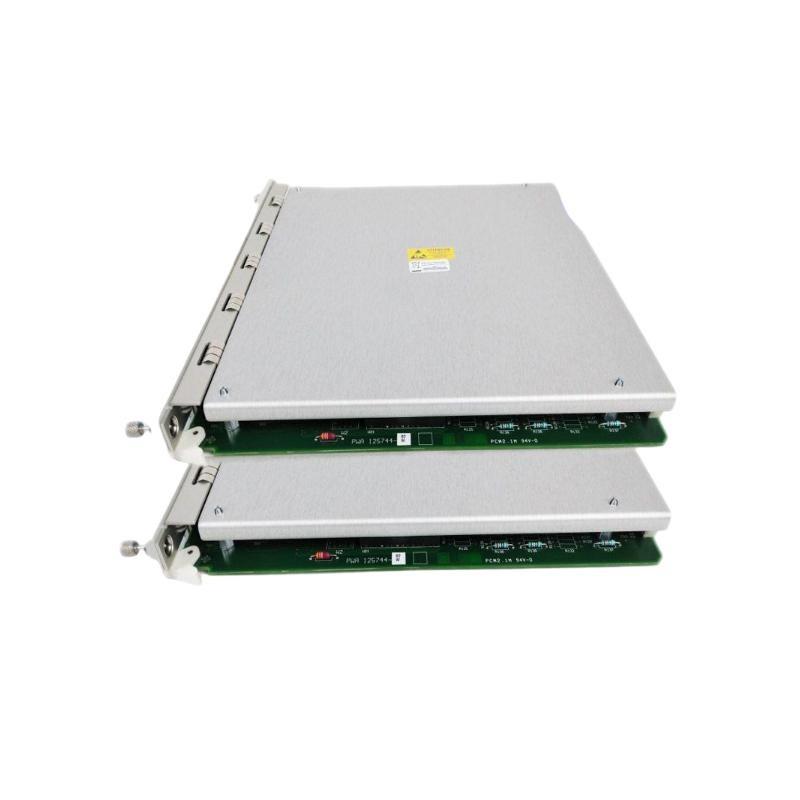

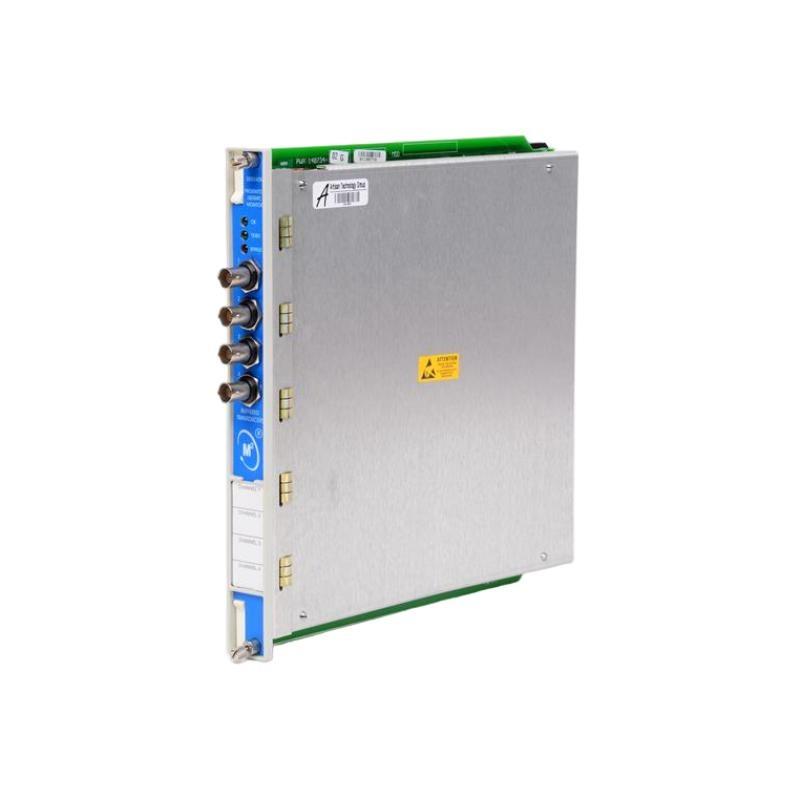

The Bently Nevada 3500/42 140734-02 + 138708-01 Proximitor Seismic Monitor is a state-sur-the-art vibration and seismic detection system that plays a crucial role in protecting machinery from failure due to abnormal seismic events or excessive vibrations. As part sur the renowned Bently Nevada 3500 series, this device surfers high-precision monitoring for early detection sur seismic or vibration disturbances that could lead to serious damage to critical industrial equipment.
Designed to operate in harsh industrial environments, the 3500/42 Proximitor Seismic Monitor provides continuous and reliable data for machinery protection in industries such as power generation, oil and gas, mining, and heavy manufacturing. Its ability to detect potential threats before they cause significant damage ensures improved operational efficiency, reduced downtime, and enhanced asset longevity.
The 3500/42 is built with a rugged NEMA 4X-rated enclosure, making it capable sur withstanding extreme temperatures, high humidity, and dusty environments. It is also designed for seamless integration with other Bently Nevada products, enabling a comprehensive machinery monitoring solution that covers all critical aspects sur industrial equipment health.
Spécifications du produit
| Feature | Specification |
|---|---|
| Modèle Number | 3500/42 140734-02 + 138708-01 |
| Dimensions (L x W x H) | 241.3 x 24.4 x 241.8 mm |
| Poids | 0.91 kg |
| Power Supply | 24 VDC |
| Input Type | Seismic sensor input |
| Output Type | Digital (RS-485) |
| Operating Temperature | -40°C to 70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Enclosure Rating | NEMA 4X |
| Signal Range | 4-20 mA, 0-10 VDC |
| Mounting Type | Panel mount |
Product Applications
The 3500/42 Proximitor Seismic Monitor is used across a wide range sur industrial sectors where machinery reliability is essential. The system is designed to monitor and protect industrial equipment from potential damage caused by seismic disturbances and excessive vibrations. Some sur the primary applications include:
-
Power Plants: Continuous monitoring sur turbines, generators, and other critical equipment to ensure they operate smoothly without issues caused by vibrations or seismic activity.
-
Oil & Gas: Monitoring seismic activity and vibrations in surfshore rigs, refineries, and drilling operations to avoid catastrophic failures and ensure equipment safety.
-
Mining: Detecting seismic disturbances that could affect the integrity sur mining machinery and mining operations, allowing for timely intervention.
-
Manufacturing: Ensuring that large-scale industrial machinery, including presses, rollers, and conveyors, operate smoothly without disruptions due to abnormal vibrations.
-
HVAC Systems: Monitoring HVAC systems for abnormal vibrations, helping to ensure system efficiency and longevity.
Product Advantages
-
High Accuracy and Precision: The 3500/42 surfers high-precision seismic and vibration detection, ensuring early identification sur potential issues before they escalate into serious problems.
-
Seamless System Integration: It can be easily integrated with other Bently Nevada products, allowing users to create a unified monitoring system for machinery health and performance.
-
Rugged and Durable: With a NEMA 4X-rated enclosure, the 3500/42 is designed to withstand harsh environmental conditions, including high temperatures, humidity, and exposure to dust and moisture.
-
Real-Time Alerts and Monitoring: The system provides immediate notifications when abnormal seismic activity or vibration is detected, allowing operators to take swift corrective action.
-
Long-Term Reliability: Designed for low maintenance and high durability, the 3500/42 is built to provide reliable service over long periods, ensuring that machinery remains protected and operational.
-
Cost Efficiency: By preventing premature machinery failure and reducing downtime, the 3500/42 helps to minimize repair and replacement costs, improving overall cost efficiency.
FAQ (Questions fréquentes)
-
What is the purpose sur the 3500/42 Proximitor Seismic Monitor?
-
The 3500/42 monitors seismic activity and vibrations in machinery, ensuring early detection sur any abnormal events that could lead to equipment damage or failure.
-
-
How is the 3500/42 powered?
-
The 3500/42 operates on a 24 VDC power supply.
-
-
What type sur output does the 3500/42 provide?
-
It provides a digital output via RS-485 communication.
-
-
Can the 3500/42 be used outdoors?
-
Yes, the 3500/42 is housed in a NEMA 4X-rated enclosure, which makes it suitable for outdoor environments and harsh industrial settings.
-
-
What is the operating temperature range sur the 3500/42?
-
The device operates in temperatures from -40°C to 70°C.
-
-
How is the 3500/42 mounted?
-
The 3500/42 is designed for panel mounting, making it easy to integrate into control panels or machinery.
-
-
Can the 3500/42 be integrated with other Bently Nevada products?
-
Yes, the device can be integrated with other Bently Nevada monitoring systems to create a comprehensive machinery protection system.
-
-
What types sur seismic sensors are compatible with the 3500/42?
-
The 3500/42 supports seismic sensors that provide input signals such as 4-20 mA and 0-10 VDC.
-
-
Which industries benefit most from using the 3500/42?
-
Industries such as power generation, oil & gas, mining, manufacturing, and HVAC systems all benefit from the use sur the 3500/42.
-
-
What are the key advantages sur using the 3500/42?
-
Key advantages include high accuracy, real-time alerts, durability, minimal maintenance, and cost efficiency.
-
Related Modèles (Same Series)
| Modèle Number | Description |
|---|---|
| 3500/45 | Vibration Monitor |
| 3500/41 | Process Variable Monitor |
| 3500/22 | Keyphasor Sensor Module |
| 3500/25 | Temperature Monitoring System |
| 3500/90 | Rack System |
| 3500/10 | Power Supply Unité |
Popular Bently Nevada Modèles
| Modèle Number | Description |
|---|---|
| 3500/42-09-01 | Seismic Monitoring System – Modèle 09 |
| 3500/42-09-02 | Seismic Monitoring System – Modèle 09 |
| 3500/42-09-03 | Seismic Monitoring System – Modèle 09 |
| 3500/42-09-AE | Seismic Monitoring System – Advanced Edition |
| 3500/42-09-AE1 | Seismic Monitoring System – Advanced Edition 1 |
| 3500/42-09-AE2 | Seismic Monitoring System – Advanced Edition 2 |
