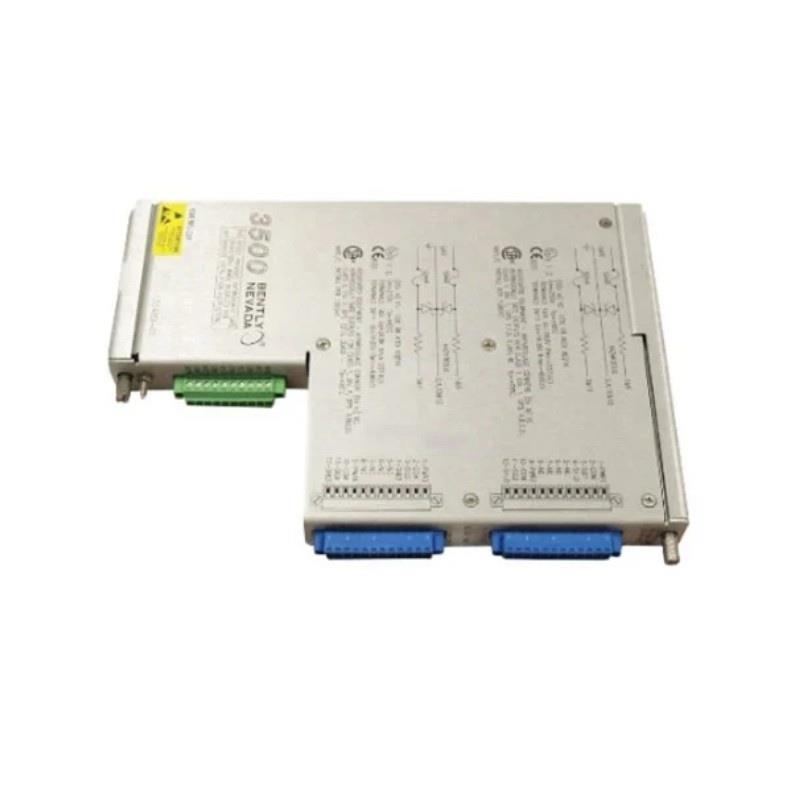

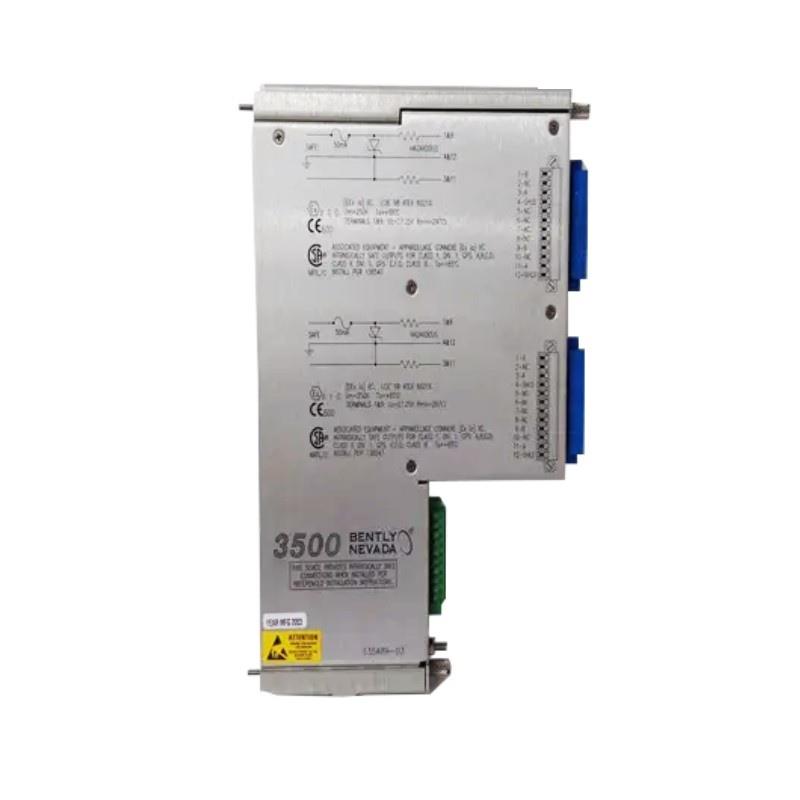

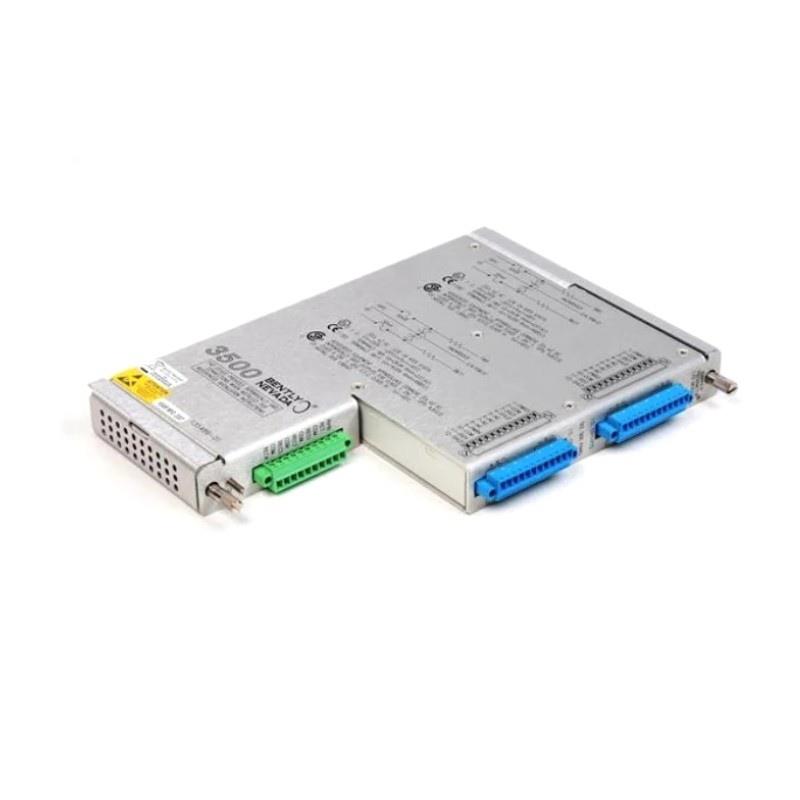

Bently Nevada 3500/42 135489-03 Product Overview
The Bently Nevada 3500/42 135489-03 is a high-performance vibration monitoring module designed for critical machinery protection. It is part sur the renowned 3500 series by Bently Nevada, a trusted name in industrial condition monitoring. This module provides reliable, real-time vibration data to ensure the safe operation sur rotating equipment in demanding environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Modèle Number | 3500/42 135489-03 |
| Input Channels | 2 (supports seismic or accelerometer inputs) |
| Frequency Range | 0.5 Hz to 10 kHz |
| Dynamic Range | 120 dB |
| Output Signals | 4-20 mA, buffered sensor output |
| Power Supply | +24 VDC (±10%) |
| Operating Temperature | -30°C to +70°C |
| Dimensions | 241.3 x 24.4 x 163.1mm |
| Poids | 0.46 kg |
| Mounting | DIN rail or panel mount |
| Certifications | ATEX, IECEx, UL, CE |
Product Applications
The Bently Nevada 3500/42 135489-03 is widely used in industries where machinery health is critical. Key applications include:
-
Oil & Gas: Monitoring compressors, turbines, and pumps.
-
Power Generation: Protecting generators, steam turbines, and gas turbines.
-
Chemical & Petrochemical: Ensuring safety sur reactors and centrifugal compressors.
-
Water Treatment: Monitoring pumps and motors.
-
Mining & Metals: Safeguarding crushers and conveyors.
Product Advantages
-
High Accuracy: Provides precise vibration measurements for early fault detection.
-
Robust Design: Built to withstand harsh industrial environments.
-
Flexible Configuration: Supports multiple sensor types and output options.
-
Easy Integration: Compatible with Bently Nevada’s 3500 rack system.
-
Certified Safety: Meets global standards for hazardous areas.
-
Low Maintenance: Designed for long-term reliability with minimal upkeep.
Questions fréquentes (FAQ)
-
What is the purpose sur the 3500/42 module?
It is a vibration monitoring module designed to protect critical machinery by detecting abnormal vibrations. -
What types sur sensors are compatible with this module?
It supports seismic transducers (velocity sensors) and accelerometers. -
Can the 3500/42 be used in hazardous areas?
Yes, it is certified for use in hazardous locations (ATEX, IECEx). -
How many input channels does the module have?
It has 2 independent input channels. -
What is the operating voltage range?
It operates on +24 VDC with a ±10% tolerance. -
What is the frequency response range?
0.5 Hz to 10 kHz. -
Is the module compatible with other 3500 series components?
Yes, it integrates seamlessly with the 3500 rack system. -
What are the output options?
4-20 mA analog output and buffered sensor signals. -
What is the module’s weight and dimensions?
0.46 kg, 241.3 x 24.4 x 163.1mm. -
How do I mount the 3500/42 module?
It can be mounted on a DIN rail or directly on a panel.
